Hammond 1555ULGY 200x120x45mm Low-Profile ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Slim 200 x 120 x 45 mm (7.87 x 4.72 x 1.77 in) ABS body
- Tested to and meets IP66; IK07 impact rating
- Boards up to 190.5 x 106.6 mm on M3 brass inserts
- 37.45 mm inside height per the drawing
- Replaceable silicone gasket, tongue and groove lid
- 4 included M4 stainless steel self captivating screws
- Indoor use, -20°C to +60°C

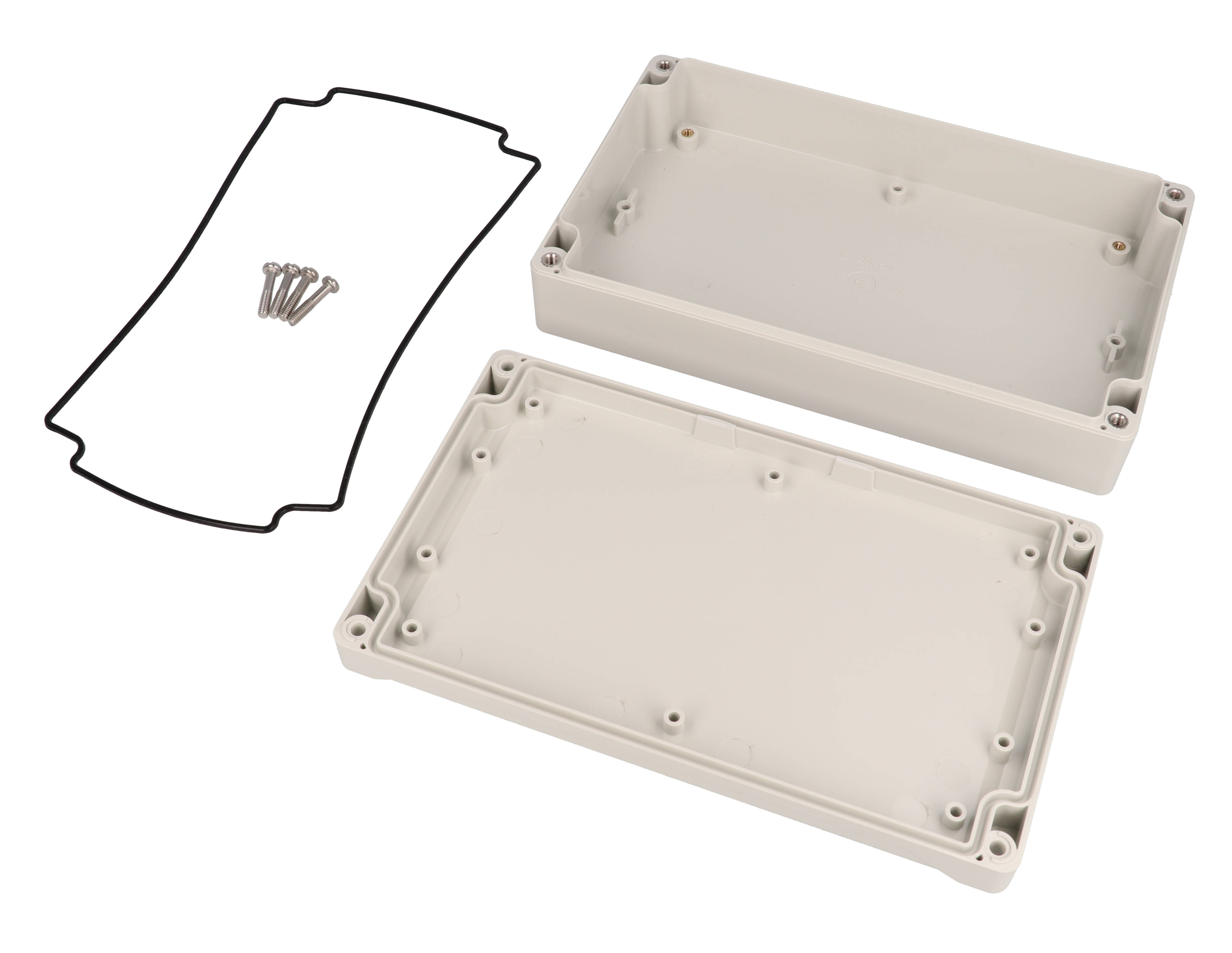

The 1555ULGY is a slim general purpose ABS enclosure measuring 200 x 120 x 45 mm (7.87 x 4.72 x 1.77 in), finished in light gray RAL 7035. It is a straightforward choice for housing a single long printed circuit board or a low DIN rail device in indoor equipment where a watertight lid is still wanted.
The ABS material is rated UL94 HB and intended for indoor use. ABS versions are not UL listed, but have been tested to and meet IP66, and they carry an IK07 impact rating per IEC 62262:2021 with a recommended operating temperature of -20°C to +60°C (-4°F to +140°F). A two-piece tongue and groove lid with a replaceable one-piece silicone gasket (supplied loose) keeps out oil, dust and water, and four included M4 stainless steel screws thread into corrosion resistant inserts.
Per the drawing, inside length is 192.98 mm and inside height is 37.45 mm. Boards up to 190.5 x 106.6 mm mount on integral M3 brass inserts or on standoffs for #6 self tapping screws; the 1554UPL steel inner panel is sold separately. The molding also includes DIN rail tabs and vertical card guides for 1.5 mm boards.
Four 4.30 mm wall-mounting holes are located outside the gasket channel and can also be used for the 1554FT foot kit. The polycarbonate, UL 508A listed version of this size is 1555UL2GY.
Ideal For
- Indoor single-board electronics housings
- Low-profile indoor controllers
- Slim DIN rail device enclosures
- Wall-mounted indoor electronics
Overview
| Lid | Gray lid |
| Type | Water-tight |
| Series | 1555 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Part Number | 1555ULGY |
| Long Description | RAL7035 grey ABS plastic watertight enclosure |
| Short Description | 200X120X45MM ABS NEMA ENCL |
| Polycarbonate UL Listed) Version | 1555UL2GY |
Dimensions
| Width | 4.72 in (120 mm) |
| Length | 7.87 in (200 mm) |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 37.45 mm [1.47 in] |
| Inside Length | 192.98 mm [7.60 in] |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in] dia., located outside the gasket channel |
| Max. P.C. Board Width | 106.6 mm |
| Max. P.C. Board Length | 190.5 mm |
| Nominal Size (L X W X H) | 7.9 in x 4.7 in x 1.77 in (201 mm x 119 mm x 45 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554UGASKET |
| Compatible Clear Lid (Not Styled) | 1554UCL (200 x 120 x 15 mm) |
| Steel Inner Panel (Order Separately) | 1554UPL |
Identifiers
| UPC | 623980425801 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.62 lbs (0.28 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | Replaceable one-piece high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Screws | Included M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Solid Models | .stp or .x_t |
| Lid Standoffs | Molded in lid interior, designed for #6 self tapping screws |
| PC Card Guides | Vertical card guides for 1.5 mm thick P.C. boards |
| Lid Construction | Gasketed lid, two-piece tongue and groove construction |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Qty Of Lid Screws | 4 |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| PCB / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs for #6 self tapping screws |
Environmental & Protection
| IP Rating | IP66 |
| Environment | For indoor use |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS); tested to and meets IP66 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Polycarbonate Version) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555ULGY?▾
7.87 x 4.72 x 1.77 in (200 x 120 x 45 mm). The drawing shows 192.98 mm inside length and 37.45 mm inside height.
Is the 1555ULGY suitable outdoors?▾
No. ABS versions are for indoor use. The polycarbonate 1555UL2GY is UV stabilized for outdoor use.
What IP rating does it meet?▾
IP66. ABS versions are not UL listed but have been tested to and meet IP66.
What board size does it accept?▾
The listed maximum P.C. board size is 190.5 x 106.6 mm.
What does it weigh?▾
The shipping weight is 0.62 lbs (0.28 kg).
