Rm 0804 Top/Bot Plate - Solid
- Type panel
- Material Aluminum
$6.68In stock
Buy now
New Sizes
Rack Mount Aluminum Instrument Enclosure · RM Series
Brand: Hammond Manufacturing · 126 part numbers
Extruded Aluminum, 19" Rack-Mount or Desktop Use
- ■Strong yet lightweight construction using all aluminum components.
- ■Suitable for desktop or rack mount applications.
- ■Knockdown design ships unassembled for easy handling and shipping protection.
- ■Strong construction using: Extruded aluminum side panels 0.125" (3.2 mm) thick Extruded aluminum front and rear panels 0.125" (3.2mm) thick Flat aluminum top and bottom panels 0.064" (1.6 mm) thick
- ■Extruded aluminum side panels 0.125" (3.2 mm) thick
- ■Extruded aluminum front and rear panels 0.125" (3.2mm) thick
from $3.98
126 of 126 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RM Series part number
Filter 119 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
119 of 119 part numbers · 119 priced online
Rm 0804 Top/Bot Plate -Vented
- Type panel
- Material Aluminum
$10.99In stock
Buy nowRm 0808 Top/Bot Plate - Solid
- Type panel
- Material Aluminum
$8.95In stock
Buy nowRm 0808 Top/Bot Plate -Vented
- Type panel
- Material Aluminum
$14.55Backorder
Buy nowRm 1908 Top/Bot Plate - Solid
- Type panel
- Material Aluminum
$14.89In stock
Buy nowRm 1908 Top/Bot Plate -Vented
- Type panel
- Material Aluminum
$18.03In stock
Buy nowRm 1913 Top/Bot Plate - Solid
- Type panel
- Material Aluminum
$19.97In stock
Buy nowRm 1913 Top/Bot Plate -Vented
- Type panel
- Material Aluminum
$21.76In stock
Buy nowRm 1918 Top/Bot Plate - Solid
- Type panel
- Material Aluminum
$22.47In stock
Buy nowRm 1918 Top/Bot Plate -Vented
- Type panel
- Material Aluminum
$26.06In stock
Buy now
Rm 19x22" Top/Bot Plate, Solid
- Type panel
- Material Aluminum
$24.46In stock
Buy now

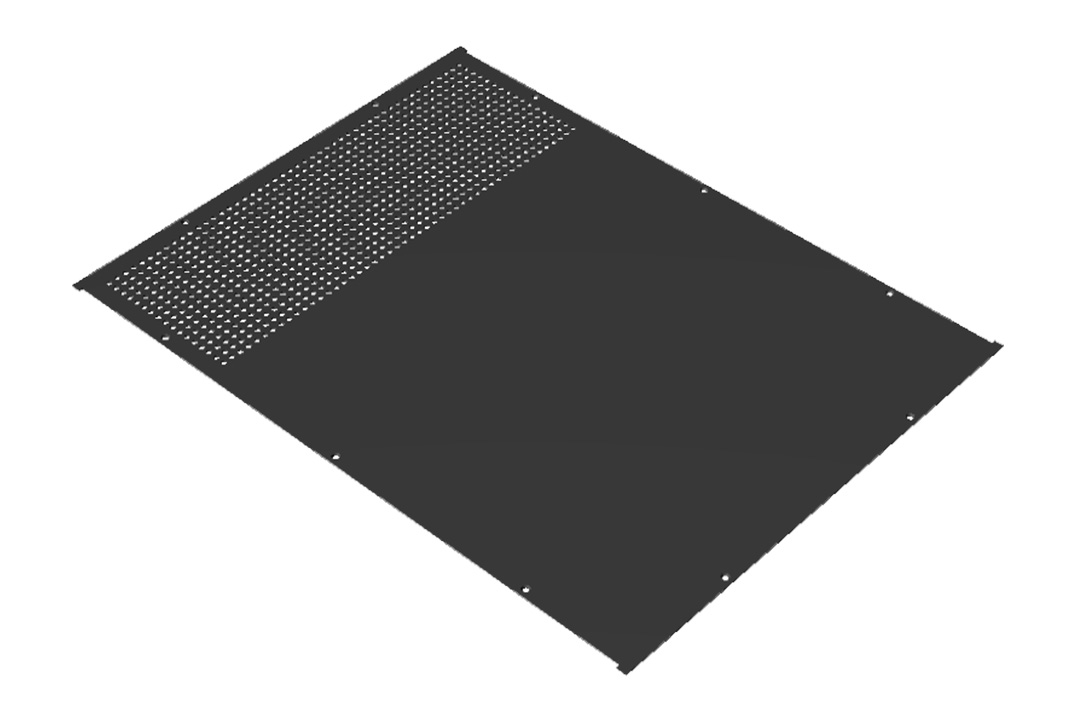

RM19x22" Top/Bot Plate, Vented
- Type panel
- Material Aluminum
$29.51In stock
Buy nowRm 19x28" Top/Bot Plate, Solid
- Type panel
- Material Aluminum
$26.88In stock
Buy nowRm 19x28" Top/Bot Plate Vented
- Type panel
- Material Aluminum
$32.77In stock
Buy nowRM1U X 4" Side Panel Black
- Type panel
- Material Aluminum
$11.44In stock
Buy now
RM1U X 8.3" X 4.25" Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack No
$95.13In stock
Buy now
RM1U 8.3" X 4.25" Case Vented
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack No
$97.76In stock
Buy now
RM1U X 8.3" X 8" Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack No
$102.37In stock
Buy now
RM1U X 8.3" X 8" Case Vented
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack No
$109.15In stock
Buy nowRM1U X 8.05" Front/Rear Panel
- Type Panel
- Material Aluminum
- Rack Units 1U
$7.28Backorder
Buy nowRM1U X 8" Side Panel Black
- Type Panel
- Material Aluminum
$12.44Backorder
Buy nowRM1U X 13" Side Panel Black
- Type Panel
- Material Aluminum
$15.00In stock
Buy nowRM1U X 18" Side Panel Black
- Type Panel
- Material Aluminum
$19.99Backorder
Buy now

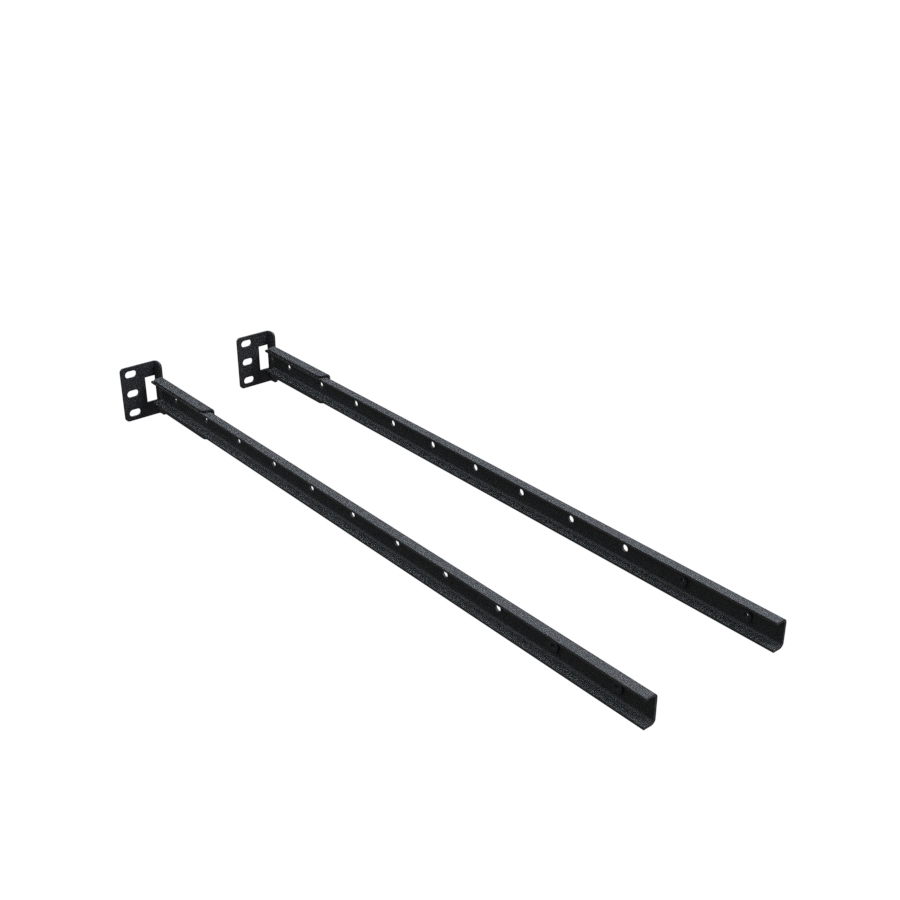

Rear Bracket Kit For 1U 18" Deep
- Type Rear bracket
- Material Steel
- Rack Units 1U
- Includes 19" Rack Yes
$41.78In stock
Buy now
Rm 1UX19X8 Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$120.44In stock
Buy now
Rm 1UX19X8 Enclosure (Vented)
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$126.14In stock
Buy now

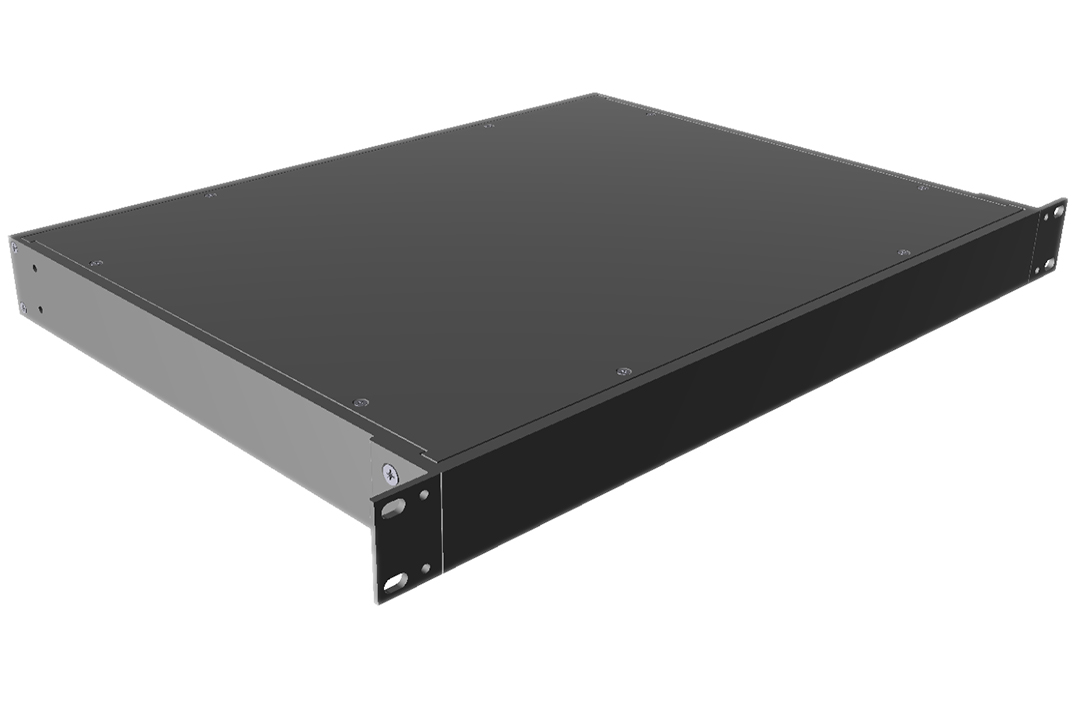

Rm 1UX19X13 Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$145.00Backorder
Buy now
Rm 1UX19X13 Enclosure (Vented)
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$152.80Backorder
Buy now

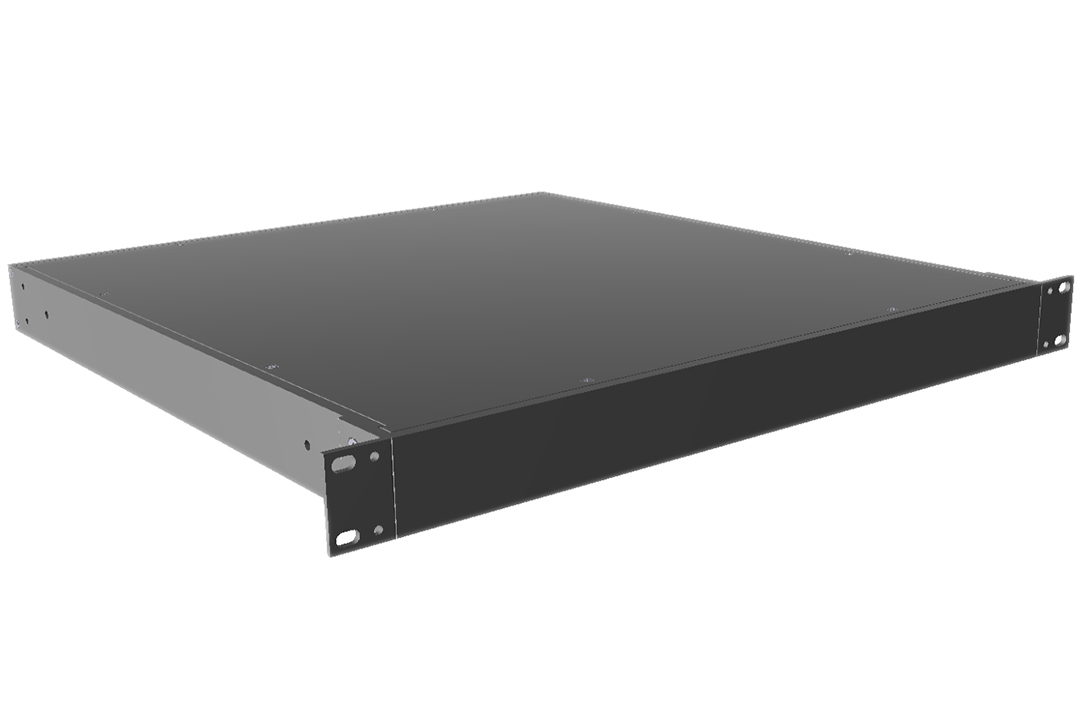

Rm 1UX19X18 Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$183.49In stock
Buy now
Rm 1UX19X18 Enclosure (Vented)
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$194.49Backorder
Buy now

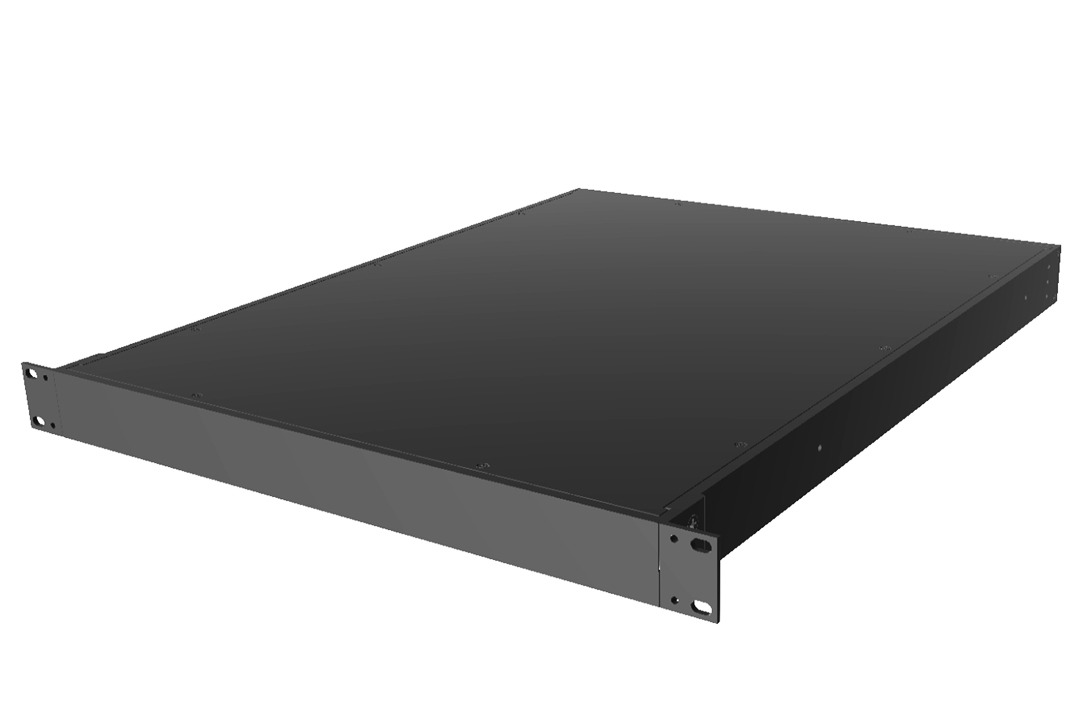

Rm 1U X 19" X 22" Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$214.28In stock
Buy now
Rm 1Ux19x22 Enclosure (Vented)
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$227.85Backorder
Buy now

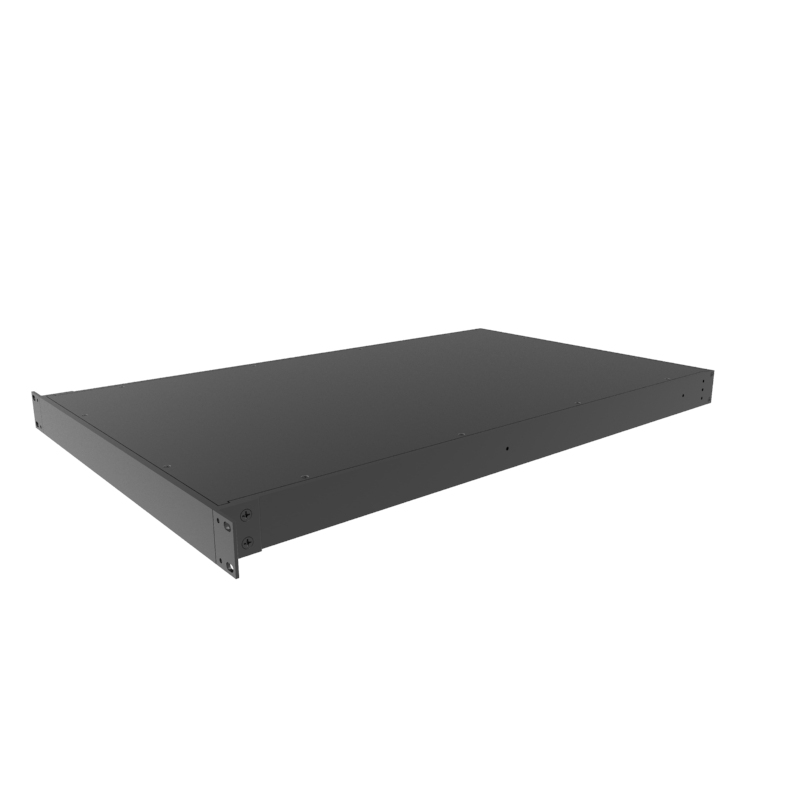

Rm 1U X 19" X 28" Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$245.09In stock
Buy now
Rm 1Ux19x28 Enclosure (Vented)
- Type Rack-Mount
- Material Aluminum
- Rack Units 1U
- Includes 19" Rack Yes
$262.03In stock
Buy nowRM1U X 16.35" Front/Rear Panel
- Type Panel
- Material Aluminum
- Rack Units 1U
$9.80In stock
Buy nowRM1U X 22" Side Panel Black
- Type Panel
- Material Aluminum
$20.63In stock
Buy nowRM1U X 28" Side Panel Black
- Type Panel
- Material Aluminum
$21.71In stock
Buy nowRM1U Case - Mounting Flanges
- Type Mounting flange
- Material Aluminum
- Rack Units 1U
$9.96In stock
Buy nowRM2U X 4" Side Panel Black
- Type Panel
- Material Aluminum
$13.15In stock
Buy now
RM2U X 8.3" X 4.25" Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 2U
- Includes 19" Rack No
$101.59In stock
Buy now
RM2U 8.3" X 4.25" Case Vented
- Type Rack-Mount
- Material Aluminum
- Rack Units 2U
- Includes 19" Rack No
$104.19In stock
Buy now

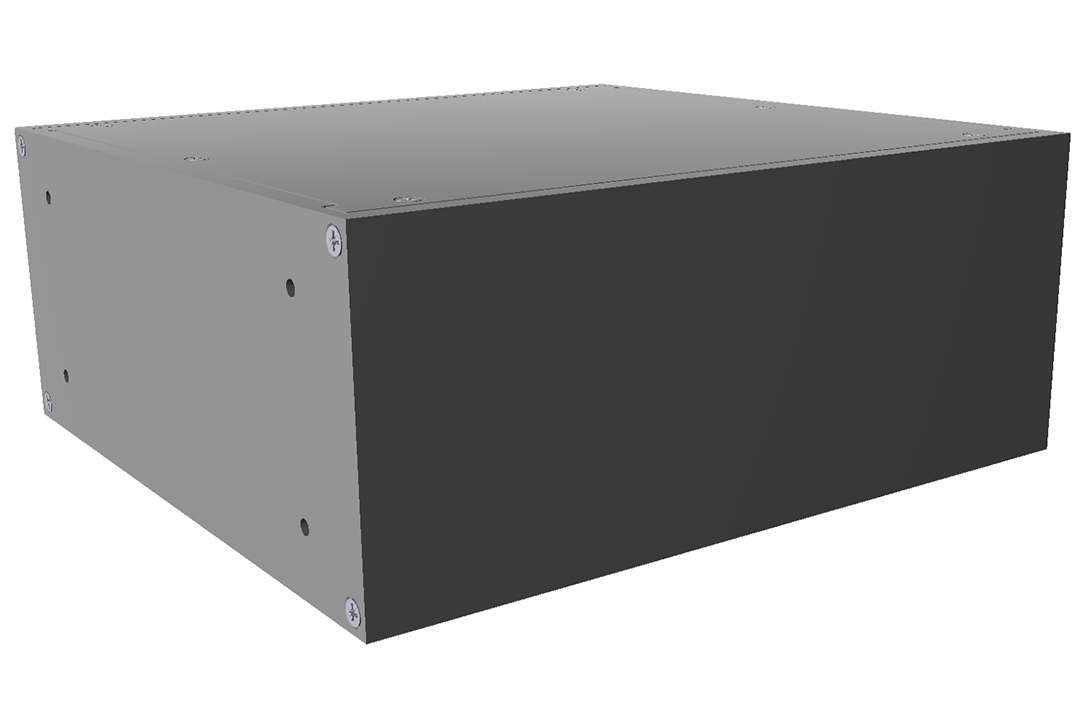

RM2U X 8.3" X 8" Enclosure
- Type Rack-Mount
- Material Aluminum
- Rack Units 2U
- Includes 19" Rack No
$110.23In stock
Buy now
RM2U X 8.3" X 8" Case Vented
- Type Rack-Mount
- Material Aluminum
- Rack Units 2U
- Includes 19" Rack No
$117.05In stock
Buy nowRM2U X 8.05" Front/Rear Panel
- Type Panel
- Material Aluminum
- Rack Units 2U
$8.90Backorder
Buy nowRM2U X 8" Side Panel Black
- Type Panel
- Material Aluminum
$15.38In stock
Buy nowRM2U X 13" Side Panel Black
- Type Panel
- Material Aluminum
$20.19In stock
Buy nowRM2U X 18" Side Panel Black
- Type Panel
- Material Aluminum
$25.75In stock
Buy now

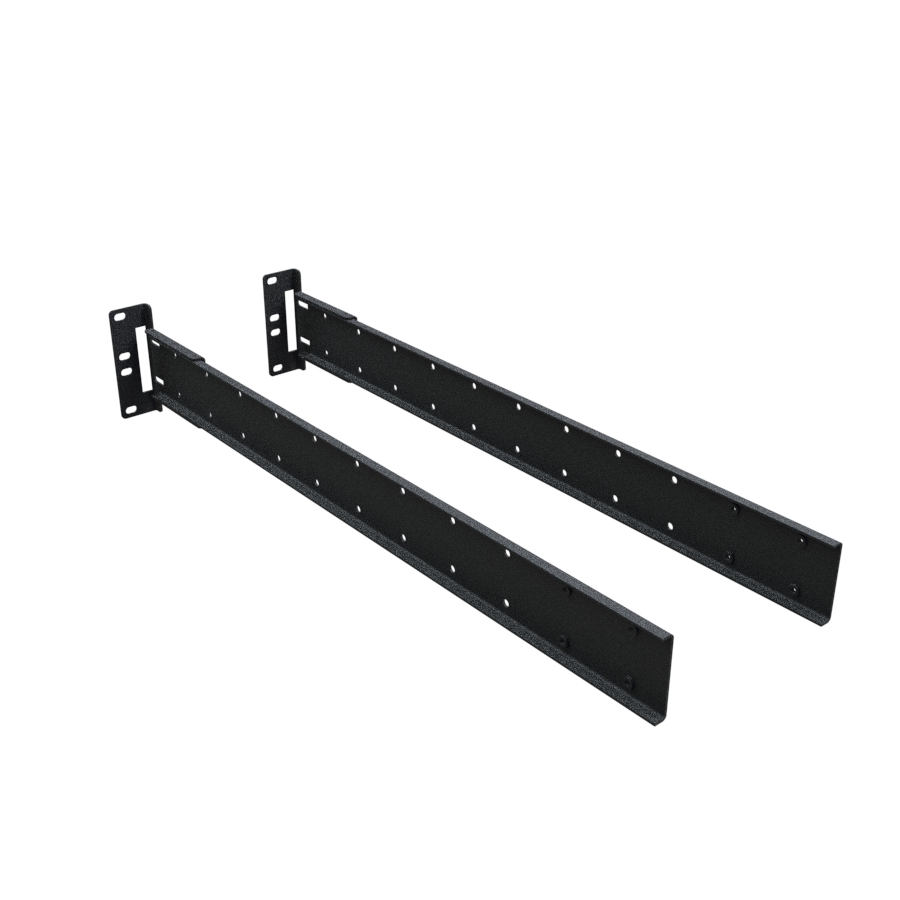

Rear Bracket Kit For 2U 18" Deep
- Type Rear bracket
- Material Steel
- Rack Units 2U
- Includes 19" Rack Yes
$45.97In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Solid · Top/Bottom | Vented · Top/Bottom | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Rack Units | Includes · 19" Rack · Mounting · Ears | Accepts · Pull Handle · Part No. | Adjustable Depth · Mounting Bracket · Part No. · (Sold in Pairs) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| RM1U0804SBK | RM1U0804VBK | 1.75 | 8.30 | 4.25 | 1U | No | 1427B2BK | $95.13In stockRM1U0804SBK | Buy now | |
| RM1U0808SBK | RM1U0808VBK | 1.75 | 8.30 | 8.00 | 1U | No | 1427B2BK | $102.37In stockRM1U0808SBK | Buy now | |
| RM1U1908SBK | RM1U1908VBK | 1.75 | 16.60 | 8.00 | 1U | Yes | 1427B2BK | $120.44In stockRM1U1908SBK | Buy now | |
| RM1U1913SBK | RM1U1913VBK | 1.75 | 16.60 | 13.00 | 1U | Yes | 1427B2BK | $145.00BackorderRM1U1913SBK | Buy now | |
| RM1U1918SBK | RM1U1918VBK | 1.75 | 16.60 | 18.00 | 1U | Yes | 1427B2BK | RM1U18BRKT | $183.49In stockRM1U1918SBK | Buy now |
| RM1U1922SBK | RM1U1922VBK | 1.75 | 16.60 | 22.00 | 1U | Yes | 1427B2BK | RM1U18BRKT | $214.28In stockRM1U1922SBK | Buy now |
| RM1U1928SBK | RM1U1928VBK | 1.75 | 16.60 | 28.00 | 1U | Yes | 1427B2BK | RM1U18BRKT | $245.09In stockRM1U1928SBK | Buy now |
| RM2U0804SBK | RM2U0804VBK | 3.50 | 8.30 | 4.25 | 2U | No | 1427E1BK | $101.59In stockRM2U0804SBK | Buy now | |
| RM2U0808SBK | RM2U0808VBK | 3.50 | 8.30 | 8.00 | 2U | No | 1427E1BK | $110.23In stockRM2U0808SBK | Buy now | |
| RM2U1908SBK | RM2U1908VBK | 3.50 | 16.60 | 8.00 | 2U | Yes | 1427E1BK | $143.56In stockRM2U1908SBK | Buy now | |
| RM2U1913SBK | RM2U1913VBK | 3.50 | 16.60 | 13.00 | 2U | Yes | 1427E1BK | $173.31In stockRM2U1913SBK | Buy now | |
| RM2U1918SBK | RM2U1918VBK | 3.50 | 16.60 | 18.00 | 2U | Yes | 1427E1BK | RM2U18BRKT | $219.38In stockRM2U1918SBK | Buy now |
| RM2U1922SBK | RM2U1922VBK | 3.50 | 16.60 | 22.00 | 2U | Yes | 1427E1BK | RM2U18BRKT | $256.27In stockRM2U1922SBK | Buy now |
| RM2U1928SBK | RM2U1928VBK | 3.50 | 16.60 | 28.00 | 2U | Yes | 1427E1BK | RM2U18BRKT | $292.82In stockRM2U1928SBK | Buy now |
| RM3U0804SBK | RM3U0804VBK | 5.25 | 8.30 | 4.25 | 3U | No | 1427P1BK | $107.88In stockRM3U0804SBK | Buy now | |
| RM3U0808SBK | RM3U0808VBK | 5.25 | 8.30 | 8.00 | 3U | No | 1427P1BK | $118.06In stockRM3U0808SBK | Buy now | |
| RM3U1908SBK | RM3U1908VBK | 5.25 | 16.60 | 8.00 | 3U | Yes | 1427P1BK | $171.49In stockRM3U1908SBK | Buy now | |
| RM3U1913SBK | RM3U1913VBK | 5.25 | 16.60 | 13.00 | 3U | Yes | 1427P1BK | $205.46BackorderRM3U1913SBK | Buy now | |
| RM3U1918SBK | RM3U1918VBK | 5.25 | 16.60 | 18.00 | 3U | Yes | 1427P1BK | RM3U18BRKT | $260.08In stockRM3U1918SBK | Buy now |
| RM3U1922SBK | RM3U1922VBK | 5.25 | 16.60 | 22.00 | 3U | Yes | 1427P1BK | RM3U18BRKT | $303.78BackorderRM3U1922SBK | Buy now |
| RM3U1928SBK | RM3U1928VBK | 5.25 | 16.60 | 28.00 | 3U | Yes | 1427P1BK | RM3U18BRKT | $347.50BackorderRM3U1928SBK | Buy now |
| RM4U1908SBK | RM4U1908VBK | 7.00 | 16.60 | 8.00 | 4U | Yes | 1427P1BK | $188.67In stockRM4U1908SBK | Buy now | |
| RM4U1913SBK | RM4U1913VBK | 7.00 | 16.60 | 13.00 | 4U | Yes | 1427P1BK | $226.01In stockRM4U1913SBK | Buy now | |
| RM4U1918SBK | RM4U1918VBK | 7.00 | 16.60 | 18.00 | 4U | Yes | 1427P1BK | RM4U18BRKT | $286.09In stockRM4U1918SBK | Buy now |
| RM4U1922SBK | RM4U1922VBK | 7.00 | 16.60 | 22.00 | 4U | Yes | 1427P1BK | RM4U18BRKT | $345.08In stockRM4U1922SBK | Buy now |
| RM4U1928SBK | RM4U1928VBK | 7.00 | 16.60 | 28.00 | 4U | Yes | 1427P1BK | RM4U18BRKT | $404.07BackorderRM4U1928SBK | Buy now |
| RM5U1913SBK | RM5U1913VBK | 8.75 | 16.60 | 13.00 | 5U | Yes | 1427P1BK | $237.30In stockRM5U1913SBK | Buy now | |
| RM5U1918SBK | RM5U1918VBK | 8.75 | 16.60 | 18.00 | 5U | Yes | 1427P1BK | RM5U18BRKT | $300.39In stockRM5U1918SBK | Buy now |
| RM5U1922SBK | RM5U1922VBK | 8.75 | 16.60 | 22.00 | 5U | Yes | 1427P1BK | RM5U18BRKT | $362.34BackorderRM5U1922SBK | Buy now |
| RM5U1928SBK | RM5U1928VBK | 8.75 | 16.60 | 28.00 | 5U | Yes | 1427P1BK | RM5U18BRKT | $424.27BackorderRM5U1928SBK | Buy now |
Replacement Hardware
| Part No. | Description | Used For | Price | Order |
|---|---|---|---|---|
| RM632SC100BK | 100 pack of 6-32 x 3/8" thread rolling (taptite) screws | Side panel assembly | $16.10Backorder | Buy now |
| RM440SN100BK | 100 pack of 4-40 speed nuts | Top & bottom panel assembly | $12.39In stock | Buy now |
| RM440MS100BK | 100 pack of 4-40 machine screws | Top & bottom panel assembly | $8.73In stock | Buy now |
| RM1032MS100BK | 100 pack of 10-32 machine screws | Rack mounting bracket assembly | $16.43In stock | Buy now |
Replacement Front (Pair) of Rack Ears
Adjustable-Depth Rear (Pair) of Rack Ears for 4-Post Mounting
Units shown: inch . Switch units to: mm
| Part No. | For Chassis Height | Max Depth · Added to Chassis | Price | Order |
|---|---|---|---|---|
| RM1U18BRKT | 1U | 16.00 | $41.78In stock | Buy now |
| RM2U18BRKT | 2U | 16.00 | $45.97In stock | Buy now |
| RM3U18BRKT | 3U | 16.00 | $50.56Backorder | Buy now |
| RM4U18BRKT | 4U | 16.00 | $55.57Backorder | Buy now |
| RM5U18BRKT | 5U | 16.00 | $58.34Backorder | Buy now |
Replacement Top/Bottom Body Panel (Sold Individually)
Units shown: inch . Switch units to: mm
| Solid · Part No. | Vented · Part No. | Panel Dimensions · Width | Panel Dimensions · Depth | Price | Order |
|---|---|---|---|---|---|
| RM0804BKSP | RM0804BKVP | 8.30 | 4.25 | $6.68In stockRM0804BKSP | Buy now |
| RM0808BKSP | RM0808BKVP | 8.30 | 8.00 | $8.95In stockRM0808BKSP | Buy now |
| RM1908BKSP | RM1908BKVP | 16.60 | 8.00 | $14.89In stockRM1908BKSP | Buy now |
| RM1913BKSP | RM1913BKVP | 16.60 | 13.00 | $19.97In stockRM1913BKSP | Buy now |
| RM1918BKSP | RM1918BKVP | 16.60 | 18.00 | $22.47In stockRM1918BKSP | Buy now |
| RM1922BKSP | RM1922BKVP | 16.60 | 22.00 | $24.46In stockRM1922BKSP | Buy now |
| RM1928BKSP | RM1928BKVP | 16.60 | 28.00 | $26.88In stockRM1928BKSP | Buy now |
Replacement Side Panels (Sold Individually)
Units shown: inch . Switch units to: mm
| 1U (Part No.) | 2U (Part No.) | 3U (Part No.) | 4U (Part No.) | 5U (Part No.) | Depth | Price | Order |
|---|---|---|---|---|---|---|---|
| RM1U04BKSP | RM2U04BKSP | RM3U04BKSP | 4.00 | $11.44In stockRM1U04BKSP | Buy now | ||
| RM1U08BKSP | RM2U08BKSP | RM3U08BKSP | RM4U08BKSP | 8.00 | $12.44BackorderRM1U08BKSP | Buy now | |
| RM1U13BKSP | RM2U13BKSP | RM3U13BKSP | RM4U13BKSP | RM5U13BKSP | 13.00 | $15.00In stockRM1U13BKSP | Buy now |
| RM1U18BKSP | RM2U18BKSP | RM3U18BKSP | RM4U18BKSP | RM5U18BKSP | 18.00 | $19.99BackorderRM1U18BKSP | Buy now |
| RM1U22BKSP | RM2U22BKSP | RM3U22BKSP | RM4U22BKSP | RM5U22BKSP | 22.00 | $20.63In stockRM1U22BKSP | Buy now |
| RM1U28BKSP | RM2U28BKSP | RM3U28BKSP | RM4U28BKSP | RM5U28BKSP | 28.00 | $21.71In stockRM1U28BKSP | Buy now |
Replacement Front or Rear Panel (Sold Individually)
Units shown: inch . Switch units to: mm
| Part No. | Height | Width | Rack Units | Price | Order |
|---|---|---|---|---|---|
| RM1U08BKFP | 1.75 | 8.30 | 1U | $7.28Backorder | Buy now |
| RM2U08BKFP | 3.50 | 8.30 | 2U | $8.90Backorder | Buy now |
| RM3U08BKFP | 5.25 | 8.30 | 3U | $10.51In stock | Buy now |
| RM1U19BKFP | 1.75 | 16.60 | 1U | $9.80In stock | Buy now |
| RM2U19BKFP | 3.50 | 16.60 | 2U | $13.06In stock | Buy now |
| RM3U19BKFP | 5.25 | 16.60 | 3U | $16.24In stock | Buy now |
| RM4U19BKFP | 7.00 | 16.60 | 4U | $19.34In stock | Buy now |
| RM5U19BKFP | 8.75 | 16.60 | 5U | $36.33In stock | Buy now |
Features
- ■Strong yet lightweight construction using all aluminum components.
- ■Suitable for desktop or rack mount applications.
- ■Knockdown design ships unassembled for easy handling and shipping protection.
- ■Strong construction using: Extruded aluminum side panels 0.125" (3.2 mm) thick Extruded aluminum front and rear panels 0.125" (3.2mm) thick Flat aluminum top and bottom panels 0.064" (1.6 mm) thick
- ■Extruded aluminum side panels 0.125" (3.2 mm) thick
- ■Extruded aluminum front and rear panels 0.125" (3.2mm) thick
- ■Flat aluminum top and bottom panels 0.064" (1.6 mm) thick
- ■Can be used with or without rack mounting brackets. One pair included with 19" mounting versions.
- ■Enclosure is finished in rugged textured black powder coat.
- ■Pull handles and adjustable rear bracket rack mount kit for deeper models are available separately.
- ■RoHS Compliant.
- ■Manufactured in North America.
- ■NOTE : Panels are not grounded to frame due to powder coat finish. Grounding method to be determined by customer.
What's In The Box
Each assembly includes:
- ■2x interchangeable front and rear panels
- ■2x interchangeable top and bottom panels
- ■2x interchangeable side panels
- ■4x self-adhesive rubber feet
- ■Assembly hardware, including screws and speed nuts. Quantities are size-specific; see drawings for more details
- ■Full-width versions only - 1x pair of 19" rack mounting flanges and hardware
Documents
Any questions? Talk with an expert
Call us (224) 955-1644Accessories for this series
Related products
Type 4X, 6P Enclosures · 1555F Series
from $1.38
Shop parts
Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures · 1555 Series
from $1.38
Shop parts
Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures · 1554 Series
from $1.38
Shop parts
Extruded Aluminum Enclosures · 1455 Series
from $2.08
Shop parts
Pressure Compensation Plug · BDN Series
from $79.41
Shop parts
Watertight Diecast Aluminum Enclosures w/ Flanges · 1550ZF Series
from $1.49
Shop parts
Type 4X/ 6P Diecast Aluminum Enclosures · 1590Z Series
from $1.11
Shop parts
Tube Guitar Amplifier - Output Transformers · 1750 Series
from $28.89
Shop parts
