Hammond RM632SC100BK #6-32 x 3/8" Black Taptite Flat Head Screws, 100-Pack
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

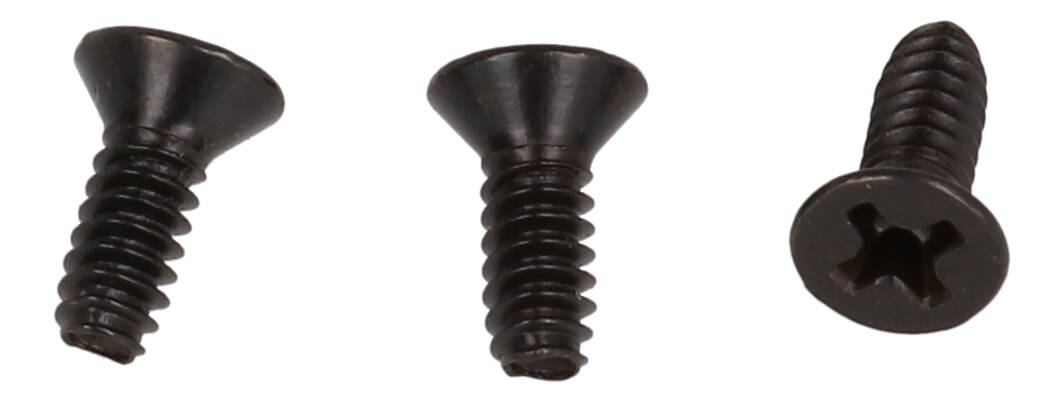

- 100 black #6-32 x 3/8" self tapping screws
- For RM series panel assembly
- Taptite #6-32 x 0.375" tri-lobular thread
- #2 drive Phillips flat head, 82° head angle, 6.35 mm [0.250 in] head
- Black steel; RoHS and REACH compliant
- Boxed; shipping weight 0.99 lbs (0.45 kg)
The RM632SC100BK is a 100-pack of black #6-32 x 3/8" self tapping screws for Hammond RM series panel assembly. It is for OEM engineers, integrators and technicians who build or service RM series enclosures and need replacement screws for the panels.

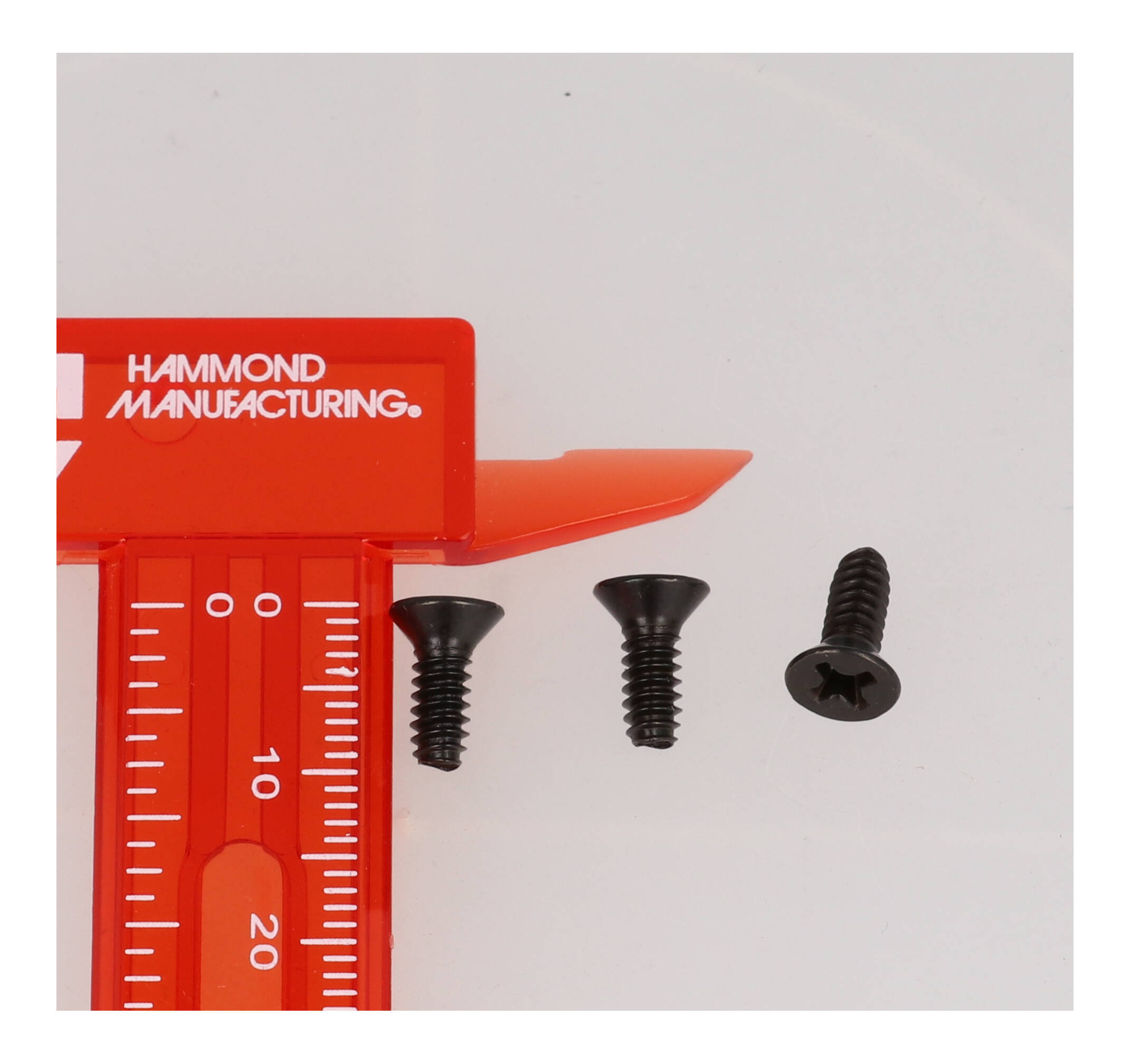

The part drawing specifies black steel, a #2 drive Phillips flat head and a Taptite #6-32 x 0.375" thread with a tri-lobular form. Drawing dimensions include a screw length of 9.53 mm [0.375 in], a head diameter of 6.35 mm [0.250 in], a head height of 2.06 mm [0.081 in] and an 82° head angle.

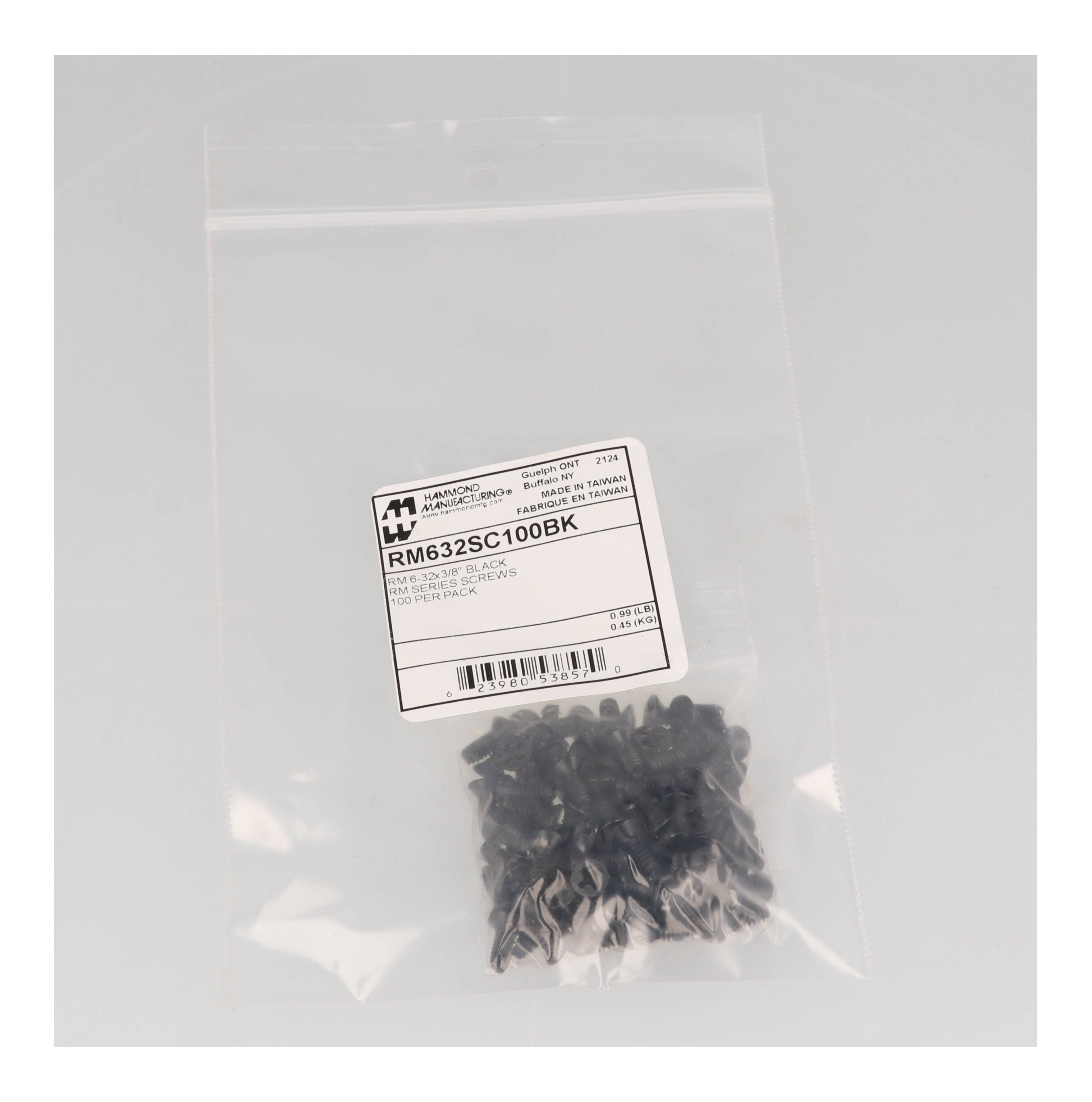

The series hardware list classifies the part as assembly screws for the RM series and describes it as #6-32 x 3/8" screws, black. The screws are sold 100 per package in a box, with a shipping weight of 0.99 lbs (0.45 kg). The RM632SC100BK is RoHS compliant and REACH compliant.
Other RM series hardware in the list includes #4-40 and #10-32 screws for different parts of the assembly, so choose the size that matches the fastening point. In most cases, enclosures include all hardware needed for assembly, so this pack covers replacements and spares. Hardware packs may not be compatible with all parts in the listed series; check the enclosure's replacement parts and accessories list before ordering.
Ideal For
- Assembling RM series panels
- Replacing lost RM panel screws
- Spare black hardware for RM enclosure service
Overview
| Head | #2 Drive Phillips Flat Head |
| Thread | Taptite #6-32 x 0.375" (tri-lobular) |
| Part Number | RM632SC100BK |
| Screw Style | Self tapping |
| Product Type | Screws |
| Hardware Type | Assembly Screws |
| Long Description | hardware - 6-32 x 3/8" self tapping screws for RM panel assembly - 100 pack |
| Quantity Per Pack | 100 |
| Short Description | RM 6-32 x 3/8 SCREW, 100 PACK |
| Hardware Description | #6-32 x 3/8" screws, black |
Dimensions
| Head Angle | 82° |
| Head Height | 2.06 mm [0.081 in] |
| Screw Length | 9.53 mm [0.375 in] |
| Head Diameter | 6.35 mm [0.250 in] |
Identifiers
| UPC | 623980538570 |
| UNSPSC | 39121301 |
Compatibility
| Intended Use | RM panel assembly |
| Applicable Enclosure Series | RM |
Packaging & Shipping
| Packaging Type | box |
| Shipping Weight | 0.99 lbs (0.45 kg) |
Construction & Finish
| Color | Black |
| Material | Steel |
| Material (Drawing) | Steel (Black) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is RM632SC100BK used for?▾
The manufacturer describes it as 6-32 x 3/8" self tapping screws for RM panel assembly.
What thread type do the screws have?▾
A Taptite #6-32 x 0.375" thread, shown as tri-lobular on the drawing.
What head style is it?▾
A #2 drive Phillips flat head with an 82° head angle and a 6.35 mm [0.250 in] head diameter.
How many are in a pack?▾
100 per package, in a box.
