Hammond RM1032MS100BK #10-32 x 3/8" Black Undercut Flat Head Screws

The RM1032MS100BK is a 100-pack of black #10-32 x 3/8" machine screws for the Hammond RM series mounting bracket. It is for OEM engineers, integrators and technicians who install or service RM series enclosures and need replacement screws for the mounting bracket.

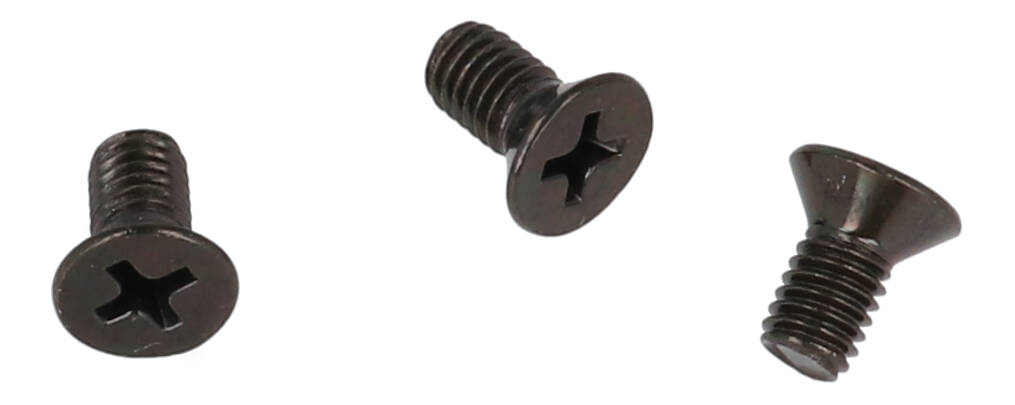

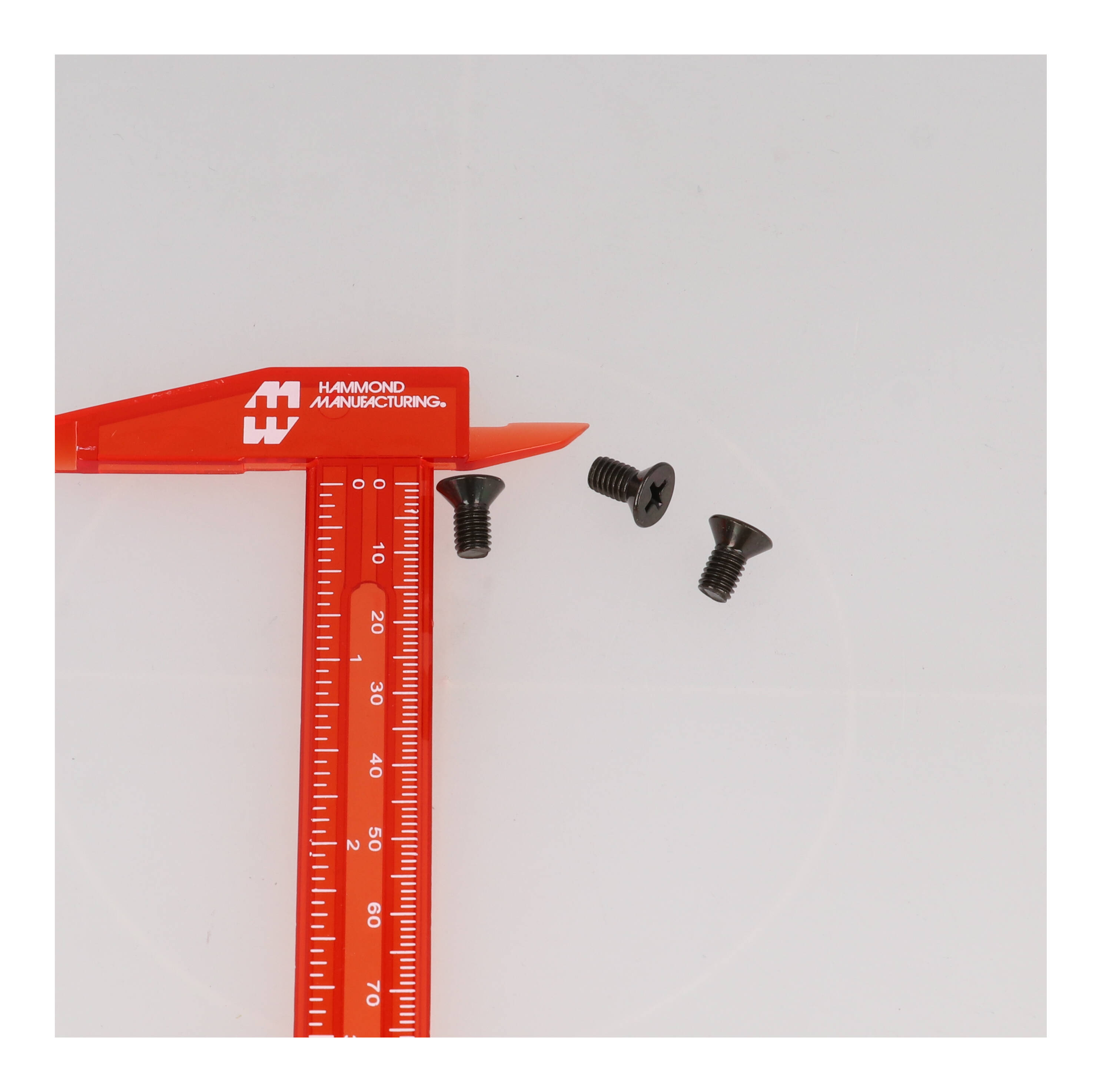

The part drawing specifies black steel and a #2 drive undercut Phillips flat head with a #10-32 x 0.375" thread. Drawing dimensions include a screw length of 9.53 mm [0.375 in], a head diameter of 9.14 mm [0.360 in], a head height of 1.91 mm [0.075 in] and an 82° head angle.

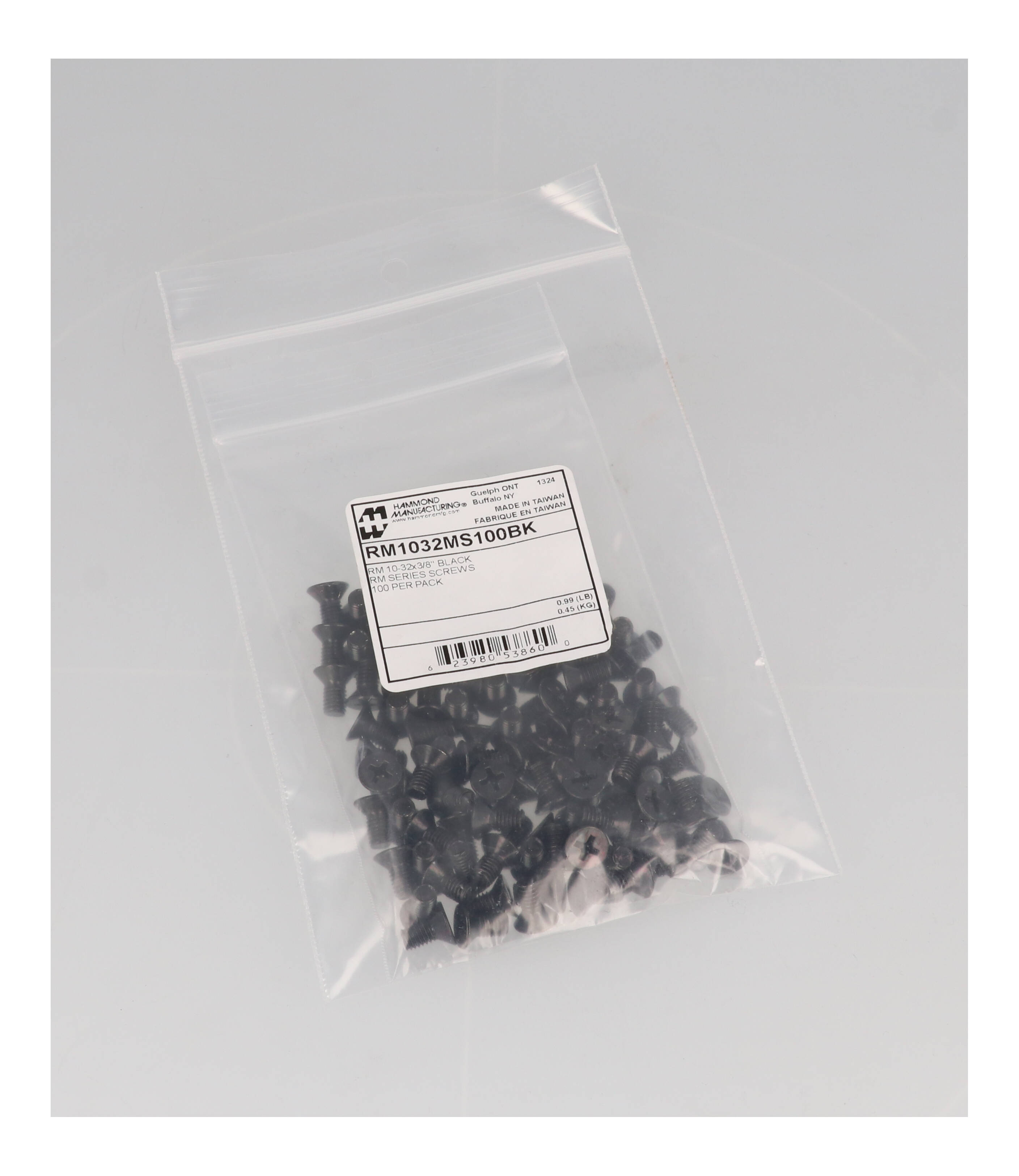

The series hardware list classifies the part as assembly screws for the RM series and describes it as #10-32 x 3/8" screws, black. The screws are sold 100 per package in a bag, with a shipping weight of 0.99 lbs (0.45 kg). The RM1032MS100BK is RoHS compliant and REACH compliant.

The RM series hardware in the list also includes #4-40 screws and speed nuts for top/bottom plate assembly and #6-32 self tapping screws for panel assembly, so choose the pack that matches the fastening point. In most cases, enclosures include all hardware needed for assembly; this pack covers replacements and spares. Hardware packs may not be compatible with all parts in the listed series, so check the enclosure's replacement parts and accessories list before ordering.
