Hammond 1427E1BK 2 in Black Steel Handle Pair, 6-32 Screws

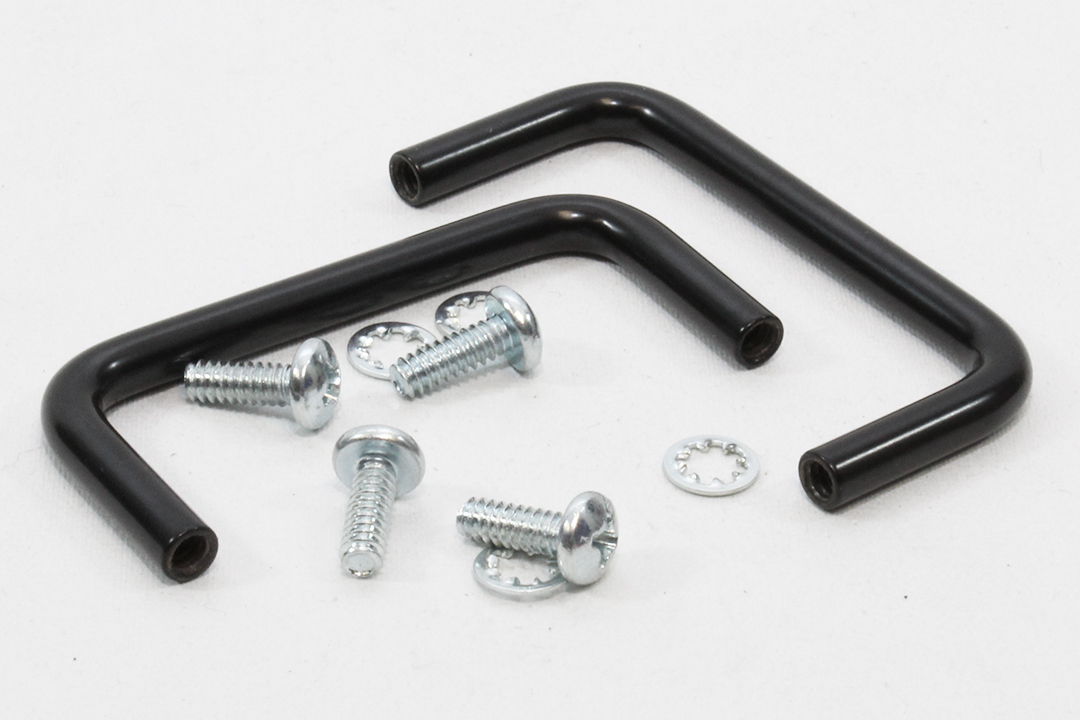

The 1427E1BK is a pair kit of black 2.00 in (51 mm) centre round steel handles, supplied with four screws and four lockwashers. It belongs to the 1427 chassis handle series, round steel pulls for chassis, panels and drawers, and suits OEM engineers, panel builders and technicians fitting a handle to their own equipment. A pair kit is a simple way to buy matching handles for both sides of a panel in one part number.

The handle is made from round steel; the drawing specifies CR steel (two handles). The product description lists the colour as black, and the drawing notes the finish as Blank Zinc Plated. It is sold as a pair and mounting hardware is included.

Per the series ordering table, 1427E1BK has 2.00 in (51 mm) mounting hole centres, a 1.00 in (25 mm) handle depth and a 0.19 in (5 mm) handle diameter, and is listed for a 5.25 in (133 mm) panel height. The part page gives its size (H x W x D) as 2.18 in x 1 in x 0.19 in (55 mm x 25 mm x 5 mm). On the drawing the overall width is 55.45 mm [2.183 in] and the overall height 26.23 mm [1.032 in]. Shipping weight is 0.08 lbs (0.04 kg).

The handle ends are tapped 6-32 UNC - 2B x 12.7 mm [0.500 in], and the kit includes 4 screws (panhead 6-32 x 3/8") and 4 internal tooth lockwashers, so it fastens from behind the panel at 2.00 in (51 mm) centres. The part is listed as REACH compliant and RoHS compliant.
