Hammond RM1U0804VBK 1U 8.3 x 4.25 in Vented Aluminum Rack Enclosure

The RM1U0804VBK is a 1U rack-mount or desktop instrument enclosure from the RM Series, built from extruded aluminum with vented top and bottom panels. Its overall dimensions are 1.75 in (44 mm) high, 8.30 in (211 mm) wide and 4.25 in (108 mm) deep, and it is intended for electronics designers, OEM engineers and test and measurement builders who need a compact 1U chassis for desktop use or for rack mounting with the optional flanges.

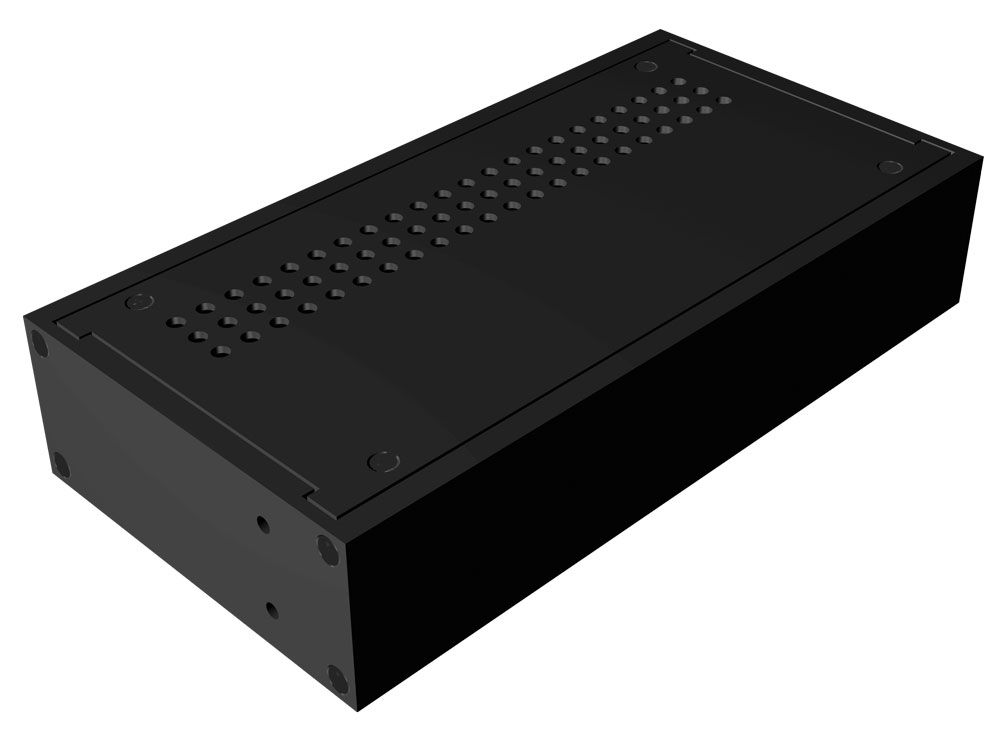

Construction uses a Type 6063 extruded aluminum frame, with extruded aluminum side, front and rear panels 0.125" (3.2 mm) thick and flat 5052-H32 aluminum top and bottom panels .064" (1.6 mm) thick. The enclosure is finished in rugged textured black powder coat. The vented top and bottom panels are perforated with 4.32 mm (0.170 in) holes in 3 rows & 22 columns over a 166.69 mm [6.563 in] wide area, for applications that need ventilation through the case. The solid-panel version is RM1U0804SBK. Because of the powder coat, panels are not grounded to the frame and the grounding method is to be determined by the customer.

This half-width version does not include 19" rack mounting ears; the drawing notes the mounting flange is not included and lists RM1UMTGFL mounting flanges with screws as an accessory. It accepts the 1427B2BK pull handle, and the drawing shows an 8.300 in (210.82 mm) body with a 204.47 mm [8.050 in] front panel.

The knockdown design ships unassembled for easy handling and shipping protection. Per the drawing the kit includes 8 flat head 4-40 x 3/8" screws, 8 flat head 6-32 x 3/8" screws, 8 #4 speed nuts, 4 self adhesive rubber feet. It ships in a box at 3 lbs (1.36 kg) and is RoHS and REACH compliant, and it is manufactured in North America.
