Hammond RM2U19BKFP 2U 16.35" Aluminum Front/Rear Replacement Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Replacement front or rear panel for RM2U19 (2U) RM enclosures
- Nominal 3.50 in (89 mm) high x 16.60 in (422 mm) wide
- Drawing size 415.30 mm [16.350 in] x 88.13 mm [3.470 in], 3.18 mm [0.125 in] thick
- Extruded aluminum with black textured powder coat
- Sold individually; front and rear panels are interchangeable
- RoHS and REACH compliant
The RM2U19BKFP is a replacement front or rear panel for the full-width 16.60 in 2U RM Series rack-mount aluminum enclosures (RM2U19 sizes). It is sold individually, so a builder can order a spare to machine for a new front-panel layout, replace a damaged panel, or keep a blank on hand for revisions without buying a whole enclosure.
In the series table the panel is listed at 3.50 in (89 mm) high by 16.60 in (422 mm) wide for a 2U chassis. The part drawing gives the panel itself as 415.30 mm [16.350 in] wide and 88.13 mm [3.470 in] high, 3.18 mm [0.125 in] thick, with 2X Ø4.30 mm [0.169 in] holes (the short description names the panel by its drawing width).
Like the panels shipped with the enclosure, it is extruded aluminum 0.125" (3.2mm) thick with a black textured powder coat finish, and the front and rear panels of the series are interchangeable. Because the powder coat keeps panels from being grounded to the frame, plan your own grounding method when fitting connectors or controls.
The RM2U19BKFP ships in a box at 1.27 lbs (0.58 kg), is RoHS and REACH compliant, and carries UPC 623980483030.
Ideal For
- Replacing a damaged enclosure front or rear panel
- Spare panels for custom connector or display cut-outs
- Maintenance of RM2U19 instrument enclosures
Overview
| Type | Panel |
| Series | RM Series Rack Mount Aluminum Instrument Enclosure |
| Sold As | Individually |
| Description | RM2U x 16.35" FRONT/REAR PANEL |
| Part Number | RM2U19BKFP |
| Replacement For | RM2U19 enclosures |
| Long Description | hardware - replacement panels for RM2U19 |
Dimensions
| Nominal Size (Width) | 16.60 in (422 mm) |
| Nominal Size (Height) | 3.50 in (89 mm) |
| Panel Width (Drawing) | 415.30 mm [16.350 in] |
| Panel Height (Drawing) | 88.13 mm [3.470 in] |
| Mounting Holes (Drawing) | 2X Ø4.30 mm [0.169 in] |
| Panel Thickness (Drawing) | 3.18 mm [0.125 in] |
Identifiers
| UPC | 623980483030 |
| UNSPSC | 43201602 |
Rack Mounting
| Rack Units | 2U |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 1.27 lbs (0.58 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black powder coat |
| Material | Aluminum |
| Construction | Extruded aluminum, 0.125" (3.2mm) thick |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use the RM2U19BKFP?▾
It is the replacement front/rear panel for RM2U19 (2U, full-width 16.60 in) RM Series enclosures.
Is it sold as a pair?▾
No, it is sold individually. It can be used as either the front or the rear panel.
What size is the panel?▾
The series table lists it as 3.50 in (89 mm) x 16.60 in (422 mm); the drawing shows the panel at 415.30 mm [16.350 in] wide by 88.13 mm [3.470 in] high and 3.18 mm [0.125 in] thick.
What material and finish is it?▾
Aluminum in black; the series uses extruded aluminum front and rear panels 0.125" (3.2mm) thick in textured black powder coat.
Related Products
Save 52%RM2U1928VBK — rack-mount/ desktop instrument enclosure - vented
Hammond Manufacturing · RM2U1928VBK
Save 52%RM2U22BKSP — RM2U X 22" Side Panel Black
Hammond Manufacturing · RM2U22BKSP

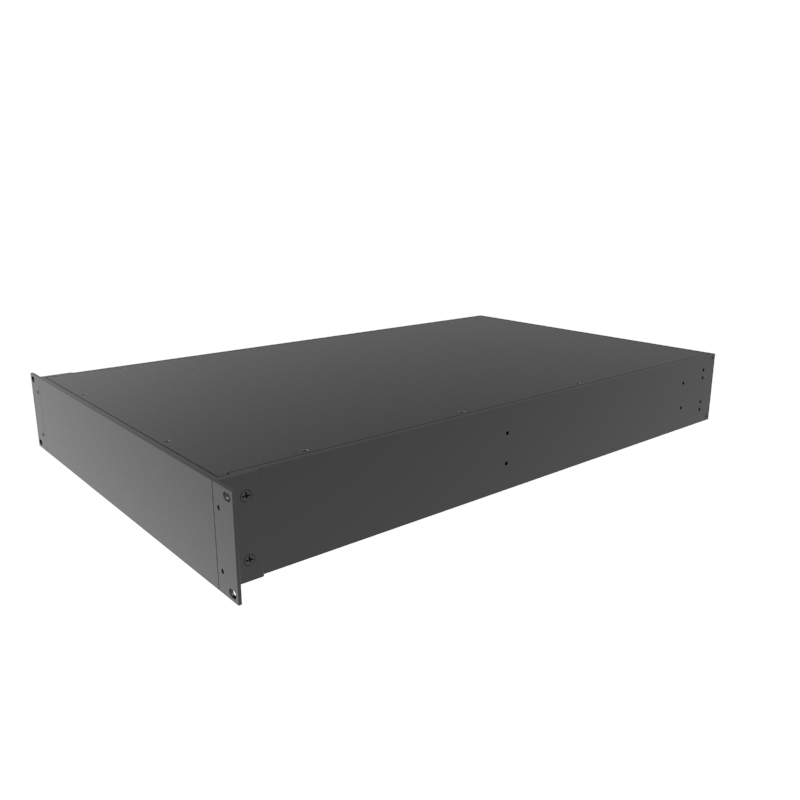

Save 52%RM2U1928SBK — rack-mount/ desktop instrument enclosure - solid
