Hammond RM1922BKSP 16.60 x 22.00 in Solid Top/Bottom Panel, Black

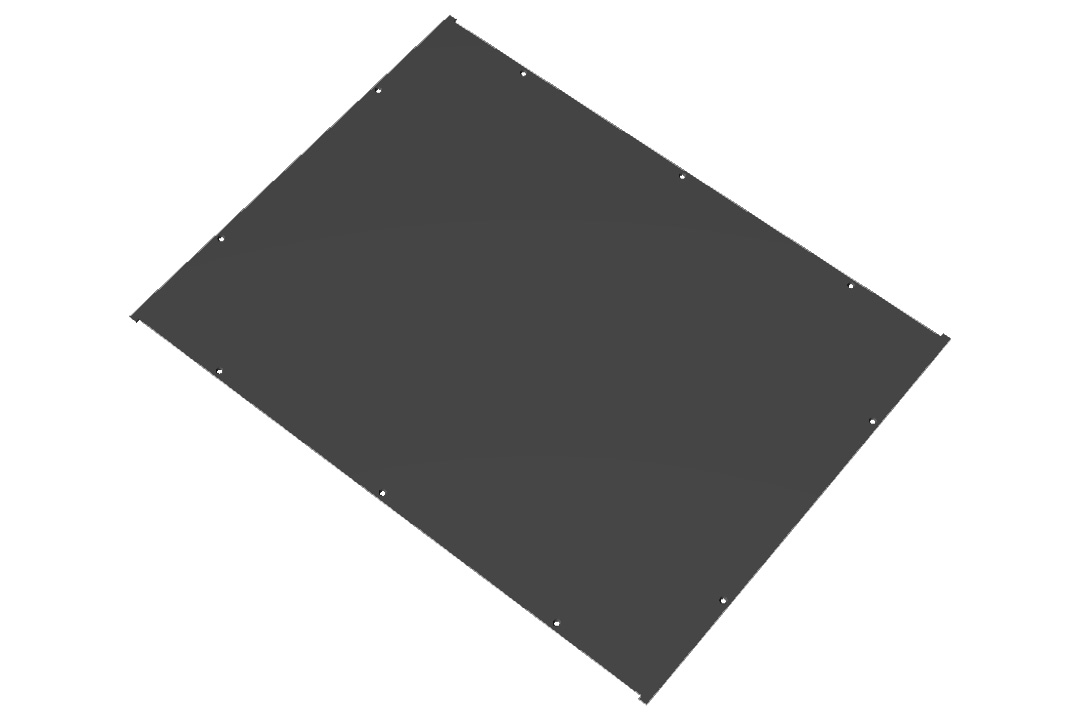

The RM1922BKSP is a solid replacement top or bottom body panel for the RM series rack-mount aluminum instrument enclosure, sold individually. Its nominal panel size is 16.60 in (422 mm) wide by 22.00 in (559 mm) deep, the full 16.60 in width footprint listed in the RM ordering table for the RM1U1922SBK through RM5U1922SBK enclosures. It is intended for OEM builders, maintenance teams and integrators who need to replace a damaged panel, keep a spare for machining, or change an enclosure between solid and vented tops.

It fits the 22 in deep full-width footprint (16.60 x 22.00 in). The part page lists its size as 0.12 in x 16.88 in x 22 in (3 mm x 429 mm x 559 mm), and the drawing shows 10 countersunk mounting holes.

The drawing specifies the panel material as .064" aluminum (5052-H32) with a black powder coat colour, and the part page lists aluminum material in black. Drawing dimensions show the panel at 413.79 mm [16.291 in] by 544.60 mm [21.441 in], 1.80 mm [0.071 in] thick, with mounting holes called out as 10 X Ø0.160 in x 0.07 in, countersunk Ø0.256 in X 82°. Top and bottom panels in the RM design are interchangeable, so the same part serves either position.

The RM1922BKSP is RoHS and REACH compliant, has a shipping weight of 3.31 lbs (1.50 kg), and carries UPC 623980505848. The drawing notes that the panel can be factory modified (milling, drilling, printing) and that solid models are available in STEP or IGES, useful when planning cut-outs for connectors, fans or displays. Because RM enclosure panels are powder coated, they are not grounded to the frame; the grounding method is to be determined by the customer.
