Hammond RM4U19BKFP 4U x 16.35" Front/Rear Panel, Black Aluminum
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Replacement 4U front or rear panel for RM4U19 enclosures
- Sold individually
- Drawing: 415.30 mm [16.350 in] wide x 177.04 mm [6.970 in] high
- Extruded aluminum, 0.125" (3.2 mm) thick
- Four Ø4.30 mm [0.169 in] mounting holes
- Black finish; RoHS and REACH compliant
The Hammond RM4U19BKFP is a replacement front or rear panel for 4U full-width RM Series rack-mount aluminum instrument enclosures (the RM4U19 sizes). It is sold individually, making it useful for OEM engineers who want a spare panel to machine for connectors, displays and controls, or for replacing a damaged panel.
The series ordering table lists it at 7.00 in (178 mm) high and 16.60 in (422 mm) wide for 4U. The part's own description calls it a 4U x 16.35" front/rear panel, and the drawing shows the panel at 415.30 mm [16.350 in] wide and 177.04 mm [6.970 in] high.
RM Series front and rear panels are extruded aluminum 0.125" (3.2 mm) thick; the drawing shows the 3.18 mm [0.125 in] panel thickness and four Ø4.30 mm [0.169 in] mounting holes spaced 106.05 mm [4.175 in] from center. The panel is aluminum in black, matching the textured black powder coat of the RM Series enclosures it replaces. Other full-width replacement front or rear panels in the series are offered for 1U, 2U, 3U and 5U heights.
RM4U19BKFP is RoHS and REACH compliant, ships in a box with a shipping weight of 1.9 lbs (0.86 kg), and carries UPC 623980505879 and UNSPSC 43201602.
Ideal For
- Spare front panel for machining connectors and controls
- Replacing a damaged RM4U19 front or rear panel
- Custom rear I/O panels for 4U RM enclosures
Holes
| Mounting Holes | 4x Ø4.30 mm [0.169 in] |
| Hole Spacing From Center (Drawing) | 106.05 mm [4.175 in] |
Overview
| Type | Panel |
| Series | RM Series Rack Mount Aluminum Instrument Enclosure |
| Sold As | Individually |
| Rack Units | 4U |
| Description | hardware - replacement panels for RM4U19 |
| Part Number | RM4U19BKFP |
| Short Description | RM4U x 16.35" FRONT/REAR PANEL |
Dimensions
| Panel Width (Drawing) | 415.30 mm [16.350 in] |
| Panel Height (Drawing) | 177.04 mm [6.970 in] |
| Width (Ordering Table) | 16.60 in (422 mm) |
| Height (Ordering Table) | 7.00 in (178 mm) |
| Panel Thickness (Drawing) | 3.18 mm [0.125 in] |
| Additional Profile Dimensions (Drawing) | 172.62 mm [6.796 in]; 166.93 mm [6.572 in]; 160.36 mm [6.313 in]; 16.51 mm [0.650 in]; 6.35 mm [0.250 in]; 5.33 mm [0.210 in]; 3.11 mm [0.122 in]; 2.03 mm [0.080 in]; R1.40 mm [R0.055 in] |
Identifiers
| UPC | 623980505879 |
| UNSPSC | 43201602 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 1.9 lbs (0.86 kg) |
Construction & Finish
| Color | Black |
| Material | Aluminum |
| Series Panel Construction | Extruded aluminum front and rear panels 0.125" (3.2 mm) thick |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is RM4U19BKFP a front or rear panel?▾
Either. It is listed as a Replacement Front or Rear Panel, and RM Series front and rear panels are interchangeable.
What size is it?▾
The ordering table lists 7.00 in (178 mm) high and 16.60 in (422 mm) wide for 4U; the drawing shows the panel at 415.30 mm [16.350 in] x 177.04 mm [6.970 in].
Is it sold individually?▾
Yes, replacement front or rear panels are sold individually.
How thick is the panel?▾
RM Series front and rear panels are extruded aluminum 0.125" (3.2 mm) thick; the drawing shows 3.18 mm [0.125 in].
Which enclosures does it fit?▾
It is the replacement panel for the RM4U19 (4U, 16.60 in wide) RM Series enclosures.
Related Products
Save 52%RM4U1928VBK — rack-mount/ desktop instrument enclosure - vented
Hammond Manufacturing · RM4U1928VBK
Save 52%RM4U22BKSP — RM4U X 22" Side Panel Black
Hammond Manufacturing · RM4U22BKSP

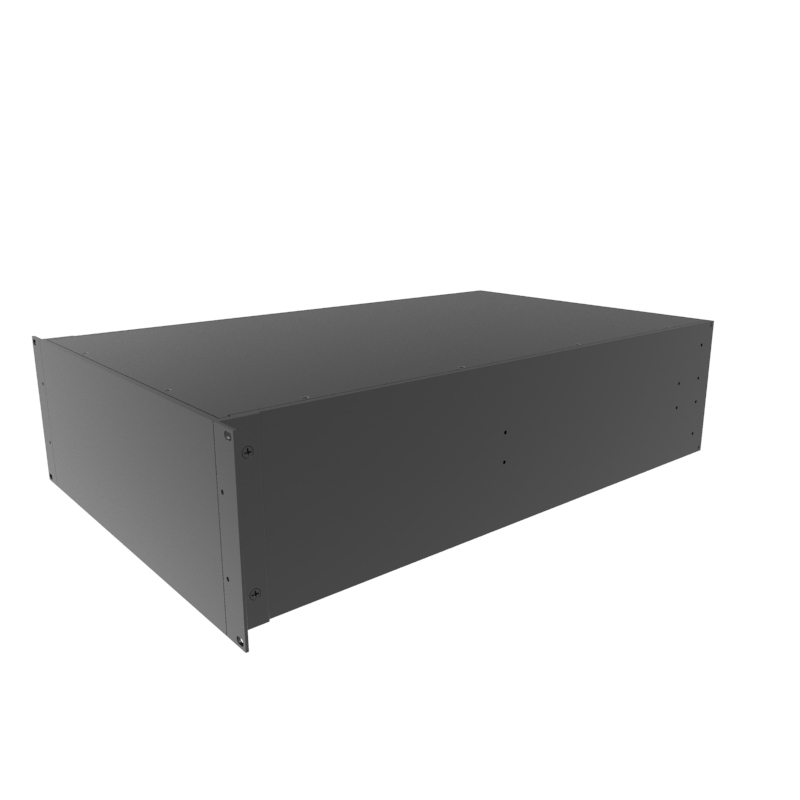

Save 52%RM4U1928SBK — rack-mount/ desktop instrument enclosure - solid
