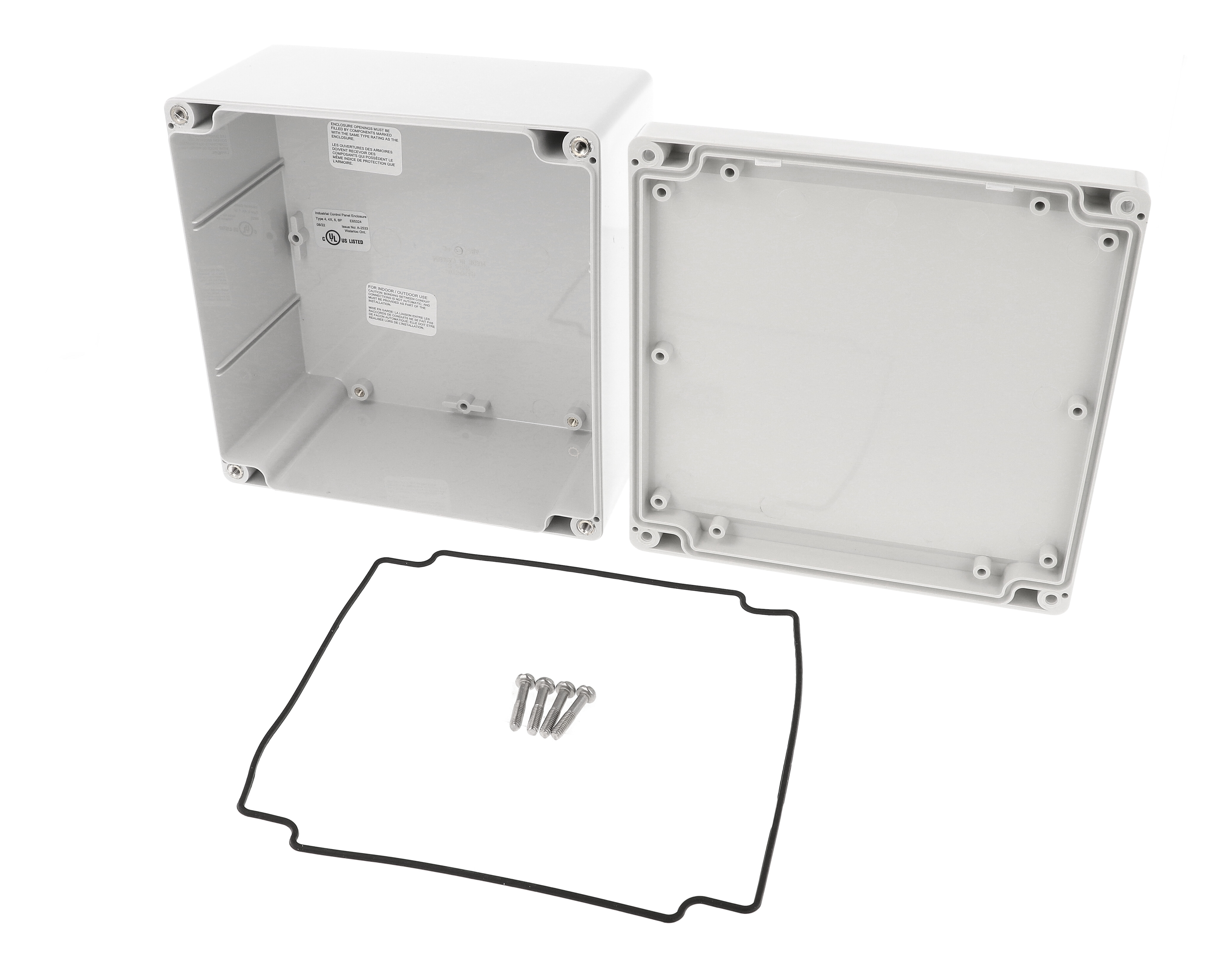

Hammond 1555S2GY 160x160x91mm Deep Polycarbonate NEMA 4X Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Deep 91 mm (3.58 in) body on a 160 x 160 mm footprint
- cUL and UL 508A listed, file E65324
- IP68 listed; NEMA Type 4, 4X, 6, 6P, 12 and 13
- UV stabilized polycarbonate, -40°C to +110°C, UL94 5VA
- IK08 impact rating per IEC 62262:2021
- 81.50 mm inside height; boards to 147.4 x 150.95 mm
- Recommended lid screw torque 43-57 ozf-in (30-40 cN-m)
The 1555S2GY is the deepest of the 160 x 160 mm sizes in the 1555 Series, giving 91 mm (3.58 in) of total height in UV stabilized polycarbonate. Finished in light gray RAL 7035, it is a good fit for integrators and OEMs housing taller components, terminal blocks on DIN rail, or stacked boards outdoors.
Polycarbonate versions are cUL and UL 508A listed under file E65324 and have been independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13; this part is listed as IP68. The material carries a UL94 5VA flame rating, the impact rating is IK08 per IEC 62262:2021, and the recommended operating range is -40°C to +110°C (-40°F to +230°F).
The drawing shows inside dimensions of 152.13 x 148.13 mm with 81.50 mm of inside height. Printed circuit boards up to 147.4 x 150.95 mm fix to integral M3 brass inserts, or to standoffs designed for #6 self tapping screws; the 1554RPL steel inner panel (ordered separately) fits in the box or lid. DIN rail tabs and 1.5 mm vertical card guides are molded in.
Four included self captivating M4 stainless steel screws close the tongue and groove lid onto a replaceable silicone gasket, supplied loose; the drawing recommends 43-57 ozf-in (30-40 cN-m) of torque. Wall-mounting holes outside the gasket channel also accept the 1554FT foot kit.
Ideal For
- Outdoor DIN rail terminal enclosures
- UL 508A listed control sub-panels
- Deep PCB and inner-panel builds
- Outdoor electronics needing IP68 protection
Overview
| Lid | Gray lid |
| Type | Water-tight |
| Series | 1555 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Body Style | 1555S Regular Enclosure |
| ABS Version | 1555SGY |
| Part Number | 1555S2GY |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | 160X160X90MM P/C NEMA ENCL. |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 148.13 mm [5.83 in] |
| Total Height | 3.58 in (91 mm) |
| Inside Height | 81.50 mm [3.21 in] |
| Inside Length | 152.13 mm [5.99 in] |
| Wall Mounting Holes | 4 x 0.16 in dia., located outside the gasket channel |
| Max. P.C. Board Width | 150.95 mm |
| Max. P.C. Board Length | 147.4 mm |
| Nominal Size (L X W X H) | 6.3 in x 6.3 in x 3.5 in (160 mm x 160 mm x 89 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554RGASKET (Silicone pre-formed, black, Pkg 2) |
| Stainless Steel Cover Screws | SC576-50 (M4-0.7 x 20 mm, Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, Pkg 100) |
| Compatible Clear Lid (Not Styled) | 1554RCL (160 x 160 x 15 mm) |
| Steel Inner Panel (Order Separately) | 1554RPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4 in (6.4 mm) plated, Pkg 100) |
Identifiers
| UPC | 623980842783 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.93 lbs (0.42 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | Replaceable one-piece high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | Included M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Solid Models | .stp or .x_t |
| Lid Standoffs | Molded in lid interior, designed for #6 self tapping screws |
| PC Card Guides | Vertical card guides for 1.5 mm thick P.C. boards |
| Lid Construction | Gasketed lid, two-piece tongue and groove construction |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Qty Of Lid Screws | 4 |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| PCB / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs for #6 self tapping screws |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (part page); series: IP66, IP67 and IP68 |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| NEMA Type Rating | 4, 4X, 6, 6P, 12 & 13 |
| UL Type (Drawing) | Type 4, 4X, 6, 6P |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much internal height does the 1555S2GY offer?▾
The drawing shows 81.50 mm (3.21 in) of inside height, with inside length and width of 152.13 x 148.13 mm.
Is the 1555S2GY UL listed?▾
Yes. Polycarbonate versions are cUL and UL 508A listed under file E65324.
What NEMA types does it meet?▾
The part is listed with NEMA ratings 4, 4X, 6, 6P, 12 and 13, and an IP68 rating.
What torque should I use on the lid screws?▾
The drawing recommends 43-57 ozf-in (30-40 cN-m) for the M4 cover screws.
Is there a shorter version with the same footprint?▾
Yes. The series lists 1555R2GY at 61 mm and 1555RL2GY at 45 mm total height on the same 160 x 160 mm footprint.
