Hammond 1555Q2GY 140x140x60mm Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 140 x 140 x 60 mm (5.51 x 5.51 x 2.36 in) gray polycarbonate enclosure
- cUL and UL 508A listed, file E65324; UL94-5VA
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated
- UV stabilized for outdoor use; IK08; -40°C to +110°C
- Interior 132.36 x 128.69 x 51.20 mm; P.C. boards to 127 x 127.5 mm
- DIN rail tabs, M3 brass inserts, #6 standoffs and 1.5 mm card guides
- 4 self-captivating M4 stainless steel lid screws
- 4.30 mm wall-mount holes outside gasket channel; accepts 1554FT
The 1555Q2GY is a 140 mm square polycarbonate enclosure measuring 5.51 in x 5.51 in x 2.36 in (140 mm x 140 mm x 60 mm). It suits electricians, integrators and OEM engineers who need a wider, sealed housing for PC boards, DIN rail components or wiring, indoors or outdoors.
The enclosure is molded in light gray RAL 7035 polycarbonate that is UV stabilized for outdoor use and rated UL94-5VA. Polycarbonate versions are cUL and UL 508A listed under file E65324; this part lists IP68 and NEMA 4, 4X, 6, 6P, 12 & 13, with an IK08 impact rating and a recommended operating range of -40°C to +110°C. The gray lid seals on a two-piece tongue and groove joint with a one-piece replaceable silicone gasket that ships loose inside.
The drawing shows an interior of 132.36 mm long, 128.69 mm wide and 51.20 mm high, and the maximum listed P.C. board size is 127 mm x 127.5 mm. Molded DIN rail tabs, threaded M3 brass inserts, standoffs for #6 self-tapping screws and vertical 1.5 mm card guides are built in, with further #6 standoffs molded inside the lid. The 1554QPL galvanized steel inner panel is available separately.
Four included M4 stainless steel lid screws are self-captivating and thread into corrosion resistant inserts; recommended torque is 43-57 ozf-in (30-40 cN-m). Four 4.30 mm mounting holes sit outside the gasket channel for wall mounting or the 1554FT foot kit. The ABS version of 1555Q2GY is 1555QGY.
Ideal For
- Outdoor electronics and wiring enclosures
- UL 508A control panel housings
- NEMA 4X rated DIN rail enclosures
- Outdoor PCB housings
Mounting
| Lid Standoffs | Molded in the interior of the lid, designed for #6 self-tapping screws |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick P.C. boards |
| Steel Inner Panel | 1554QPL (galvanized steel, order separately) |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in], located outside of the gasket channel |
| Internal DIN Rail Mounting | DIN rail mounting tabs molded into the interior |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs for #6 self-tapping screws |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-tight |
| Series | 1555 Series (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Version | Polycarbonate (UL Listed), gray lid |
| Part Number | 1555Q2GY |
| ABS Equivalent | 1555QGY |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | 140X140X60MM P/C NEMA ENCL. |
| Drawing Designation | 1555Q Regular Enclosure |
| Enclosure Size Code | 1555Q |
Dimensions
| Inside Width | 128.69 mm [5.07 in] |
| Inside Height | 51.20 mm [2.02 in] |
| Inside Length | 132.36 mm [5.21 in] |
| Size (L X W X H) | 5.51 in x 5.51 in x 2.36 in (140 mm x 140 mm x 60 mm) |
| Max. P.C. Board Width | 127.5 mm |
| Max. P.C. Board Length | 127 mm |
| Overall Width (Drawing) | 140.00 mm [5.51 in] |
| Overall Height (Drawing) | 60.10 mm [2.37 in] |
| Overall Length (Drawing) | 140.00 mm [5.51 in] |
| Nominal Width (Ordering Table) | 5.51 in (140 mm) |
| Nominal Length (Ordering Table) | 5.51 in (140 mm) |
| Nominal Total Height (Ordering Table) | 2.36 in (60 mm) |
Accessories
| Replacement Gasket | 1554QGASKET (silicone pre-formed gasket, black, pkg 2) |
| Other Series Accessories | Pole mount kit, breather kit, liquid-tight strain relief cordgrips, pressure compensation plug, small rainproof ventilator, hole plugs |
| Stainless Steel Cover Screws | SC576-50 (M4-0.7 x 20 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Compatible Clear Lid (Not Styled) | 1554QCL (140 mm x 140 mm x 15 mm lid) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980781679 |
| UNSPSC | 39121301 |
Packaging & Shipping

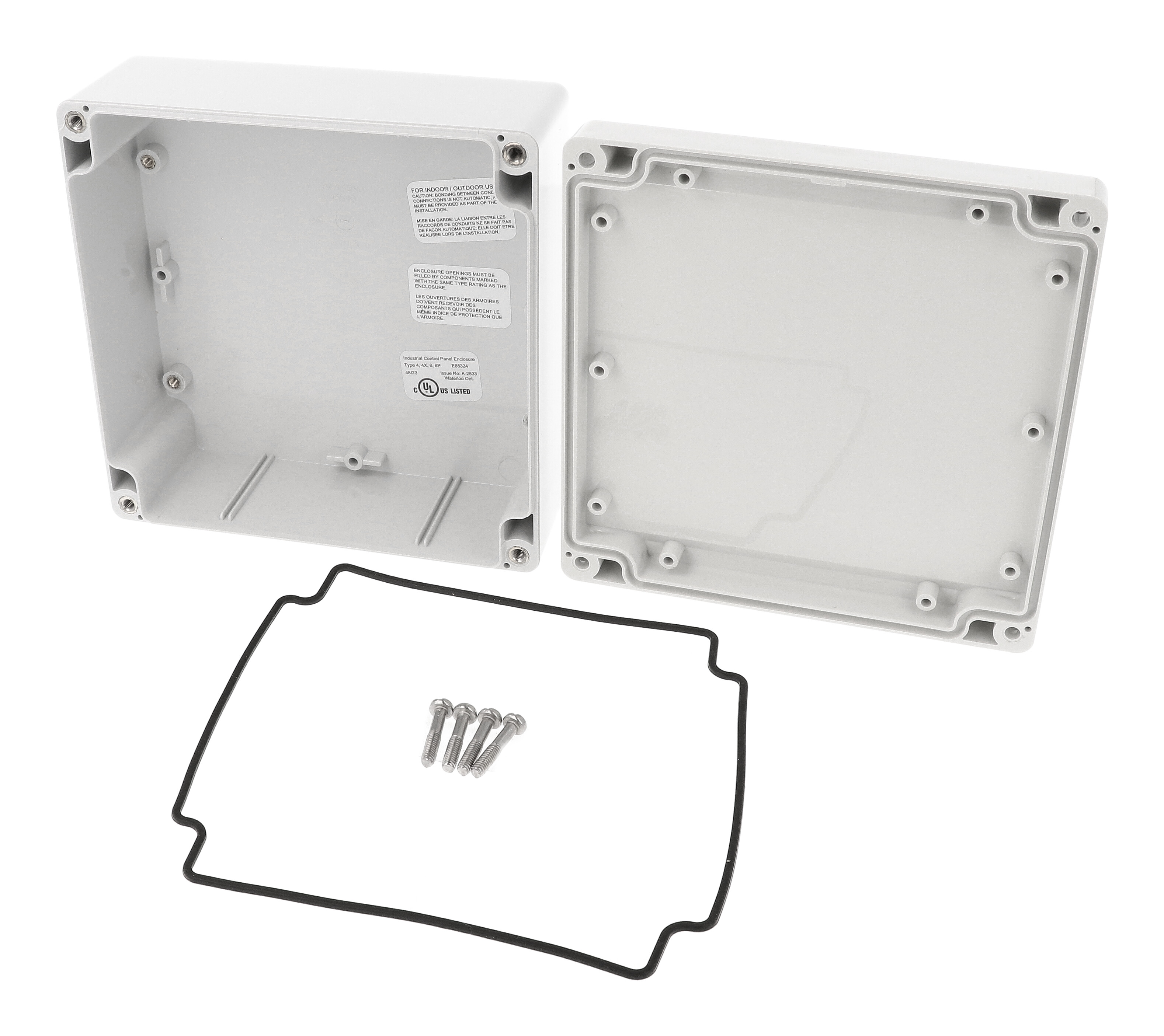

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.64 lbs (0.29 kg) |
Construction & Finish
| Lid | Gray lid |
| Color | Light Gray (RAL 7035) |
| Gasket | One-piece preformed high temperature UL listed silicone, black; replaceable; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating; lid holes are threaded with the first installation |
| Solid Models | Available in .stp or .x_t |
| Lid Construction | Gasketed two-piece tongue and groove construction; protects against access of oil, dust and water |
| Lid Screw Inserts | M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 5VA (material UL94-5VA @ 3 mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV / Outdoor Use | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| IP Ratings (Series Testing) | IP66, IP67 and IP68 (independently tested) |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed (file E65324); drawing marks cUL US Listed, Type 4, 4X, 6, 6P |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of 1555Q2GY?▾
Per the drawing, 132.36 mm [5.21 in] inside length, 128.69 mm [5.07 in] inside width and 51.20 mm [2.02 in] inside height.
Is 1555Q2GY UL listed?▾
Yes. Polycarbonate versions are cUL and UL 508A listed under file E65324.
Is it suitable for outdoor mounting?▾
Yes. It is UV stabilized for outdoor use and rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13.
What is the largest circuit board it holds?▾
The listed maximum P.C. board size is 127 mm long by 127.5 mm wide.
Which accessories are sized for it?▾
1554QPL steel inner panel, 1554FT foot kit, 1554QGASKET replacement gasket and the 1554QCL clear lid.
