Hammond 1555LA2GY 105x105x90 mm Deep Square Polycarbonate Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Deep square 105 x 105 x 90 mm; 81.20 mm inside height
- Inside 92.57 x 93.19 mm; boards up to 92.5 x 101 mm
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed, file E65324; UL94 5VA
- UV stabilized, IK08 impact, -40°C to +110°C
- Includes styled lid, 4 cover screws and silicone gasket
- Optional 1554LPL inner panel and 1554FT foot kit
The 1555LA2GY is the deeper counterpart to the 105 x 105 mm 1555L, with a 90 mm total height and 81.20 mm of inside height. This light gray (RAL 7035) polycarbonate enclosure fits compact but tall assemblies, such as DIN rail devices or stacked boards, in sealed indoor and outdoor installations.
UV stabilized polycarbonate provides a UL94 5VA flame rating. The enclosure is cUL and UL 508A listed under file E65324, rated IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, and has an IK08 impact rating per IEC 62262:2021. Recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
Inside dimensions are 92.57 x 93.19 mm with 81.20 mm of height, and the maximum P.C. board size is 92.5 x 101 mm. Molded DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical guides for 1.5 mm boards support a range of layouts; the 1554LPL steel inner panel fits in the box or lid.

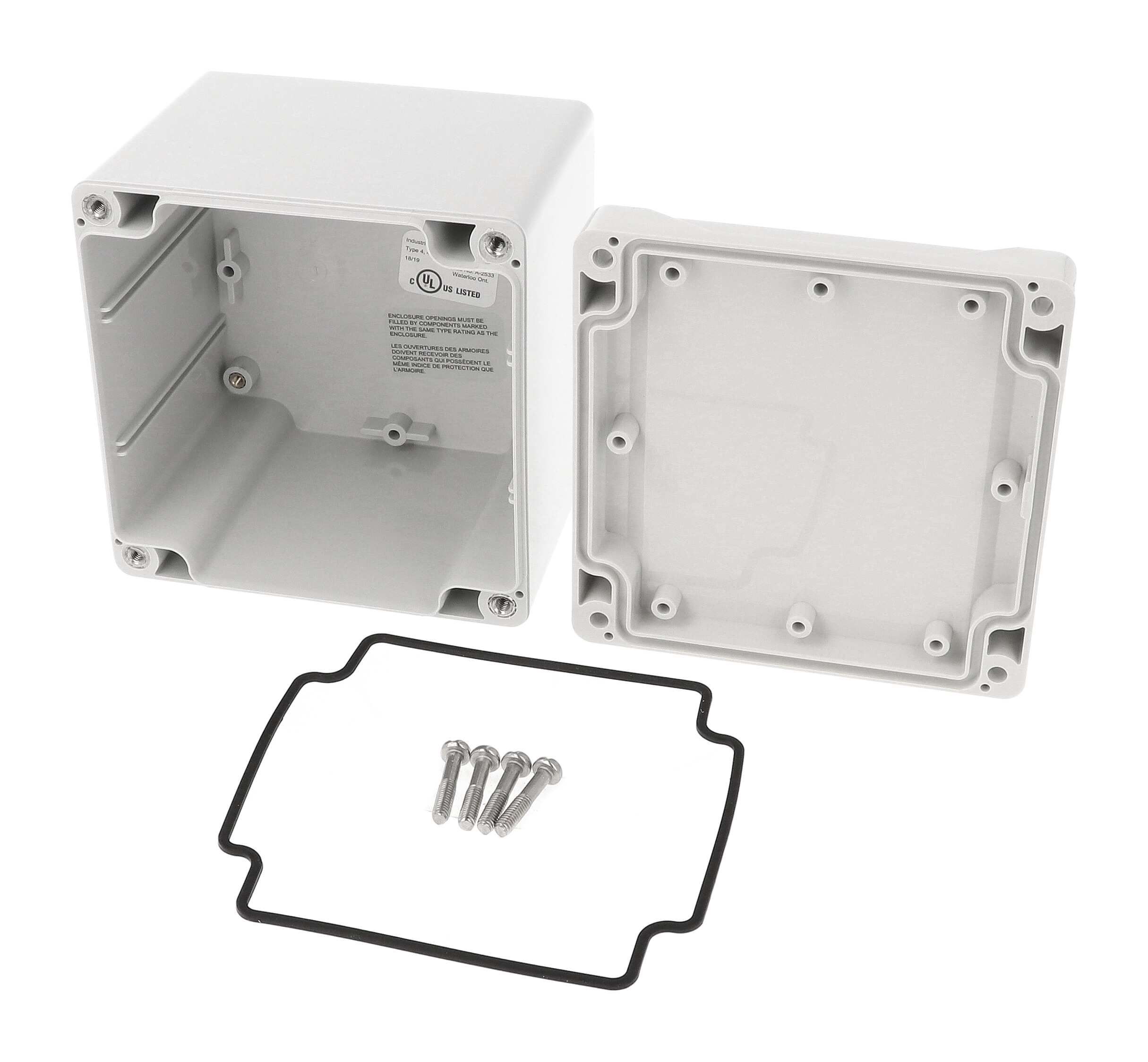

The purchased assembly includes the box, styled lid, 4 cover screws and a preformed silicone gasket. The lid recess accepts a membrane keypad or label, and the self captivating M4 stainless steel screws thread into corrosion resistant inserts at 43-57 ozf-in (30-40 cN-m). Four 4.30 mm wall-mounting holes outside the gasket channel accept the 1554FT foot kit. Shipping weight is 0.55 lbs (0.25 kg).
Ideal For
- Compact outdoor housings for tall components
- Square DIN rail device boxes
- Stacked PCB assemblies
- Sealed sensor and control enclosures
Mounting
| Lid Standoffs | Molded in the lid interior, for #6 self-tapping screws |
| PC Card Guides | Vertical, for 1.5 mm thick P.C. boards |
| Internal Mounting | Molded DIN rail mounting tabs; M3 integral brass inserts and standoffs for #6 self-tapping screws |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in] diameter, located outside the gasket channel |
| Inner Panel (Order Separately) | 1554LPL steel inner panel, fits in box or lid |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-tight |
| Series | 1555 Series – Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Size Code | 1555LA Regular Enclosure |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555LA2GY |
| Short Description | 105X105X90MM P/C NEMA ENCL. |
| ABS Equivalent (Gray Lid) | 1555LAGY |
Dimensions
| Inside Width | 93.19 mm [3.67 in] |
| Inside Height | 81.20 mm [3.20 in] |
| Inside Length | 92.57 mm [3.64 in] |
| Size (L X W X H) | 4.13 in x 4.13 in x 3.54 in (105 mm x 105 mm x 90 mm) |
| Max. P.C. Board Width | 101 mm |
| Max. P.C. Board Length | 92.5 mm |
| Width (Ordering Table) | 4.13 in (105 mm) |
| Length (Ordering Table) | 4.13 in (105 mm) |
| Total Height (Ordering Table) | 3.54 in (90 mm) |
Identifiers
| UPC | 623980781587 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.55 lbs (0.25 kg) |
Construction & Finish
| Lid | Styled lid with smooth recessed surface for a membrane keypad or label |
| Color | Light Gray (RAL 7035) |
| Included | Purchased assembly includes box, styled lid, 4 cover screws, and preformed silicone gasket |
| Lid Seal | Two-piece tongue and groove construction with replaceable one-piece silicone gasket (high temperature, UL listed silicone), supplied loose |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws, self captivating, threaded into M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Replacement Gasket | 1554LGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing etc. available from the factory; solid models available in .stp or .x_t |
| Panel / PC Board Screws | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100); 1598ATS100 (#6 x 1/4 in (6.4 mm) self-tapping, plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (series tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F), recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1555LA2GY compare with the 1555L2GY?▾
Both are 105 x 105 mm; the 1555LA2GY is 90 mm tall with 81.20 mm inside height, while the 1555L2GY is 60 mm tall.
What is the maximum P.C. board size?▾
92.5 mm x 101 mm.
Is it UL listed?▾
Yes, cUL and UL 508A listed under file E65324.
What is included?▾
The box, styled lid, 4 cover screws and a preformed silicone gasket.
What is the ABS equivalent?▾
1555LAGY.
