Hammond 1555JL2GY 160x90x46 mm Low-Profile Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Low 46 mm total height on a 160 x 90 mm footprint
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed, file E65324; UL94 5VA
- Inside 153.09 x 83.09 x 36.95 mm
- Fits P.C. boards up to 77.47 x 147.32 mm
- UV stabilized, IK08, -40°C to +110°C
- Includes styled lid, 4 cover screws and silicone gasket
The 1555JL2GY takes the 160 x 90 mm footprint of the 1555J and lowers the total height to 46 mm. This light gray (RAL 7035) polycarbonate enclosure fits slim circuit board assemblies that need a sealed, UL listed housing, whether mounted indoors or outdoors.
UV stabilized polycarbonate gives a UL94 5VA flame rating. The enclosure is cUL and UL 508A listed under file E65324, rated IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, and has an IK08 impact rating per IEC 62262:2021, with a recommended operating temperature of -40°C to +110°C (-40°F to +230°F).
Inside measurements are 153.09 x 83.09 mm with 36.95 mm of height, and the maximum P.C. board size is 77.47 x 147.32 mm. The interior has molded DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical guides for 1.5 mm thick boards, plus the option of a 1554JPL steel inner panel in the box or lid.

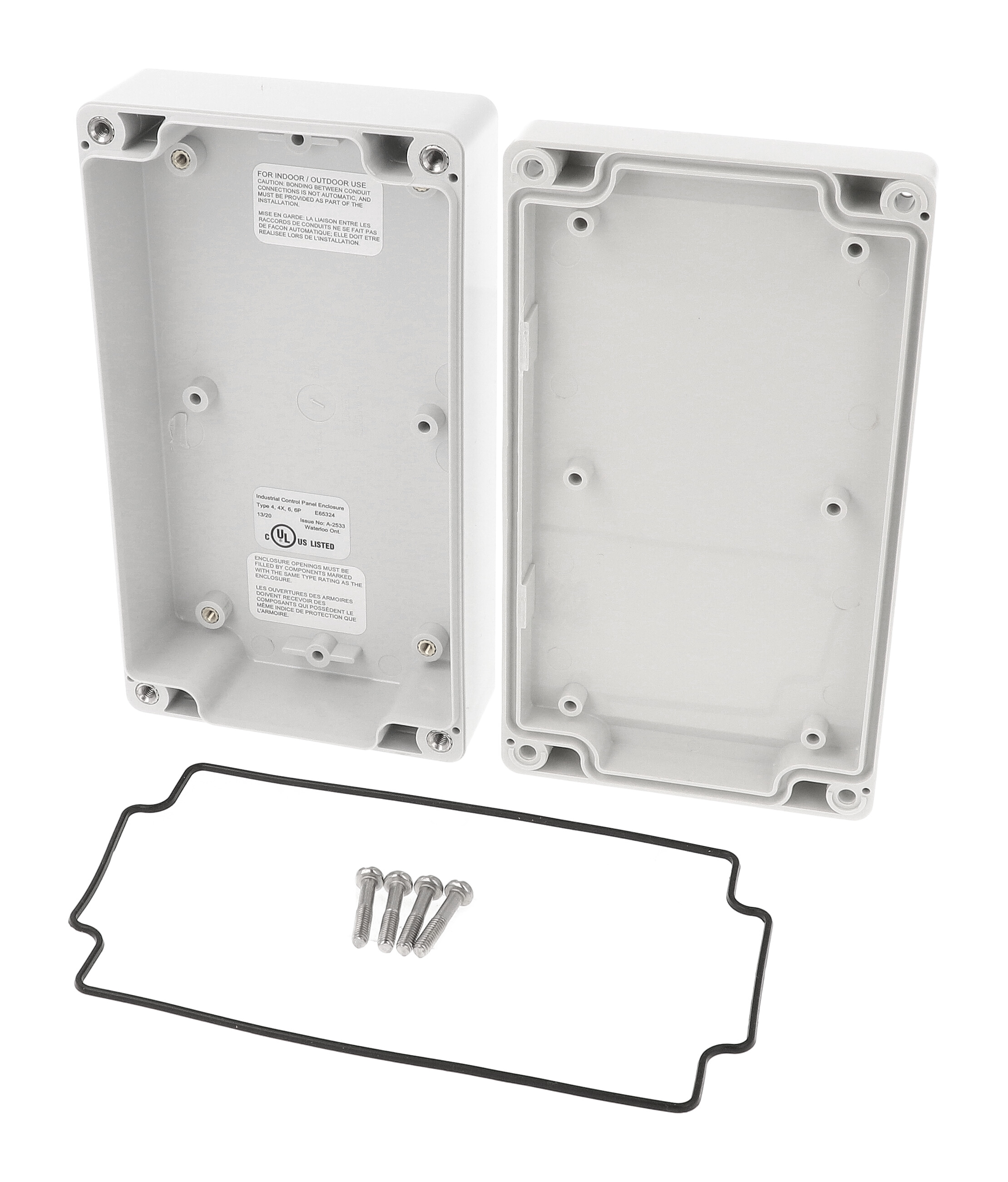

The purchased assembly includes the box, styled lid, 4 cover screws and a preformed silicone gasket. The recessed lid face takes a membrane keypad or label, and the self captivating M4 stainless steel screws thread into corrosion resistant inserts. Four 4.30 mm wall-mounting holes outside the gasket channel also serve the 1554FT foot kit.
Ideal For
- Slim outdoor electronics
- Low-height PCB assemblies
- Membrane keypad interfaces
- Wall-mounted monitoring devices
Mounting
| Lid Standoffs | Molded in the lid interior, for #6 self-tapping screws |
| PC Card Guides | Vertical, for 1.5 mm thick P.C. boards |
| Internal Mounting | Molded DIN rail mounting tabs; M3 integral brass inserts and standoffs for #6 self-tapping screws |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in] diameter, located outside the gasket channel |
| Inner Panel (Order Separately) | 1554JPL steel inner panel, fits in box or lid |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-Tight |
| Series | 1555 Series – Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Size Code | 1555JL Regular Enclosure |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555JL2GY |
| Short Description | 160X90X45MM P/C NEMA ENCL. |
| ABS Equivalent (Gray Lid) | 1555JLGY |
Dimensions
| Inside Width | 83.09 mm [3.27 in] |
| Inside Height | 36.95 mm [1.45 in] |
| Inside Length | 153.09 mm [6.03 in] |
| Size (L X W X H) | 6.3 in x 3.54 in x 1.77 in (160 mm x 90 mm x 45 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
| Width (Ordering Table) | 3.54 in (90 mm) |
| Length (Ordering Table) | 6.30 in (160 mm) |
| Total Height (Ordering Table) | 1.81 in (46 mm) |
Identifiers
| UPC | 623980513836 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Lid | Styled lid with smooth recessed surface for a membrane keypad or label |
| Color | Light Gray (RAL 7035) |
| Included | Purchased assembly includes box, styled lid, 4 cover screws, and preformed silicone gasket |
| Lid Seal | Two-piece tongue and groove construction with replaceable one-piece silicone gasket (high temperature, UL listed silicone), supplied loose |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws, self captivating, threaded into M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing etc. available from the factory; solid models available in .stp or .x_t |
| Panel / PC Board Screws | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100); 1598ATS100 (#6 x 1/4 in (6.4 mm) self-tapping, plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (series tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F), recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1555JL2GY differ from the 1555J2GY?▾
Both share the 160 x 90 mm footprint; the 1555JL2GY is 46 mm tall with 36.95 mm inside height, while the 1555J2GY is 61 mm tall.
What is included?▾
The box, styled lid, 4 cover screws and a preformed silicone gasket.
What is the recommended lid screw torque?▾
43-57 ozf-in (30-40 cN-m).
What board fits inside?▾
A P.C. board up to 77.47 mm x 147.32 mm.
What NEMA ratings apply?▾
NEMA Type 4, 4X, 6, 6P, 12 and 13.
