Hammond 1555W2GY 180x180x60mm Polycarbonate NEMA 4X Enclosure, IP68
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- UV stabilized polycarbonate, 180 x 180 x 60 mm (7.09 in x 7.09 in x 2.36 in), light gray RAL 7035
- cUL and UL 508A listed (file E65324); IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12 & 13
- Inside length 172.36 mm, inside height 51.20 mm; max P.C. board 167 x 167.5 mm
- 4 self captivating M4 stainless steel lid screws in corrosion resistant inserts; torque 43-57 ozf-in (30-40 cN-m)
- Tongue and groove lid with replaceable one piece silicone gasket, supplied loose inside the enclosure
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping screw mounting and card guides for 1.5 mm boards
- Wall-mounting holes outside the gasket channel; accepts 1554FT foot kit and 1554WPL steel inner panel
- IK08 impact rating, UL94-5VA material, -40°C to +110°C recommended range

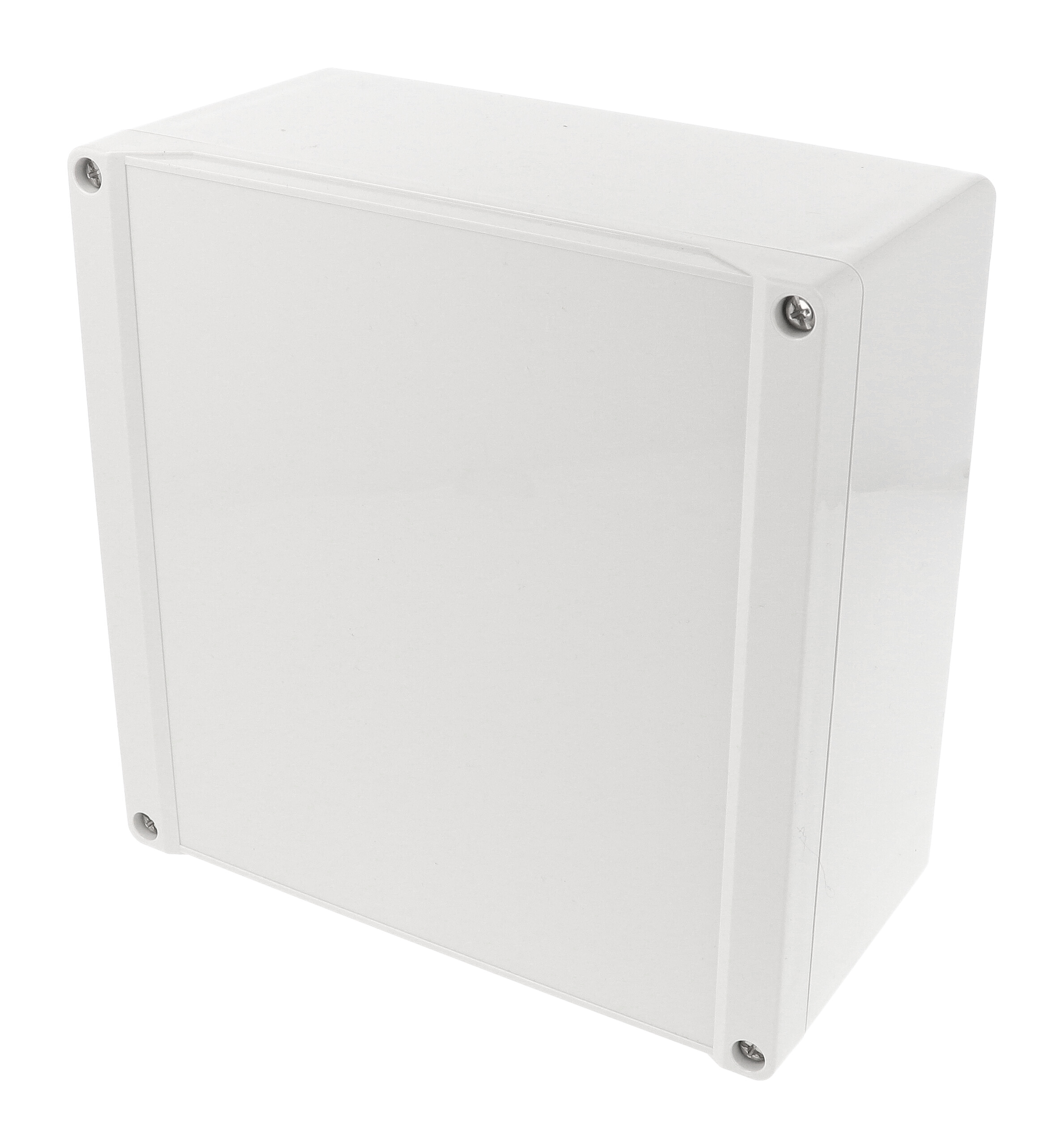

The 1555W2GY is a square, low-height polycarbonate enclosure measuring 180 x 180 x 60 mm (7.09 x 7.09 x 2.36 in). Its UV stabilized light gray (RAL 7035) body and UL listing suit outdoor PC board and DIN rail electronics that need compact, sealed protection.
It is cUL and UL 508A listed under file E65324 and tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. The UL94-5VA polycarbonate carries an IK08 impact rating per IEC 62262:2021 and a recommended operating range of -40°C to +110°C (-40°F to +230°F).
The purchased assembly includes the box, lid, four M4 stainless steel cover screws (M4-0.7 x 20mm, replacement pack SC576-50) and a preformed silicone gasket. Screws are self captivating and thread into corrosion resistant inserts at 43-57 ozf-in (30-40 cN-m). The drawing shows an overall height of 60.10 mm, an inside length of 172.36 mm and an inside height of 51.20 mm.
Inside the 1555W2GY, molded DIN rail tabs, M3 brass inserts, #6 self tapping screw standoffs and 1.5 mm card guides support boards up to 167 x 167.5 mm. Four 4.30 mm wall-mounting holes sit outside the gasket channel and accept the 1554FT foot kit; the 1554WPL steel panel and 1554WGASKET are available separately.
Ideal For
- Outdoor PC board housings
- Compact NEMA 4X electronics enclosures
- Washdown area controls
- UL 508A panel sub-assemblies
Overview
| Type | Water-tight |
| Series | 1555 Series |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555W2GY |
| Material Version | Polycarbonate (UL Listed) |
| Enclosure Size Code | 1555W |
| Alternate Material Version | 1555WGY (General Purpose ABS) |
Dimensions
| Inside Height | 51.20 mm [2.02 in] |
| Inside Length | 172.36 mm [6.79 in] |
| Size (L X W X H) | 7.1 in x 7.1 in x 2.36 in (180 mm x 180 mm x 60 mm) |
| Max. P.C. Board Width | 167.5 mm |
| Max. P.C. Board Length | 167 mm |
| Width (Ordering Table) | 7.09 in (180 mm) |
| Length (Ordering Table) | 7.09 in (180 mm) |
| Overall Height (Drawing) | 60.10 mm [2.37 in] |
| Total Height (Ordering Table) | 2.36 in (60 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554WGASKET (silicone pre-formed gasket, black, Pkg 2) |
| Replacement Cover Screws | SC576-50 (M4-0.7 x 20mm, Pkg 50), stainless steel |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) Plated, Pkg 100) |
Identifiers
| UPC | 623980762036 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.95 lbs (0.43 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Internal Inserts | Threaded (M3) integral brass inserts |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Features | Internal DIN rail mounting tabs; lid standoffs; vertical PC card guides for 1.5 mm thick P.C. boards |
| Wall Mounting Holes | 4X 4.30 mm [.17 in], located outside of the gasket channel |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Self-Tapping Screw Mounting | Accepts #6 self-tapping screws |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 5VA (UL94 - 5VA @ 3mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, Type 4, 4X, 6, 6P |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555W2GY?▾
The ordering table lists 7.09 in (180 mm) long, 7.09 in (180 mm) wide and 2.36 in (60 mm) total height; the part page lists 7.1 in x 7.1 in x 2.36 in (180 mm x 180 mm x 60 mm). Inside length is 172.36 mm [6.79 in] and inside height is 51.20 mm [2.02 in].
What ratings does the 1555W2GY carry?▾
Polycarbonate 1555 enclosures such as the 1555W2GY are cUL and UL 508A listed under file E65324, tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, rated IK08 per IEC 62262:2021, and UV stabilized for outdoor use.
What comes with the enclosure?▾
The assembly includes the box, lid, 4 M4 stainless steel cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed. The 1554WPL steel inner panel is ordered separately.
What size circuit board will fit?▾
The maximum P.C. board size is 167 x 167.5 mm. Boards can mount on the M3 brass inserts or #6 self-tapping screw positions, and vertical card guides accept 1.5 mm thick P.C. boards.
How tight should the lid screws be?▾
The drawing recommends a cover screw torque of 43-57 ozf-in (30-40 cN-m). The lid screws are self captivating, and the lid holes are threaded the first time the screws are installed.
What temperature range is it rated for?▾
The recommended operating temperature for polycarbonate versions is -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for a specific application.
