Hammond 1555F2GY 120x90x61mm Polycarbonate NEMA 4X Enclosure, IP68
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 120 x 90 x 61 mm nominal polycarbonate enclosure, light gray RAL 7035
- cUL and UL 508A listed, file E65324
- IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 & 13 tested
- UV stabilized for outdoor use; -40°C to +110°C; IK08; UL94-5VA
- Boards up to 77.47 x 108.41 mm
- DIN rail tabs plus M3 brass inserts, card guides and lid standoffs
- Four M4 stainless lid screws; four mounting holes outside the gasket
The 1555F2GY is a rectangular polycarbonate enclosure from the 1555 Series, 120 x 90 x 61 mm nominal (the part page lists 4.7 x 3.5 x 2.4 in, or 119 x 89 x 61 mm). Its board area suits integrators and OEMs mounting printed circuit boards or DIN rail components outdoors or in UL 508A listed equipment.
Polycarbonate versions are cUL and UL 508A listed under file E65324 and independently tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. The material is UV stabilized for outdoor use, rated UL94-5VA, and carries an IK08 impact rating per IEC 62262:2021, with a recommended range of -40°C to +110°C (-40°F to +230°F).
Internally, size F offers molded DIN rail mounting tabs together with threaded M3 integral brass inserts and/or standoffs for #6 self tapping screws, vertical card guides for 1.5 mm thick P.C. boards, and lid standoffs. The 1555F2GY accepts a board up to 77.47 x 108.41 mm, and the 1554FPL steel inner panel fits in the box or lid.

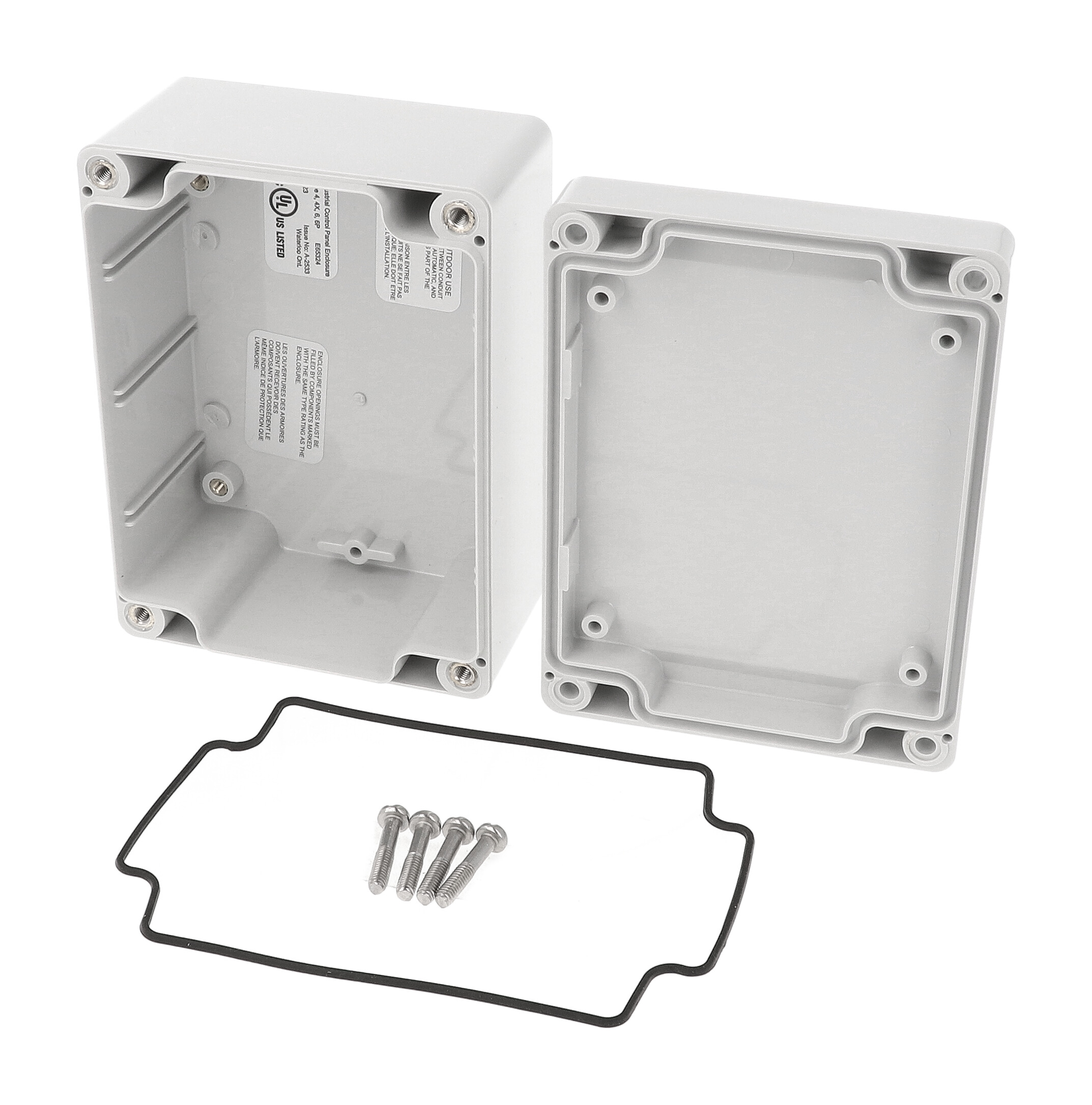

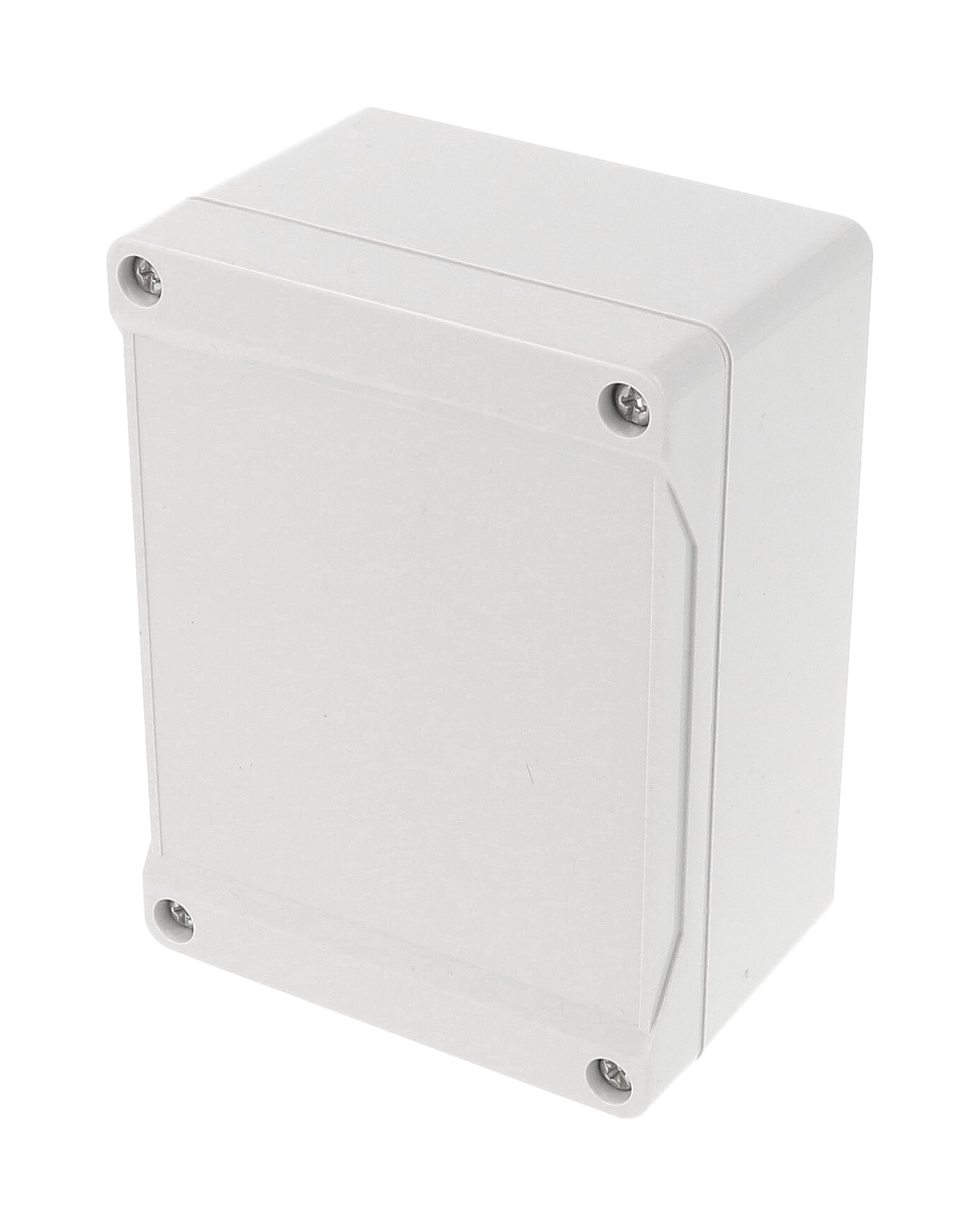

The light gray RAL 7035 styled lid closes on a two piece tongue and groove joint with a one-piece silicone gasket supplied loose. Four included self captivating M4 stainless steel screws thread into corrosion resistant inserts (recommended 43-57 ozf-in, 30-40 cN-m). Four 4.00 mm mounting holes sit outside the gasket channel and accept the 1554FT foot kit. Accessories include 1554FGASKET and the 1554FCL clear lid. Shipping weight is 0.4 lbs (0.18 kg), shrink wrapped.
Ideal For
- Outdoor printed circuit board housings
- DIN rail component enclosures
- UL 508A control panel sub-assemblies
- NEMA Type 4X installations
- Membrane keypad or label-fronted lids
Overview
| Lid | Gray lid, styled (smooth recessed surface for a membrane keypad or label) |
| Series | 1555 Series (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Size Code | F |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555F2GY |
| Enclosure Type | Water-tight |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | 120X90X60MM P/C NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact the factory for quotes |
| Equivalent ABS (Gray Lid) Version | 1555FGY |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 4.72 in (120 mm) |
| Total Height | 2.40 in (61 mm) |
| Mounting Holes | 4X Ø4.00 mm [.16 in] |
| Max. P.C. Board Width | 108.41 mm |
| Max. P.C. Board Length | 77.47 mm |
| Size L X W X H (Part Page) | 4.7 in x 3.5 in x 2.4 in (119 mm x 89 mm x 61 mm) |
| Nominal Size (L X W X Total Height) | 4.72 in x 3.54 in x 2.40 in (120 mm x 90 mm x 61 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554FGASKET (silicone pre-formed gasket, black, pkg 2) |
| Stainless Steel Cover Screws | SC576-50 (M4-0.7 x 20mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm plated, pkg 100) |
| Compatible Clear Lid (Not Styled) | 1554FCL (120 x 90 x 15 mm lid) |
| Steel Inner Panel (Order Separately) | 1554FPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) plated, pkg 100) |
Identifiers
| UPC | 623980842684 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Enclosure, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.4 lbs (0.18 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One-piece replaceable preformed silicone gasket (black), high temperature UL listed silicone; supplied loose inside the enclosure, not pre-installed |
| Material | Polycarbonate (UV stabilized) |
| Lid Screws | 4 x M4 stainless steel machine screws (included), threaded into corrosion resistant inserts; self captivating |
| Lid Standoffs | Molded in the interior of the lid; designed for #6 self tapping screws |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel |
| PC Card Guides | Vertical card guides molded in, for 1.5 mm thick P.C. boards |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| DIN Rail Mounting Tabs | Internal DIN rail mounting tabs molded in |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs (for #6 self tapping screws) |
Environmental & Protection
| IP Rating | IP66, IP67, IP68 (independently tested); part page lists IP68 |
| NEMA Rating | Type 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 5VA (UL94 - 5VA @ 3mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| Indoor / Outdoor | UV stabilized for outdoor use |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the maximum board size for the 1555F2GY?▾
77.47 mm by 108.41 mm.
Does it have DIN rail mounting tabs?▾
Yes, internal DIN rail mounting tabs are molded into size F.
Is the 1555F2GY UL listed?▾
Yes. Polycarbonate versions are cUL and UL 508A listed under file E65324.
Is there a lower-profile version?▾
Yes. The 1555FL2GY has the same 120 x 90 mm footprint with a 45 mm total height and uses the same 1554FPL panel and 1554FGASKET gasket.
Which clear lid fits?▾
1554FCL, a 120 x 90 x 15 mm clear lid (not styled).
What torque should the lid screws be set to?▾
43-57 ozf-in (30-40 cN-m).
