Hammond 1555L2GY 105x105x60 mm Square Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 105 x 105 x 60 mm; inside 92.57 x 93.35 x 51.20 mm
- Fits P.C. boards up to 92.5 x 93 mm
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed, file E65324; UL94 5VA
- UV stabilized, IK08 impact, -40°C to +110°C
- Includes styled lid, 4 cover screws and silicone gasket
- Wall-mount holes outside gasket; 1554FT foot kit compatible
The 1555L2GY is a square 105 x 105 mm polycarbonate enclosure with a 60 mm total height, finished in light gray RAL 7035. Its compact square format suits junction-style electronics, small controllers and DIN rail components that need a sealed, UL listed housing indoors or outdoors.
Construction is UV stabilized polycarbonate with a UL94 5VA flame rating. It is cUL and UL 508A listed under file E65324, rated IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, and carries an IK08 impact rating per IEC 62262:2021. Recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
The interior measures 92.57 x 93.35 mm with 51.20 mm of height, and a P.C. board up to 92.5 x 93 mm fits. Molded DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards are built in, and the 1554LPL steel inner panel is available separately.

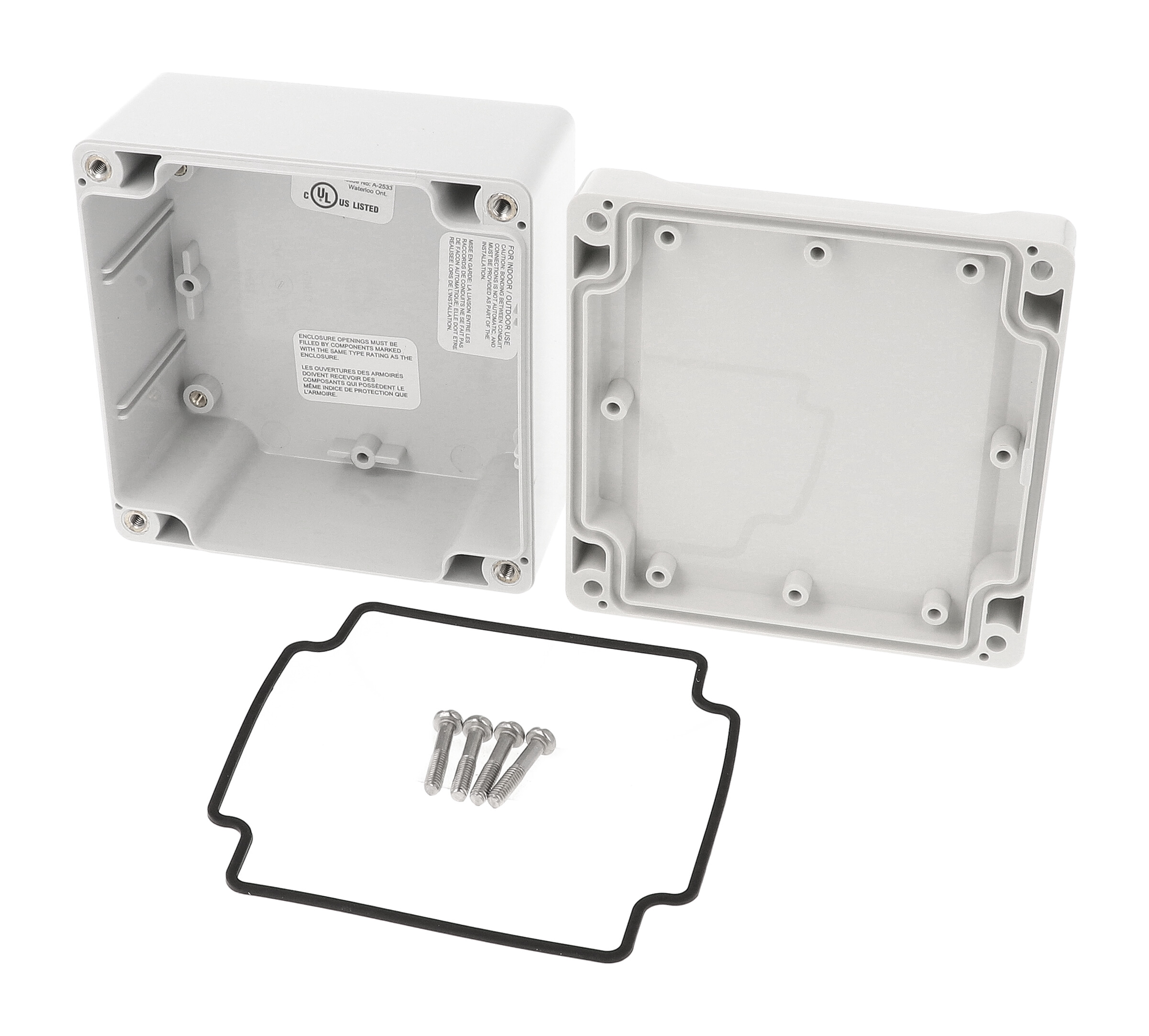

The purchased assembly includes the box, styled lid, 4 cover screws and a preformed silicone gasket. The lid's smooth recess accepts a membrane keypad or label; it seals on a two-piece tongue and groove and fastens with self captivating M4 stainless steel screws into corrosion resistant inserts. Four 4.30 mm wall-mounting holes outside the gasket channel accept the 1554FT foot kit.
Ideal For
- Compact outdoor controllers
- Square sensor and junction housings
- Small DIN rail assemblies
- Keypad or label-faced interfaces
Mounting
| Lid Standoffs | Molded in the lid interior, for #6 self-tapping screws |
| PC Card Guides | Vertical, for 1.5 mm thick P.C. boards |
| Internal Mounting | Molded DIN rail mounting tabs; M3 integral brass inserts and standoffs for #6 self-tapping screws |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in] diameter, located outside the gasket channel |
| Inner Panel (Order Separately) | 1554LPL steel inner panel, fits in box or lid |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-tight |
| Series | 1555 Series – Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Size Code | 1555L Regular Enclosure |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555L2GY |
| Short Description | 105X105X60MM P/C NEMA ENCL. |
| ABS Equivalent (Gray Lid) | 1555LGY |
Dimensions
| Inside Width | 93.35 mm [3.68 in] |
| Inside Height | 51.20 mm [2.02 in] |
| Inside Length | 92.57 mm [3.64 in] |
| Size (L X W X H) | 4.13 in x 4.13 in x 2.36 in (105 mm x 105 mm x 60 mm) |
| Max. P.C. Board Width | 93 mm |
| Max. P.C. Board Length | 92.5 mm |
| Width (Ordering Table) | 4.13 in (105 mm) |
| Length (Ordering Table) | 4.13 in (105 mm) |
| Total Height (Ordering Table) | 2.36 in (60 mm) |
Identifiers
| UPC | 623980781525 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Lid | Styled lid with smooth recessed surface for a membrane keypad or label |
| Color | Light Gray (RAL 7035) |
| Included | Purchased assembly includes box, styled lid, 4 cover screws, and preformed silicone gasket |
| Lid Seal | Two-piece tongue and groove construction with replaceable one-piece silicone gasket (high temperature, UL listed silicone), supplied loose |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws, self captivating, threaded into M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Replacement Gasket | 1554LGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing etc. available from the factory; solid models available in .stp or .x_t |
| Panel / PC Board Screws | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100); 1598ATS100 (#6 x 1/4 in (6.4 mm) self-tapping, plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (series tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F), recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1555L2GY?▾
105 x 105 mm with a 60 mm total height (4.13 x 4.13 x 2.36 in).
What board size fits?▾
The maximum P.C. board size is 92.5 mm x 93 mm.
What comes with it?▾
The box, styled lid, 4 cover screws and a preformed silicone gasket.
Is it rated for outdoor use?▾
Yes, the polycarbonate is UV stabilized for outdoor use and the enclosure is rated IP68 and NEMA 4X.
Which inner panel and gasket fit?▾
1554LPL steel inner panel and 1554LGASKET replacement gasket.
