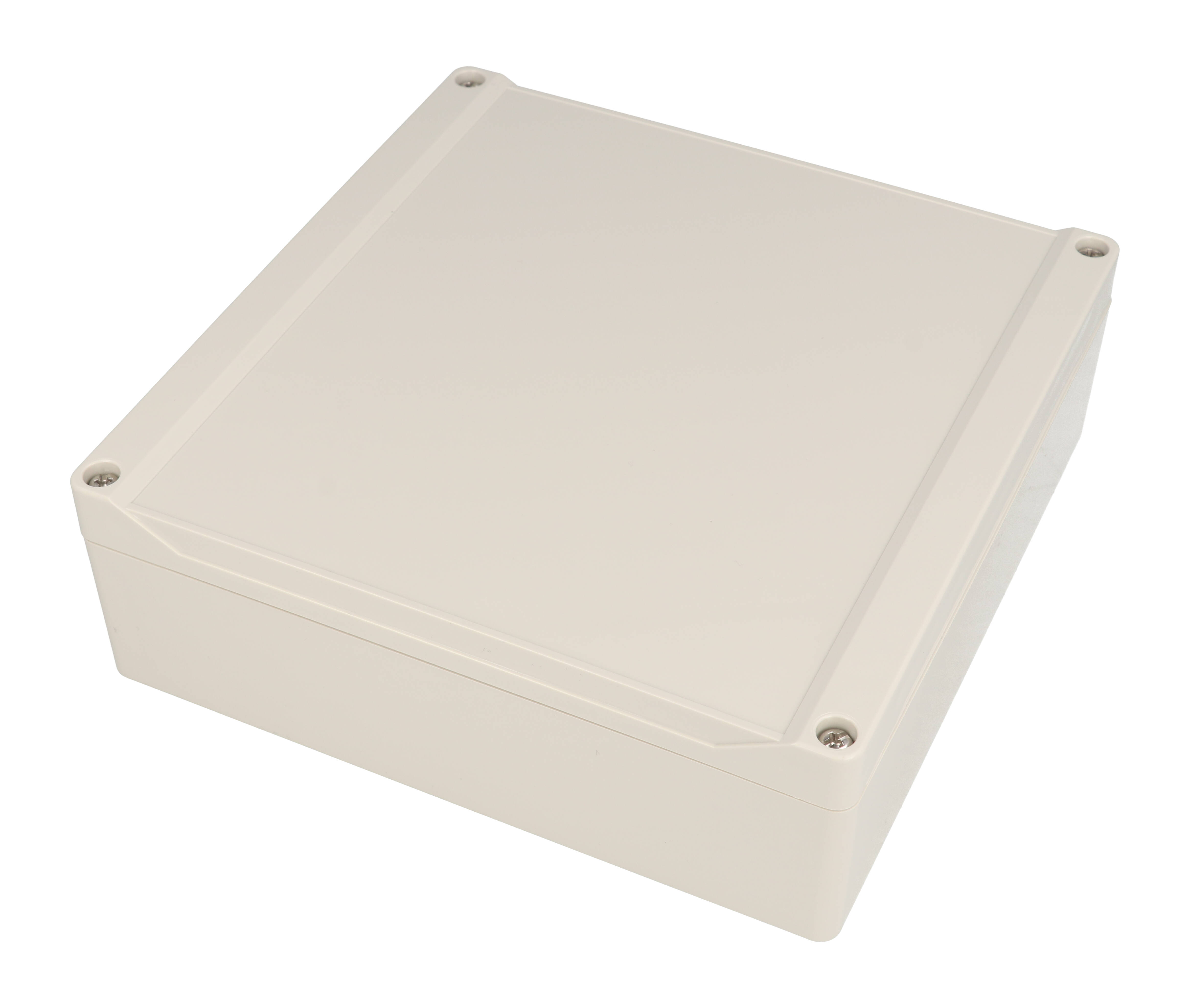

Hammond 1555WGY 180x180x60mm ABS Watertight Enclosure, IP66 Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS, 180 x 180 x 60 mm (7.09 in x 7.09 in x 2.36 in), light gray RAL 7035
- Tested to IP66; IK07 impact rating per IEC 62262:2021; UL94-HB material for indoor use
- Inside length 172.36 mm, inside height 51.20 mm; max P.C. board 167 x 167.5 mm
- 4 self captivating M4 stainless steel lid screws in corrosion resistant inserts; torque 43-57 ozf-in (30-40 cN-m)
- Tongue and groove lid with replaceable one piece silicone gasket, supplied loose inside the enclosure
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping screw mounting and card guides for 1.5 mm boards
- Wall-mounting holes outside the gasket channel; accepts 1554FT foot kit and 1554WPL steel inner panel
- Recommended operating temperature -20°C to +60°C (-4°F to +140°F)
The 1555WGY is the shallow version of the square 180 x 180 mm 1555 Series enclosure, standing 60 mm (2.36 in) tall. Molded from general purpose ABS in light gray RAL 7035, it suits indoor electronics, low-profile PC board assemblies and small DIN rail builds.

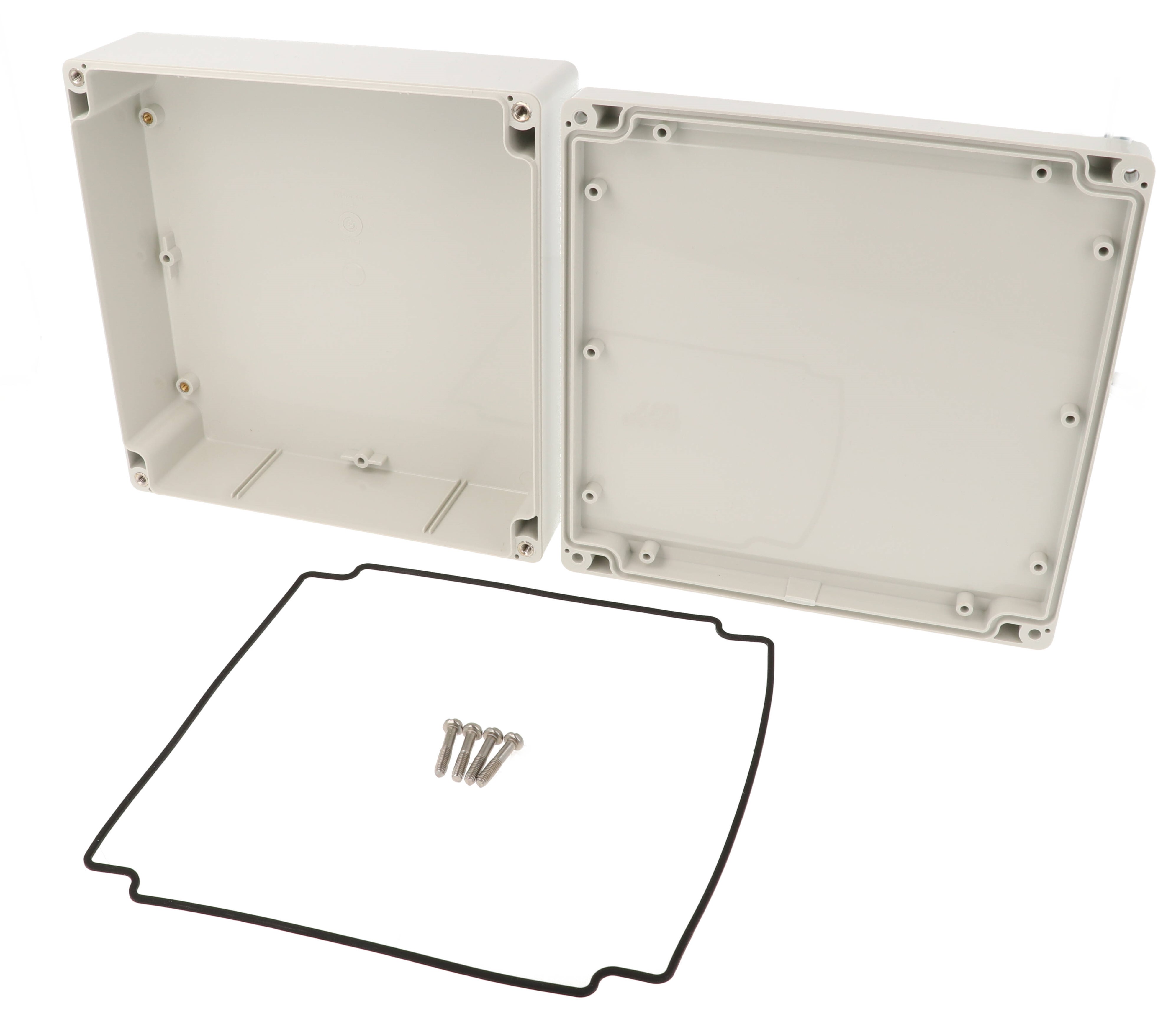

It ships with the box, lid, four M4-0.7 x 20mm stainless steel cover screws and a preformed silicone gasket supplied loose. Tongue and groove lid construction guards against oil, dust and water, and the self captivating screws thread into corrosion resistant inserts; recommended torque is 43-57 ozf-in (30-40 cN-m).
The 1555WGY drawing shows an overall height of 60.10 mm, an inside length of 172.36 mm and an inside height of 51.20 mm. P.C. boards up to 167 x 167.5 mm fit, mounted on M3 brass inserts, #6 self tapping screw standoffs or 1.5 mm card guides, and DIN rail tabs are molded in. The 1554WPL steel inner panel and 1554WGASKET replacement gasket are sold separately.
This ABS model is IP66 tested, IK07 impact rated, UL94-HB and recommended for indoor use from -20°C to +60°C (-4°F to +140°F); it is not UL listed. Four 4.30 mm wall-mounting holes sit outside the gasket channel and can take the 1554FT foot kit. Shipping weight is 0.95 lbs (0.43 kg).
Ideal For
- Low-profile indoor PCB housings
- Small DIN rail builds
- Wall-mounted indoor electronics
- Keypad or label front panels
Overview
| Type | Water-tight |
| Series | 1555 Series |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555WGY |
| Material Version | General Purpose ABS |
| Enclosure Size Code | 1555W |
| Alternate Material Version | 1555W2GY (Polycarbonate, UL Listed) |
Dimensions
| Inside Height | 51.20 mm [2.02 in] |
| Inside Length | 172.36 mm [6.79 in] |
| Size (L X W X H) | 7.1 in x 7.1 in x 2.36 in (180 mm x 180 mm x 60 mm) |
| Max. P.C. Board Width | 167.5 mm |
| Max. P.C. Board Length | 167 mm |
| Width (Ordering Table) | 7.09 in (180 mm) |
| Length (Ordering Table) | 7.09 in (180 mm) |
| Overall Height (Drawing) | 60.10 mm [2.37 in] |
| Total Height (Ordering Table) | 2.36 in (60 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554WGASKET (silicone pre-formed gasket, black, Pkg 2) |
| Replacement Cover Screws | SC576-50 (M4-0.7 x 20mm, Pkg 50), stainless steel |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) Plated, Pkg 100) |
Identifiers
| UPC | 623980762029 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.95 lbs (0.43 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | ABS Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Internal Inserts | Threaded (M3) integral brass inserts |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Features | Internal DIN rail mounting tabs; lid standoffs; vertical PC card guides for 1.5 mm thick P.C. boards |
| Wall Mounting Holes | 4X 4.30 mm [.17 in], located outside of the gasket channel |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Self-Tapping Screw Mounting | Accepts #6 self-tapping screws |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Environment | Indoor use |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) recommended |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version is not UL approved) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555WGY?▾
The ordering table lists 7.09 in (180 mm) long, 7.09 in (180 mm) wide and 2.36 in (60 mm) total height; the part page lists 7.1 in x 7.1 in x 2.36 in (180 mm x 180 mm x 60 mm). Inside length is 172.36 mm [6.79 in] and inside height is 51.20 mm [2.02 in].
Is the 1555WGY UL listed or suitable for outdoor use?▾
No. The 1555WGY is the general purpose ABS version, which is not UL listed and is intended for indoor use. It has been tested to IP66 and carries an IK07 impact rating. The UL listed, UV stabilized polycarbonate version is 1555W2GY.
What comes with the enclosure?▾
The assembly includes the box, lid, 4 M4 stainless steel cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed. The 1554WPL steel inner panel is ordered separately.
What size circuit board will fit?▾
The maximum P.C. board size is 167 x 167.5 mm. Boards can mount on the M3 brass inserts or #6 self-tapping screw positions, and vertical card guides accept 1.5 mm thick P.C. boards.
How tight should the lid screws be?▾
The drawing recommends a cover screw torque of 43-57 ozf-in (30-40 cN-m). The lid screws are self captivating, and the lid holes are threaded the first time the screws are installed.
What temperature range is it rated for?▾
The recommended operating temperature for ABS versions is -20°C to +60°C (-4°F to +140°F).
