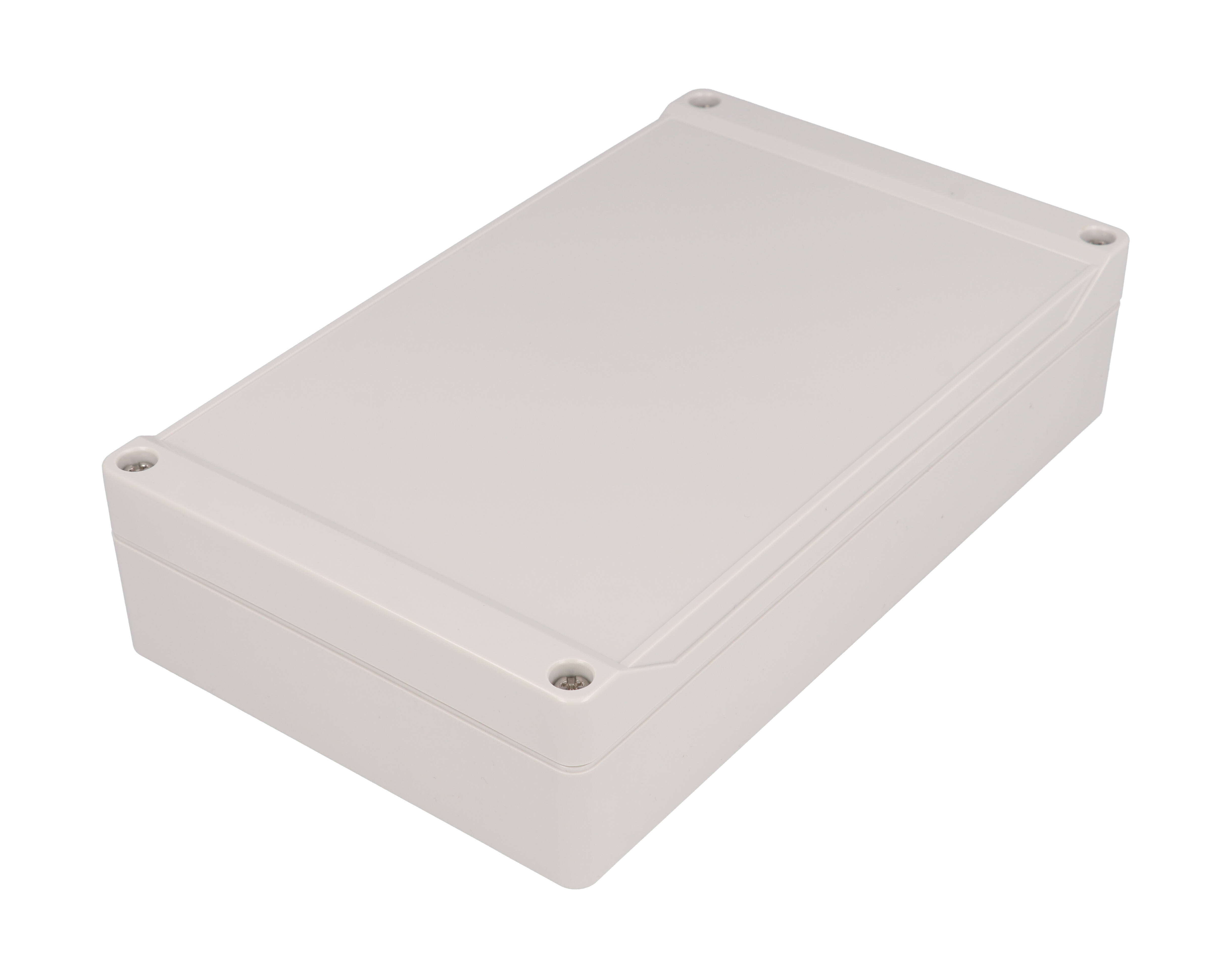

Hammond 1555UL2GY 200x120x45mm Low Polycarbonate NEMA 4X Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Low 45 mm (1.77 in) body on a 200 x 120 mm footprint
- cUL and UL 508A listed polycarbonate, file E65324
- IP68; series tested to NEMA Type 4, 4X, 6, 6P, 12 and 13
- UV stabilized, -40°C to +110°C, UL94 5VA, IK08
- Boards up to 190.5 x 106.6 mm; 37.45 mm inside height
- M3 brass inserts, DIN rail tabs, 1.5 mm card guides
- 4 included M4 stainless steel self captivating lid screws
The 1555UL2GY is the low-profile 200 x 120 mm polycarbonate enclosure in the 1555 Series, only 45 mm (1.77 in) tall and finished in light gray RAL 7035. It is aimed at designers packaging a single long circuit board, or a slim DIN rail device, for outdoor or wet locations where a listed enclosure is required.
Polycarbonate versions are UV stabilized for outdoor use and are cUL and UL 508A listed under file E65324. This part is listed at IP68, and the series is independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. It carries a UL94 5VA flame rating, an IK08 impact rating per IEC 62262:2021 and a recommended operating range of -40°C to +110°C (-40°F to +230°F).
The drawing shows an inside length of 192.98 mm and inside height of 37.45 mm. Boards up to 190.5 x 106.6 mm fix to M3 brass inserts or to standoffs for #6 self tapping screws, and the 1554UPL steel inner panel is available separately. DIN rail tabs and 1.5 mm card guides are molded in.
The tongue and groove lid seals on a replaceable one-piece silicone gasket (supplied loose) and is secured by four included self captivating M4 stainless steel screws in corrosion resistant inserts. Four 4.30 mm wall-mounting holes outside the gasket channel also accept the 1554FT foot kit.
Ideal For
- Slim outdoor PCB housings
- Low-profile UL 508A listed enclosures
- Wet-location sensor and interface boards
- Compact DIN rail devices outdoors
Overview
| Lid | Gray lid |
| Type | Water-tight |
| Series | 1555 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| ABS Version | 1555ULGY |
| Part Number | 1555UL2GY |
| Long Description | RAL7035 grey polycarb plastic watertight enclosure |
| Short Description | 200x120x45MM POLYCARB NEMA |
Dimensions
| Width | 4.72 in (120 mm) |
| Length | 7.87 in (200 mm) |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 37.45 mm [1.47 in] |
| Inside Length | 192.98 mm [7.60 in] |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in] dia., located outside the gasket channel |
| Max. P.C. Board Width | 106.6 mm |
| Max. P.C. Board Length | 190.5 mm |
| Nominal Size (L X W X H) | 7.9 in x 4.7 in x 1.77 in (201 mm x 119 mm x 45 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554UGASKET |
| Compatible Clear Lid (Not Styled) | 1554UCL (200 x 120 x 15 mm) |
| Steel Inner Panel (Order Separately) | 1554UPL |
Identifiers
| UPC | 623980425818 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.69 lbs (0.31 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | Replaceable one-piece high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate Plastic |
| Lid Screws | Included M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Solid Models | .stp or .x_t |
| Lid Standoffs | Molded in lid interior, designed for #6 self tapping screws |
| PC Card Guides | Vertical card guides for 1.5 mm thick P.C. boards |
| Lid Construction | Gasketed lid, two-piece tongue and groove construction |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Qty Of Lid Screws | 4 |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| PCB / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs for #6 self tapping screws |
Environmental & Protection
| IP Rating | IP68 (part page); series: IP66, IP67 and IP68 |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| NEMA Type Rating | 4, 4X, 6, 6P, 12 & 13 |
| UL Type (Drawing) | Type 4, 4X, 6, 6P |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much inside height does the 1555UL2GY have?▾
The drawing shows 37.45 mm (1.47 in) inside height, with an inside length of 192.98 mm.
Is the 1555UL2GY suitable outdoors?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use; the manufacturer recommends customers test suitability for their specific application.
Is it UL listed?▾
Yes. Polycarbonate versions are cUL and UL 508A listed under file E65324.
What board size fits?▾
The listed maximum P.C. board size is 190.5 x 106.6 mm.
What is the ABS version?▾
1555ULGY is the same size in general purpose ABS for indoor use.
