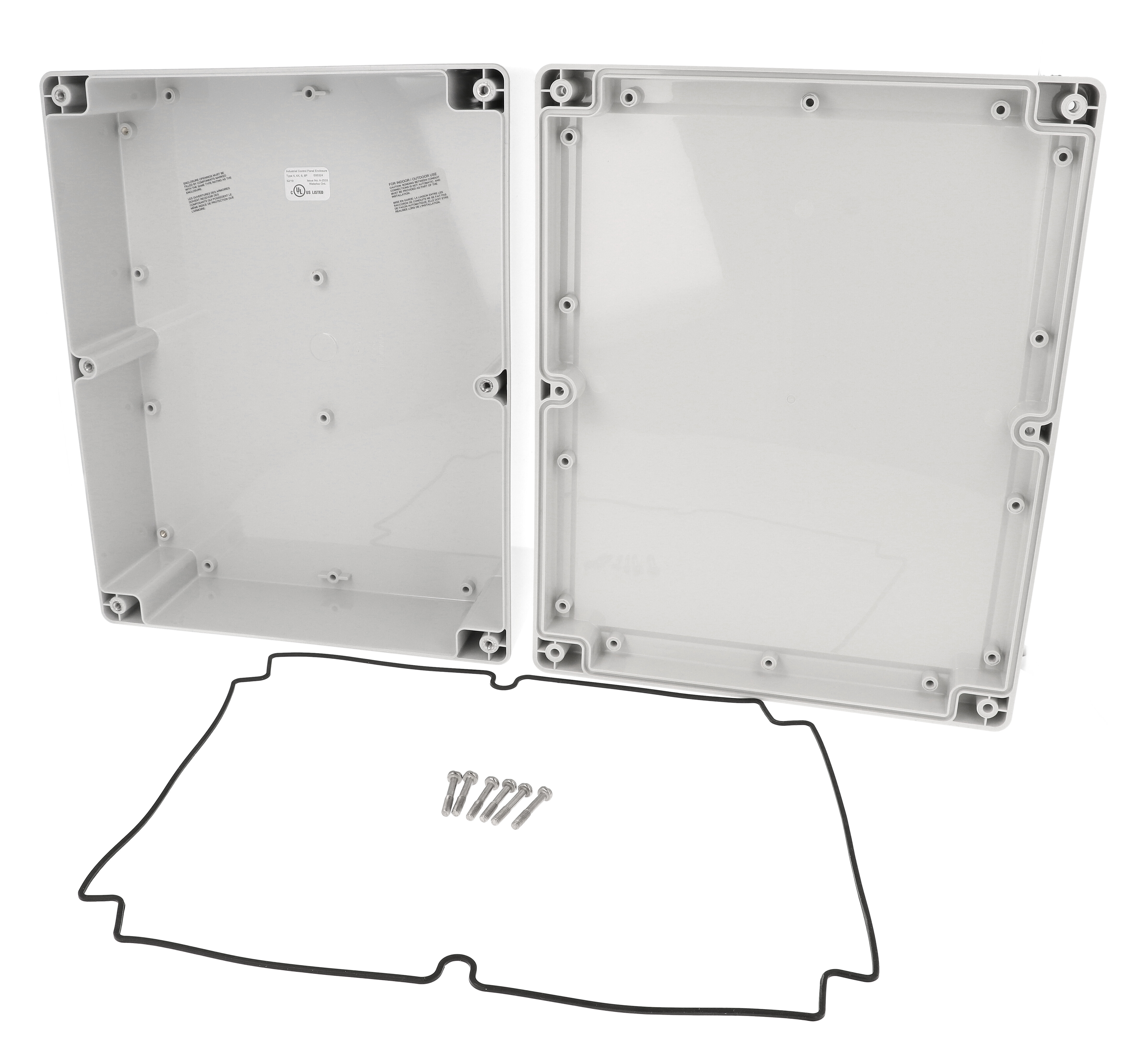

Hammond 1555Y2GY 300 x 240 x 95 mm Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 300 x 240 x 95 mm (11.81 x 9.45 x 3.74 in) UV stabilized polycarbonate for outdoor use
- IP66, IP67 and IP68 plus NEMA Type 4, 4X, 6, 6P, 12 & 13 tested
- cUL and UL 508A listed under file E65324; UL94 5VA flame rating
- IK08 impact rating and -40°C to +110°C recommended operating temperature
- Six self captivating M4 stainless steel lid screws in corrosion resistant inserts
- Styled lid with recessed area for a membrane keypad or label
- Holds P.C. boards up to 225 x 285 mm; DIN rail tabs, M3 brass inserts and card guides
- Accepts 1554YPL inner panel and 1554FT-XY foot kit
The 1555Y2GY is a UL listed polycarbonate enclosure from the 1555 styled-lid series, sized 300 x 240 x 95 mm (11.81 x 9.45 x 3.74 in) in light gray RAL 7035. It suits integrators, electricians and OEM teams housing PC boards or DIN rail mounted components in wet, dusty or outdoor locations, and its lid has a smooth recessed area for a membrane keypad or label.
This polycarbonate version is UV stabilized for outdoor use, carries a UL94 5VA flame rating and is cUL and UL 508A listed under file E65324. It has been independently tested to IP66, IP67 and IP68 and to NEMA Type 4, 4X, 6, 6P, 12 and 13, with an IK08 impact rating per IEC 62262:2021 and a recommended operating range of -40°C to +110°C (-40°F to +230°F).
- Two piece tongue and groove lid with a one piece high temperature silicone gasket, supplied loose
- Six self captivating M4 stainless steel screws into 6X M4 corrosion resistant inserts; 8-9 lbf-in recommended torque
- Inside 289.09 x 229.22 mm with 84.08 mm inside height; P.C. boards up to 225 x 285 mm
- DIN rail tabs, 4X M3 brass inserts, #8 screw bosses, #6 lid standoffs and 1.5 mm card guides
The 1555Y2GY mounts to a wall through holes located outside the gasket channel, and the same holes take the 1554FT-XY foot kit. Matching accessories include the 1554YPL steel inner panel and 1554YGASKET replacement gasket. It is RoHS and REACH compliant, weighs 2.81 lbs (1.27 kg) shipped and comes shrink wrapped. The general purpose ABS equivalent is 1555YGY.
Ideal For
- Outdoor electronics and control enclosures
- Washdown or wet-location PCB housings (NEMA 4X, IP68)
- DIN rail component enclosures
- Membrane keypad operator stations
Overview
| Type | Water-tight |
| Series | 1555 Series (styled lid) |
| Material | Polycarbonate |
| Part Number | 1555Y2GY |
| Material Version | Polycarbonate (UL Listed), gray lid |
| Companion Version | 1555YGY (General purpose ABS) |
| Short Description | 300X240X95MM P/C NEMA ENCL. |
Dimensions
| Width | 9.45 in (240 mm) |
| Length | 11.81 in (300 mm) |
| Inside Width | 229.22 mm [9.02 in] |
| Total Height | 3.74 in (95 mm) |
| Inside Height | 84.08 mm [3.31 in] |
| Inside Length | 289.09 mm [11.38 in] |
| Size (L X W X H) | 11.81 in x 9.45 in x 3.74 in (300 mm x 240 mm x 95 mm) |
| Drawing Overall Width | 239.46 mm [9.43 in] |
| Max. P.C. Board Width | 285 mm |
| Drawing Overall Height | 94.79 mm [3.73 in] |
| Drawing Overall Length | 299.33 mm [11.78 in] |
| Max. P.C. Board Length | 225 mm |
Accessories
| Foot Kit | 1554FT-XY |
| Replacement Gasket | 1554YGASKET (Silicone Pre-formed Gasket Black, Pkg 2) |
| Stainless Steel Cover Screws | SC583-50 (M4-0.7 X 25mm, Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Steel Inner Panel (Order Separately) | 1554YPL (galvanized steel; fits in box or lid) |
| Steel Panel / P.C. Board Self Tapping Screw | SC554-100 (#8 X 5/16" (6.4mm)) |
Identifiers
| UPC | 623980406732 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:29.10.2024 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.81 lbs (1.27 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, replaceable, high temperature UL listed silicone; preformed; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid with two piece tongue and groove construction (protection against access of oil, dust and water) |
| Lid Holes | Threaded with the first installation of lid screws |
| Lid Style | Styled lid with smooth, recessed surface for a membrane keypad or label |
| Lid Screws | 6 included M4 stainless steel machine screws, self captivating |
| Lid Standoffs | Molded in the interior of the lid, designed for #6 self tapping screws |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick P.C. boards |
| Lid Screw Inserts | 6X M4 corrosion resistant inserts |
| Wall Mounting Holes | 4X, located outside of the gasket channel |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners not listed as plastic safe, and some greases and oils |
| Internal DIN Rail Mounting | DIN rail mounting tabs molded into interior |
| PC Board / Inner Panel Inserts | 4X M3 brass inserts |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
| Self-Tapping Screw Bosses (Box) | 10X, accept #8 self-tapping screw |
Environmental & Protection
| IP Rating | IP68 (tested to meet IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA (Matl UL94 - 5VA @ 3mm) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What NEMA and IP ratings does the 1555Y2GY have?▾
The polycarbonate version has been independently tested to meet IP66, IP67 and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 and 13.
Can the 1555Y2GY be used outdoors?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use, with a recommended operating temperature of -40°C to +110°C (-40°F to +230°F).
What size P.C. board fits inside?▾
The part data lists a maximum P.C. board length of 225 mm and width of 285 mm. Inside dimensions on the drawing are 289.09 x 229.22 mm with 84.08 mm inside height.
Is it UL listed?▾
Yes. Polycarbonate versions are cUL and UL 508A listed under file E65324, and the gray polycarbonate carries a UL94 5VA rating.
Which accessories match this enclosure?▾
The 1554YPL steel inner panel, 1554FT-XY foot kit, 1554YGASKET replacement gasket and SC583-50 M4-0.7 x 25mm stainless steel cover screws.
