Hammond 1555K2GY 160x90x91 mm Deep Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Deep 91 mm total height with 82.00 mm inside height
- 160 x 90 mm footprint; inside 152.13 x 78.13 mm
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed, file E65324; UL94 5VA
- UV stabilized, IK08 impact, -40°C to +110°C
- Fits P.C. boards up to 77.47 x 147.32 mm
- Styled lid recess; 4 captive M4 stainless screws

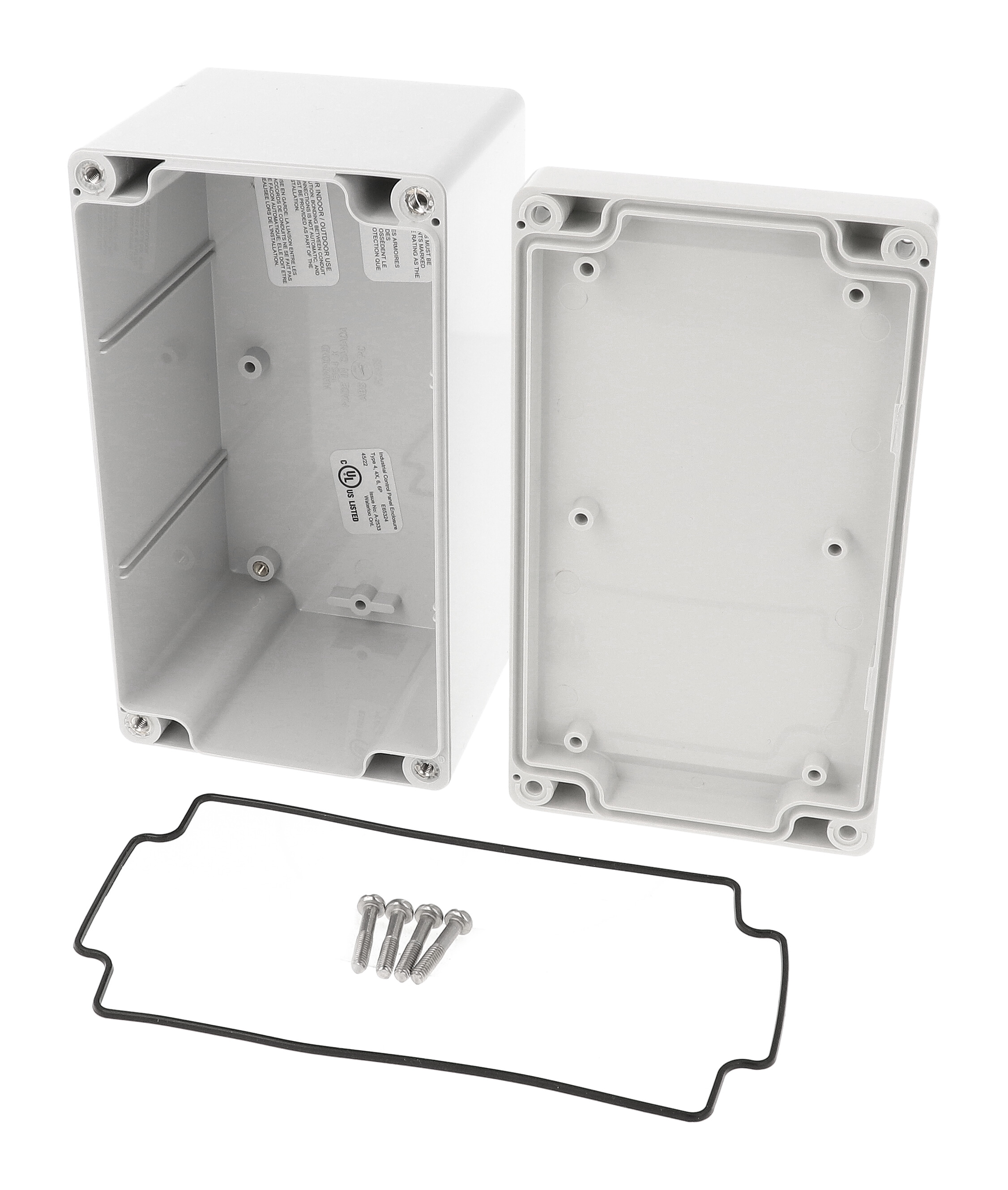

The 1555K2GY is the deep version of the 160 x 90 mm footprint in the 1555 Series, with a 91 mm total height and 82.00 mm of inside height. Made from light gray (RAL 7035) polycarbonate, it suits taller components, stacked boards or DIN rail devices that need a sealed, outdoor-capable housing.
The UV stabilized polycarbonate has a UL94 5VA flame rating. The enclosure is cUL and UL 508A listed under file E65324, rated IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, and has an IK08 impact rating per IEC 62262:2021. Recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
Inside dimensions are 152.13 x 78.13 mm with 82.00 mm of height, and a P.C. board up to 77.47 x 147.32 mm fits. Molded DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards are provided, and the 1554JPL steel inner panel fits in the box or lid.
The styled lid gives a smooth recess for a membrane keypad or label and seals on a two-piece tongue and groove with a replaceable silicone gasket supplied loose. Four captive M4 stainless steel screws thread into corrosion resistant inserts (43-57 ozf-in / 30-40 cN-m). Four 4.00 mm wall-mounting holes outside the gasket channel accept the 1554FT foot kit. Shipping weight is 0.65 lbs (0.29 kg).
Ideal For
- Outdoor housings for taller components
- DIN rail devices needing extra depth
- Sealed controller and sensor boxes
- Keypad-faced operator stations
Mounting
| Lid Standoffs | Molded in the lid interior, for #6 self-tapping screws |
| PC Card Guides | Vertical, for 1.5 mm thick P.C. boards |
| Internal Mounting | Molded DIN rail mounting tabs; M3 integral brass inserts and standoffs for #6 self-tapping screws |
| Wall Mounting Holes | 4 x 4.00 mm [0.16 in] diameter, located outside the gasket channel |
| Inner Panel (Order Separately) | 1554JPL steel inner panel, fits in box or lid |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-tight |
| Series | 1555 Series – Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Size Code | 1555K Regular Enclosure |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555K2GY |
| Short Description | 160X90X90MM P/C NEMA ENCL. |
| ABS Equivalent (Gray Lid) | 1555KGY |
Dimensions
| Inside Width | 78.13 mm [3.08 in] |
| Inside Height | 82.00 mm [3.23 in] |
| Inside Length | 152.13 mm [5.99 in] |
| Size (L X W X H) | 6.3 in x 3.5 in x 3.5 in (160 mm x 89 mm x 89 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
| Width (Ordering Table) | 3.54 in (90 mm) |
| Length (Ordering Table) | 6.30 in (160 mm) |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
Identifiers
| UPC | 623980842714 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.65 lbs (0.29 kg) |
Construction & Finish
| Lid | Styled lid with smooth recessed surface for a membrane keypad or label |
| Color | Light Gray (RAL 7035) |
| Included | 4 cover screws, and preformed silicone gasket |
| Lid Seal | Two-piece tongue and groove construction with replaceable one-piece silicone gasket (high temperature, UL listed silicone), supplied loose |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws, self captivating, threaded into M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing etc. available from the factory; solid models available in .stp or .x_t |
| Panel / PC Board Screws | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100); 1598ATS100 (#6 x 1/4 in (6.4 mm) self-tapping, plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (series tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F), recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How deep is the 1555K2GY?▾
Total height is 91 mm (3.58 in) per the ordering table, with 82.00 mm of inside height.
Is it rated for submersion or washdown?▾
It is rated IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
What board size fits?▾
A P.C. board up to 77.47 mm x 147.32 mm.
Which inner panel fits?▾
The 1554JPL steel inner panel, ordered separately.
What is the ABS equivalent?▾
1555KGY.
