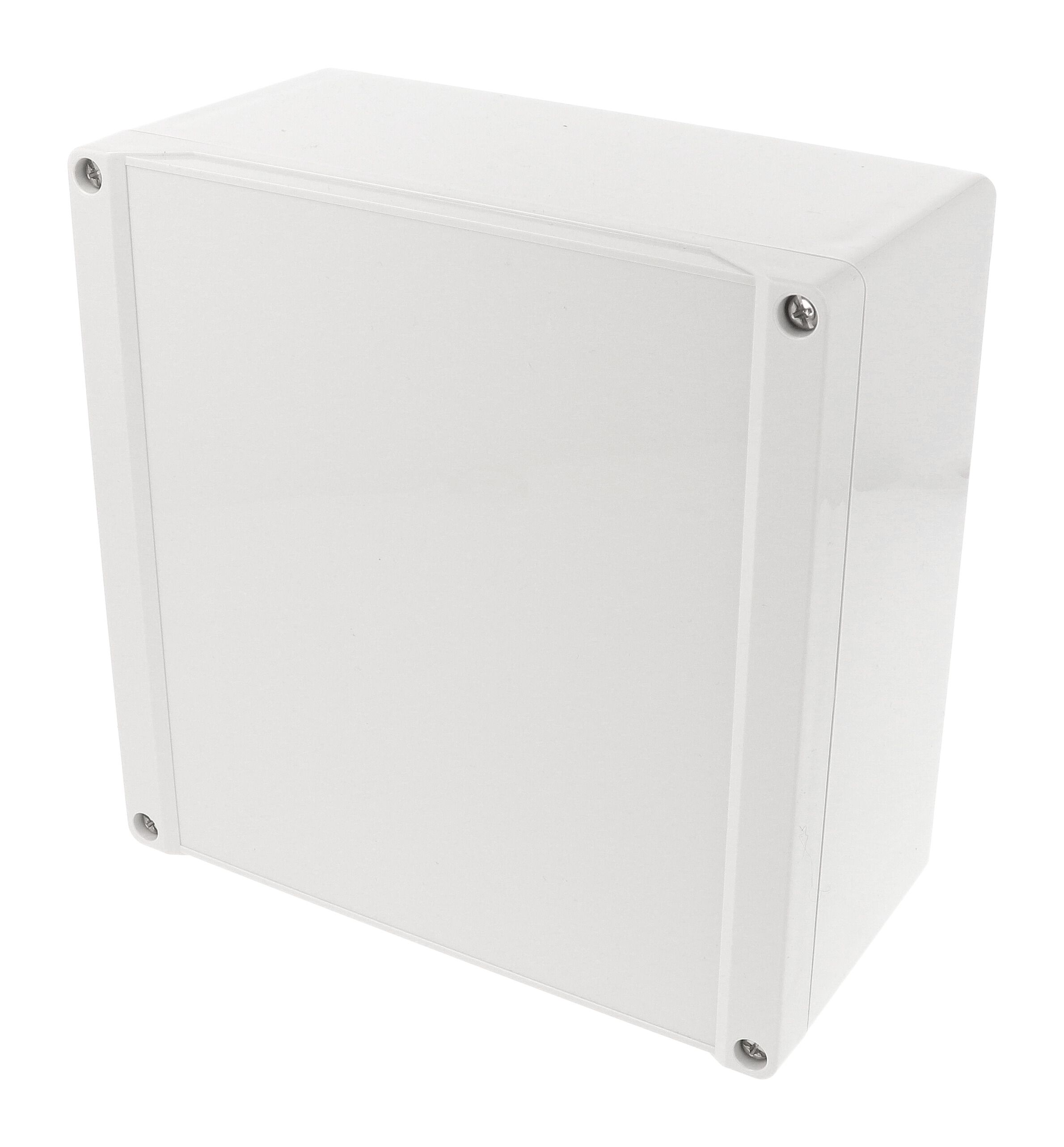

Hammond 1555WA2GY 180x180x90mm Polycarbonate NEMA 4X Enclosure, IP68
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- UV stabilized polycarbonate, 180 x 180 x 90 mm (7.09 in x 7.09 in x 3.54 in), light gray RAL 7035
- cUL and UL 508A listed (file E65324); IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12 & 13
- Inside length 171.32 mm, inside height 81.20 mm; max P.C. board 167 x 167.5 mm
- 4 self captivating M4 stainless steel lid screws in corrosion resistant inserts; torque 43-57 ozf-in (30-40 cN-m)
- Tongue and groove lid with replaceable one piece silicone gasket, supplied loose inside the enclosure
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping screw mounting and card guides for 1.5 mm boards
- Wall-mounting holes outside the gasket channel; accepts 1554FT foot kit and 1554WPL steel inner panel
- IK08 impact rating, UL94-5VA material, -40°C to +110°C recommended range
The 1555WA2GY pairs the square 180 x 180 mm footprint with a 90 mm (3.54 in) total height, giving outdoor and harsh-environment projects more vertical room than the 60 mm 1555W2GY. It is molded from UV stabilized, light gray RAL 7035 polycarbonate for integrators and OEMs needing a UL listed, sealed housing.
Ratings include cUL and UL 508A listing under file E65324, independent testing to IP66, IP67 and IP68, and NEMA Type 4, 4X, 6, 6P, 12 and 13. The UL94-5VA material is rated IK08 per IEC 62262:2021 and recommended for -40°C to +110°C.
Supplied with box, lid, four M4-0.7 x 20mm stainless steel cover screws and a preformed silicone gasket, the enclosure uses tongue and groove lid construction and self captivating screws threaded into corrosion resistant inserts. Recommended torque is 43-57 ozf-in (30-40 cN-m).
The 1555WA2GY drawing lists an overall height of 90.10 mm, inside length of 171.32 mm and inside height of 81.20 mm. P.C. boards up to 167 x 167.5 mm fit, with DIN rail tabs, M3 brass inserts, #6 standoffs and 1.5 mm card guides molded in. Mount it through four 4.30 mm holes outside the gasket channel or add the 1554FT foot kit; accessories include the 1554WPL steel inner panel and 1554WGASKET replacement gasket. Shipping weight is 1.12 lbs (0.51 kg).
Ideal For
- Outdoor PC board and DIN rail housings
- NEMA 4X wet or corrosive locations
- DIN rail assemblies in compact square boxes
- UL 508A panel components
Overview
| Type | Water-tight |
| Series | 1555 Series |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555WA2GY |
| Material Version | Polycarbonate (UL Listed) |
| Enclosure Size Code | 1555WA |
| Alternate Material Version | 1555WAGY (General Purpose ABS) |
Dimensions
| Inside Height | 81.20 mm [3.20 in] |
| Inside Length | 171.32 mm [6.74 in] |
| Size (L X W X H) | 7.1 in x 7.1 in x 3.54 in (180 mm x 180 mm x 90 mm) |
| Max. P.C. Board Width | 167.5 mm |
| Max. P.C. Board Length | 167 mm |
| Width (Ordering Table) | 7.09 in (180 mm) |
| Length (Ordering Table) | 7.09 in (180 mm) |
| Overall Height (Drawing) | 90.10 mm [3.55 in] |
| Total Height (Ordering Table) | 3.54 in (90 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554WGASKET (silicone pre-formed gasket, black, Pkg 2) |
| Replacement Cover Screws | SC576-50 (M4-0.7 x 20mm, Pkg 50), stainless steel |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) Plated, Pkg 100) |
Identifiers
| UPC | 623980762098 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.12 lbs (0.51 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Internal Inserts | Threaded (M3) integral brass inserts |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Features | Internal DIN rail mounting tabs; lid standoffs; vertical PC card guides for 1.5 mm thick P.C. boards |
| Wall Mounting Holes | 4X 4.30 mm [.17 in], located outside of the gasket channel |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Self-Tapping Screw Mounting | Accepts #6 self-tapping screws |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 5VA (UL94 - 5VA @ 3mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, Type 4, 4X, 6, 6P |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555WA2GY?▾
The ordering table lists 7.09 in (180 mm) long, 7.09 in (180 mm) wide and 3.54 in (90 mm) total height; the part page lists 7.1 in x 7.1 in x 3.54 in (180 mm x 180 mm x 90 mm). Inside length is 171.32 mm [6.74 in] and inside height is 81.20 mm [3.20 in].
What ratings does the 1555WA2GY carry?▾
Polycarbonate 1555 enclosures such as the 1555WA2GY are cUL and UL 508A listed under file E65324, tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, rated IK08 per IEC 62262:2021, and UV stabilized for outdoor use.
What comes with the enclosure?▾
The assembly includes the box, lid, 4 M4 stainless steel cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed. The 1554WPL steel inner panel is ordered separately.
What size circuit board will fit?▾
The maximum P.C. board size is 167 x 167.5 mm. Boards can mount on the M3 brass inserts or #6 self-tapping screw positions, and vertical card guides accept 1.5 mm thick P.C. boards.
How tight should the lid screws be?▾
The drawing recommends a cover screw torque of 43-57 ozf-in (30-40 cN-m). The lid screws are self captivating, and the lid holes are threaded the first time the screws are installed.
What temperature range is it rated for?▾
The recommended operating temperature for polycarbonate versions is -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for a specific application.
