Hammond 1591CF2BK 120x65x40mm Black FR Abs Enclosure, Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Accessory mounting flange attached to the bottom; 145.00 mm overall length
- Black flame retardant ABS, UL94 V-0
- 120 x 65 x 40 mm body, 41.30 mm overall height with flange
- Card guides accept 1.5 mm (0.062”) boards vertically
- M3 - 0.5 lid screws into pre-installed brass inserts
- IP54 lap joint construction

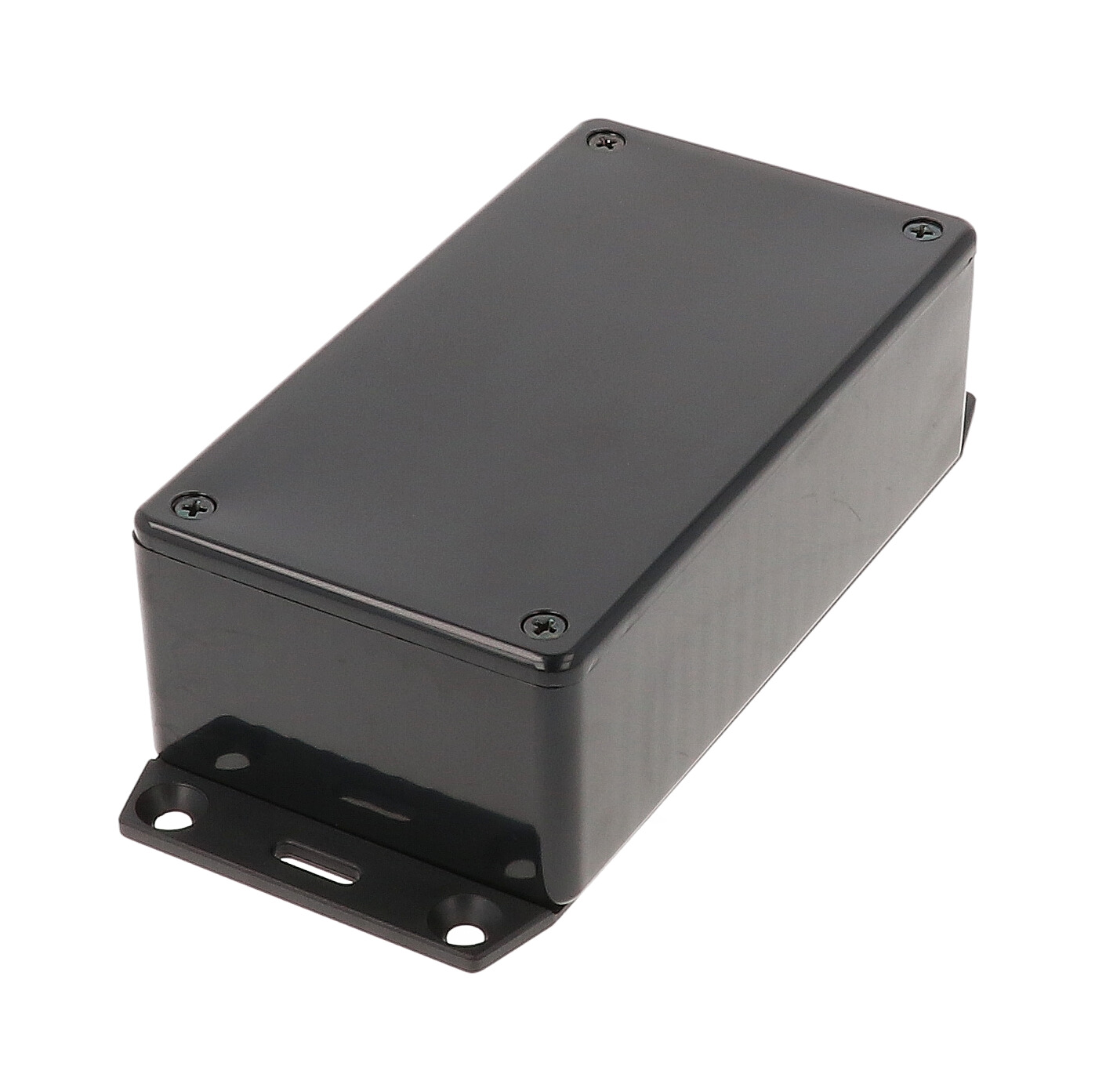

The 1591CF2BK is a black flame retardant ABS enclosure in the 1591C size supplied with an accessory flange attached to the bottom. The body is 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm); on the drawing the overall length with flange is 145.00 mm [5.709 in] and overall height is 41.30 mm [1.626 in]. Keeping the flange on the bottom leaves the lid free for access.
Card guides molded into all side walls accept 1.5 mm (0.062”) thick boards for vertical PCB mounting. The interior measures 113.53 mm x 58.53 mm x 35.90 mm.
The box is made from FRABS with a UL94 V-0 flame rating. The lid is secured with M3 - 0.5 machine screws into pre-installed brass inserts, and the purchased assembly includes box, lid, 4 cover screws and pre-installed brass inserts, black screws for this black enclosure. Recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).
Lap joint construction gives IP54 protection against dust and splashing water. The 1591CF2BK is RoHS and REACH compliant, weighs 0.23 lbs (0.10 kg) shipped and is packed in shrink wrap. The 1591CC clear lid and 1599CLIP belt clip are listed accessories.
Ideal For
- Base-mounted flame retardant enclosures
- Equipment and panel mounting with accessible lid
- Vertical PCB assemblies
- IP54 control electronics
Overview
| Type | general purpose, flanged |
| Color | Black |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | 1591C ABS WITH FLANGE |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 41.30 mm [1.626 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Overall Length Including Flanges | 145.00 mm [5.709 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC (flame retardant polycarbonate, lid only) |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591MS100 (Silver) / 1591MS100BK (Black), M3 - 0.5 X 10mm (100Pkg) plated cover screw |
Identifiers
| UPC | 623980136554 |
| UNSPSC | 39121301 |
| Part Number | 1591CF2BK |
Documentation
| Drawing | 1591CF2, REV: 06.16.2023 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.23 lbs (0.10 kg) |
Construction & Finish
| Lid Fastening | Accepts M3 - 0.5 machine screw |
| Screw Inserts | Pre-installed brass inserts |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |

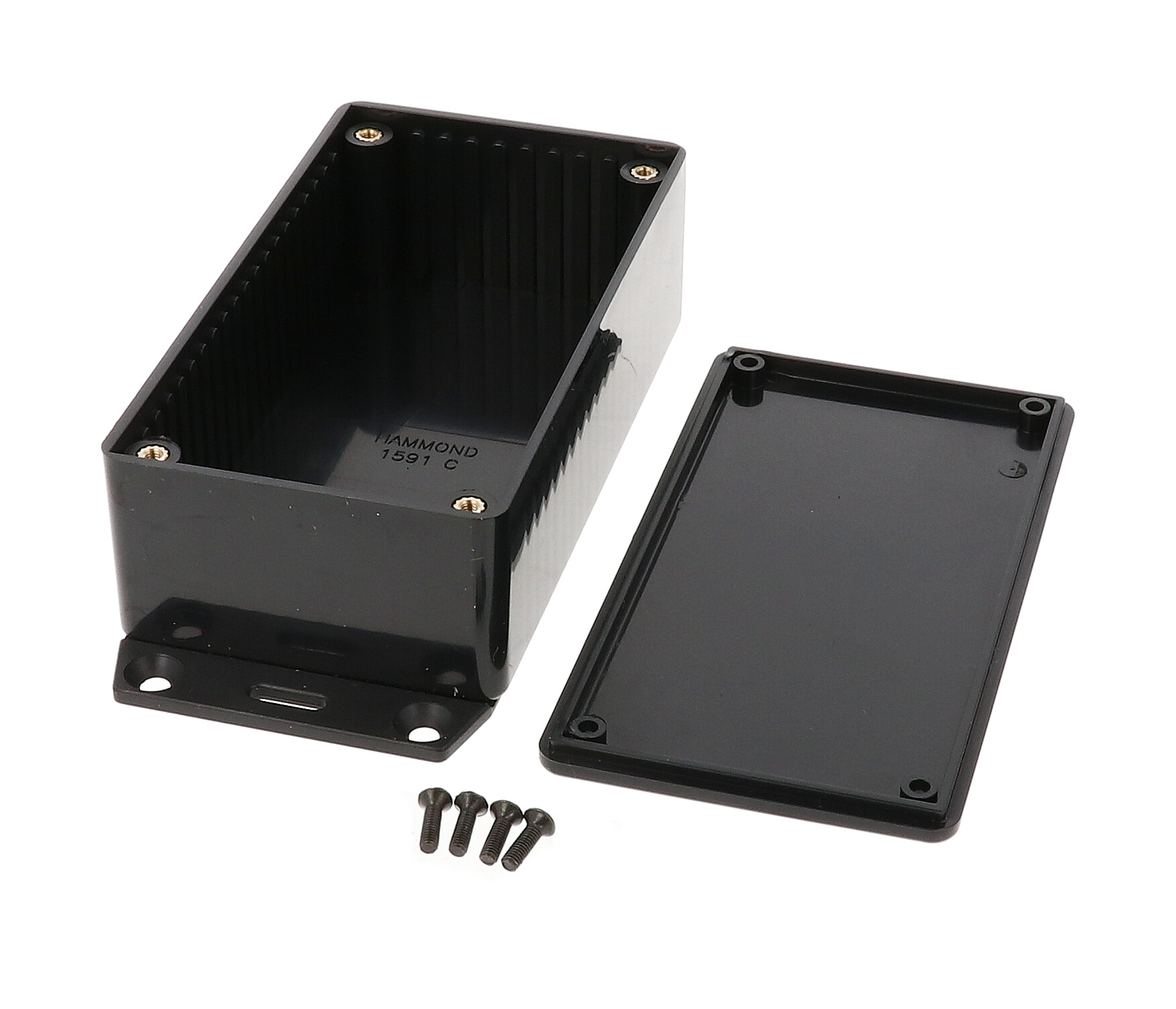

| Purchased Assembly Includes | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Enclosure Material (Drawing) | FRABS (flame retardant ABS) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does F2 mean on the 1591CF2BK?▾
The ordering table lists F2 parts as the bottom flange versions; this one is flame retardant ABS in black.
What are the overall dimensions with the flange?▾
The drawing shows 145.00 mm [5.709 in] overall length and 41.30 mm [1.626 in] overall height.
What flame rating does it carry?▾
UL94 V-0; the enclosure is made from FRABS.
What is included?▾
Box, lid, 4 cover screws and pre-installed brass inserts.
Is a clear lid available?▾
Yes, 1591CC is listed as the flame retardant polycarbonate clear lid (lid only) for this size.
