Hammond 1591DFLBK 150x80x50 mm Black Flanged-Lid FR Abs Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall mounting flanges molded into the lid; 175.30 mm overall length
- Flame retardant ABS, UL94 V-0, black with black screws
- 150 x 80 x 50 mm (5.91 x 3.15 x 1.97 in) nominal size
- M3 machine screws into pre-installed brass inserts
- Lid accepts #4 self-tapping PCB screws (1593ATS series)
- Card guides for 1.5 mm (0.062") boards; IP54 design
- RoHS and REACH compliant

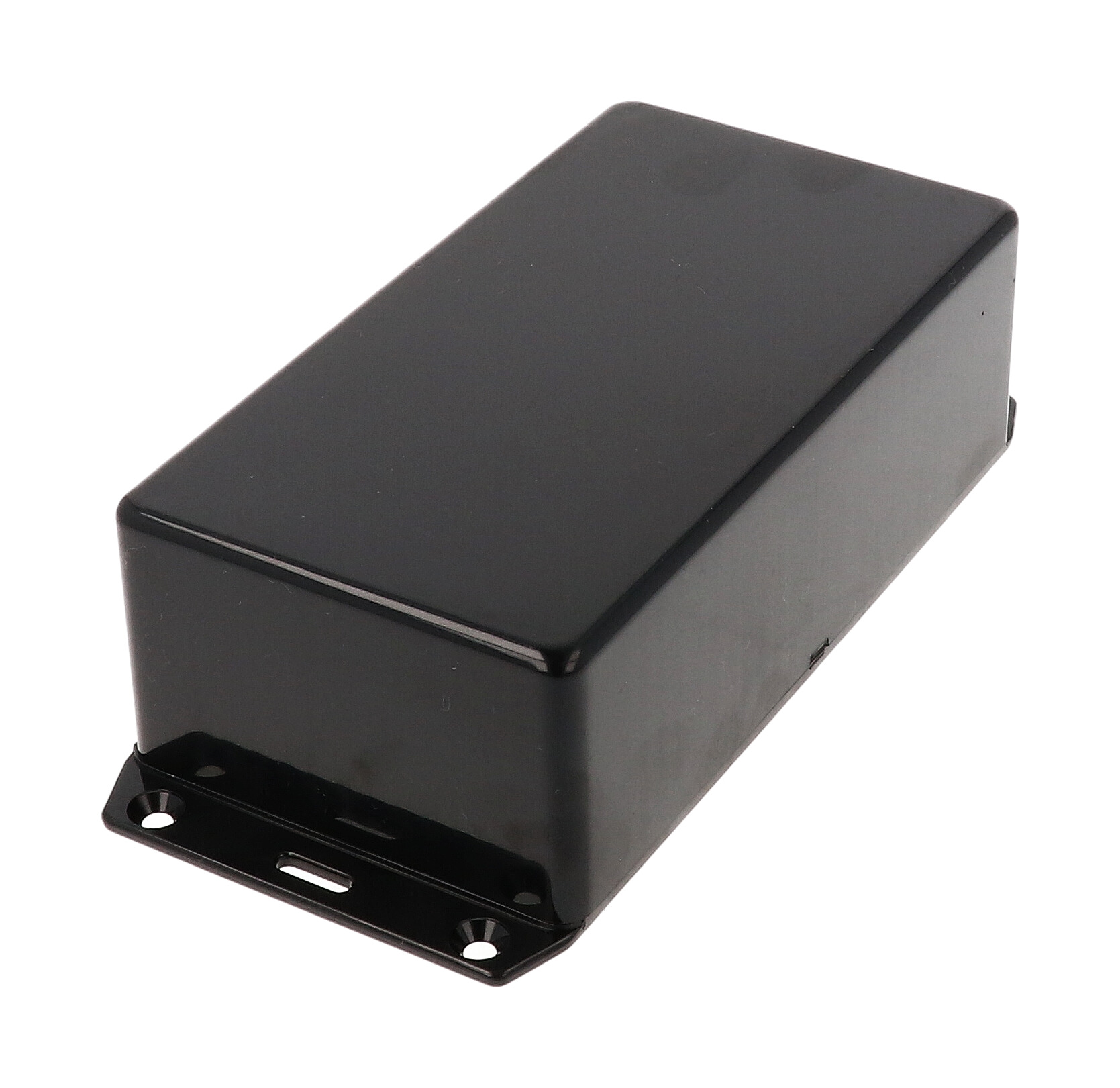

The 1591DFLBK is a 150 x 80 x 50 mm (5.91 x 3.15 x 1.97 in) black enclosure whose lid carries molded wall mounting flanges. Because the flanges are part of the lid, the lid can be fixed to a wall or panel and the box fastened to it, a useful layout for installers and OEM designers housing a PCB close to its mounting surface.
It is molded from flame retardant ABS with a UL94 V-0 rating. Four M3-0.5 x 10 mm Phillips machine screws thread into pre-installed brass inserts, suited to repeated opening; black enclosures include black screws. The lid also accepts #4 self-tapping screws for mounting a PC board to the lid (1593ATS50 / 1593ATS100, #4 x 1/4").
Drawing dimensions include an overall length of 175.30 mm (6.902 in) across the lid flanges and inside dimensions of 143.61 x 73.61 x 46.10 mm. Card guides molded into all side walls take 1.5 mm (0.062") boards vertically. Lap joint construction and an IP54 design protect against dust and splashing water.
The 1591DFLBK weighs 0.3 lbs (0.14 kg), ships shrink wrapped, and is RoHS and REACH compliant. Recommended cover screw torque is 35.5-42.5 ozf.in (25-30 cN.m). A light gray version is 1591DFLGY and an economy black version is 1591DSFLBK.
Ideal For
- Wall-mounted electronics and sensor housings
- Lid-mounted PCB assemblies
- Flame retardant enclosures for control boards
- IP54 indoor installations
Overview
| Type | general purpose, flanged |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Description | enclosure - plastic |
| Part Number | 1591DFLBK |
| Mounting Style | Wall mounting flanges molded into the lid |
| Short Description | 1591D FLANGED LID BLACK |
| Enclosure Size Code | 1591D |
| Series Ordering Table | Enclosures With Mounting Flanges |
Dimensions
| Inside Width | 73.61 mm [2.898 in] |
| Inside Height | 46.10 mm [1.815 in] |
| Inside Length | 143.61 mm [5.654 in] |
| Width (Drawing) | 80.00 mm [3.150 in] |
| Size (L X W X H) | 5.91 in x 3.15 in x 1.97 in (150 mm x 80 mm x 50 mm) |
| Body Length (Drawing) | 150.00 mm [5.906 in] |
| Height (Drawing, Section A-A) | 50.00 mm [1.969 in] |
| Nominal Size – Depth (Series Table) | 1.97 in (50 mm) |
| Nominal Size – Width (Series Table) | 3.15 in (80 mm) |
| Nominal Size – Length (Series Table) | 5.91 in (150 mm) |
| Overall Length Including Lid Flanges (Drawing) | 175.30 mm [6.902 in] |
Accessories
| Clear Lid Accessory | 1591DC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
Identifiers
| UPC | 623980196800 |
| UNSPSC | 39121301 |
| Drawing | 1591DFL, REV: 06.16.2023 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Card Guide Height | 41.10 mm [1.618 in] |
| Lid PC Board Screws | #4 x 1/4" (6.4 mm) self-tapping: 1593ATS50 (50 pack), 1593ATS100 (100 pack) |
| Card Guide Slot Width | 2.11 mm [.083 in] |
| PC Board Card Adaptors (Horizontal PCB Mounting) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping

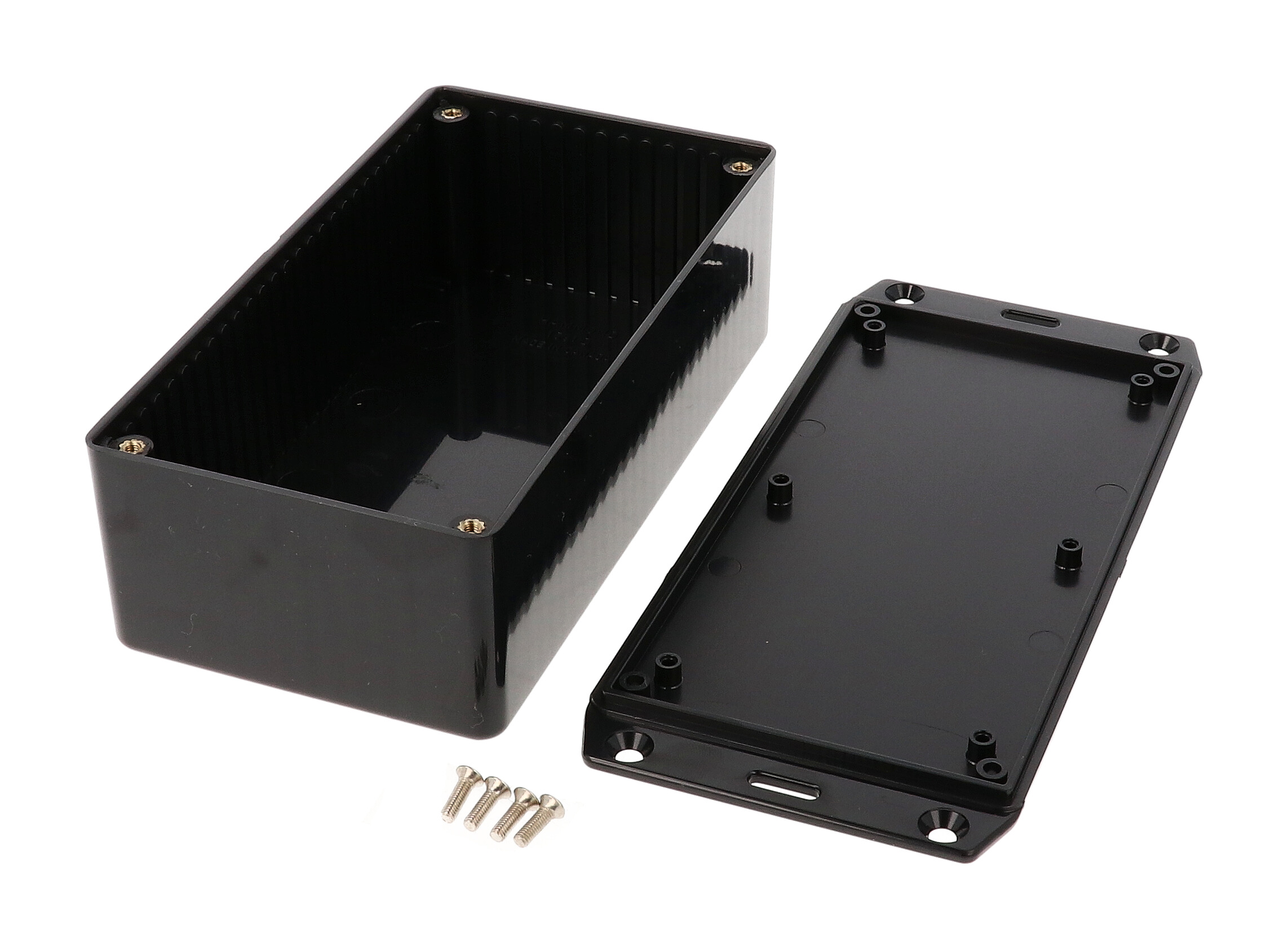

| Included | Box, lid, 4 cover screws and pre-installed brass inserts |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.3 lbs (0.14 kg) |
Construction & Finish
| Color | Black |
| Material | Flame retardant ABS (FRABS) |
| Construction | Lap joint construction |
| Screw Finish | Black screws (black enclosures) |
| Solid Models | Available in .stp or .x_t |
| Lid Fastening | 4 x M3-0.5 x 10 mm Phillips machine screws into pre-installed integral brass inserts |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Material (Part Page) | ABS Plastic |
| Replacement Lid Screws | M3-0.5 x 10 mm, 100 pack: 1591MS100 (silver/nickel plated), 1591MS100BK (black) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where are the mounting flanges on the 1591DFLBK?▾
The wall mounting flanges are molded into the lid. The drawing gives 175.30 mm (6.902 in) overall length across them.
Can I mount a circuit board to the lid?▾
Yes. The drawing lists #4 x 1/4" (6.4 mm) self-tapping P.C. board screws for the lid: 1593ATS50 (50 pack) and 1593ATS100 (100 pack).
What flame rating does it carry?▾
UL94 V-0; it is made from flame retardant ABS.
What is included?▾
The box, lid, 4 cover screws and pre-installed brass inserts.
What is the recommended lid screw torque?▾
35.5-42.5 ozf.in (25-30 cN.m).
