Hammond 1591CFLBK 120x65x40mm Black FR Abs Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall mounting flanges molded into the lid, 145.20 mm overall
- Black flame retardant ABS, UL94 V-0
- 120 x 65 x 40 mm body with card guides for 1.5 mm (0.062”) PCBs
- M3 - 0.5 lid screws into pre-installed brass inserts
- IP54 lap joint construction
- Box, lid and 4 black cover screws included

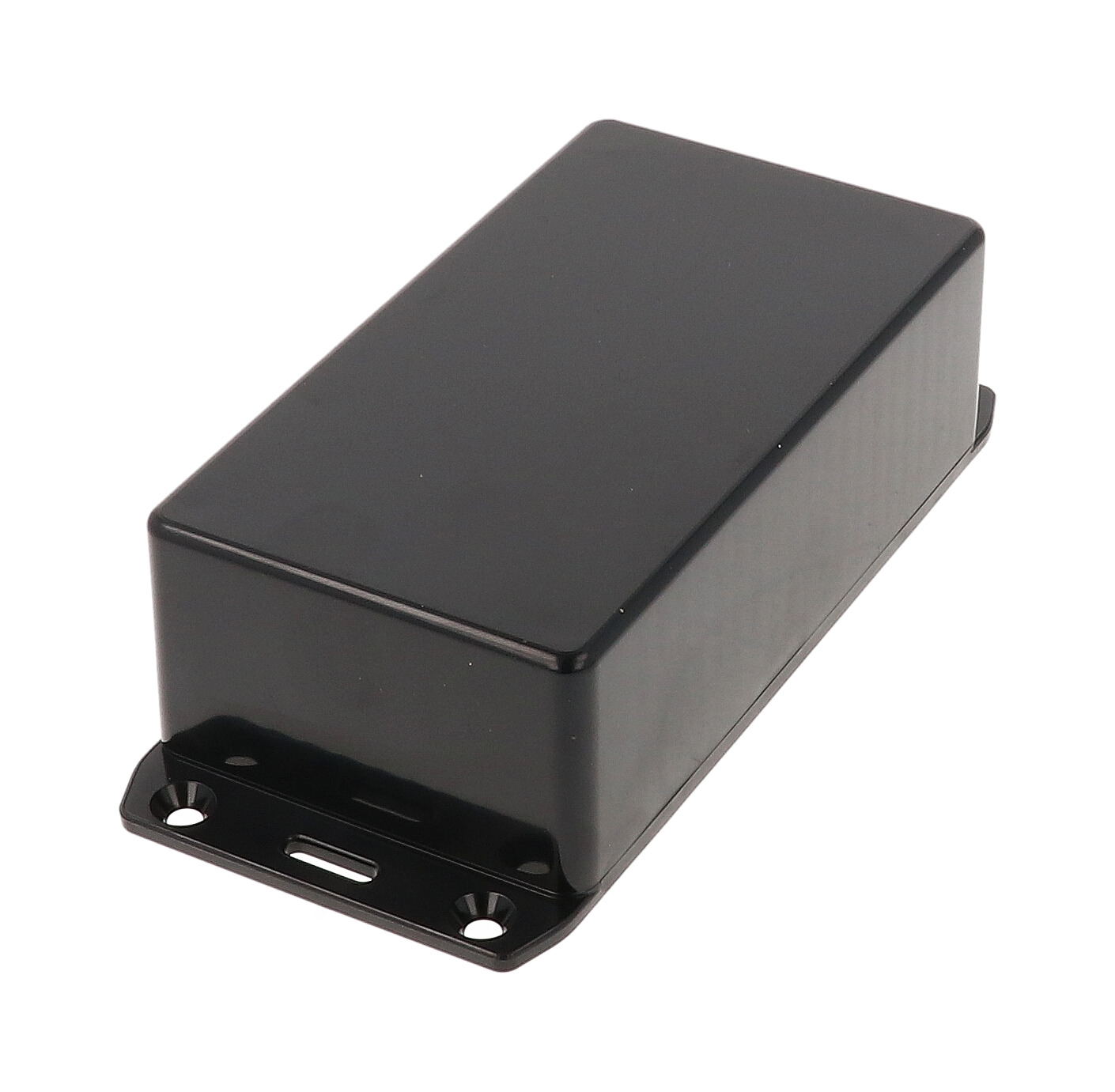

The 1591CFLBK is a black flame retardant ABS enclosure with wall mounting flanges molded into the lid. Its body measures 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm), and the flanged lid gives an overall length of 145.20 mm [5.717 in] on the drawing, ready for wall or panel mounting.
Card guides molded into all side walls accept 1.5 mm (0.062”) thick boards, so PCBs mount vertically. The drawing lists an inside length of 113.53 mm, inside width of 58.53 mm and inside height of 35.90 mm.

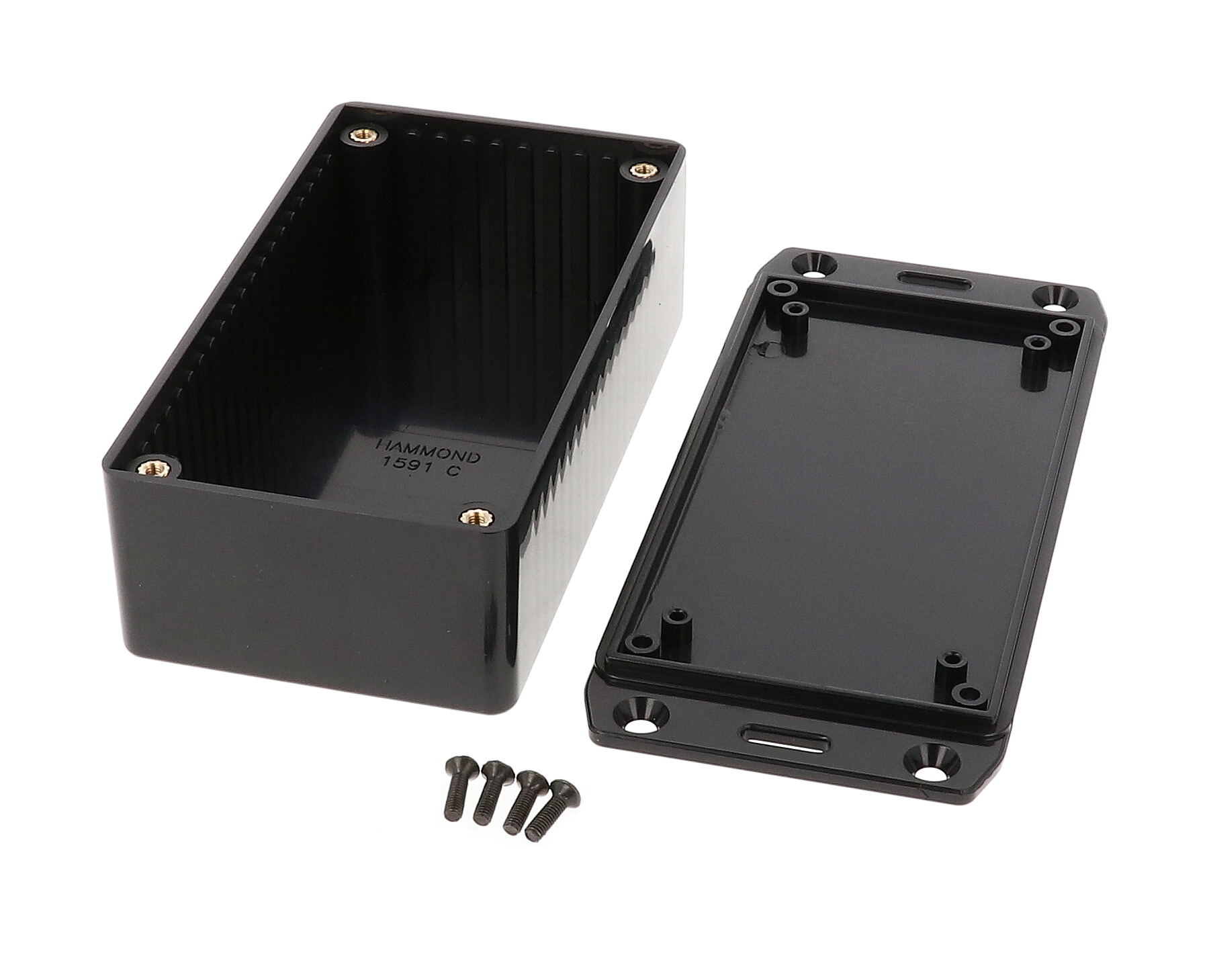

Made from FRABS with a UL94 V-0 flame rating, it uses M3 - 0.5 machine screws into pre-installed brass inserts for the lid, suited to repeated opening. The purchased assembly includes box, lid, 4 cover screws and pre-installed brass inserts, with black screws on black enclosures and a recommended torque of 35.5-42.5 ozf.in (25-30 cN.m). P.C. board screws for the lid (1593ATS50 / 1593ATS100) are listed as accessories.
Lap joint construction gives IP54 protection. The 1591CFLBK is RoHS and REACH compliant and ships in shrink wrap at 0.21 lbs (0.10 kg).
Ideal For
- Wall-mounted flame retardant electronics housings
- Control panels and sensor boxes
- Vertical PCB assemblies with frequent lid access
- IP54 indoor installations
Overview
| Type | general purpose, flanged |
| Color | Black |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | 1591C FLANGED LID BLACK |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Overall Length Including Flanges | 145.20 mm [5.717 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591MS100 (Silver) / 1591MS100BK (Black), M3 - 0.5 X 10mm (100Pkg) plated cover screw |
| P.C. Board Screws For Lid | 1593ATS50 (50Pkg) / 1593ATS100 (100Pkg), #4 X 1/4" (6.4mm) self-tapping |
Identifiers
| UPC | 623980196770 |
| UNSPSC | 39121301 |
| Part Number | 1591CFLBK |
Documentation
| Drawing | 1591CFL, REV: 06.16.2023 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Lid Fastening | Accepts M3 - 0.5 machine screw |
| Screw Inserts | Pre-installed brass inserts |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |
| Purchased Assembly Includes | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Enclosure Material (Drawing) | FRABS (flame retardant ABS) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591CFLBK flame retardant?▾
Yes. It is made from FRABS with a UL94 V-0 flame rating.
How is it mounted?▾
Wall mounting flanges are molded into the lid; overall length across the flanges is 145.20 mm [5.717 in].
What hardware is included?▾
Box, lid, 4 cover screws and pre-installed brass inserts.
Is there a gray version?▾
Yes, the flame retardant flanged lid version in gray is 1591CFLGY.
What torque should be used?▾
The drawing recommends 35.5-42.5 ozf.in (25-30 cN.m).
