Hammond 1591HF2BK Black Bottom Flange FR Abs Enclosure, 166x71x29 mm
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Bottom mounting flange; 190.80 mm [7.512 in] overall length
- Black flame retardant ABS, UL94 V-0
- Enclosure size 166 x 71 x 29 mm (6.52 x 2.79 x 1.14 in)
- IP54 with lap joint construction
- Card guides accept 1.5 mm (0.062") PCBs vertically
- M3 machine screws into pre-installed brass inserts; 6 black screws included
- Clear lid accessory: 1591HC

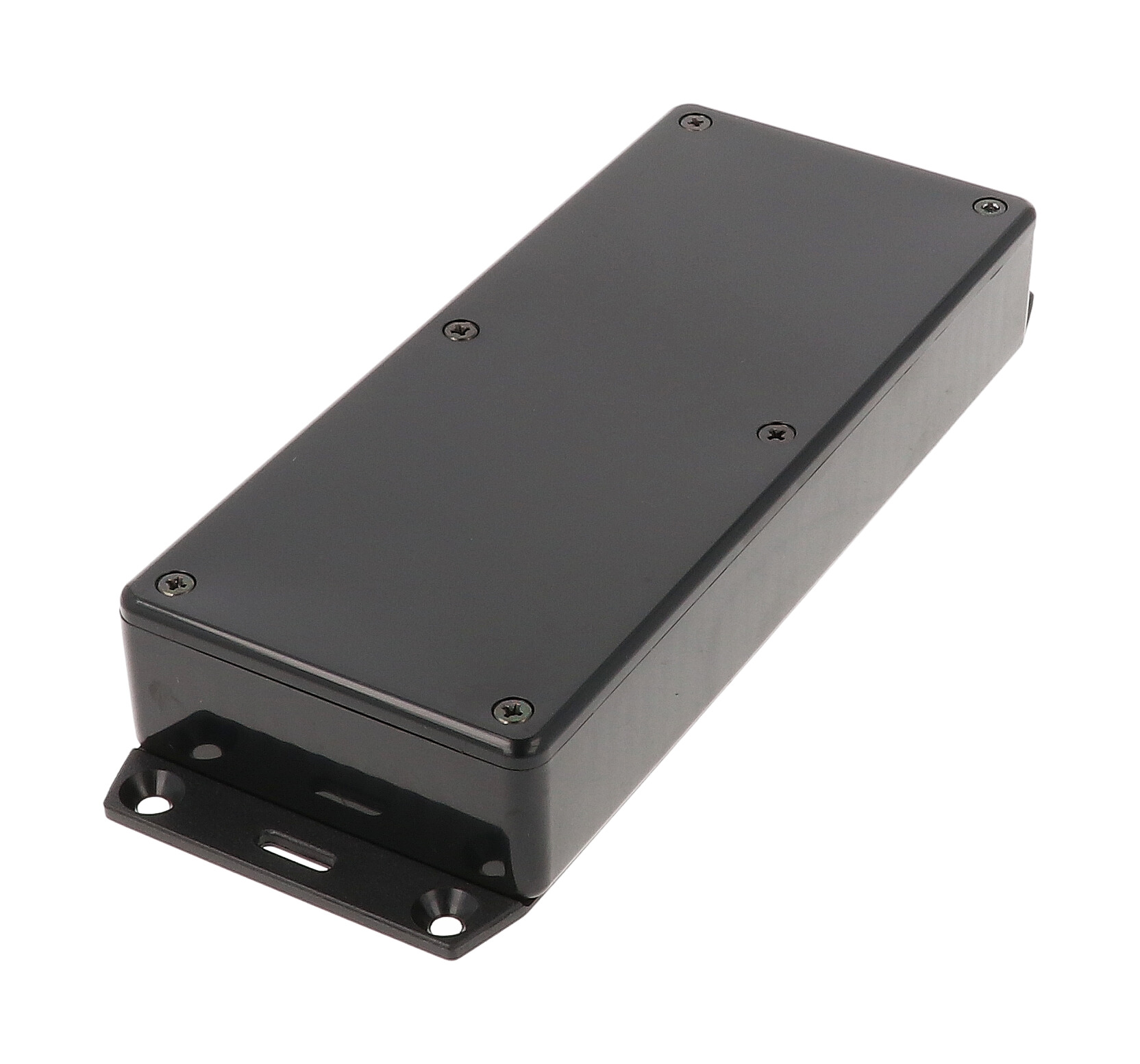

The 1591HF2BK is a black flame retardant ABS enclosure with a bottom mounting flange, from the 1591 Series of multipurpose enclosures with card guides. The body is 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm), and the flange lets installers fix the box to a panel, wall or chassis surface.
Per the 1591HF2 drawing, the overall length including the bottom flange is 190.80 mm [7.512 in] and overall height is 30.50 mm [1.201 in]. Inside, you have 159.70 mm [6.287 in] of length, 64.80 mm [2.551 in] of width and 25.00 mm [.984 in] of height.
The enclosure is molded from flame retardant ABS (FRABS) with a UL94 V-0 rating and an IP54 rating, and lap joint construction protects against dust and splashing water. Card guides molded into all side walls accept 1.5 mm (0.062") boards for vertical PCB mounting, and 1591Z adaptors are offered for horizontal boards.
The 1591HF2BK assembly includes box, lid, 6 cover screws and pre-installed brass inserts; the cover takes M3 - 0.5 machine screws torqued to 35.5-42.5 ozf.in (25-30 cN.m). Black enclosures include black screws. It is RoHS and REACH compliant and ships in shrink wrap at 0.28 lbs (0.13 kg).
Ideal For
- Surface-mounted control and sensor electronics
- Panel or chassis mounted PCB housings
- Equipment needing flame retardant enclosures
- Field devices requiring repeated lid access
Hardware

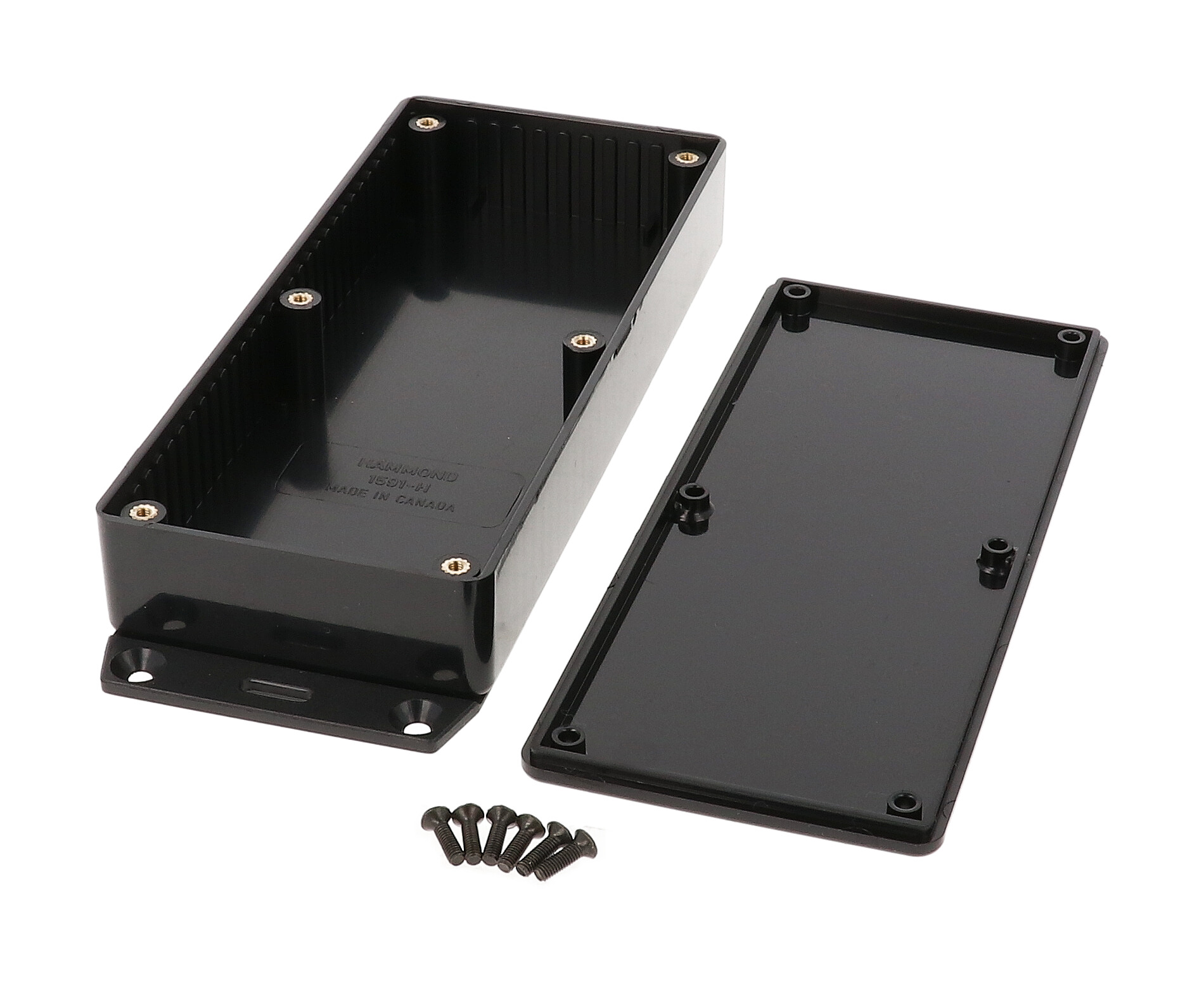

| Included | Box, lid, 6 cover screws, and pre-installed brass inserts |
| Cover Screw | M3 - 0.5 x 10 mm machine screw |
| Screw Finish | Black enclosures include black screws |
| Clear Lid Accessory | 1591HC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591MS100 (silver / nickel plated) or 1591MS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591HF2BK |
| Mounting Flange | Bottom flange (accessory flange attached to the bottom) |
| Product Description | enclosure - plastic |
| Ordering Table Version | Flame Retardant, Bottom Flange, Black (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591H ABS WITH FLANGE |
Dimensions
| Inside Width | 64.80 mm [2.551 in] |
| Inside Height | 25.00 mm [.984 in] |
| Inside Length | 159.70 mm [6.287 in] |
| Size L X W X H | 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm) |
| Nominal Size - Depth | 1.14 in (29 mm) |
| Nominal Size - Width | 2.80 in (71 mm) |
| Body Length (Drawing) | 165.70 mm [6.524 in] |
| Nominal Size - Length | 6.54 in (166 mm) |
| Overall Width (Drawing) | 70.80 mm [2.787 in] |
| Overall Height (Drawing) | 30.50 mm [1.201 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 190.80 mm [7.512 in] |
Identifiers
| UPC | 623980136721 |
| UNSPSC | 39121301 |
| Drawing | 1591HF2, REV: 06.16.2023 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 20.00 mm [.788 in] |
| Card Guide Slot Width | 2.00 mm [.079 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.28 lbs (0.13 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | M3 - 0.5 machine screws threaded into pre-installed brass inserts |
| Drawing Material Note | Enclosure made from FRABS |
| Material Grade (Drawing) | Flame retardant ABS (FRABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does the F2 in 1591HF2BK mean?▾
In the series ordering table the F2 versions are the "Bottom Flange" enclosures, with an accessory flange attached to the bottom for mounting.
How long is it including the flange?▾
The drawing shows 190.80 mm [7.512 in] overall length with the flange; the enclosure body is 166 mm (6.52 in) long.
Is the 1591HF2BK flame retardant?▾
Yes, it is made from flame retardant ABS with a UL94 V-0 flame rating.
What is included?▾
Box, lid, 6 cover screws and pre-installed brass inserts.
What is the recommended lid screw torque?▾
35.5-42.5 ozf.in (25-30 cN.m).
Related Products
Save 52%1591HC — lid - clear polycarbonate, made to fit 1591H enclosures
Hammond Manufacturing · 1591HC

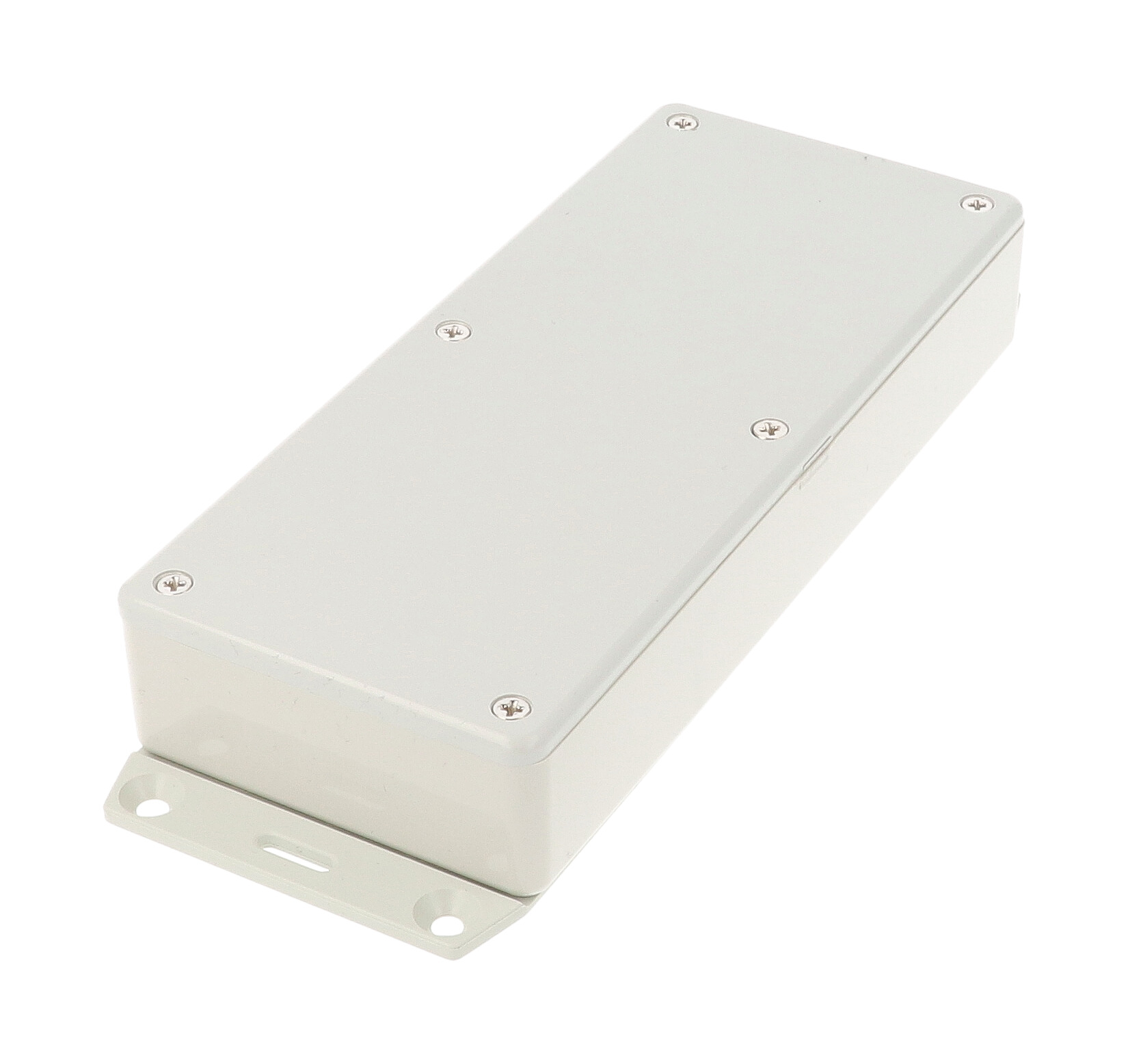

Save 52%1591HF2GY — enclosure - plastic
Hammond Manufacturing · 1591HF2GY
Save 52%1591HBK — enclosure - plastic
Hammond Manufacturing · 1591HBK
Save 52%1591HF2SBK — enclosure - plastic
Hammond Manufacturing · 1591HF2SBK

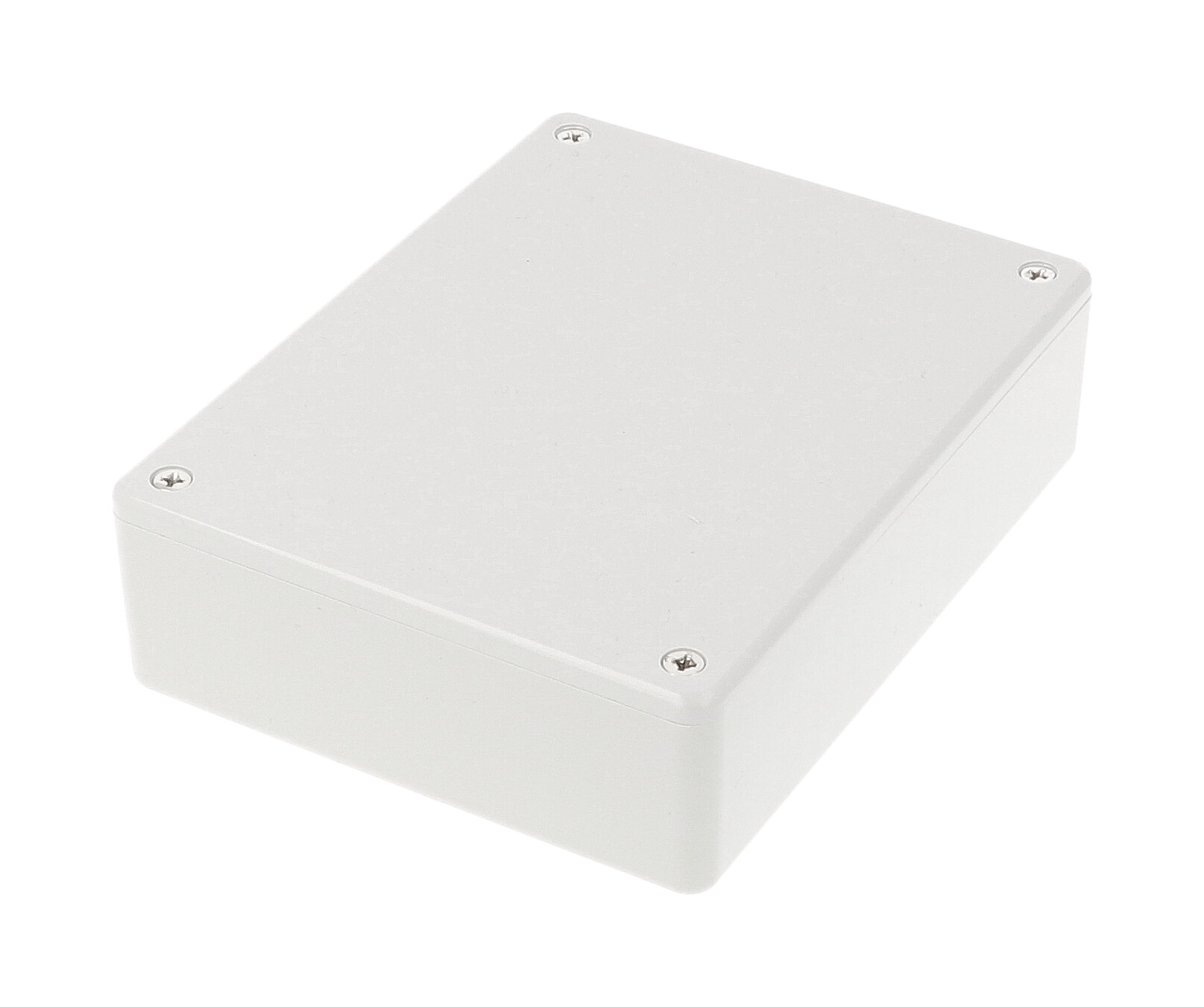

Save 52%1591GSGY — enclosure - plastic
