Hammond 1591ESBK 190x111x61 mm Black General Purpose ABS Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 190 x 111 x 61 mm (7.48 x 4.37 x 2.40 in) black enclosure
- Economy general purpose ABS, UL94 HB (not flame retardant)
- Card guides molded into all side walls accept 1.5 mm (0.062 in) PCBs
- Lap joint construction designed to meet IP54
- Lid fastens with #4 self-tapping screws into plastic posts
- Inside dimensions 183.52 x 103.53 x 56.60 mm
- RoHS and REACH compliant

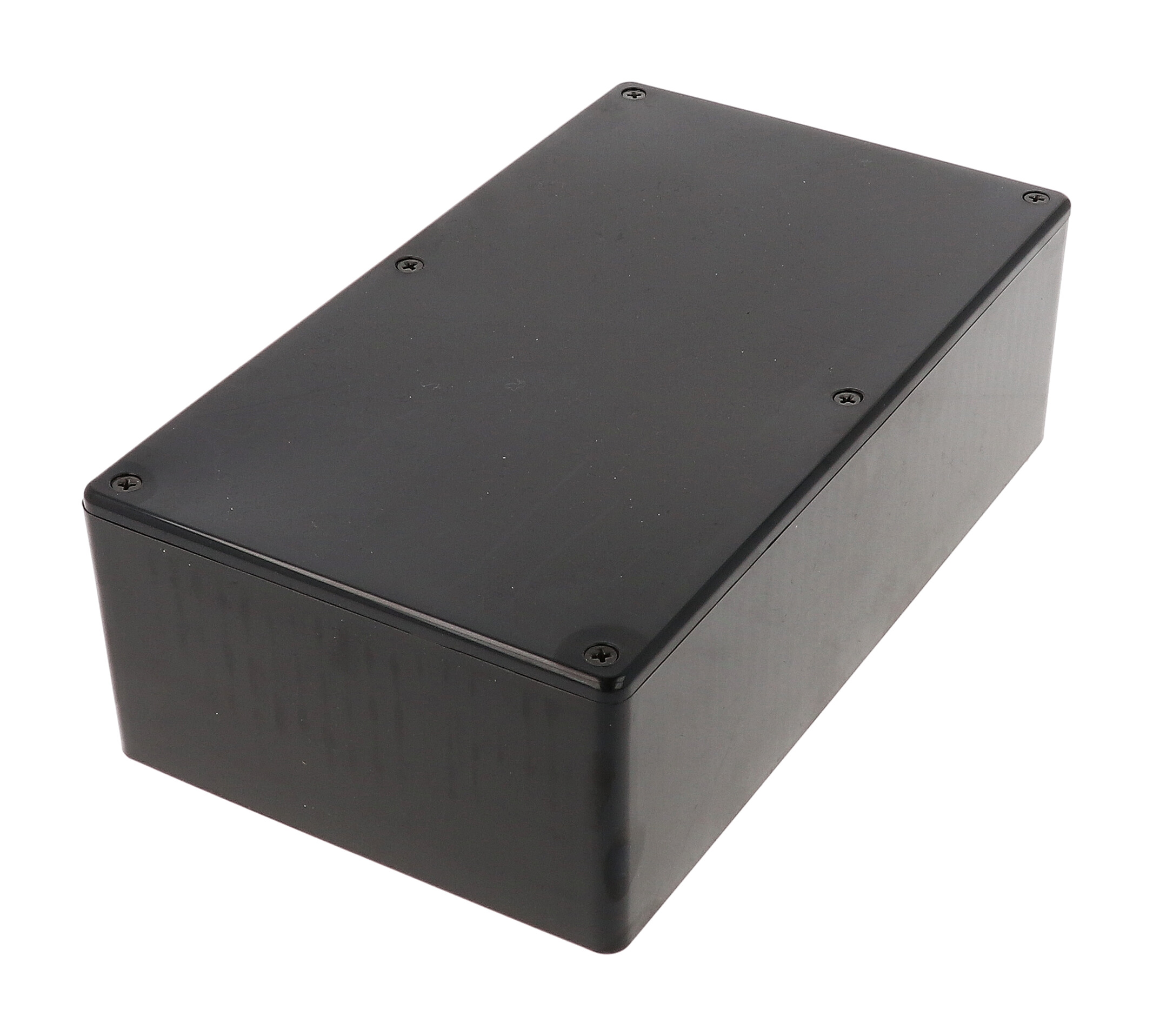

The 1591ESBK is the black economy version of the 1591E enclosure: a general purpose ABS project box sized 7.5 in x 4.35 in x 2.39 in (191 mm x 110 mm x 61 mm). It is aimed at electronics builders, hobby and OEM projects where a flame retardant grade is not required.
Card guides molded into all side walls accept 1.5 mm (0.062 in) boards so PCBs stand vertically, with 51.60 mm [2.032 in] guide height and a 2.06 mm [0.081 in] slot. Usable space inside measures 183.52 mm [7.225 in] long, 103.53 mm [4.076 in] wide and 56.60 mm [2.228 in] high. 1591Z card adaptors are available for horizontal board mounting.
This version is molded from general purpose plastic that is not flame retardant; the part page lists a UL94 HB flame rating. Lap joint construction protects against dust and splashing water and the box is designed to meet IP54. The lid is assembled with #4 self-tapping screws into fully plastic posts, with a recommended torque of 42-57 ozf.in (30-40 cN.m). This black version ships with black screws.

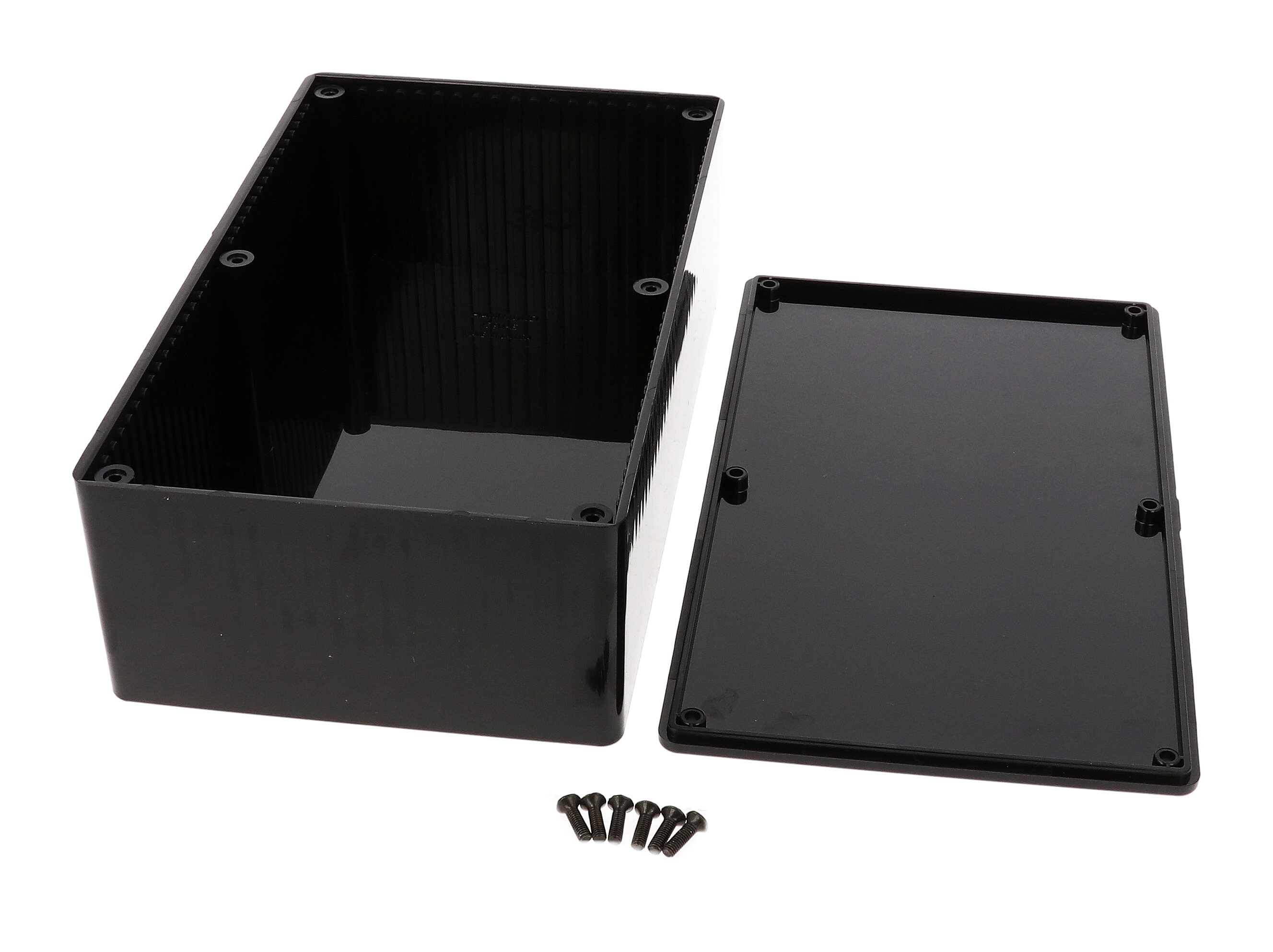

The 1591ESBK arrives shrink wrapped with box, lid and 6 cover screws, weighing 0.47 lbs (0.21 kg) for shipping. It is RoHS and REACH compliant. Replacement self-tapping screws are 1591TS100 (silver) and 1591TS100BK (black), and the 1591EC clear polycarbonate lid fits this size.
Ideal For
- General purpose electronics project boxes
- Vertical PCB mounting on molded card guides
- Cost-sensitive builds without a flame retardant requirement
- Prototype and hobby electronics housings
Overview
| Type | project box, general purpose |
| Color | Black |
| Series | 1591 |
| Version | General Purpose ABS, no mounting flanges |
| Description | PLASTIC CASE |
| Product Type | ABS plastic multipurpose enclosure with card guides |
Dimensions
| Inside Width | 103.53 mm [4.076 in] |
| Inside Height | 56.60 mm [2.228 in] |
| Inside Length | 183.52 mm [7.225 in] |
| Size (L X W X H) | 7.5 in x 4.35 in x 2.39 in (191 mm x 110 mm x 61 mm) |
| Overall Width (Drawing) | 110.60 mm [4.354 in] |
| Nominal Size (L X W X D) | 7.48 in (190 mm) x 4.37 in (111 mm) x 2.40 in (61 mm) |
| Overall Height (Drawing) | 60.80 mm [2.394 in] |
| Overall Length (Drawing) | 190.40 mm [7.496 in] |
Accessories
| Clear Lid Accessory | 1591EC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black) / 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591TS100 (silver) / 1591TS100BK (black), #4 x 1/2" self-tapping, 100 pack |
Identifiers
| UPC | 623980557403 |
| UNSPSC | 39121301 |
| Drawing | 1591ES REV: 07.01.2020 |
| Part Number | 1591ESBK |
PCB Mounting
| Card Guides | Molded into all side walls |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 2.99 mm [0.118 in] |
| Guide Height | 51.60 mm [2.032 in] |
| Guide Slot Width | 2.06 mm [0.081 in] |
| Accepted Board Thickness | 1.5 mm (0.062 in) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
| Horizontal PCB Card Adaptors (Optional) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping
| Included | Box, lid, 6 cover screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.47 lbs (0.21 kg) |
Construction & Finish
| Material | ABS Plastic |
| 3D Models | Solid models available in .stp or .x_t |
| Screw Finish | Black screws |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Material Grade | GP ABS (general purpose ABS) |
| Lid Screw Thread | Accepts #4 self-tapping screw |
| Joint Construction | Lap joint |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardant | No (general purpose plastic) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1591ESBK and the flame retardant 1591E versions?▾
This is the economy version molded from general purpose plastic that is not flame retardant (UL94 HB). Its lid uses self-tapping screws into plastic posts rather than machine screws into brass bushings.
What are the dimensions?▾
The part page lists 7.5 in x 4.35 in x 2.39 in (191 mm x 110 mm x 61 mm); inside it measures 183.52 x 103.53 x 56.60 mm.
What screws are included?▾
Six #4 self-tapping cover screws. Replacements come in 100 packs as 1591TS100 (silver) or 1591TS100BK (black).
What IP rating does it meet?▾
It is designed to meet IP54.
Can boards be mounted horizontally?▾
The molded guides hold boards vertically; the 1591Z6, 1591Z50 and 1591Z100 card adaptors allow horizontal mounting.
