Hammond 1591UF2BK 120x120x59mm Bottom-Flange Flame Retardant Box, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Bottom mounting flange: 145.20 mm overall, 133.50 mm hole centres
- Flame retardant ABS, UL94 V-0, black
- 120 x 120 x 59 mm; 60.50 mm high with flange
- Black M3 x 10 mm screws into brass inserts
- Card guides accept 1.5 mm (0.062") PCBs
- Designed to meet IP54
- Inside 113.54 x 113.54 x 54.90 mm

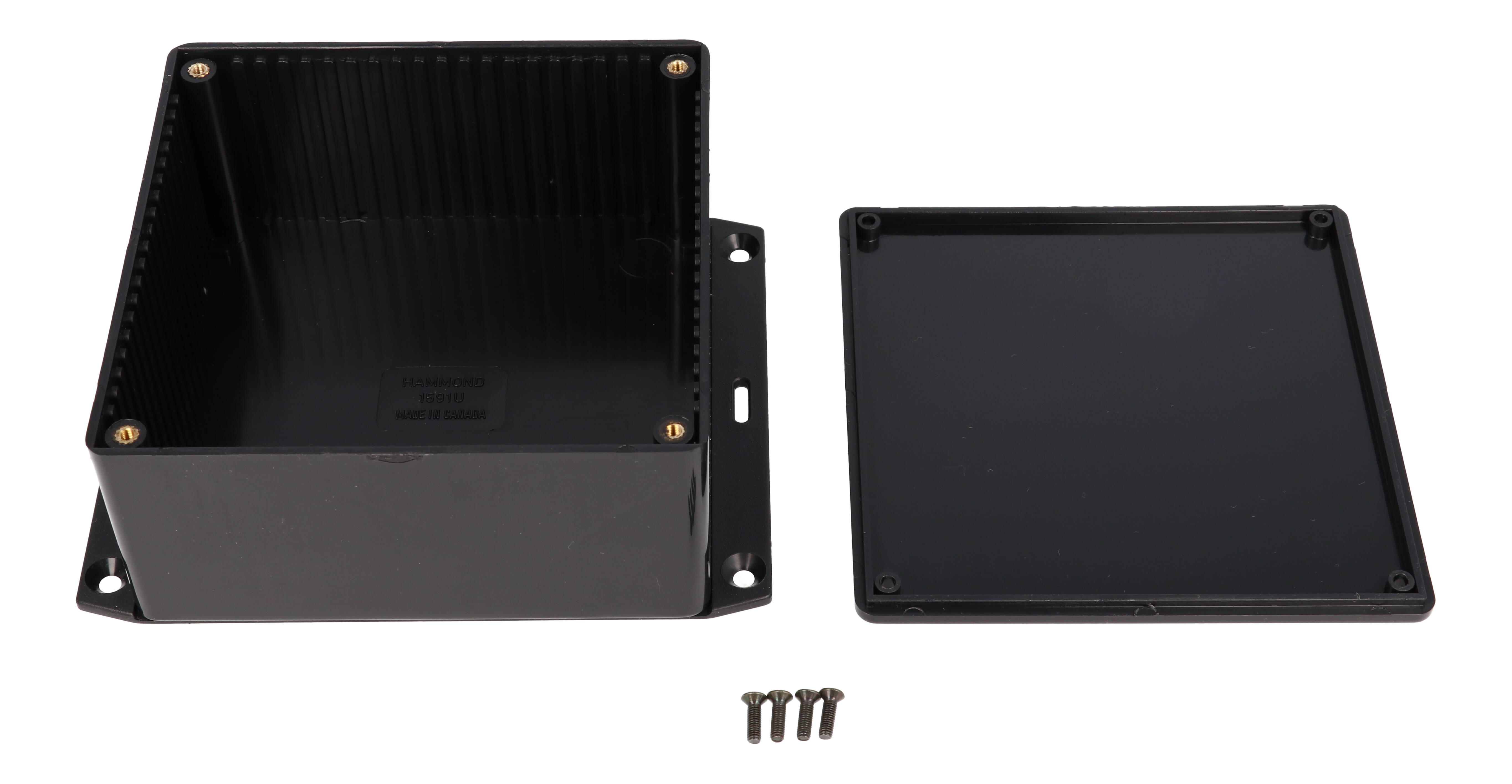

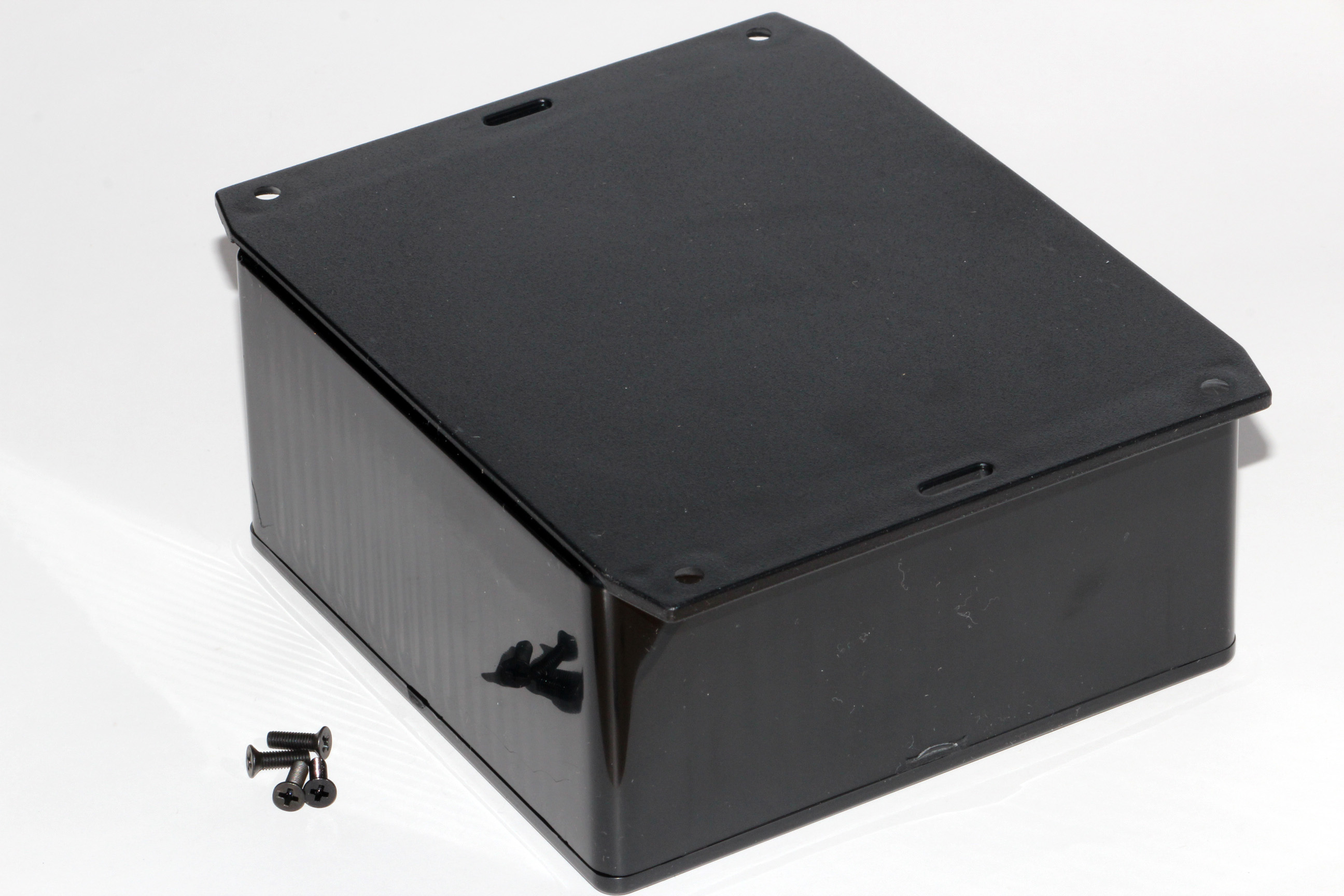

The 1591UF2BK is a black 120 x 120 x 59 mm (4.72 x 4.72 x 2.32 in) 1591 Series enclosure with an accessory mounting flange attached to the bottom. As a flame retardant version, it is aimed at engineers who need to bolt a square PCB housing to a panel, chassis or wall.
It is molded from flame retardant ABS rated UL94 V-0. Card guides molded into all side walls accept 1.5 mm (0.062") boards for vertical mounting. Lap joint construction protects against dust and splashing water, and the design meets IP54.
On the drawing, the bottom flange brings overall length to 145.20 mm [5.717 in], with flange hole centres at 133.50 mm [5.256 in] and an overall height of 60.50 mm [2.382 in]. The inside cavity is 113.54 x 113.54 x 54.90 mm. The lid fastens with M3 x 10 mm Phillips machine screws into pre-installed brass inserts, and black enclosures include black screws. Recommended torque: 35.5–42.5 ozf.in (25–30 cN.m).
The 1591UF2BK includes box, lid, 4 cover screws and brass inserts, weighs 0.38 lbs (0.17 kg) shipped in shrink wrap, and is RoHS and REACH compliant. The 1591UC clear lid is listed as an accessory.
Ideal For
- Chassis or panel mounting via bottom flange
- Flame retardant housings for vertical PCBs
- Serviceable enclosures with brass-insert lid screws
- IP54-design control boxes
Overview
| Type | general purpose, flanged |
| Colour | Black |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591UF2BK |
| Mounting Style | Bottom flange |
| Enclosure Grade | Flame retardant ABS (standard version) |
| Long Description | enclosure - plastic |
| Short Description | 1591U ABS WITH FLANGE |
Dimensions
| Inside Width | 113.54 mm [4.470 in] |
| Inside Height | 54.90 mm [2.161 in] |
| Inside Length | 113.54 mm [4.470 in] |
| Size (L X W X H) | 4.72 in x 4.72 in x 2.32 in (120 mm x 120 mm x 59 mm) |
| Overall Width (Drawing) | 120.00 mm [4.724 in] |
| Overall Height (Drawing) | 60.50 mm [2.382 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Flange Hole Centres (Length) | 133.50 mm [5.256 in] |
| Overall Length Including Flanges | 145.20 mm [5.717 in] |
| Nominal Size (L X W X Depth, Ordering Table) | 4.72 in (120 mm) x 4.72 in (120 mm) x 2.32 in (59 mm) |
Accessories
| Clear Lid Accessory | 1591UC |
| Nylon Belt / Pocket Clip | 1599CLIP (black) or 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591MS100 (nickel plated/silver) or 1591MS100BK (black), M3-0.5 x 10 mm, pack of 100 |
Identifiers
| UPC | 623980136646 |
| UNSPSC | 39121301 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards; ideally suited for vertical PCB mounting |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 49.90 mm [1.965 in] |
| Guide Slot Width | 2.06 mm [0.081 in] |
| Horizontal PCB Mounting | Optional PC board card adaptors 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack), molded from flame retardant ABS; recommended PCB thickness 1.5–1.75 mm |
Documentation
| Solid Models | Available in .stp or .x_t |
| Drawing Reference | 1591UF2 (REV: 06.16.2023) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.38 lbs (0.17 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and pre-installed brass inserts |
| Material | ABS Plastic (flame retardant ABS, FRABS) |
| Screw Finish | Black screws (black enclosures) |
| Lid Fastening | M3 x 10 mm Phillips machine screws (M3-0.5) threaded into pre-installed integral brass inserts |
| Machinability | Factory modification available (milling, drilling, printing) |
| Joint Construction | Lap joint – protects against access of dust and splashing water |
| Recommended Cover Screw Torque | 35.5–42.5 ozf.in (25–30 cN.m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet IP54) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents; use only plastic-safe cleaners |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1591UF2BK mounted?▾
By the flange attached to the bottom. The drawing shows 145.20 mm overall length and 133.50 mm between flange holes.
Is it flame retardant?▾
Yes, it is molded from flame retardant ABS with a UL94 V-0 rating.
What is included?▾
Box, lid, 4 cover screws and pre-installed brass inserts.
What is the grey version?▾
1591UF2GY is the flame retardant bottom-flange version in light gray.
What clear lid fits?▾
1591UC, a flame retardant polycarbonate lid (lid only).
