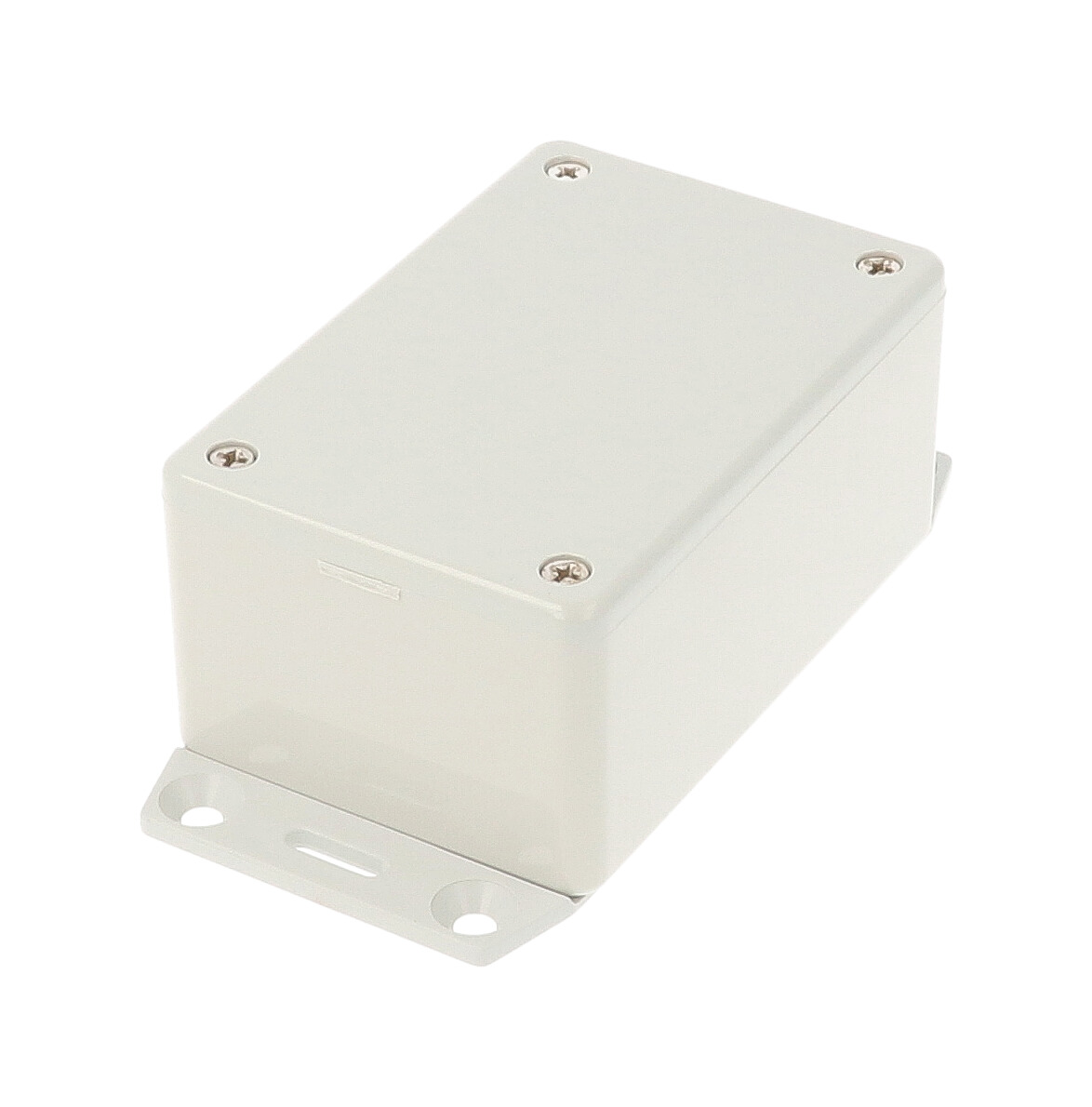

Hammond 1591LF2GY Light Gray Bottom Flange FR Abs Box, 85x56x39 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray flame retardant ABS with bottom mounting flange
- 110.20 mm [4.339 in] overall length including flange
- Compact 85 x 56 x 39 mm body
- UL94 V-0, IP54
- Vertical card guides for 1.5 mm (0.062") PCBs
- 4 nickel finish M3 screws into brass inserts
The 1591LF2GY is a light gray flame retardant ABS box with a bottom mounting flange, built on the compact 1591L body of 3.35 x 2.2 x 1.54 in (85 x 56 x 39 mm). It suits installers who need a small flanged housing for boards mounted upright.
- Overall length with flange 110.20 mm [4.339 in]; overall height 40.60 mm [1.598 in]
- Inside 78.71 x 51.71 x 34.90 mm [3.099 x 2.036 x 1.374 in]
- Card guides 29.90 mm [1.177 in] tall for 1.5 mm (0.062") boards
- UL94 V-0 flame retardant ABS, IP54
Lap joint construction protects against dust and splashing water. The lid attaches with M3 - 0.5 machine screws threaded into pre-installed brass inserts, suited to repeated assembly and disassembly, and light gray enclosures include standard nickel finish screws. Recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).

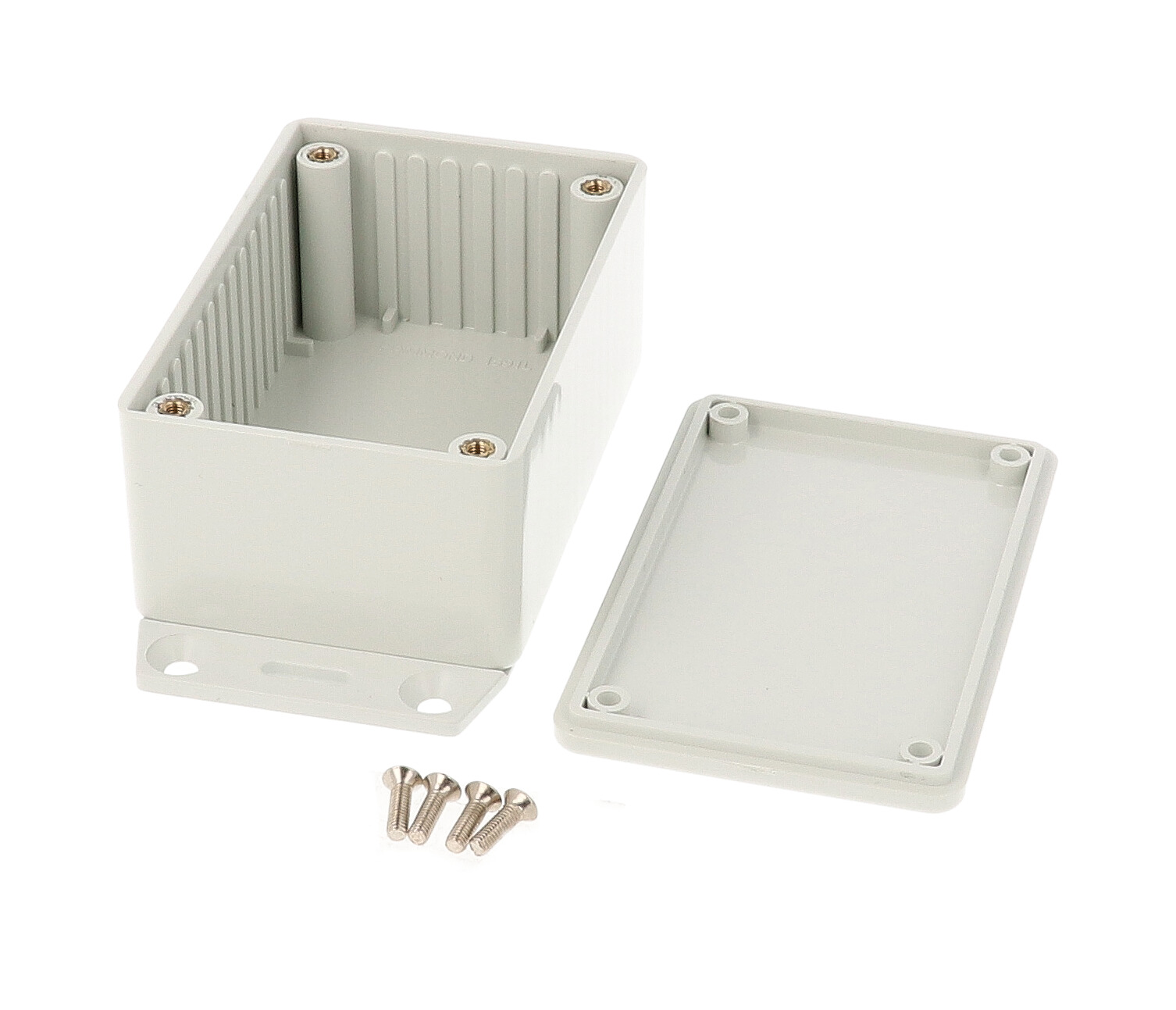

The 1591LF2GY includes box, lid, 4 cover screws and brass inserts, ships in shrink wrap at 0.16 lbs (0.07 kg) and is RoHS and REACH compliant. The 1591LC clear lid and 1591Z card adaptors are listed accessories, and the enclosure can be factory modified by milling, drilling or printing. Solid models are available in .stp or .x_t.
Ideal For
- Small flanged enclosures for controls
- Surface-mounted sensor electronics
- Flame retardant compact PCB housings
- Facility and building electronics
Hardware
| Included | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Cover Screw | M3 - 0.5 x 10 mm machine screw |
| Screw Finish | Light gray enclosures include standard nickel finish screws |
| Clear Lid Accessory | 1591LC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591MS100 (silver / nickel plated) or 1591MS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591LF2GY |
| Mounting Flange | Bottom flange (accessory flange attached to the bottom) |
| Product Description | enclosure - plastic |
| Ordering Table Version | Flame Retardant, Bottom Flange, Gray (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591L ABS WITH FLANGE |
Dimensions
| Inside Width | 51.71 mm [2.036 in] |
| Inside Height | 34.90 mm [1.374 in] |
| Inside Length | 78.71 mm [3.099 in] |
| Size L X W X H | 3.35 in x 2.2 in x 1.54 in (85 mm x 56 mm x 39 mm) |
| Nominal Size - Depth | 1.54 in (39 mm) |
| Nominal Size - Width | 2.20 in (56 mm) |
| Body Length (Drawing) | 85.00 mm [3.346 in] |
| Nominal Size - Length | 3.35 in (85 mm) |
| Overall Width (Drawing) | 56.00 mm [2.205 in] |
| Overall Height (Drawing) | 40.60 mm [1.598 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 110.20 mm [4.339 in] |
Identifiers
| UPC | 623980136745 |
| UNSPSC | 39121301 |
| Drawing | 1591LF2, REV: 06.16.2023 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 29.90 mm [1.177 in] |
| Card Guide Slot Width | 2.09 mm [.082 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.16 lbs (0.07 kg) |
Construction & Finish
| Color | Light Gray |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | M3 - 0.5 machine screws threaded into pre-installed brass inserts |
| Drawing Material Note | Enclosure made from FRABS |
| Material Grade (Drawing) | Flame retardant ABS (FRABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour screws come with the 1591LF2GY?▾
Light gray enclosures include standard nickel finish screws.
What is the overall length with the flange?▾
110.20 mm [4.339 in].
What is the overall height?▾
The drawing shows 40.60 mm [1.598 in].
What is its flame rating?▾
UL94 V-0, flame retardant ABS.
What replacement screws fit?▾
1591MS100 (nickel plated) M3 - 0.5 x 10 mm machine screws, pack of 100.
