Hammond 1591CF2GY 120x65x40mm Light Gray FR Abs Enclosure, Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray FRABS enclosure with bottom mounting flange
- UL94 V-0 flame rating and IP54 protection
- 145.00 mm [5.709 in] overall length, 41.30 mm overall height
- Card guides for 1.5 mm (0.062”) vertical PC boards
- Nickel finish M3 - 0.5 screws into brass inserts
- Listed accessories: 1591CC clear lid, 1599CLIPGY clip, 1591Z adapters

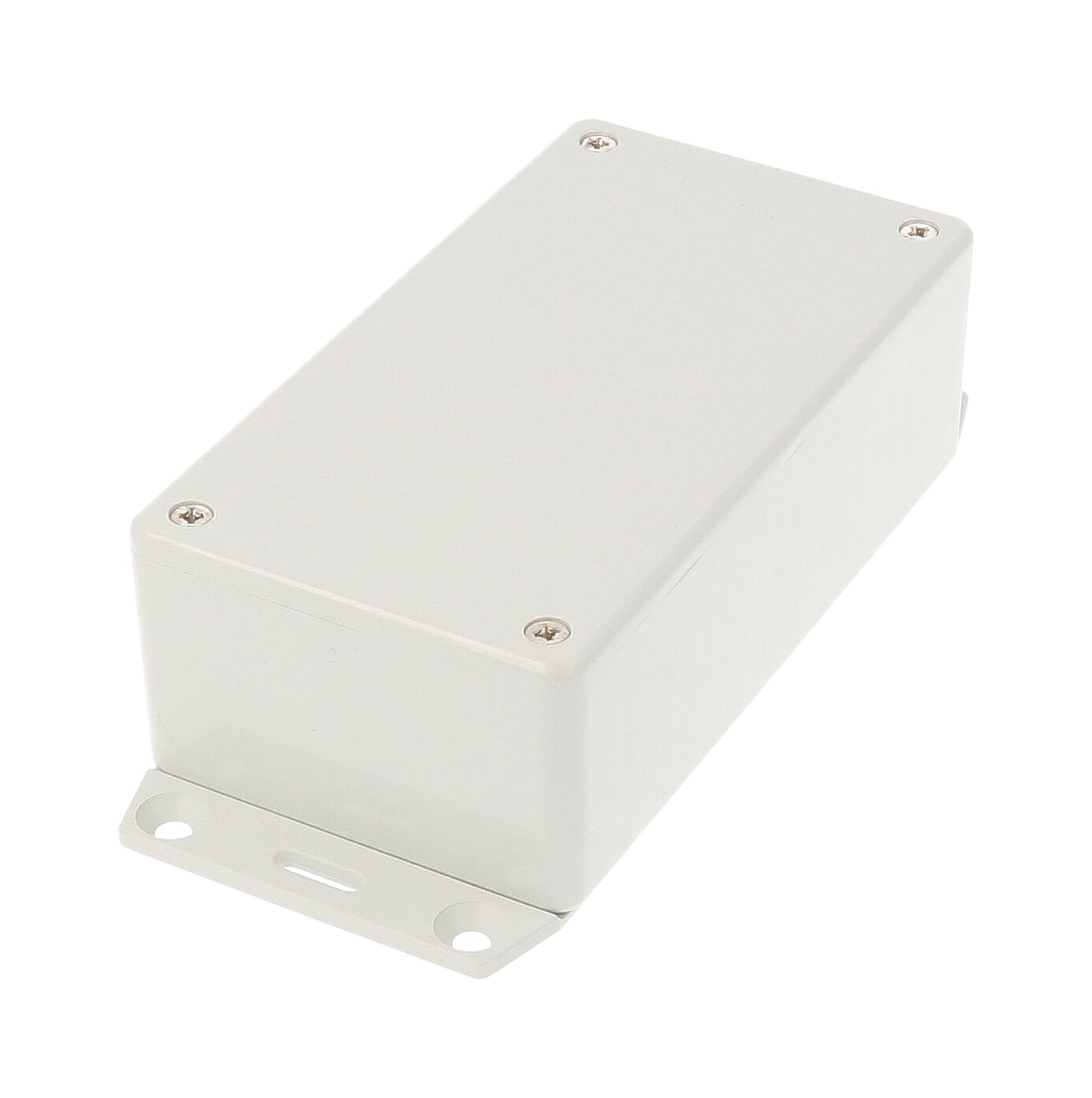

The 1591CF2GY is a light gray flame retardant ABS enclosure in the 1591C size with an accessory flange attached to the bottom. It measures 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) nominal, with the drawing showing 145.00 mm [5.709 in] overall length and 41.30 mm [1.626 in] overall height including the flange.

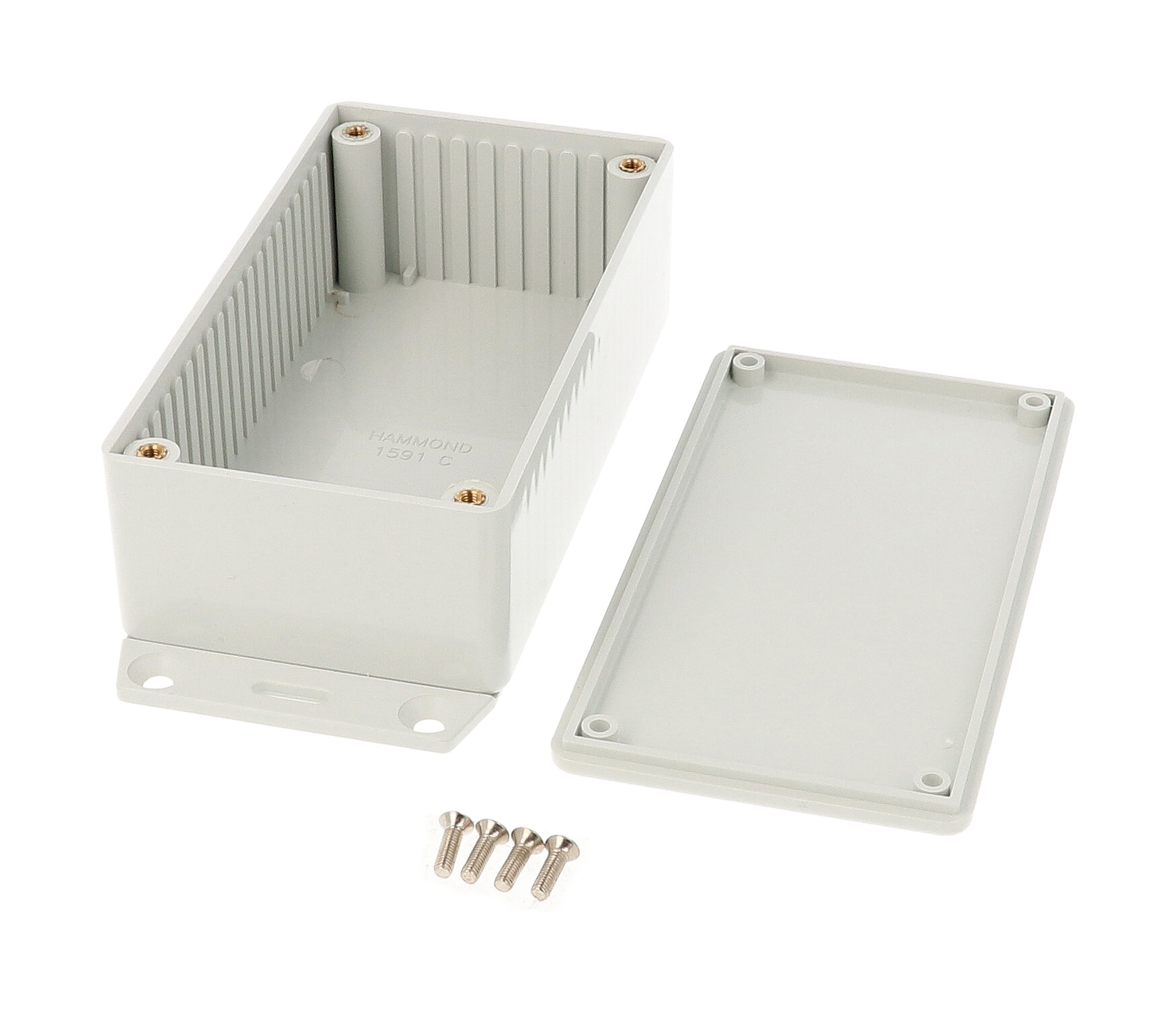

Card guides are molded into all side walls and accept 1.5 mm (0.062”) thick boards, suiting vertical PCB installation. The interior is 113.53 mm long, 58.53 mm wide and 35.90 mm high.
Molded from FRABS with a UL94 V-0 rating, the enclosure uses M3 - 0.5 machine screws threaded into pre-installed brass inserts to hold the lid. Light gray enclosures include standard nickel finish screws, and the purchased assembly includes box, lid, 4 cover screws and brass inserts. Recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).
Lap joint construction gives IP54 protection against access of dust and splashing water. The 1591CF2GY is RoHS and REACH compliant, ships at 0.23 lbs (0.10 kg) in shrink wrap and has UPC 623980136684. The 1591CC clear polycarbonate lid is listed for this size.
Ideal For
- Base-mounted enclosures for control electronics
- Flame retardant housings for vertical PCBs
- Equipment-mounted sensor modules
- IP54 indoor installations
Overview
| Type | general purpose, flanged |
| Color | Light Gray |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | 1591C ABS WITH FLANGE |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 41.30 mm [1.626 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Overall Length Including Flanges | 145.00 mm [5.709 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC (flame retardant polycarbonate, lid only) |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591MS100 (Silver) / 1591MS100BK (Black), M3 - 0.5 X 10mm (100Pkg) plated cover screw |
Identifiers
| UPC | 623980136684 |
| UNSPSC | 39121301 |
| Part Number | 1591CF2GY |
Documentation
| Drawing | 1591CF2, REV: 06.16.2023 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.23 lbs (0.10 kg) |
Construction & Finish
| Lid Fastening | Accepts M3 - 0.5 machine screw |
| Screw Inserts | Pre-installed brass inserts |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |
| Purchased Assembly Includes | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Enclosure Material (Drawing) | FRABS (flame retardant ABS) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What color is the 1591CF2GY?▾
Light gray, with standard nickel finish screws.
Where is the flange?▾
The accessory flange is attached to the bottom of the enclosure.
Is it flame retardant?▾
Yes, it is FRABS rated UL94 V-0. The general purpose gray bottom flange version is 1591CF2SGY.
What are the internal dimensions?▾
113.53 mm [4.469 in] x 58.53 mm [2.304 in] x 35.90 mm [1.413 in].
What torque is recommended?▾
35.5-42.5 ozf.in (25-30 cN.m).
