Hammond 1591TFLBK 120x80x59mm Flanged-Lid Flame Retardant ABS Box, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall mounting flanges molded into the lid: 145.58 mm overall, 134.00 mm hole centres
- Flame retardant ABS rated UL94 V-0
- Black 120 x 80 x 59 mm body with black screws
- M3 x 10 mm machine screws into pre-installed brass inserts for repeated access
- Card guides accept 1.5 mm (0.062") PCBs for vertical mounting
- Designed to meet IP54; lap joint seals out dust and splashing water
- Lid accepts #4 self-tapping PC board screws (1593ATS series)

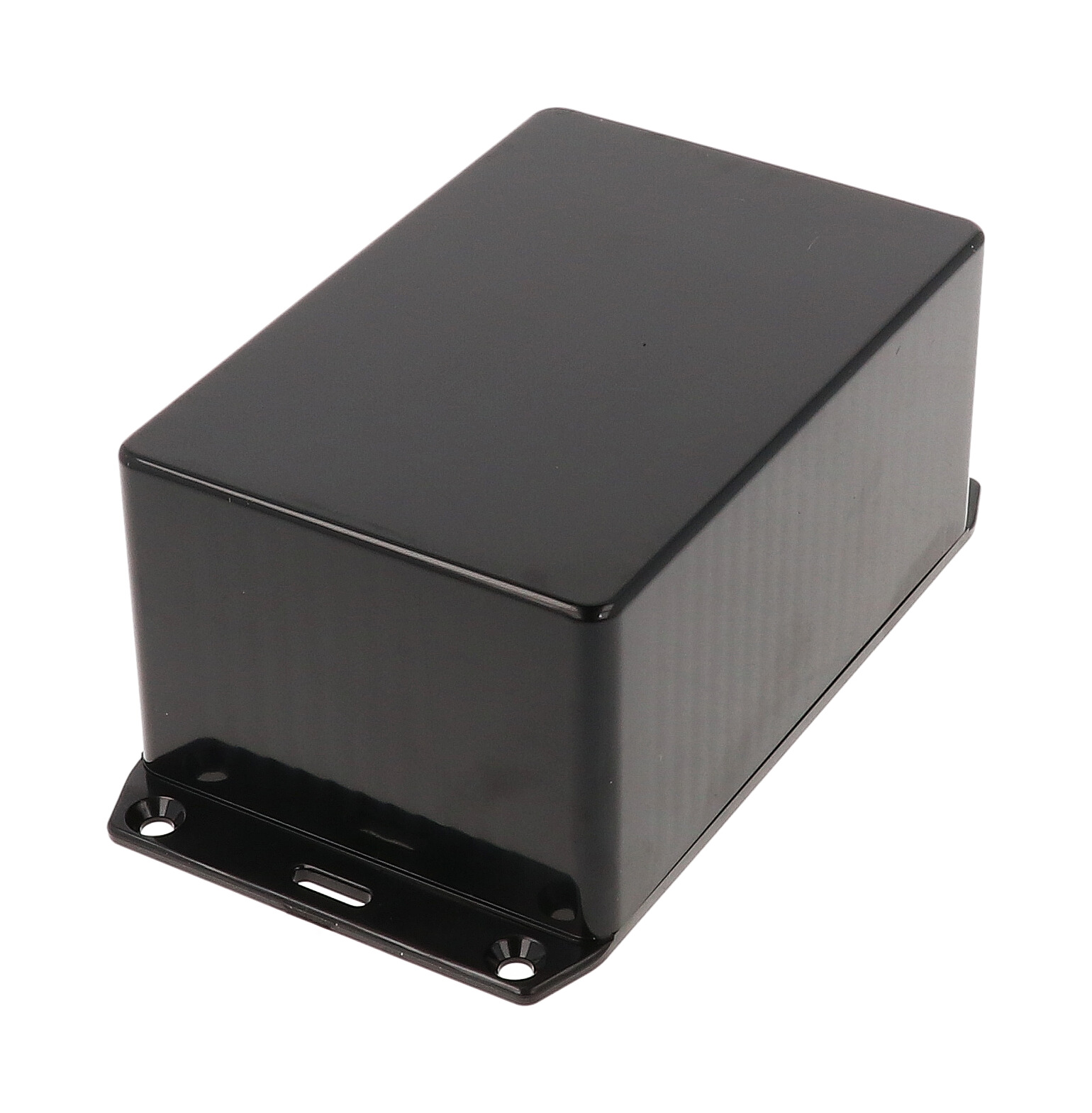

The 1591TFLBK is a black 120 x 80 x 59 mm (4.72 x 3.16 x 2.32 in) enclosure from the 1591 Series, supplied with wall mounting flanges molded into the lid. It is the standard flame retardant version, aimed at designers who need a compact, wall-mountable housing for vertically mounted circuit boards.
The box is molded from easy-to-machine flame retardant ABS carrying a UL94 V-0 rating. Card guides molded into all side walls accept 1.5 mm (0.062") PCBs, and lap joint construction protects against dust and splashing water; the enclosure is designed to meet IP54. The lid is secured with M3 x 10 mm Phillips machine screws threaded into pre-installed brass inserts, well suited to repeated assembly and disassembly. Black enclosures include black screws.
With the flanged lid, the drawing shows 145.58 mm [5.731 in] overall length and 134.00 mm [5.276 in] flange hole centres. Inside dimensions are 113.54 x 73.74 x 54.80 mm. The lid also accepts #4 self-tapping screws, with 1593ATS50/1593ATS100 PC board screws listed for lid mounting. Recommended cover screw torque is 35.5–42.5 ozf.in (25–30 cN.m).
The 1591TFLBK assembly includes box, lid, 4 cover screws and pre-installed brass inserts. It weighs 0.3 lbs (0.14 kg) shipped in shrink wrap and is RoHS and REACH compliant.
Ideal For
- Wall-mounted electronics housings
- Vertical PCB mounting in a flame retardant enclosure
- Assemblies needing repeated lid removal for service
- Dust and splash protected (IP54 design) control boxes
Overview
| Type | general purpose, flanged |
| Colour | Black |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591TFLBK |
| Mounting Style | Flanged lid (wall mounting flanges molded into the lid) |
| Enclosure Grade | Flame retardant ABS (standard version) |
| Long Description | enclosure - plastic |
| Short Description | 1591T FLANGED LID BLACK |
Dimensions
| Inside Width | 73.74 mm [2.903 in] |
| Inside Height | 54.80 mm [2.157 in] |
| Inside Length | 113.54 mm [4.470 in] |
| Size (L X W X H) | 4.72 in x 3.16 in x 2.32 in (120 mm x 80 mm x 59 mm) |
| Overall Width (Drawing) | 80.20 mm [3.157 in] |
| Overall Height (Drawing) | 58.90 mm [2.319 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Flange Hole Centres (Length) | 134.00 mm [5.276 in] |
| Overall Length Including Flanges | 145.58 mm [5.731 in] |
| Nominal Size (L X W X Depth, Ordering Table) | 4.72 in (120 mm) x 3.15 in (80 mm) x 2.32 in (59 mm) |
Accessories
| Nylon Belt / Pocket Clip | 1599CLIP (black) or 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591MS100 (nickel plated/silver) or 1591MS100BK (black), M3-0.5 x 10 mm, pack of 100 |
| Clear Lid Accessory (Series Ordering Table) | 1591TC |
Identifiers
| UPC | 623980196985 |
| UNSPSC | 39121301 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards; ideally suited for vertical PCB mounting |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 49.80 mm [1.961 in] |
| Guide Slot Width | 2.06 mm [0.081 in] |
| Horizontal PCB Mounting | Optional PC board card adaptors 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack), molded from flame retardant ABS; recommended PCB thickness 1.5–1.75 mm |
Documentation
| Solid Models | Available in .stp or .x_t |
| Drawing Reference | 1591TFL (REV: 06.16.2023) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.3 lbs (0.14 kg) |
Construction & Finish

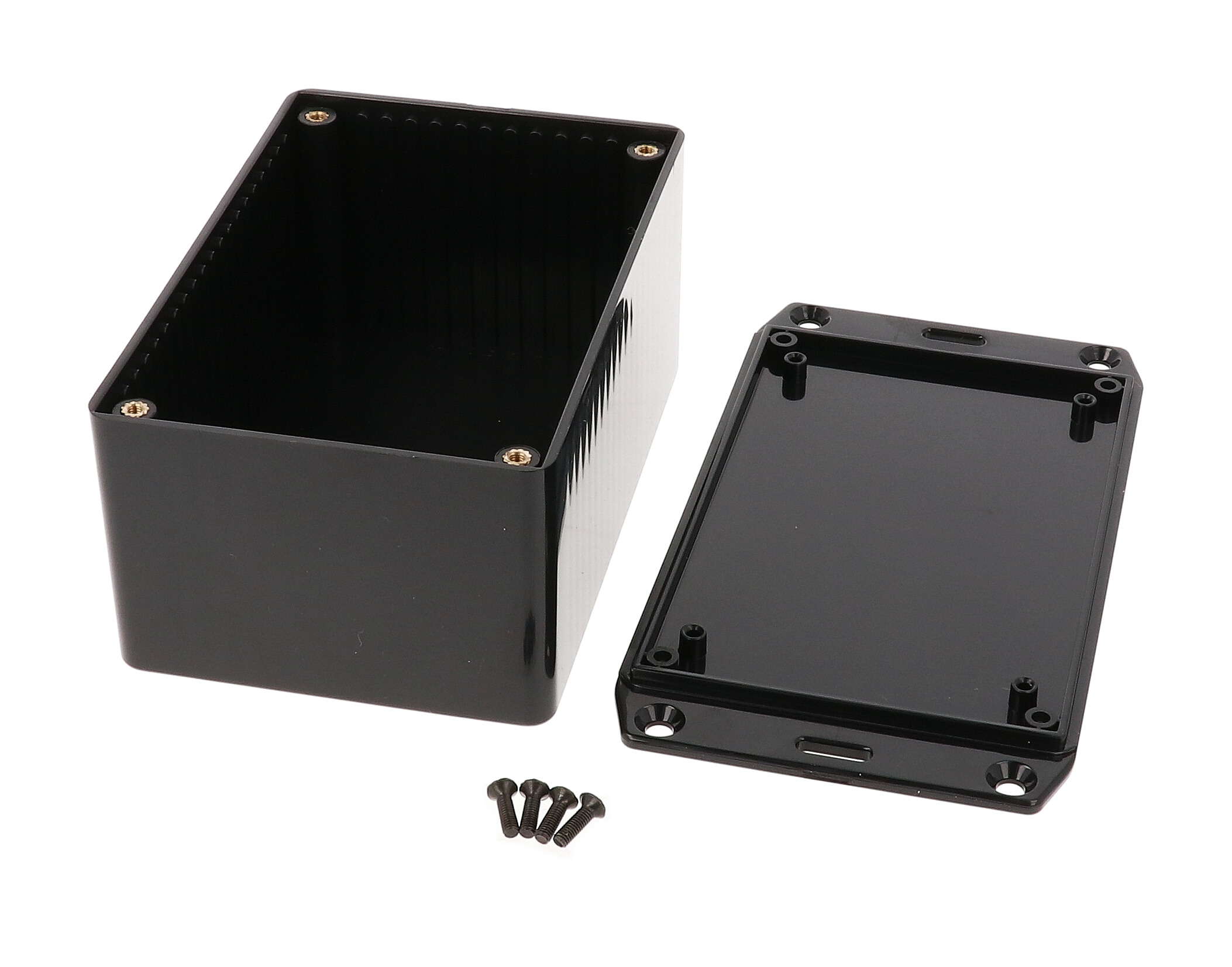

| Included | Box, lid, 4 cover screws and pre-installed brass inserts |
| Material | ABS Plastic (flame retardant ABS, FRABS) |
| Screw Finish | Black screws (black enclosures) |
| Lid Fastening | M3 x 10 mm Phillips machine screws (M3-0.5) threaded into pre-installed integral brass inserts |
| Machinability | Factory modification available (milling, drilling, printing) |
| Lid PCB Mounting | Lid accepts #4 self-tapping screws; P.C. board screws for lid: #4 x 1/4" (6.4 mm) self-tapping, 1593ATS50 (50 pack) / 1593ATS100 (100 pack) |
| Joint Construction | Lap joint – protects against access of dust and splashing water |
| Recommended Cover Screw Torque | 35.5–42.5 ozf.in (25–30 cN.m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet IP54) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents; use only plastic-safe cleaners |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1591TFLBK mount to a wall?▾
Wall mounting flanges are molded into the lid. The drawing gives 145.58 mm overall length with 134.00 mm between flange holes.
What flame rating does it have?▾
It is molded from flame retardant ABS with a UL94 V-0 rating.
How is the lid fastened?▾
With M3 x 10 mm Phillips machine screws threaded into pre-installed brass inserts. Recommended torque is 35.5–42.5 ozf.in (25–30 cN.m). Replacement black screws are 1591MS100BK (pack of 100).
Can I mount a board to the lid?▾
The lid accepts #4 self-tapping screws; the drawing lists #4 x 1/4" (6.4 mm) PC board screws for the lid as 1593ATS50 (50 pack) and 1593ATS100 (100 pack).
Is there a gray version?▾
Yes, the flame retardant flanged-lid version in light gray is 1591TFLGY.
