Hammond 1591CF2SGY 120x65x40mm Light Gray GPABS Enclosure, Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray GPABS enclosure with bottom mounting flange
- 145.00 mm overall length and 41.30 mm overall height
- Card guides accept 1.5 mm (0.062”) boards vertically
- UL94 HB economy version; nickel finish self-tapping screws
- IP54 lap joint construction
- Listed accessories: 1591CC clear lid, 1599CLIPGY clip, 1591Z adapters

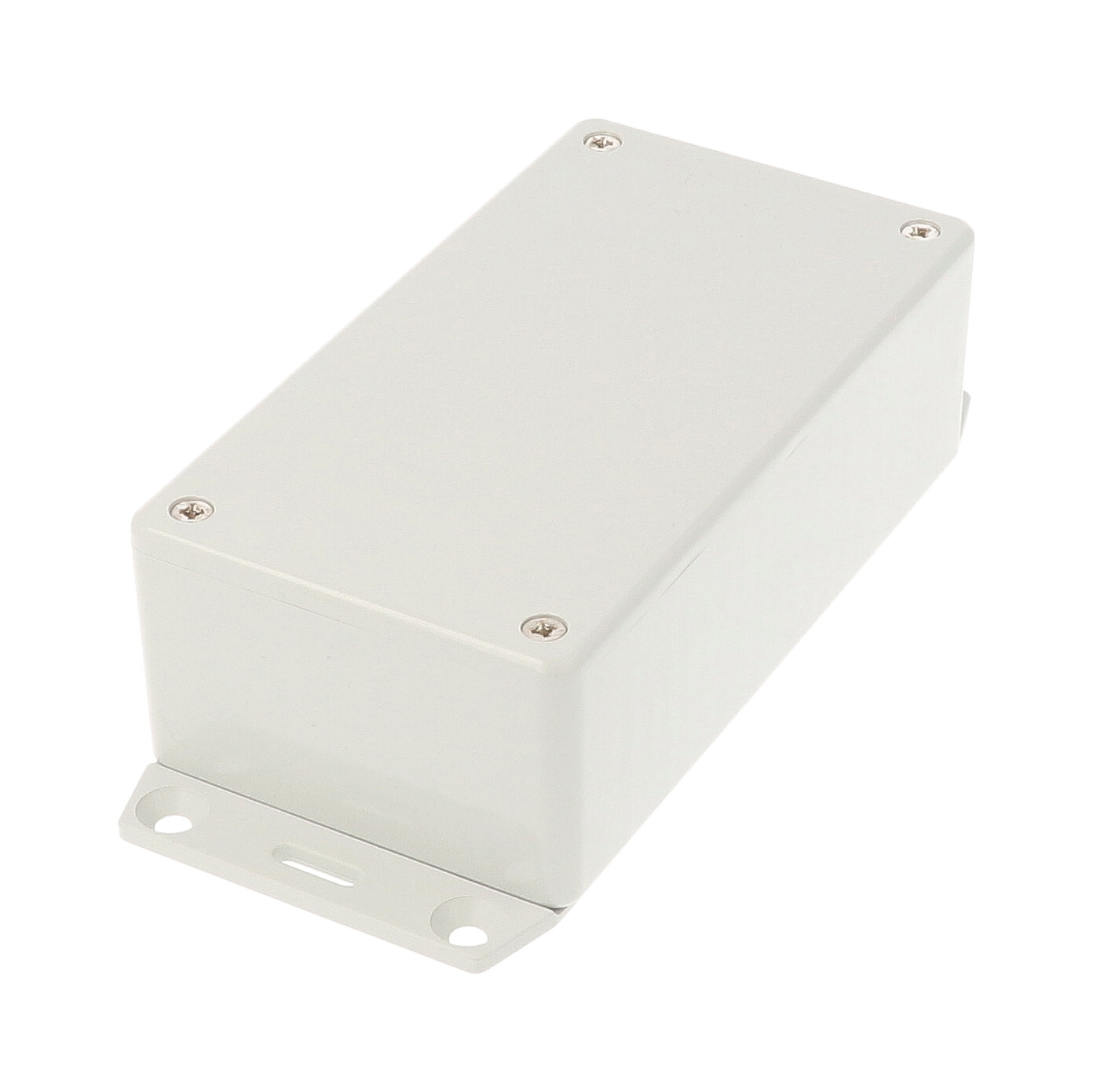

The 1591CF2SGY is a light gray general purpose ABS enclosure in the 1591C size with an accessory flange attached to the bottom for surface mounting. Nominal size is 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm); the drawing lists 145.00 mm [5.709 in] overall length and 41.30 mm [1.626 in] overall height with the flange.

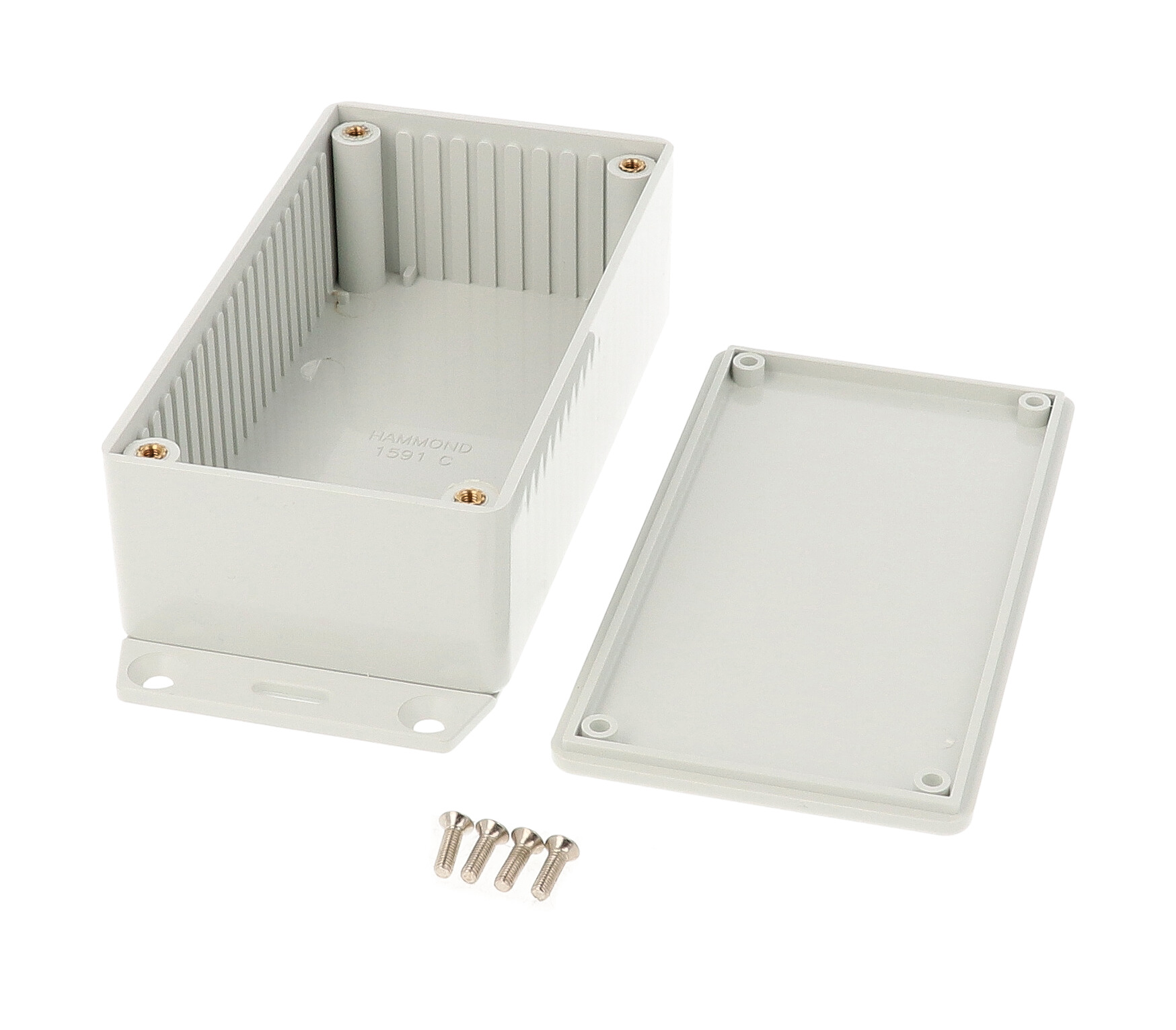

Molded card guides in all side walls accept 1.5 mm (0.062”) thick boards for vertical PCB mounting. The interior provides 113.53 mm of length, 58.53 mm of width and 35.90 mm of height, with 2.08 mm slot width.
Made from GPABS with a UL94 HB flame rating, it is an economy version assembled with self-tapping screws into plastic posts. Light gray enclosures include standard nickel finish screws, and the purchased assembly includes box, lid and 4 cover screws. Recommended torque is 42-57 ozf.in (30-40 cN.m).
IP54 lap joint construction resists dust and splashing water. The 1591CF2SGY is RoHS and REACH compliant, weighs 0.21 lbs (0.10 kg) shipped and has UPC 623980137049. Replacement self-tapping lid screws are 1591TS100 (nickel plated) in packs of 100.
Ideal For
- Surface-mounted economy enclosures
- Vertical PCB housings
- Indoor sensor and interface modules
- IP54 light-duty installations
Overview
| Type | general purpose, flanged |
| Color | Light Gray |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | 1591C GPABS WITH FLANGE |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 41.30 mm [1.626 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Overall Length Including Flanges | 145.00 mm [5.709 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC (flame retardant polycarbonate, lid only) |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591TS100 (Silver) / 1591TS100BK (Black), #4 X 1/2" (100Pkg) self-tapping plated cover screw |
Identifiers
| UPC | 623980137049 |
| UNSPSC | 39121301 |
| Part Number | 1591CF2SGY |
Documentation
| Drawing | 1591CF2S, REV: 07.01.2020 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Lid Fastening | Accepts #4 self-tapping screw |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |
| Purchased Assembly Includes | Box, lid and 4 cover screws |
| Enclosure Material (Drawing) | GPABS (general purpose ABS) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1591CF2SGY made of?▾
GPABS (general purpose ABS) with a UL94 HB flame rating.
What is the flame retardant equivalent?▾
The flame retardant gray bottom flange version is 1591CF2GY.
Which screws come with it?▾
Four cover screws; light gray enclosures include standard nickel finish screws.
What is the IP rating?▾
IP54.
What are the overall dimensions with flange?▾
145.00 mm [5.709 in] long and 41.30 mm [1.626 in] high per the drawing.
