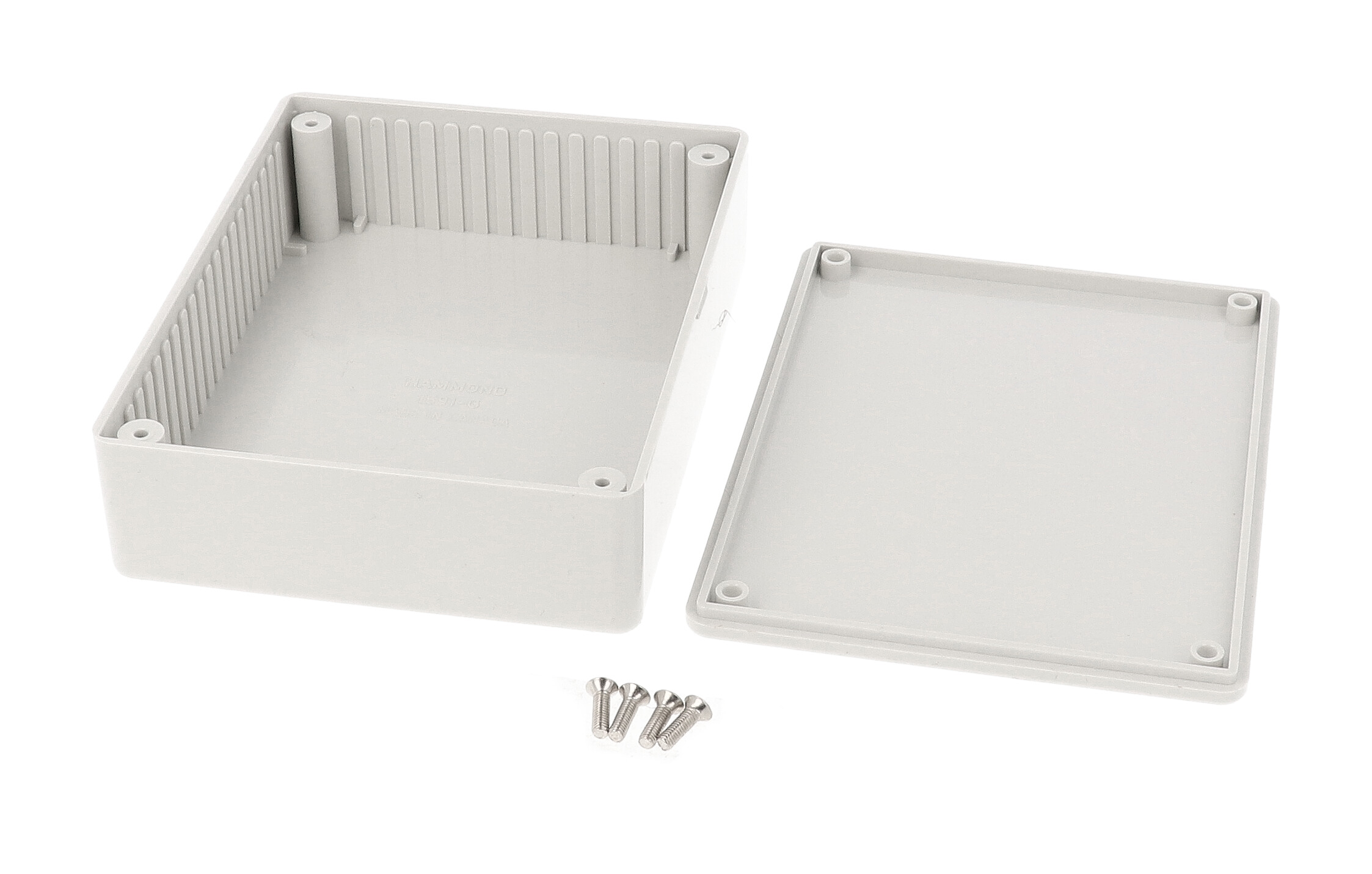

Hammond 1591GSGY 121x94x34 mm Light Gray General Purpose ABS Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 121 x 94 x 34 mm (4.76 x 3.70 x 1.34 in) light gray enclosure
- Economy general purpose ABS, UL94 HB (not flame retardant)
- Card guides molded into all side walls accept 1.5 mm (0.062 in) PCBs
- Lap joint construction designed to meet IP54
- #4 self-tapping lid screws into plastic posts; 4 included
- Inside dimensions 114.26 x 87.36 x 29.90 mm
- Optional 1591GC clear polycarbonate lid
- RoHS and REACH compliant
The 1591GSGY is the light gray economy version of the 1591G enclosure, a general purpose ABS project box measuring 4.74 in x 3.69 in x 1.34 in (120 mm x 94 mm x 34 mm). It fits compact electronics builds where a flame retardant material grade is not required.
Card guides molded into all side walls accept 1.5 mm (0.062 in) boards to hold PCBs vertically, with a 24.90 mm [0.980 in] guide height and a 2.03 mm [0.080 in] slot. The interior measures 114.26 mm [4.498 in] long, 87.36 mm [3.439 in] wide and 29.90 mm [1.177 in] high. 1591Z card adaptors are offered for horizontal board mounting.
This version is molded from general purpose plastic that is not flame retardant, with a UL94 HB rating on the part page. Lap joint construction protects against dust and splashing water and the enclosure is designed to meet IP54. The lid is assembled with #4 self-tapping screws into fully plastic posts at a recommended 42-57 ozf.in (30-40 cN.m). This light gray version ships with nickel finish screws.
The 1591GSGY is supplied shrink wrapped with box, lid and 4 cover screws and weighs 0.19 lbs (0.09 kg) for shipping. It is RoHS and REACH compliant; replacement screws are 1591TS100 (silver) or 1591TS100BK (black), and the 1591GC clear polycarbonate lid fits this size.
Ideal For
- General purpose electronics project boxes
- Vertical PCB mounting on molded card guides
- Prototype and hobby electronics housings
- Cost-sensitive builds without flame retardant requirement
Overview
| Type | project box, general purpose |
| Color | Light Gray |
| Series | 1591 |
| Version | General Purpose ABS, no mounting flanges |
| Description | GPABS ENCLOSURE |
| Product Type | ABS plastic multipurpose enclosure with card guides |
Dimensions
| Inside Width | 87.36 mm [3.439 in] |
| Inside Height | 29.90 mm [1.177 in] |
| Inside Length | 114.26 mm [4.498 in] |
| Size (L X W X H) | 4.74 in x 3.69 in x 1.34 in (120 mm x 94 mm x 34 mm) |
| Overall Width (Drawing) | 93.60 mm [3.685 in] |
| Nominal Size (L X W X D) | 4.76 in (121 mm) x 3.70 in (94 mm) x 1.34 in (34 mm) |
| Overall Height (Drawing) | 34.00 mm [1.339 in] |
| Overall Length (Drawing) | 120.50 mm [4.744 in] |
Accessories
| Clear Lid Accessory | 1591GC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black) / 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591TS100 (silver) / 1591TS100BK (black), #4 x 1/2" self-tapping, 100 pack |
Identifiers
| UPC | 623980137223 |
| UNSPSC | 39121301 |
| Drawing | 1591GS REV: 07.01.2020 |
| Part Number | 1591GSGY |
PCB Mounting
| Card Guides | Molded into all side walls |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 24.90 mm [0.980 in] |
| Guide Slot Width | 2.03 mm [0.080 in] |
| Accepted Board Thickness | 1.5 mm (0.062 in) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
| Horizontal PCB Card Adaptors (Optional) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping
| Included | Box, lid, 4 cover screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Material | ABS Plastic |
| 3D Models | Solid models available in .stp or .x_t |
| Screw Finish | Nickel finish screws |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Material Grade | GP ABS (general purpose ABS) |
| Lid Screw Thread | Accepts #4 self-tapping screw |
| Joint Construction | Lap joint |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardant | No (general purpose plastic) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does 1591GSGY differ from 1591GBK / 1591GGY?▾
It is the economy version, molded from general purpose plastic that is not flame retardant (UL94 HB), and its lid uses self-tapping screws into plastic posts instead of machine screws into brass bushings.
What are the dimensions?▾
The part page lists 4.74 in x 3.69 in x 1.34 in (120 mm x 94 mm x 34 mm); inside it is 114.26 x 87.36 x 29.90 mm.
What IP rating does it meet?▾
It is designed to meet IP54.
Which replacement screws fit?▾
#4 x 1/2 in self-tapping screws: 1591TS100 (silver) or 1591TS100BK (black), 100 per pack.
Does it have card guides?▾
Yes, card guides molded into all side walls accept 1.5 mm (0.062 in) boards.
