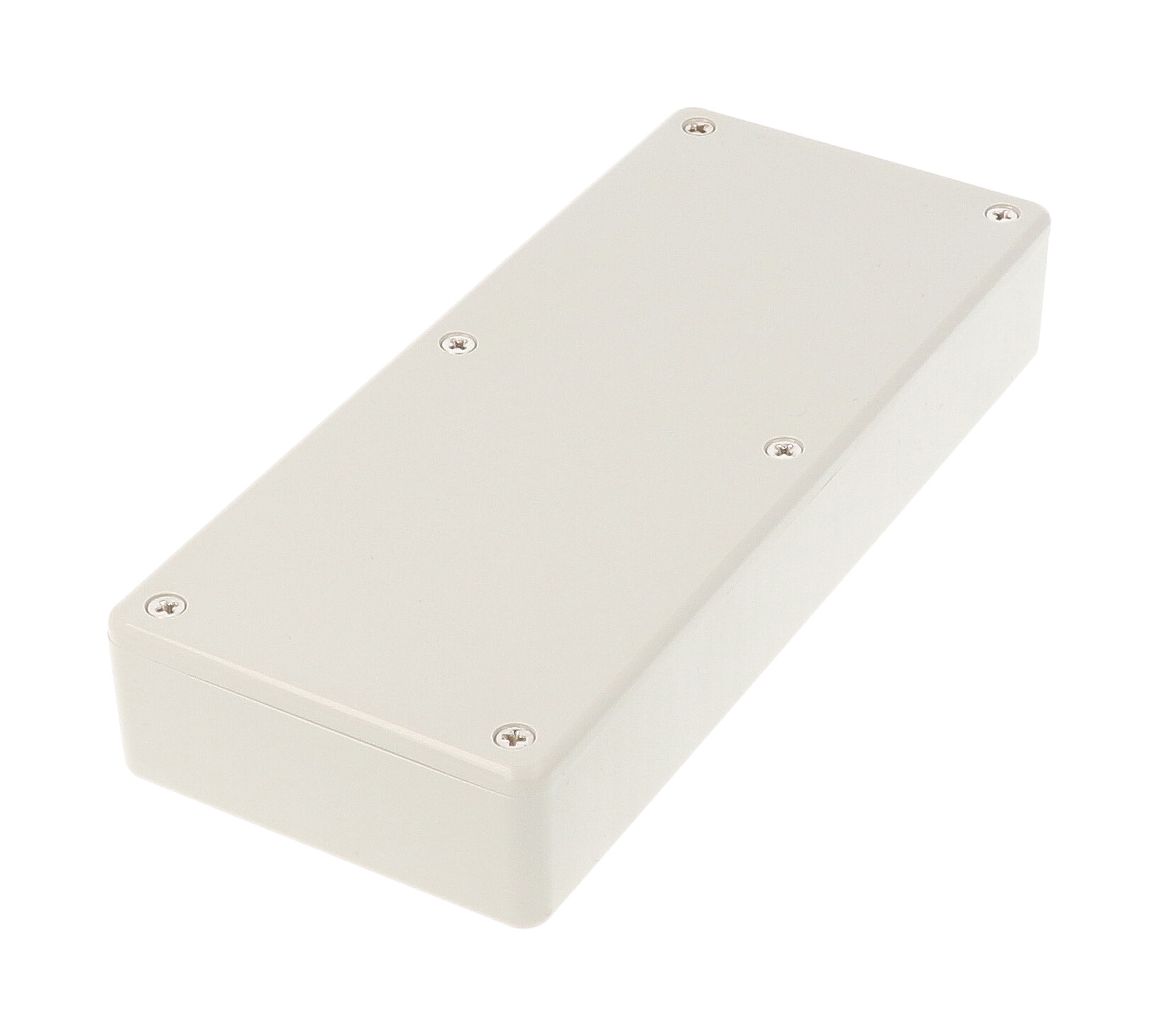

Hammond 1591HSGY Light Gray Economy ABS Enclosure, 166x71x29 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray general purpose ABS, UL94 HB
- 166 x 71 x 29 mm (6.52 x 2.79 x 1.14 in) box and lid
- Molded card guides take 1.5 mm (0.062") PCBs vertically
- IP54 rated lap joint construction
- #4 self-tapping nickel finish lid screws into plastic posts
- 6 cover screws included; replacements 1591TS100 (100 pack)
- Lightweight at 0.17 lbs (0.08 kg) shipping weight

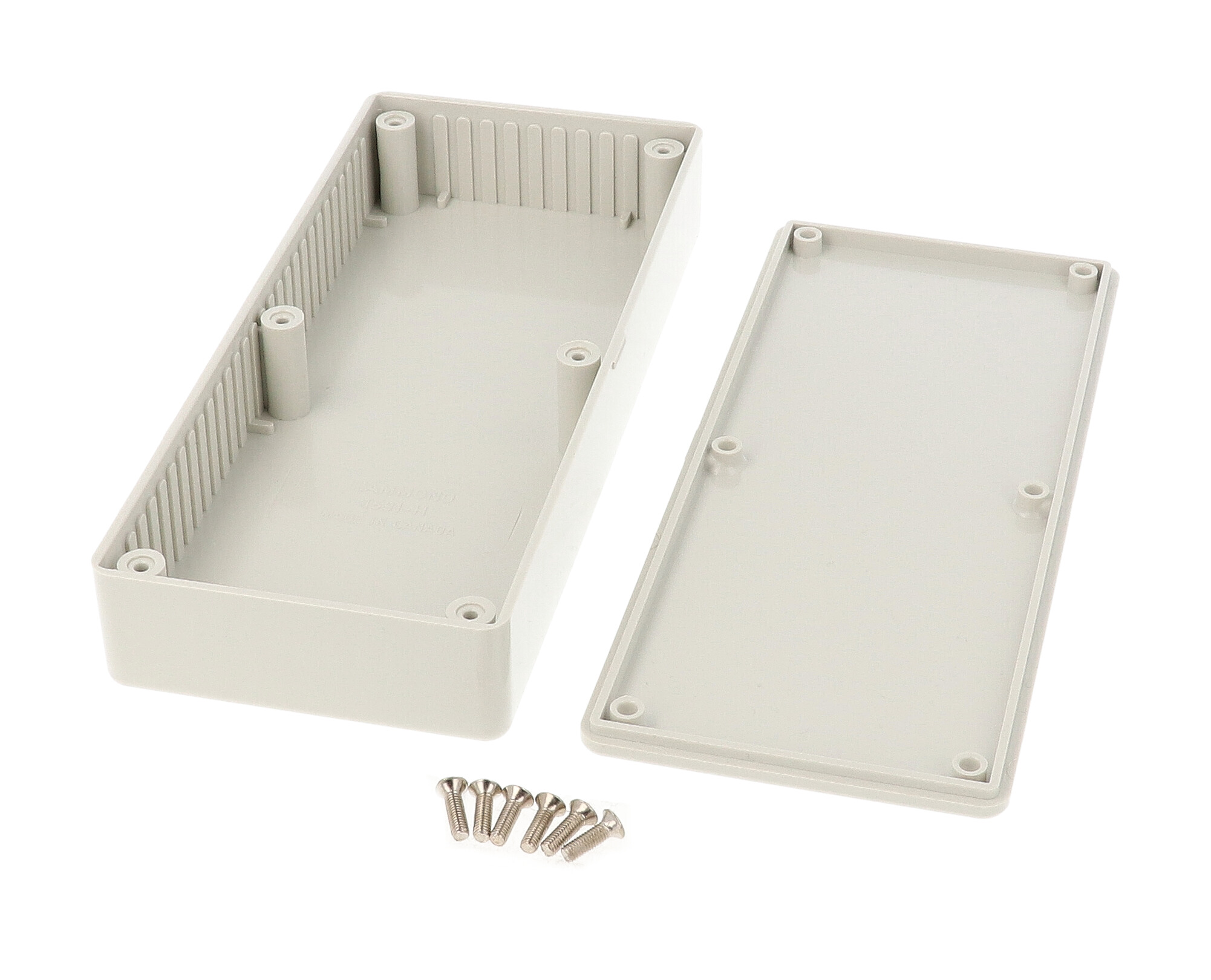

The 1591HSGY is a light gray general purpose ABS enclosure, the economy counterpart to the 1591HGY. It measures 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm) and serves builders who want the 1591 card-guide format at a general purpose material grade.
General purpose economy versions are not flame retardant, and this part carries a UL94 HB flame rating. Its lap joint construction still guards against dust and splashing water, with an IP54 rating. The lid is assembled with #4 self-tapping screws into fully plastic posts, and light gray enclosures include standard nickel finish screws.
For board mounting, card guides are molded into all side walls and take 1.5 mm (0.062") thick PCBs vertically. Inside space measures 159.70 x 64.80 x 25.00 mm [6.287 x 2.551 x .984 in]; the guides are 20.00 mm [.788 in] tall with a 2.00 mm [.079 in] slot. The 1591Z card adaptors are available for horizontal board mounting.
The 1591HSGY includes box, lid and 6 cover screws; recommended torque is 42-57 ozf.in (30-40 cN.m). It weighs 0.17 lbs (0.08 kg) shipped in shrink wrap, is RoHS and REACH compliant, and accepts the 1591HC clear polycarbonate lid.
Ideal For
- Economy electronics enclosures
- Vertically mounted PCB assemblies
- Sensor and interface module housings
- Educational and prototype projects
Hardware
| Included | Box, lid and 6 cover screws |
| Cover Screw | #4 x 1/2" self-tapping screw |
| Screw Finish | Light gray enclosures include standard nickel finish screws |
| Clear Lid Accessory | 1591HC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591TS100 (silver / nickel plated) or 1591TS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Overview
| Type | project box, general purpose |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591HSGY |
| Mounting Flange | None (enclosure without mounting flanges) |
| Product Description | enclosure - plastic |
| Ordering Table Version | General Purpose ABS Enclosures, Gray (Enclosures Without Mounting Flanges) |
| Manufacturer Description | GPABS ENCLOSURE |
Dimensions
| Inside Width | 64.80 mm [2.551 in] |
| Inside Height | 25.00 mm [.984 in] |
| Inside Length | 159.70 mm [6.287 in] |
| Size L X W X H | 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm) |
| Nominal Size - Depth | 1.14 in (29 mm) |
| Nominal Size - Width | 2.80 in (71 mm) |
| Nominal Size - Length | 6.54 in (166 mm) |
| Overall Width (Drawing) | 70.80 mm [2.787 in] |
| Overall Height (Drawing) | 29.00 mm [1.142 in] |
| Overall Length (Drawing) | 165.70 mm [6.524 in] |
Identifiers
| UPC | 623980137230 |
| UNSPSC | 39121301 |
| Drawing | 1591HS, REV: 07.01.2020 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 20.00 mm [.788 in] |
| Card Guide Slot Width | 2.00 mm [.079 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Color | Light Gray |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Drawing Material Note | Enclosure made from GPABS. |
| Material Grade (Drawing) | General purpose ABS (GPABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardancy | General purpose plastic, not flame retardant |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591HSGY flame retardant?▾
No. It is a general purpose (economy) ABS version with a UL94 HB flame rating; the flame retardant equivalent is the 1591HGY.
What size is it?▾
6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm); inside dimensions are 159.70 x 64.80 x 25.00 mm.
What screws come with it?▾
Six #4 self-tapping cover screws; light gray enclosures include nickel finish screws.
What is the recommended screw torque?▾
42-57 ozf.in (30-40 cN.m).
Does it fit the clear lid?▾
Yes, 1591HC is the listed clear lid accessory for this size.
