Hammond 1591TSGY 120x80x59mm General Purpose ABS Enclosure, Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray general purpose ABS, UL94 HB
- 120 x 80 x 59 mm body without flanges
- Card guides for 1.5 mm (0.062") PCBs
- Nickel finish #4 self-tapping lid screws
- IP54 design, lap joint construction
- Inside 113.54 x 73.74 x 54.80 mm
- RoHS and REACH compliant

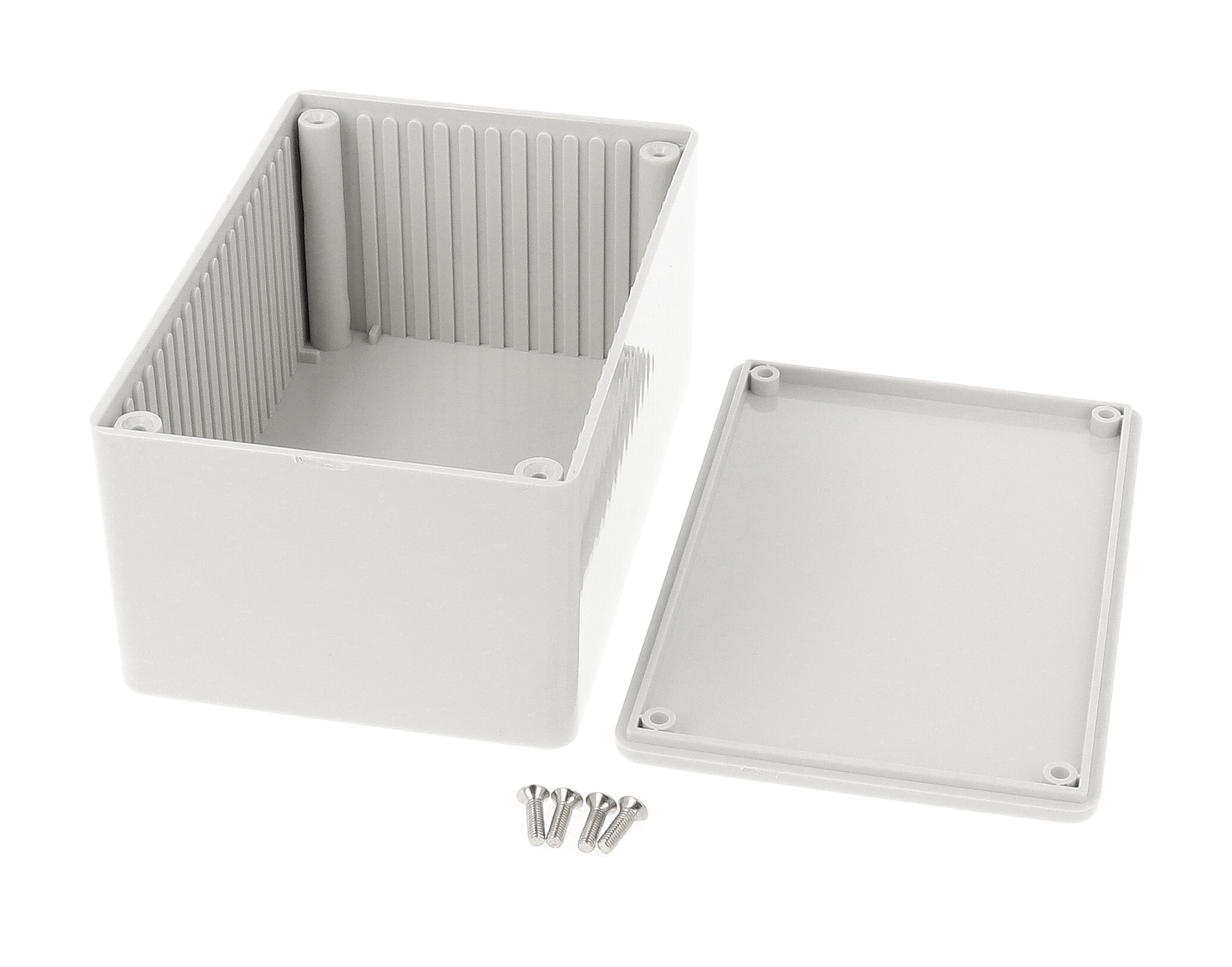

The 1591TSGY is a light gray, flangeless 120 x 80 x 59 mm (4.72 x 3.16 x 2.32 in) enclosure in the economy, general purpose ABS grade of the 1591 Series. It is intended for electronics projects and OEM products that need a tidy box with internal card guides but no flame retardant rating.
Material is general purpose ABS rated UL94 HB (economy versions are not flame retardant). Card guides molded into all side walls accept 1.5 mm (0.062") boards, and lap joint construction protects against dust and splashing water, with the enclosure designed to meet IP54.
Drawing dimensions are 120.00 x 80.20 x 58.90 mm overall and 113.54 x 73.74 x 54.80 mm inside, with 49.80 mm high guides. Four #4 self-tapping screws fix the lid into fully plastic posts; light gray enclosures include nickel finish screws. Recommended torque is 42–57 ozf.in (30–40 cN.m).
The 1591TSGY includes box, lid and 4 cover screws and weighs 0.25 lbs (0.11 kg) shipped in shrink wrap. It is RoHS and REACH compliant. Accessories include the 1591TC clear lid, 1591TS100 replacement screws and 1591Z card adaptors.
Ideal For
- General purpose electronics project boxes
- Vertical PCB mounting
- Prototype and small-run product housings
- Dust and splash protected (IP54 design) boxes
Overview
| Type | project box, general purpose |
| Colour | Light Gray |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591TSGY |
| Mounting Style | No mounting flanges |
| Enclosure Grade | General purpose ABS (economy version, not flame retardant) |
| Long Description | enclosure - plastic |
| Short Description | GPABS ENCLOSURE |
Dimensions
| Inside Width | 73.74 mm [2.903 in] |
| Inside Height | 54.80 mm [2.157 in] |
| Inside Length | 113.54 mm [4.470 in] |
| Size (L X W X H) | 4.72 in x 3.16 in x 2.32 in (120 mm x 80 mm x 59 mm) |
| Overall Width (Drawing) | 80.20 mm [3.157 in] |
| Overall Height (Drawing) | 58.90 mm [2.319 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Nominal Size (L X W X Depth, Ordering Table) | 4.72 in (120 mm) x 3.15 in (80 mm) x 2.32 in (59 mm) |
Accessories
| Clear Lid Accessory | 1591TC |
| Nylon Belt / Pocket Clip | 1599CLIP (black) or 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591TS100 (nickel plated/silver) or 1591TS100BK (black), #4 x 1/2" self-tapping, pack of 100 |
Identifiers
| UPC | 623980137261 |
| UNSPSC | 39121301 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards; ideally suited for vertical PCB mounting |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 49.80 mm [1.961 in] |
| Guide Slot Width | 2.06 mm [0.081 in] |
| Horizontal PCB Mounting | Optional PC board card adaptors 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack), molded from flame retardant ABS; recommended PCB thickness 1.5–1.75 mm |
Documentation
| Solid Models | Available in .stp or .x_t |
| Drawing Reference | 1591TS (REV: 07.01.2020) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.25 lbs (0.11 kg) |
Construction & Finish
| Included | Box, lid and 4 cover screws |
| Material | ABS Plastic (general purpose ABS, GPABS) |
| Screw Finish | Nickel finish screws (light gray enclosures) |
| Lid Fastening | #4 self-tapping screws into fully plastic posts |
| Machinability | Factory modification available (milling, drilling, printing) |
| Joint Construction | Lap joint – protects against access of dust and splashing water |
| Recommended Cover Screw Torque | 42–57 ozf.in (30–40 cN.m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet IP54) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents; use only plastic-safe cleaners |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What flame rating does the 1591TSGY have?▾
UL94 HB. It is molded from general purpose plastic and is not flame retardant.
What replacement screws fit?▾
1591TS100 (nickel plated) #4 x 1/2" self-tapping screws, pack of 100.
Is a clear lid available?▾
Yes, 1591TC is the flame retardant polycarbonate clear lid (lid only) listed for this size.
What are the inside dimensions?▾
113.54 x 73.74 x 54.80 mm.
