Hammond 1591HF2SGY Light Gray Economy ABS Flanged Box, 166x71x29 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray general purpose ABS, UL94 HB
- Bottom mounting flange, 190.80 mm [7.512 in] overall length
- 166 x 71 x 29 mm (6.52 x 2.79 x 1.14 in) body
- IP54 with lap joint construction
- Vertical PCB card guides for 1.5 mm (0.062") boards
- Nickel finish #4 self-tapping lid screws, 6 included

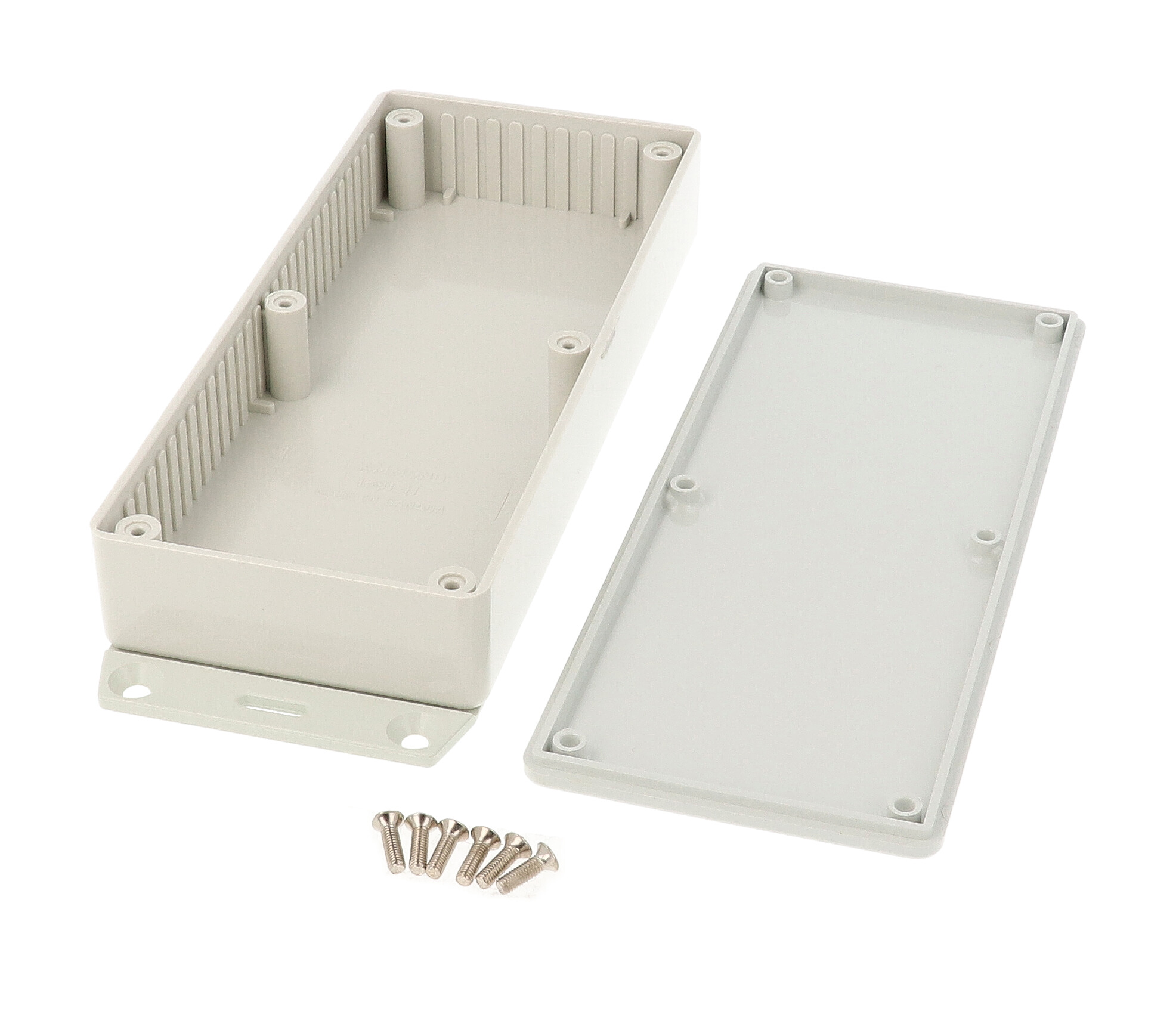

The 1591HF2SGY is a light gray general purpose ABS enclosure with a bottom mounting flange, sized 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm). It gives engineers and installers a flanged, card-guide enclosure in an economy material grade.
Being a general purpose version, it is not flame retardant and carries a UL94 HB flame rating. The IP54 rating and lap joint construction protect against dust and splashing water. The lid is assembled with #4 self-tapping screws into plastic posts, and light gray enclosures include standard nickel finish screws.
The 1591HF2S drawing shows 190.80 mm [7.512 in] overall length with the flange, a 165.70 mm [6.524 in] body and 30.50 mm [1.201 in] overall height. Inside there is 159.70 x 64.80 x 25.00 mm [6.287 x 2.551 x .984 in] of space, with card guides 20.00 mm [.788 in] tall that accept 1.5 mm (0.062") boards.
The 1591HF2SGY includes box, lid and 6 cover screws; recommended torque is 42-57 ozf.in (30-40 cN.m). Replacement screws are 1591TS100 (nickel plated) in packs of 100. It weighs 0.25 lbs (0.11 kg), ships in shrink wrap, is RoHS and REACH compliant, and accepts the 1591HC clear lid.
Ideal For
- Flanged housings for general purpose electronics
- Wall or panel mounted circuit boards
- Budget sensor and control enclosures
- Lab and prototype fixtures
Hardware
| Included | Box, lid and 6 cover screws |
| Cover Screw | #4 x 1/2" self-tapping screw |
| Screw Finish | Light gray enclosures include standard nickel finish screws |
| Clear Lid Accessory | 1591HC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591TS100 (silver / nickel plated) or 1591TS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591HF2SGY |
| Mounting Flange | Bottom flange (accessory flange attached to the bottom) |
| Product Description | enclosure - plastic |
| Ordering Table Version | General Purpose ABS, Bottom Flange, Gray (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591H GPABS WITH FLANGE |
Dimensions
| Inside Width | 64.80 mm [2.551 in] |
| Inside Height | 25.00 mm [.984 in] |
| Inside Length | 159.70 mm [6.287 in] |
| Size L X W X H | 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm) |
| Nominal Size - Depth | 1.14 in (29 mm) |
| Nominal Size - Width | 2.80 in (71 mm) |
| Body Length (Drawing) | 165.70 mm [6.524 in] |
| Nominal Size - Length | 6.54 in (166 mm) |
| Overall Width (Drawing) | 70.80 mm [2.787 in] |
| Overall Height (Drawing) | 30.50 mm [1.201 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 190.80 mm [7.512 in] |
Identifiers
| UPC | 623980137087 |
| UNSPSC | 39121301 |
| Drawing | 1591HF2S, REV: 07.01.2020 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 20.00 mm [.788 in] |
| Card Guide Slot Width | 2.00 mm [.079 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.25 lbs (0.11 kg) |
Construction & Finish
| Color | Light Gray |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Drawing Material Note | Enclosure made from GPABS. |
| Material Grade (Drawing) | General purpose ABS (GPABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardancy | General purpose plastic, not flame retardant |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1591HF2SGY and 1591HF2GY?▾
The 1591HF2SGY is the general purpose ABS version (UL94 HB) with self-tapping screws into plastic posts; the 1591HF2GY is flame retardant (UL94 V-0) with machine screws into brass inserts.
What are the inside dimensions?▾
159.70 x 64.80 x 25.00 mm [6.287 x 2.551 x .984 in].
What screws are included?▾
Six #4 self-tapping cover screws with a nickel finish.
What is the shipping weight?▾
0.25 lbs (0.11 kg).
Is it IP rated?▾
Yes, IP54.
