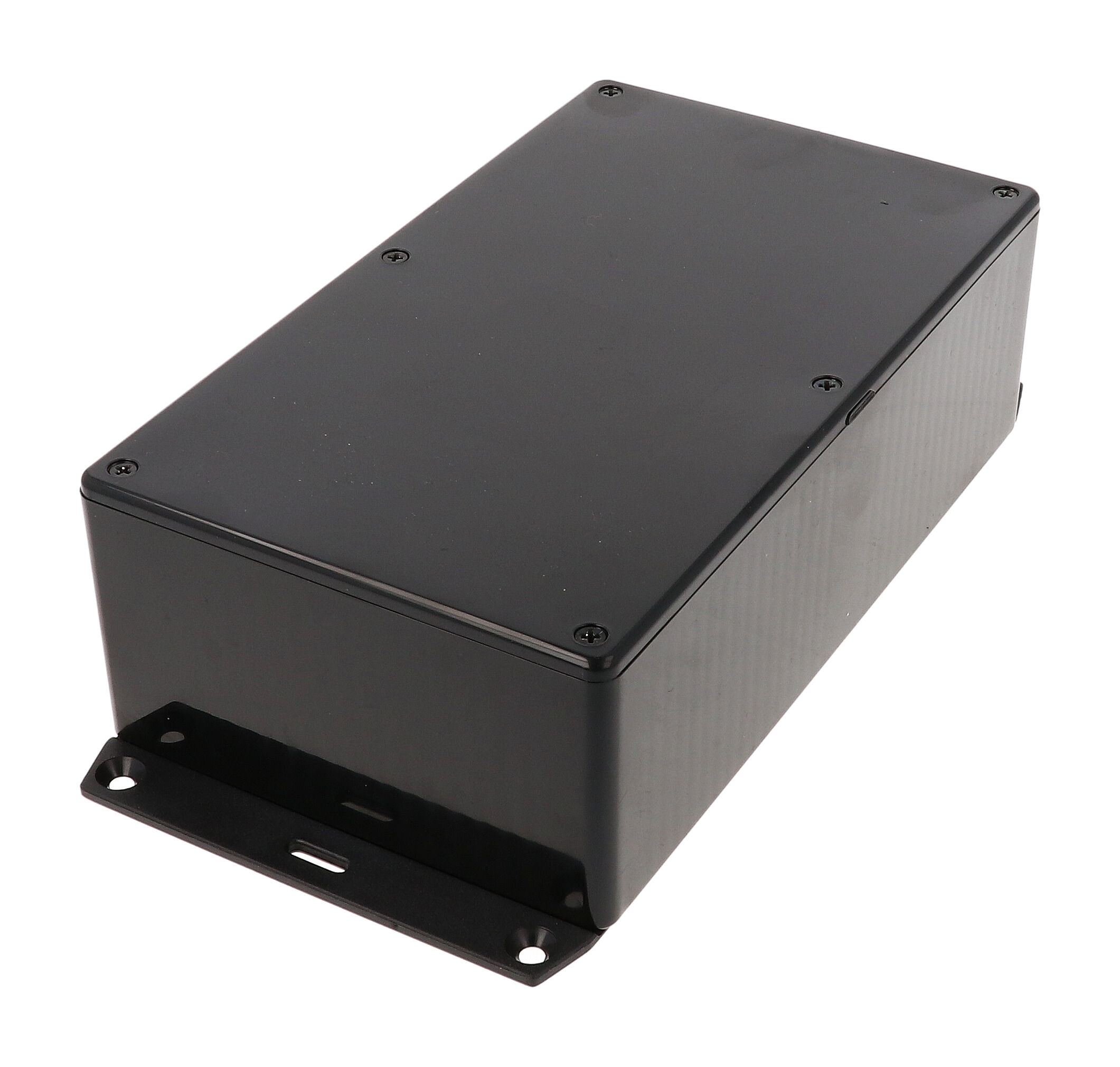

Hammond 1591EF2SBK 190x111x61 mm Black Economy ABS Box, Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Economy general purpose ABS, UL94 HB, black
- Bottom flange; 220.00 mm overall length
- 190 x 111 x 61 mm (7.48 x 4.37 x 2.40 in) nominal size
- 183.52 x 103.53 x 56.60 mm inside
- Six #4 self-tapping lid screws into plastic posts
- Card guides for 1.5 mm (0.062") PCBs; IP54 design
- RoHS and REACH compliant
The 1591EF2SBK is the black economy version of the 1591E bottom-flange enclosure, listed in the series table at 190 x 111 x 61 mm (7.48 x 4.37 x 2.40 in). It gives OEM builders and installers a larger flanged box for circuit boards at the general purpose material grade.
Economy versions are molded from general purpose plastic and are not flame retardant; the part page lists UL94 HB. The lid is held by six #4 self-tapping screws into fully plastic posts, black to match the box, with a recommended torque of 42-57 ozf.in (30-40 cN.m). Lap joint construction and an IP54 design protect against dust and splashing water.
The drawing gives 220.00 mm (8.661 in) overall length with the flange and inside dimensions of 183.52 x 103.53 x 56.60 mm (7.225 x 4.076 x 2.228 in). Card guides molded into all side walls accept 1.5 mm (0.062") boards, and 1591Z adaptors allow horizontal mounting.
The 1591EF2SBK weighs 0.53 lbs (0.24 kg), ships shrink wrapped with box, lid and 6 cover screws, and is RoHS and REACH compliant. Replacement screws are 1591TS100BK (black) or 1591TS100 (nickel plated).
Ideal For
- Budget flanged enclosures for larger PCBs
- Wall- or frame-mounted electronics
- Prototype and small-batch builds
- Indoor IP54 applications
Overview
| Type | general purpose, flanged |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Description | enclosure - plastic |
| Part Number | 1591EF2SBK |
| Mounting Style | Accessory flange attached to the bottom |
| Short Description | 1591E GPABS WITH FLANGE |
| Enclosure Size Code | 1591E |
| Series Ordering Table | Enclosures With Mounting Flanges |
Dimensions
| Inside Width | 103.53 mm [4.076 in] |
| Inside Height | 56.60 mm [2.228 in] |
| Inside Length | 183.52 mm [7.225 in] |
| Width (Drawing) | 110.60 mm [4.354 in] |
| Size (L X W X H) | 7.5 in x 4.35 in x 2.39 in (191 mm x 110 mm x 61 mm) |
| Body Length (Drawing) | 190.40 mm [7.496 in] |
| Height (Drawing, Section A-A) | 60.80 mm [2.394 in] |
| Nominal Size – Depth (Series Table) | 2.40 in (61 mm) |
| Nominal Size – Width (Series Table) | 4.37 in (111 mm) |
| Nominal Size – Length (Series Table) | 7.48 in (190 mm) |
| Overall Length Including Bottom Flange (Drawing) | 220.00 mm [8.661 in] |
Accessories
| Clear Lid Accessory | 1591EC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
Identifiers
| UPC | 623980136936 |
| UNSPSC | 39121301 |
| Drawing | 1591EF2S, REV: 07.01.2020 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 2.99 mm [.118 in] |
| Card Guide Height | 51.60 mm [2.032 in] |
| Card Guide Slot Width | 2.06 mm [.081 in] |
| PC Board Card Adaptors (Horizontal PCB Mounting) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping

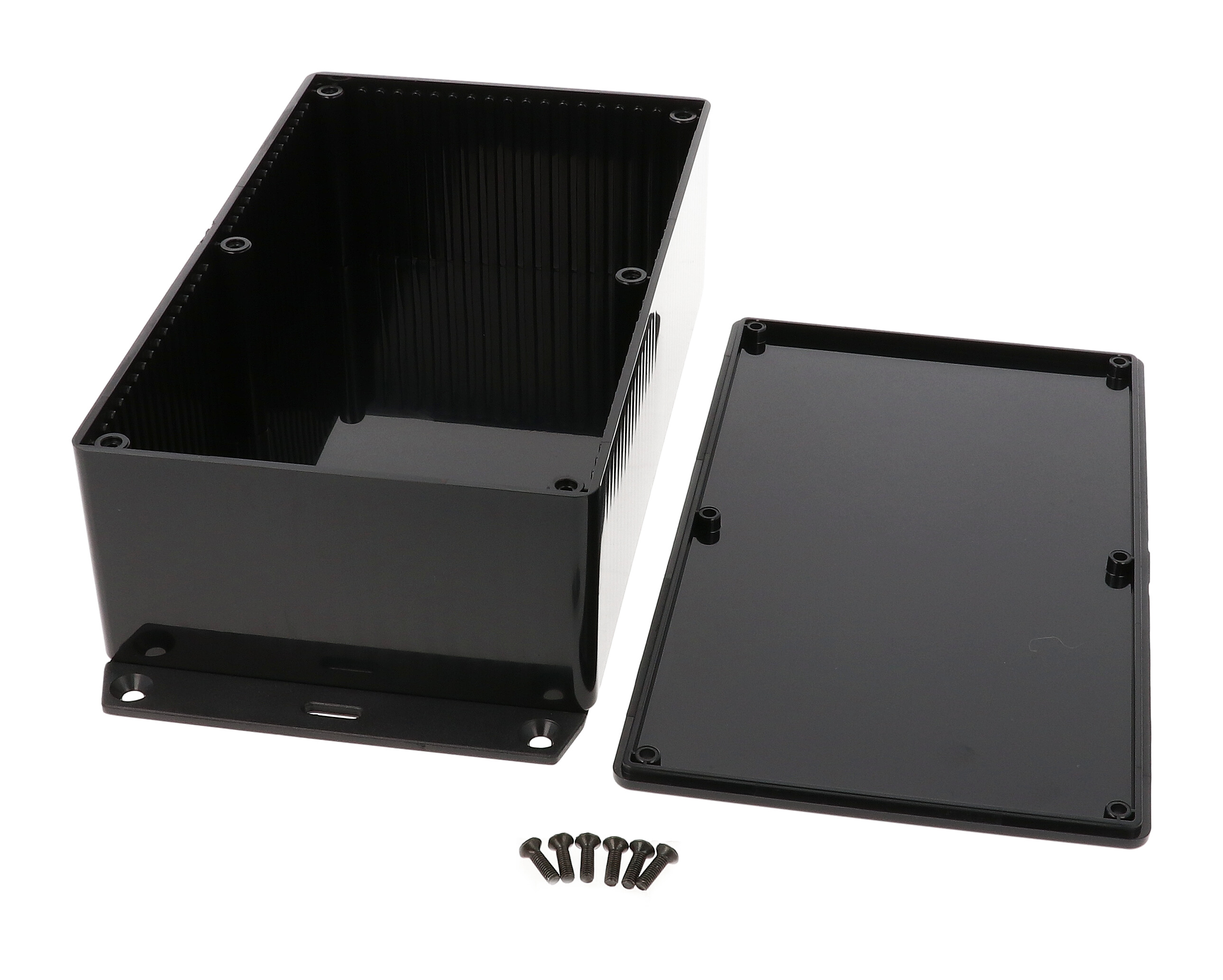

| Included | Box, lid, 6 cover screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.53 lbs (0.24 kg) |
Construction & Finish
| Color | Black |
| Material | General purpose ABS (GPABS), not flame retardant |
| Construction | Lap joint construction |
| Screw Finish | Black screws (black enclosures) |
| Solid Models | Available in .stp or .x_t |
| Lid Fastening | 6 x #4 self-tapping cover screws into fully plastic posts |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Material (Part Page) | ABS Plastic |
| Replacement Lid Screws | #4 x 1/2" self-tapping, 100 pack: 1591TS100 (silver/nickel plated), 1591TS100BK (black) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591EF2SBK flame retardant?▾
No, it is the economy version in general purpose ABS rated UL94 HB. For UL94 V-0, choose 1591EF2BK.
What lid screws does it use?▾
Six #4 self-tapping screws into fully plastic posts; recommended torque 42-57 ozf.in (30-40 cN.m).
What is the overall length with the flange?▾
220.00 mm (8.661 in) according to the drawing.
What is included?▾
The box, lid and 6 cover screws.
What is the shipping weight?▾
0.53 lbs (0.24 kg).
