Hammond 1591CSFLBK 120x65x40mm Black GPABS Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged lid for wall mounting; 145.20 mm [5.717 in] overall length
- Black GPABS body, 120 x 65 x 40 mm (4.72 x 2.56 x 1.57 in)
- Card guides accept 1.5 mm (0.062”) PC boards vertically
- IP54 lap joint construction
- UL94 HB; #4 self-tapping lid screws, 4 included
- Lid PCB screws 1593ATS50/1593ATS100 listed as accessories

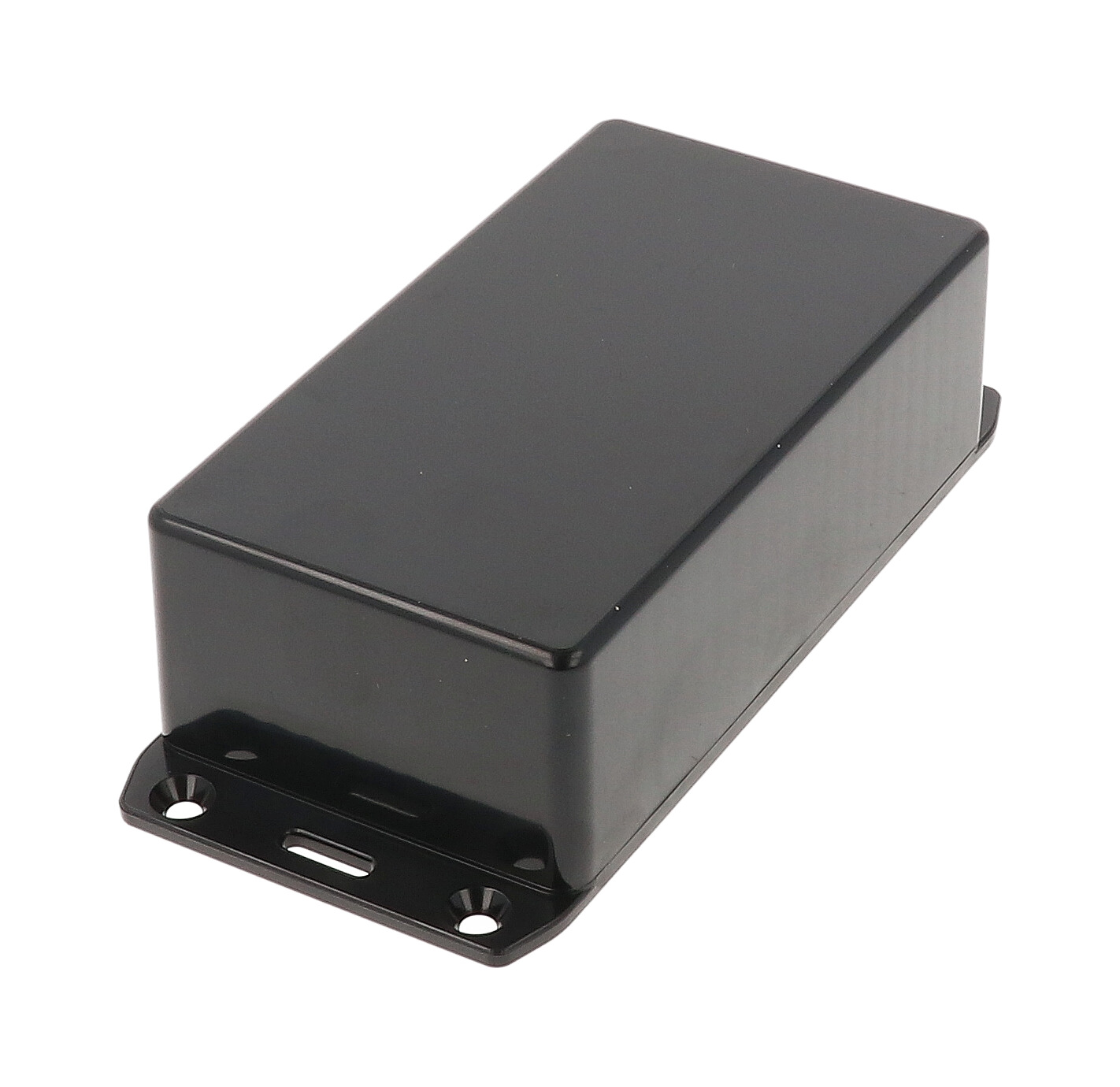

The 1591CSFLBK is a black general purpose ABS enclosure in the 1591C size with wall mounting flanges molded into the lid. The body is 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm), and the drawing shows an overall length of 145.20 mm [5.717 in] across the flanges, letting installers screw the box straight onto a wall or panel.
Card guides molded into all side walls accept 1.5 mm (0.062”) boards for vertical PCB mounting. The interior measures 113.53 mm x 58.53 mm x 35.90 mm with a 30.91 mm guide height.

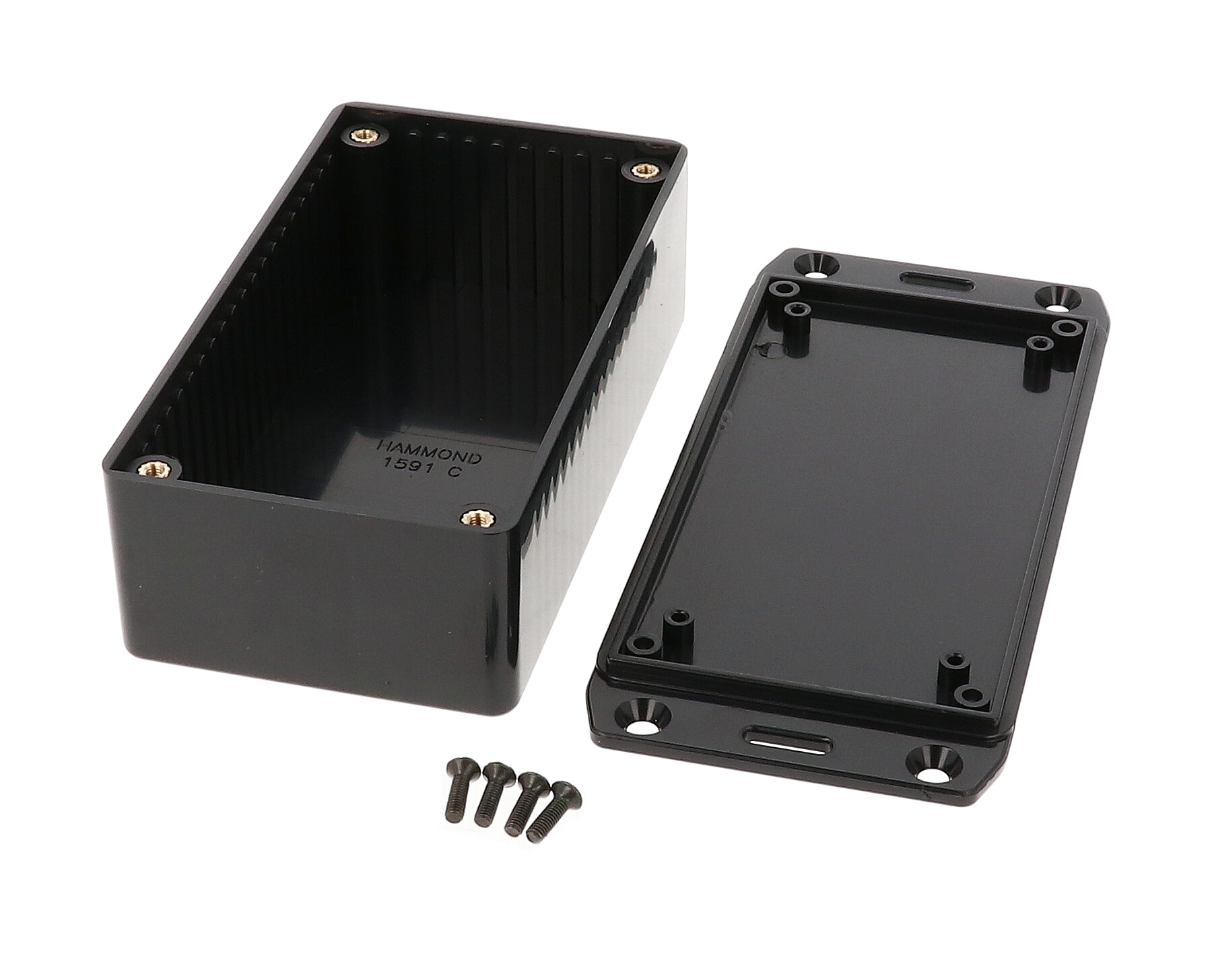

This economy version is made from GPABS with a UL94 HB flame rating. Its lid is assembled with #4 self-tapping screws into plastic posts, and the purchased assembly includes box, lid and 4 cover screws, black to match the enclosure. Recommended torque is 42-57 ozf.in (30-40 cN.m). The drawing also lists 1593ATS50 and 1593ATS100 P.C. board screws for the lid.
Lap joint construction gives IP54 protection against dust and splashing water. The part is RoHS and REACH compliant, weighs 0.18 lbs (0.08 kg) shipped and is shrink wrapped.
Ideal For
- Wall-mounted electronics housings
- Panel-fixed sensor and control boxes
- Vertical PCB enclosures needing mounting flanges
- IP54 indoor installations
Overview
| Type | general purpose, flanged |
| Color | Black |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | PLASTIC CASE |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Overall Length Including Flanges | 145.20 mm [5.717 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591TS100 (Silver) / 1591TS100BK (Black), #4 X 1/2" (100Pkg) self-tapping plated cover screw |
| P.C. Board Screws For Lid | 1593ATS50 (50Pkg) / 1593ATS100 (100Pkg), #4 X 1/4" (6.4mm) self-tapping |
Identifiers
| UPC | 623980011936 |
| UNSPSC | 39121301 |
| Part Number | 1591CSFLBK |
Documentation
| Drawing | 1591CSFL, REV: 07.01.2020 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Lid Fastening | Accepts #4 self-tapping screw |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |
| Purchased Assembly Includes | Box, lid and 4 cover screws |
| Enclosure Material (Drawing) | GPABS (general purpose ABS) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where are the mounting flanges?▾
On the 1591CSFLBK the wall mounting flanges are molded into the lid.
What is the overall length with flanges?▾
145.20 mm [5.717 in] according to the drawing.
Is this version flame retardant?▾
No, it is general purpose ABS with a UL94 HB rating. Flame retardant flanged lid versions of this size are 1591CFLBK and 1591CFLGY.
Which screws hold the lid?▾
The lid posts accept #4 self-tapping screws; replacements are 1591TS100 (Silver) or 1591TS100BK (Black) in packs of 100.
What is the shipping weight?▾
0.18 lbs (0.08 kg).
