Hammond 1591BC 112 x 62 mm Clear Flame Retardant Polycarbonate Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid made to fit 1591B enclosures
- Size 4.41 in x 2.44 in x 0.23 in (112 mm x 62 mm x 6 mm)
- Flame retardant polycarbonate, UL94 V-0 flame rating
- IP54 rating listed for the part
- Clear lid accessory for flanged, bottom-flange and unflanged 1591B variants
- Lid only; enclosure body sold separately
- RoHS and REACH compliant; shipping weight 0.05 lbs (0.02 kg)

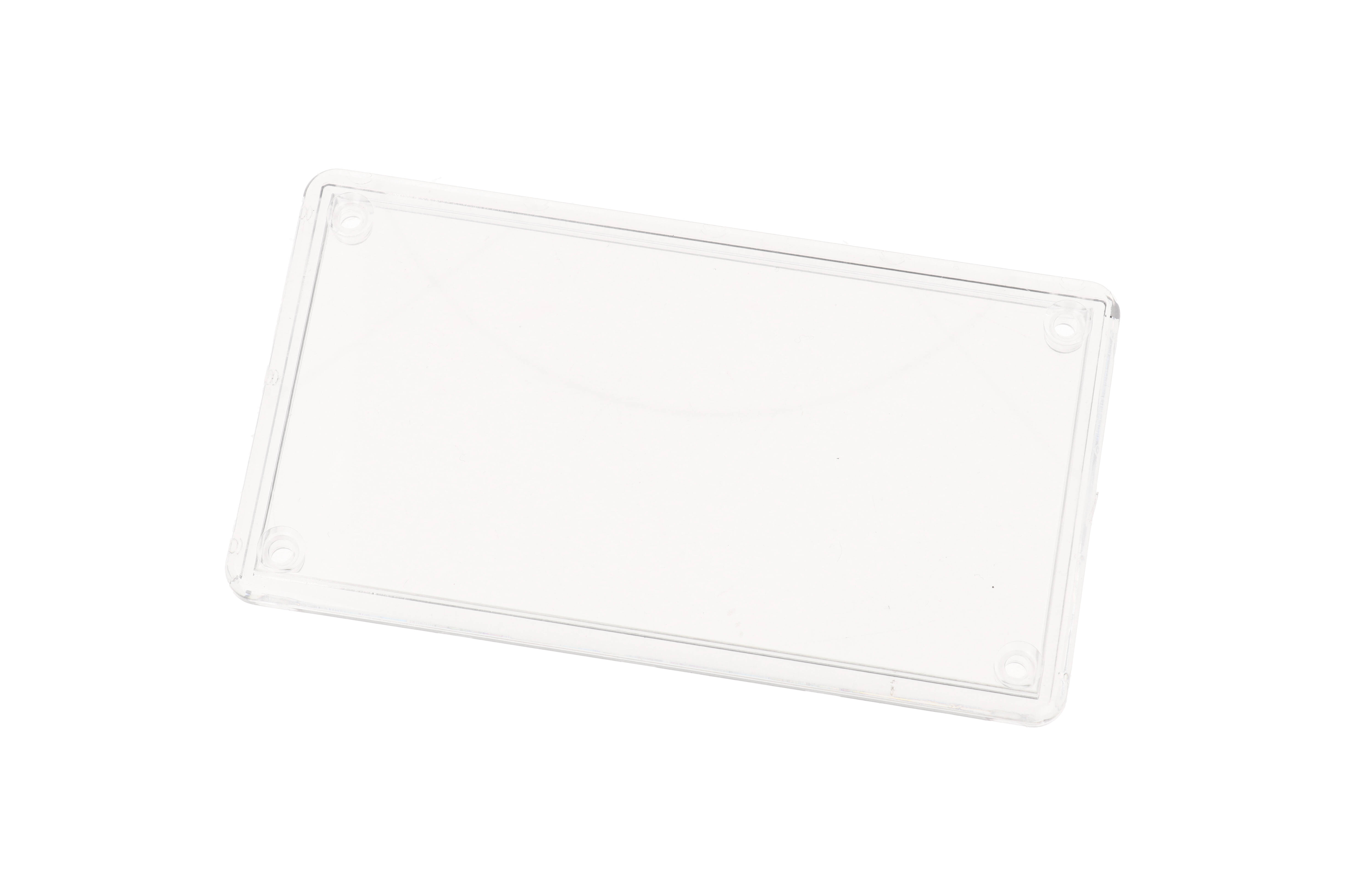

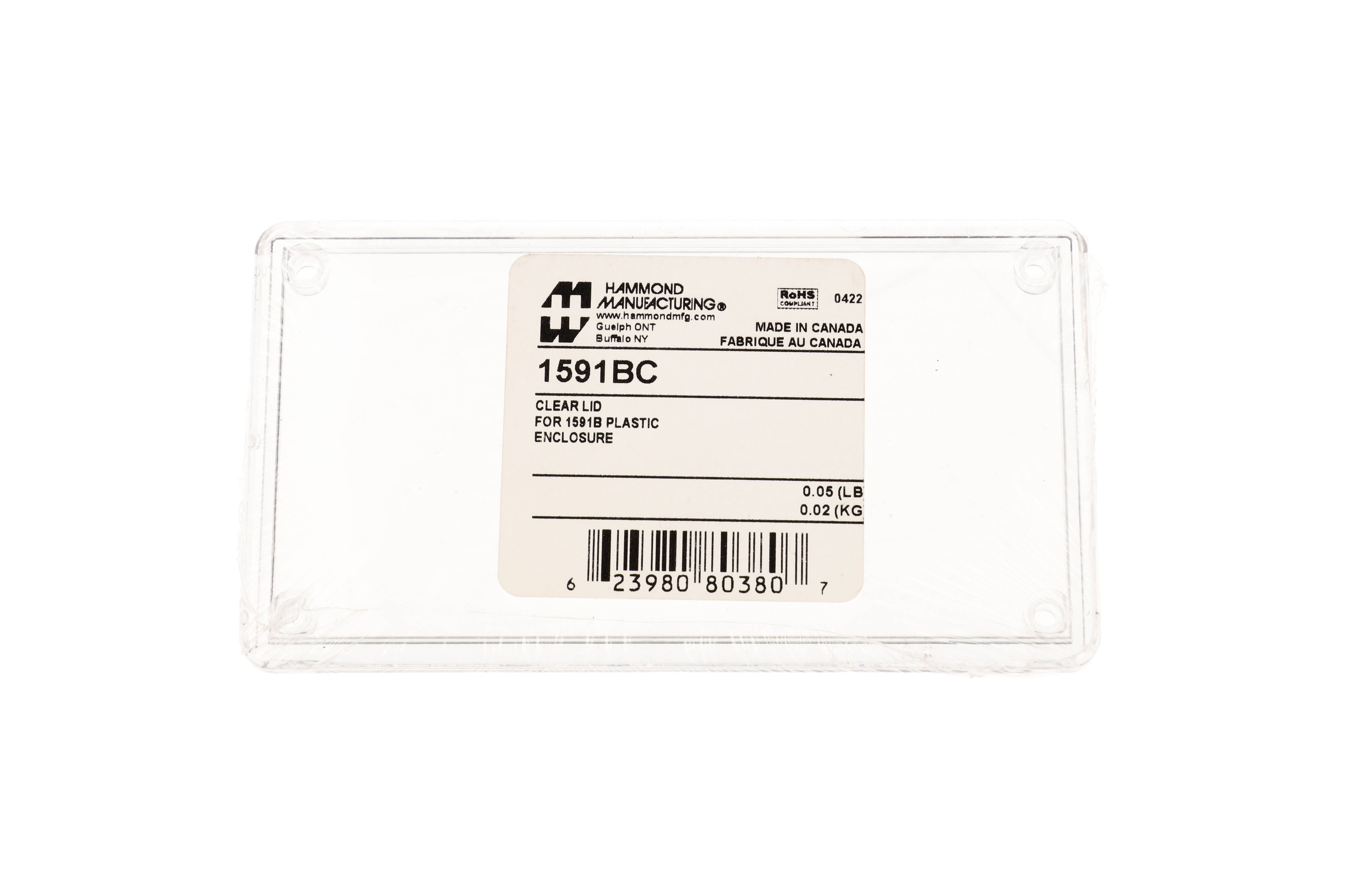

The 1591BC is a clear polycarbonate lid made to fit 1591B enclosures from the 1591 Series of ABS plastic multipurpose enclosures with card guides. It is sold as the lid only and is aimed at electronics builders and OEM engineers who want to see indicators, displays or circuitry inside a 1591B box without opening it.
The lid measures 4.41 in x 2.44 in x 0.23 in (112 mm x 62 mm x 6 mm), matching the 4.41 in (112 mm) by 2.44 in (62 mm) footprint of the 1591B enclosure, and has a shipping weight of 0.05 lbs (0.02 kg). It is molded from flame retardant polycarbonate with a UL94 V-0 flame rating and is listed with an IP54 rating.
In the series ordering table the 1591BC is the clear lid accessory for every 1591B variant, including:
- Flame retardant ABS enclosures without flanges: 1591BBK (black) and 1591BGY (gray)
- General purpose ABS enclosures without flanges: 1591BSBK and 1591BSGY
- Flanged-lid versions: 1591BFLBK, 1591BFLGY and 1591BSFLBK
- Bottom-flange versions: 1591BF2BK, 1591BF2GY, 1591BF2SBK and 1591BF2SGY
The 1591BC is RoHS and REACH compliant and is supplied in shrink wrap packaging.
Ideal For
- Viewing indicators or displays inside a 1591B enclosure
- Replacing an opaque lid on 1591B enclosures with a clear one
- Prototype and demonstration electronics where internals should stay visible
Overview
| Type | Clear Lid |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Description | lid - clear polycarbonate, made to fit 1591B enclosures |
| Part Number | 1591BC |
| Supplied As | Lid only |
| Short Description | CLEAR LID |
Dimensions
| Size (L X W X H) | 4.41 in x 2.44 in x 0.23 in (112 mm x 62 mm x 6 mm) |
Identifiers
| UPC | 623980803807 |
| UNSPSC | 39121301 |
Compatibility
| Fits | 1591B enclosures |
| Flanged Lid Versions | 1591BFLBK, 1591BFLGY (flame retardant); 1591BSFLBK (general purpose) |
| Bottom Flange Versions | 1591BF2BK, 1591BF2GY (flame retardant); 1591BF2SBK, 1591BF2SGY (general purpose) |
| Flame Retardant ABS, No Flanges | 1591BBK (black), 1591BGY (gray) |
| General Purpose ABS, No Flanges | 1591BSBK (black), 1591BSGY (gray) |
| Matching Enclosure Size (L X W X D) | 4.41 in (112 mm) x 2.44 in (62 mm) x 1.22 in (31 mm) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.05 lbs (0.02 kg) |
Construction & Finish
| Color | Clear |
| Material | Polycarbonate |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591BC fit?▾
It is made to fit 1591B enclosures and is listed as the clear lid accessory for 1591BBK, 1591BGY, 1591BSBK, 1591BSGY, 1591BFLBK, 1591BFLGY, 1591BSFLBK, 1591BF2BK, 1591BF2GY, 1591BF2SBK and 1591BF2SGY.
What is the 1591BC made of?▾
Clear polycarbonate with a UL94 V-0 flame rating.
Does the 1591BC include an enclosure body?▾
No. It is the lid only; the 1591B enclosure body is a separate part.
What size is the 1591BC?▾
4.41 in x 2.44 in x 0.23 in (112 mm x 62 mm x 6 mm), with a shipping weight of 0.05 lbs (0.02 kg).
Is the 1591BC RoHS and REACH compliant?▾
Yes, it is listed as both RoHS and REACH compliant.
