Hammond 1591CF2SBK 120x65x40mm Black GPABS Enclosure, Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Bottom mounting flange; 145.00 mm [5.709 in] overall length
- Black GPABS, UL94 HB economy version
- 120 x 65 x 40 mm nominal, 41.30 mm overall height
- Card guides accept 1.5 mm (0.062”) boards vertically
- #4 self-tapping lid screws; box, lid and 4 cover screws included
- IP54 lap joint construction

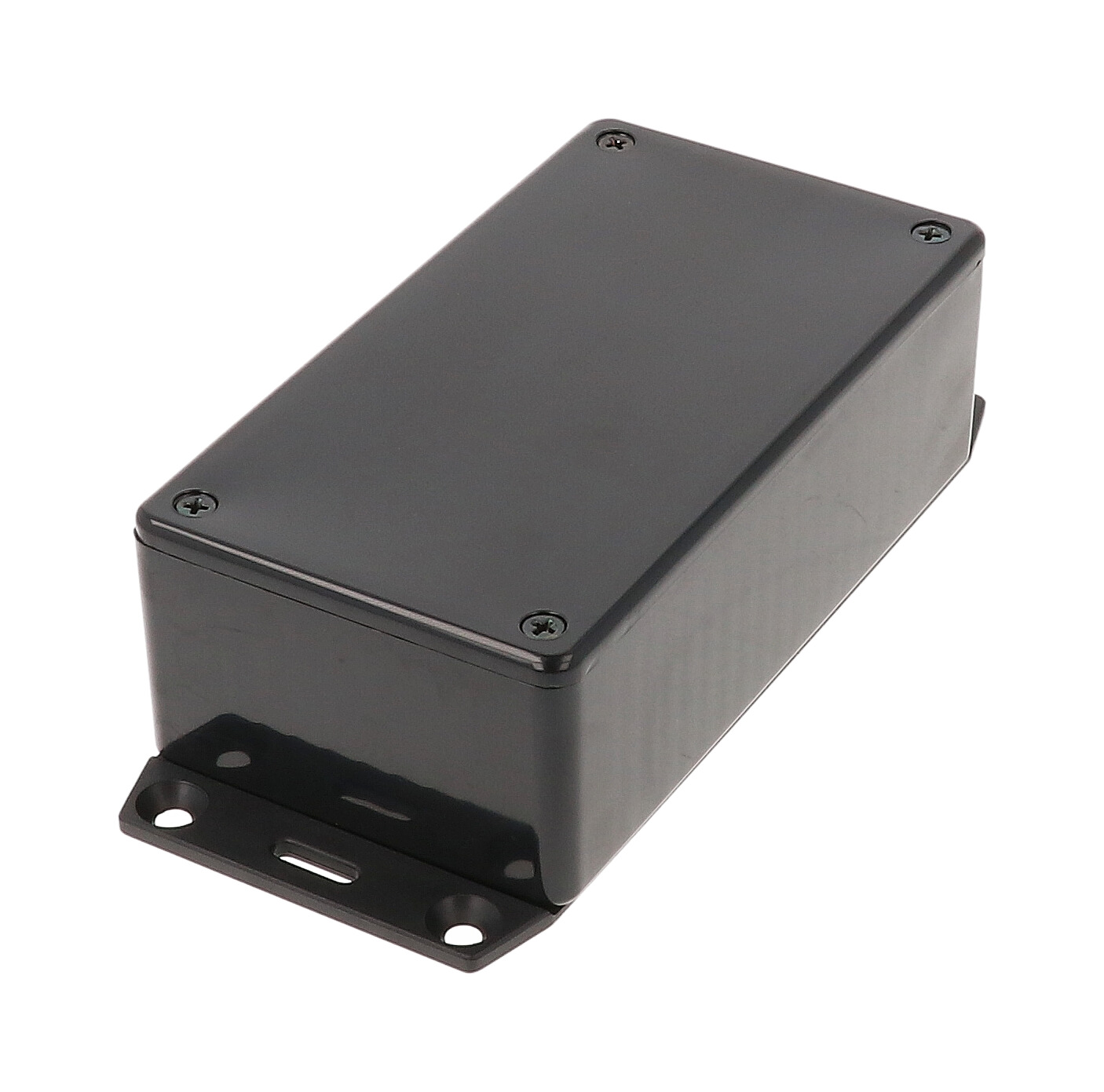

The 1591CF2SBK is the black general purpose ABS, bottom flange version of the 1591C enclosure. It is 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) nominal, and the drawing shows 145.00 mm [5.709 in] overall length and 41.30 mm [1.626 in] overall height with the accessory flange attached to the bottom.

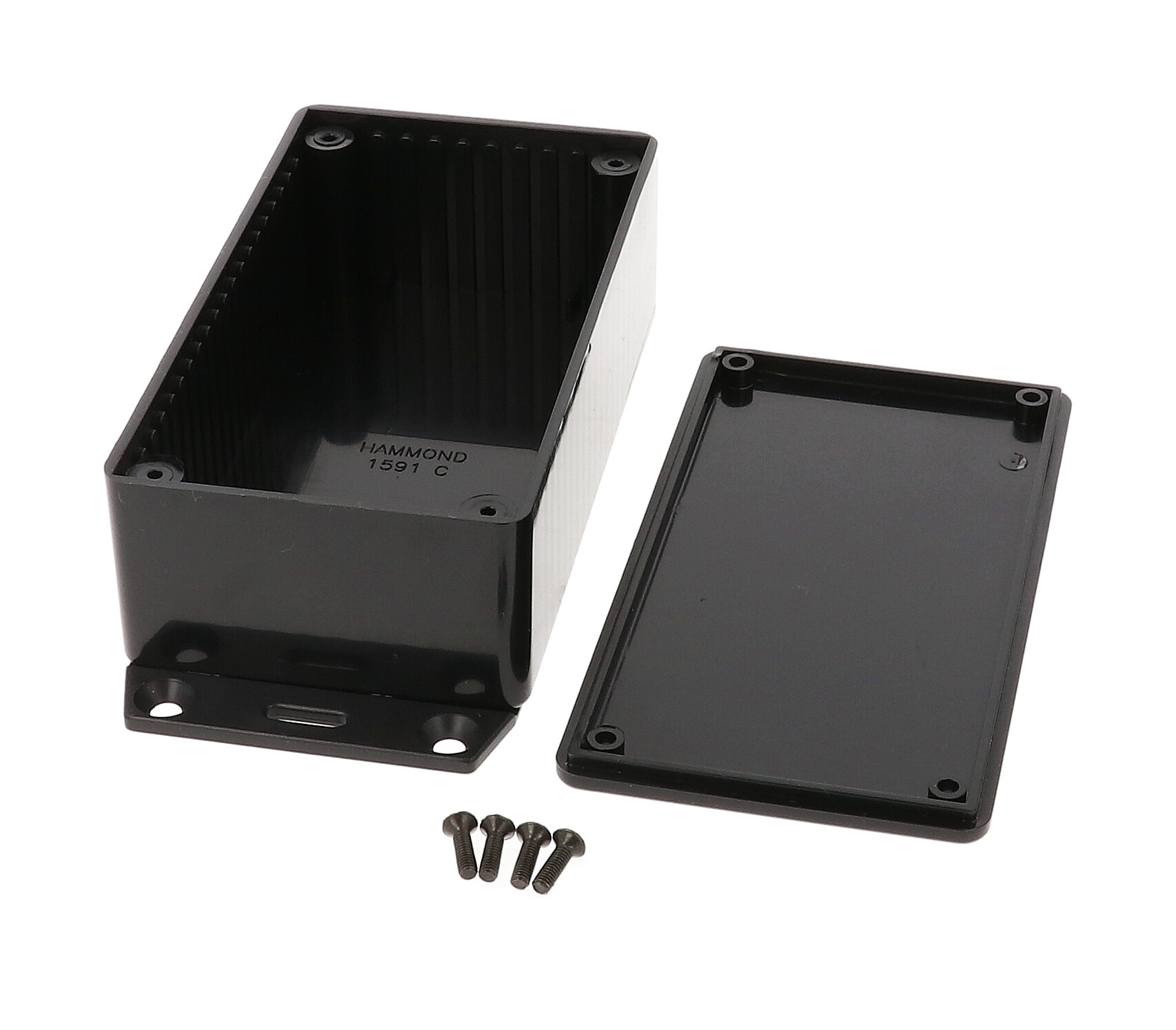

Card guides molded into all side walls accept 1.5 mm (0.062”) boards so circuit boards stand upright. The interior is 113.53 mm x 58.53 mm x 35.90 mm, and the guides are 30.91 mm high.
This economy version is made from GPABS with a UL94 HB flame rating and is not flame retardant. The lid is assembled with #4 self-tapping screws into plastic posts; the purchased assembly includes box, lid and 4 cover screws, black on black enclosures. Recommended torque is 42-57 ozf.in (30-40 cN.m).
Lap joint construction provides IP54 protection against dust and splashing water. The 1591CF2SBK is RoHS and REACH compliant and ships in shrink wrap at 0.21 lbs (0.10 kg). Listed accessories include the 1591CC clear lid, 1591Z card adapters and the 1599CLIP nylon belt / pocket clip.
Ideal For
- Economy base-mounted enclosures
- Equipment-mounted electronics with lid access
- Vertical PCB housings
- IP54 indoor projects
Overview
| Type | general purpose, flanged |
| Color | Black |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | 1591C GPABS WITH FLANGE |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 41.30 mm [1.626 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Overall Length Including Flanges | 145.00 mm [5.709 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC (flame retardant polycarbonate, lid only) |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591TS100 (Silver) / 1591TS100BK (Black), #4 X 1/2" (100Pkg) self-tapping plated cover screw |
Identifiers
| UPC | 623980136912 |
| UNSPSC | 39121301 |
| Part Number | 1591CF2SBK |
Documentation
| Drawing | 1591CF2S, REV: 07.01.2020 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Lid Fastening | Accepts #4 self-tapping screw |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |
| Purchased Assembly Includes | Box, lid and 4 cover screws |
| Enclosure Material (Drawing) | GPABS (general purpose ABS) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591CF2SBK flame retardant?▾
No. It is general purpose ABS (GPABS) rated UL94 HB. The flame retardant black bottom flange version is 1591CF2BK.
How is the lid secured?▾
With self-tapping screws into plastic posts that accept a #4 self-tapping screw.
What torque should I use?▾
The drawing recommends 42-57 ozf.in (30-40 cN.m).
What replacement screws fit?▾
1591TS100 (Silver) or 1591TS100BK (Black), #4 X 1/2" self-tapping, packs of 100.
What does it weigh?▾
0.21 lbs (0.10 kg) shipping weight.
