Hammond 1591CFLGY 120x65x40mm Light Gray FR Abs Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray FRABS enclosure, UL94 V-0
- Flanged lid for wall mounting; 145.20 mm [5.717 in] overall length
- Card guides accept 1.5 mm (0.062”) boards vertically
- Nickel finish M3 - 0.5 screws into pre-installed brass inserts
- IP54 lap joint construction
- Body 120 x 65 x 40 mm with 113.53 x 58.53 x 35.90 mm interior

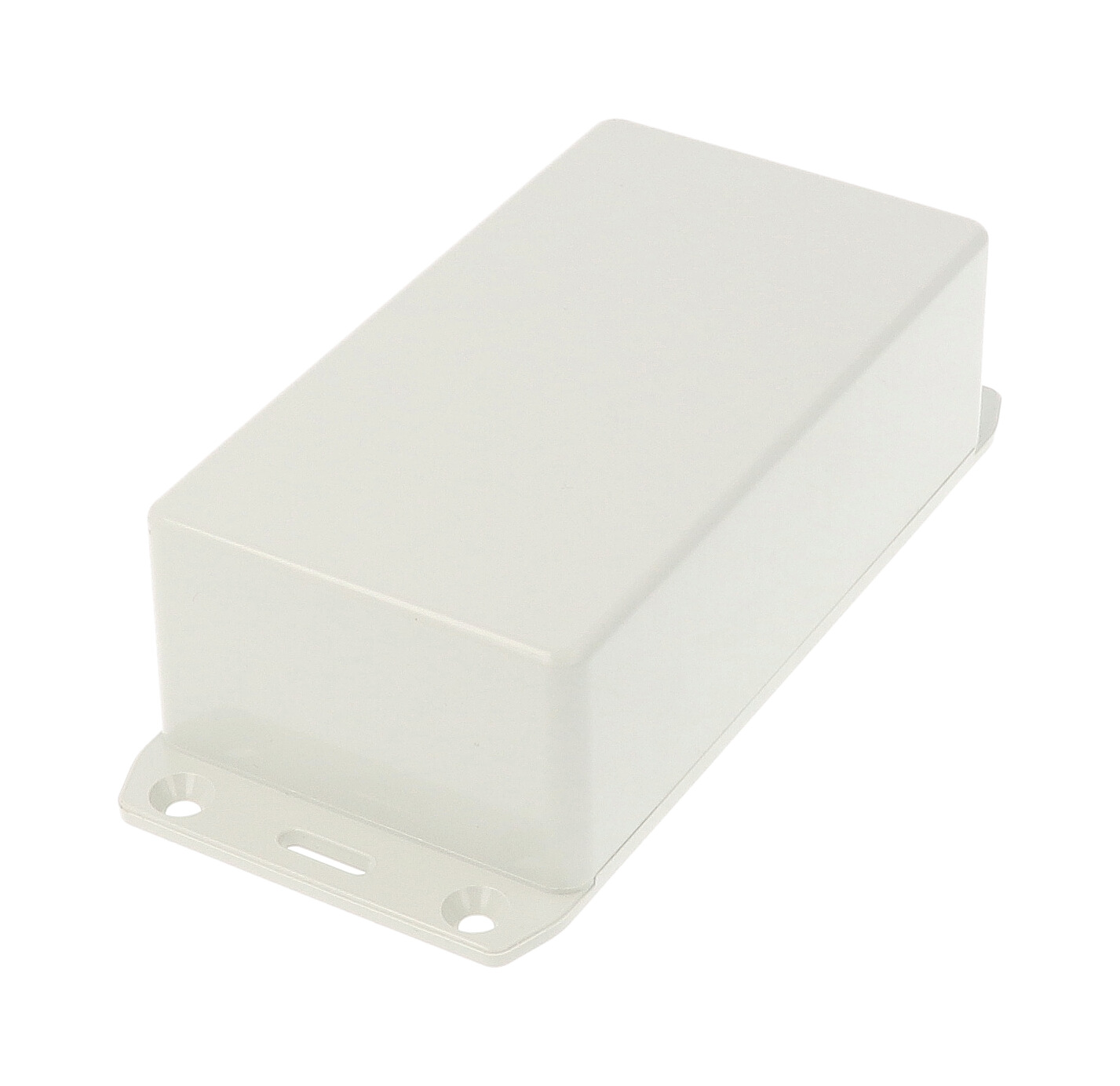

The 1591CFLGY is the light gray flame retardant ABS enclosure in the 1591C size with a flanged lid for wall mounting. Its body is 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm), and the drawing shows 145.20 mm [5.717 in] overall length including the flanges.
Molded card guides in all side walls accept 1.5 mm (0.062”) thick boards for vertical mounting. The interior is 113.53 mm x 58.53 mm x 35.90 mm, with guides 30.91 mm high and a 3.01 mm guide width.

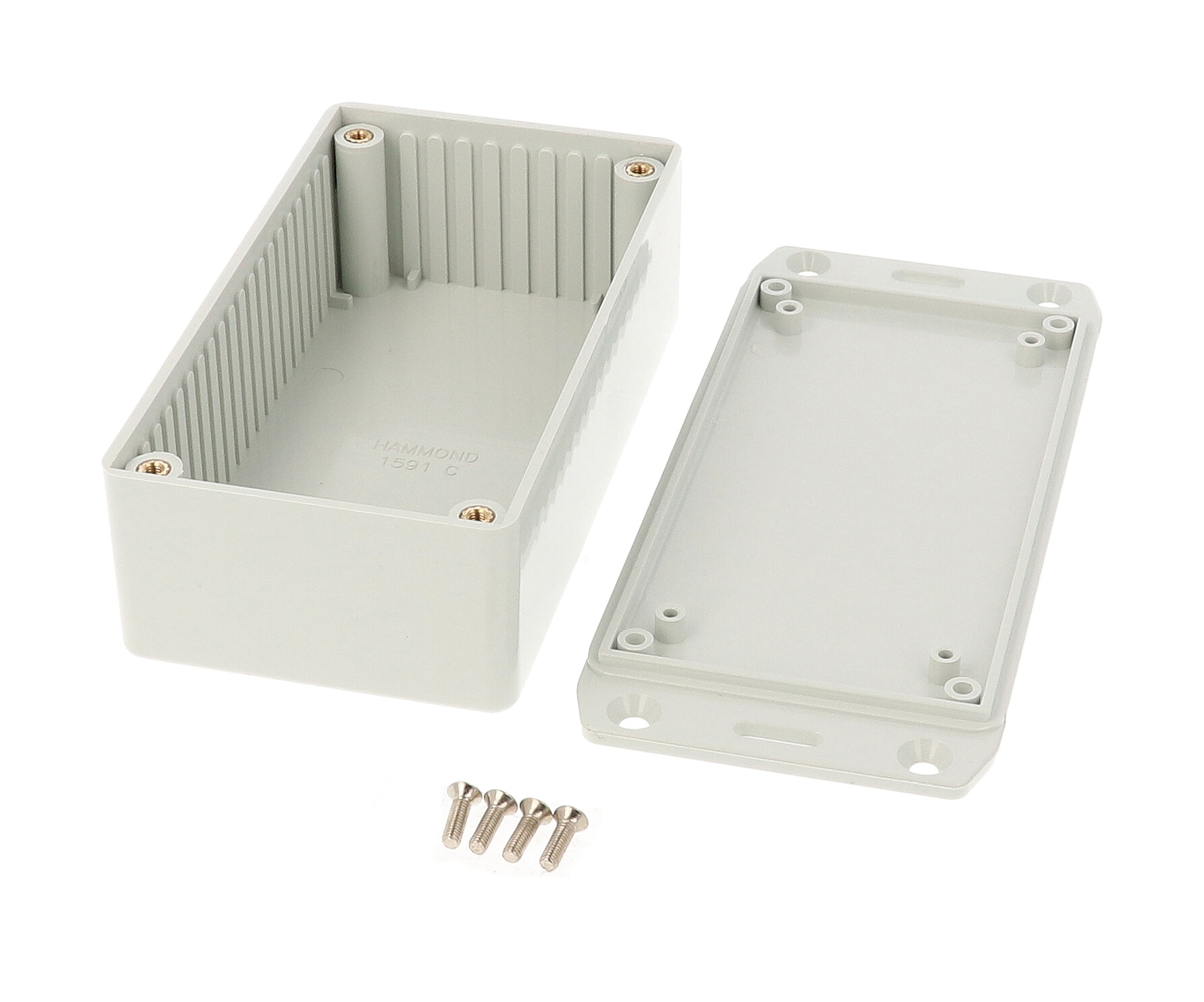

The enclosure is made from FRABS and rated UL94 V-0. The lid takes M3 - 0.5 machine screws into pre-installed brass inserts, and light gray enclosures include standard nickel finish screws. The purchased assembly includes box, lid, 4 cover screws and pre-installed brass inserts; recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).
Lap joint construction protects against dust and splashing water to IP54. The 1591CFLGY is RoHS and REACH compliant, weighs 0.21 lbs (0.10 kg) shipped and carries UPC 623980196794. The drawing also lists 1593ATS50 and 1593ATS100 P.C. board screws for the lid and 1599CLIPGY grey belt clip.
Ideal For
- Wall-mounted flame retardant enclosures
- Instrumentation and control housings
- Vertical PCB assemblies
- IP54 electronics in facilities
Overview
| Type | general purpose, flanged |
| Color | Light Gray |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | 1591C FLANGED LID GREY |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Overall Length Including Flanges | 145.20 mm [5.717 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591MS100 (Silver) / 1591MS100BK (Black), M3 - 0.5 X 10mm (100Pkg) plated cover screw |
| P.C. Board Screws For Lid | 1593ATS50 (50Pkg) / 1593ATS100 (100Pkg), #4 X 1/4" (6.4mm) self-tapping |
Identifiers
| UPC | 623980196794 |
| UNSPSC | 39121301 |
| Part Number | 1591CFLGY |
Documentation
| Drawing | 1591CFL, REV: 06.16.2023 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Lid Fastening | Accepts M3 - 0.5 machine screw |
| Screw Inserts | Pre-installed brass inserts |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |
| Purchased Assembly Includes | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Enclosure Material (Drawing) | FRABS (flame retardant ABS) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What color screws are supplied?▾
Light gray enclosures include standard nickel finish screws.
What are the inside dimensions of the 1591CFLGY?▾
Inside length 113.53 mm [4.469 in], inside width 58.53 mm [2.304 in], inside height 35.90 mm [1.413 in].
Is it rated for dust and water?▾
It is rated IP54, with lap joint construction protecting against dust and splashing water.
Is a black version available?▾
Yes, the black flame retardant flanged lid version is 1591CFLBK.
Can boards be mounted horizontally?▾
Yes, with 1591Z6, 1591Z50 or 1591Z100 PC board card adapters.
