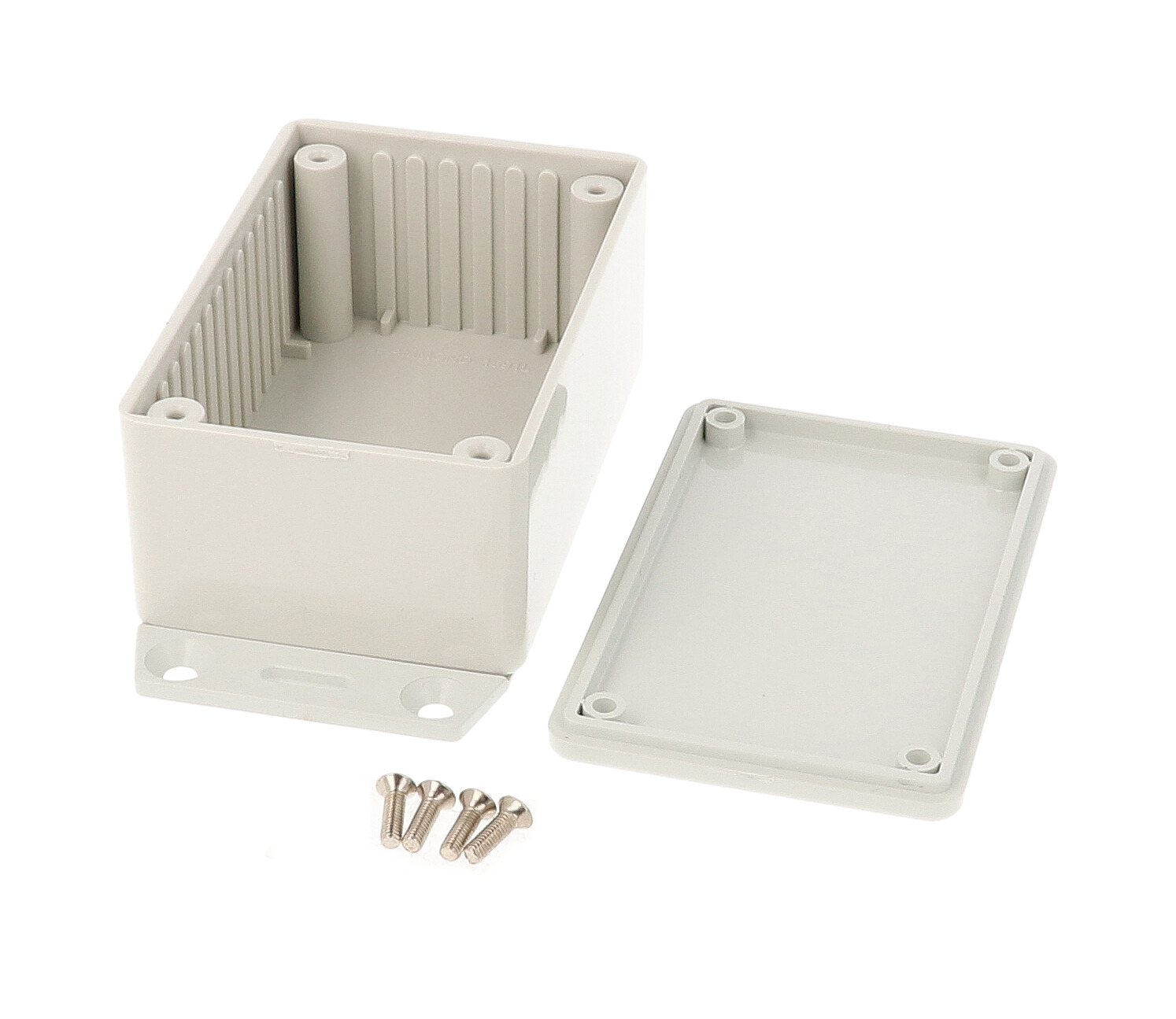

Hammond 1591LF2SGY Light Gray Economy ABS Flanged Box, 85x56x39 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray general purpose ABS, UL94 HB
- Bottom mounting flange; 110.20 mm [4.339 in] overall length
- 85 x 56 x 39 mm (3.35 x 2.2 x 1.54 in) body
- IP54 rated
- Card guides for 1.5 mm (0.062") boards
- 4 nickel finish self-tapping screws included
The 1591LF2SGY is a light gray general purpose ABS enclosure with a bottom mounting flange on the compact 1591L body, 3.35 x 2.2 x 1.54 in (85 x 56 x 39 mm). It gives OEMs and hobbyists a flanged card-guide box in an economy grade.
General purpose versions are not flame retardant; this part is rated UL94 HB. It is IP54 rated with lap joint construction against dust and splashing water. The lid is assembled with #4 self-tapping screws into fully plastic posts, with standard nickel finish screws for light gray enclosures.
- Overall length with flange: 110.20 mm [4.339 in]
- Overall height: 40.60 mm [1.598 in]
- Inside: 78.71 x 51.71 x 34.90 mm [3.099 x 2.036 x 1.374 in]
- Card guides accept 1.5 mm (0.062") boards
The 1591LF2SGY includes box, lid and 4 cover screws, tightened to 42-57 ozf.in (30-40 cN.m); replacements are 1591TS100 (nickel plated) in packs of 100. It ships in shrink wrap at 0.15 lbs (0.07 kg), is RoHS and REACH compliant, and accepts the 1591LC clear lid. Optional 1591Z card adaptors allow boards to be mounted horizontally, and factory modification (milling, drilling, printing) is available.
Ideal For
- Economy surface-mounted enclosures
- Small wall or panel mounted PCB housings
- Hobby and prototype electronics
- General purpose sensor boxes
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw | #4 x 1/2" self-tapping screw |
| Screw Finish | Light gray enclosures include standard nickel finish screws |
| Clear Lid Accessory | 1591LC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591TS100 (silver / nickel plated) or 1591TS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591LF2SGY |
| Mounting Flange | Bottom flange (accessory flange attached to the bottom) |
| Product Description | enclosure - plastic |
| Ordering Table Version | General Purpose ABS, Bottom Flange, Gray (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591L GPABS WITH FLANGE |
Dimensions
| Inside Width | 51.71 mm [2.036 in] |
| Inside Height | 34.90 mm [1.374 in] |
| Inside Length | 78.71 mm [3.099 in] |
| Size L X W X H | 3.35 in x 2.2 in x 1.54 in (85 mm x 56 mm x 39 mm) |
| Nominal Size - Depth | 1.54 in (39 mm) |
| Nominal Size - Width | 2.20 in (56 mm) |
| Body Length (Drawing) | 85.00 mm [3.346 in] |
| Nominal Size - Length | 3.35 in (85 mm) |
| Overall Width (Drawing) | 56.00 mm [2.205 in] |
| Overall Height (Drawing) | 40.60 mm [1.598 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 110.20 mm [4.339 in] |
Identifiers
| UPC | 623980137094 |
| UNSPSC | 39121301 |
| Drawing | 1591LF2S, REV: 07.01.2020 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 29.90 mm [1.177 in] |
| Card Guide Slot Width | 2.09 mm [.082 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Color | Light Gray |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Drawing Material Note | Enclosure made from GPABS. |
| Material Grade (Drawing) | General purpose ABS (GPABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardancy | General purpose plastic, not flame retardant |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1591LF2SGY made of?▾
General purpose ABS (GPABS), rated UL94 HB; it is not flame retardant.
How big is it?▾
The body is 3.35 x 2.2 x 1.54 in (85 x 56 x 39 mm); with the bottom flange it is 110.20 mm long.
What screws are included?▾
Four #4 self-tapping cover screws in a nickel finish.
What is the recommended torque?▾
42-57 ozf.in (30-40 cN.m).
Which clear lid fits?▾
1591LC.
