Hammond 1591HF2GY Light Gray Bottom Flange FR Abs Box, 166x71x29 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray flame retardant ABS with bottom mounting flange
- 190.80 mm [7.512 in] overall length including flange
- Body size 166 x 71 x 29 mm (6.52 x 2.79 x 1.14 in)
- UL94 V-0 and IP54 rated
- Card guides for vertical 1.5 mm (0.062") PCBs
- Nickel finish M3 screws into brass inserts; 6 included

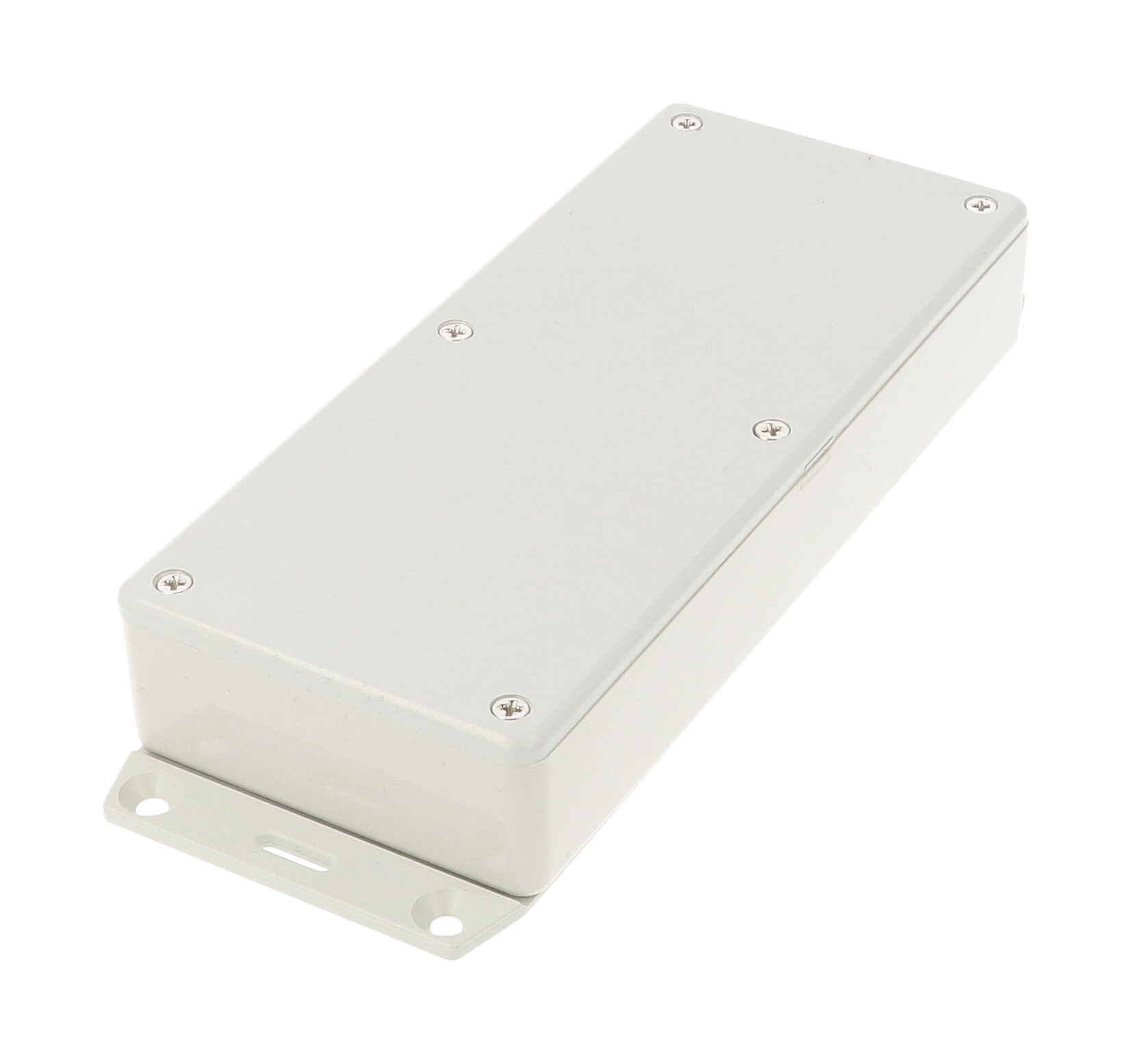

The 1591HF2GY is a light gray flame retardant ABS enclosure fitted with a bottom mounting flange. Measuring 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm), it is aimed at integrators and OEMs who need a flanged box that can be screwed down to a surface while holding circuit boards upright.
The 1591HF2 drawing puts the overall length with flange at 190.80 mm [7.512 in] and overall height at 30.50 mm [1.201 in], while the body length is 165.70 mm [6.524 in]. Interior dimensions are 159.70 x 64.80 x 25.00 mm [6.287 x 2.551 x .984 in].
- Flame retardant ABS (FRABS), UL94 V-0
- IP54, lap joint construction against dust and splashing water
- Card guides molded into all side walls for 1.5 mm (0.062") boards
- M3 - 0.5 x 10 mm cover screws in pre-installed brass inserts; light gray versions include nickel finish screws

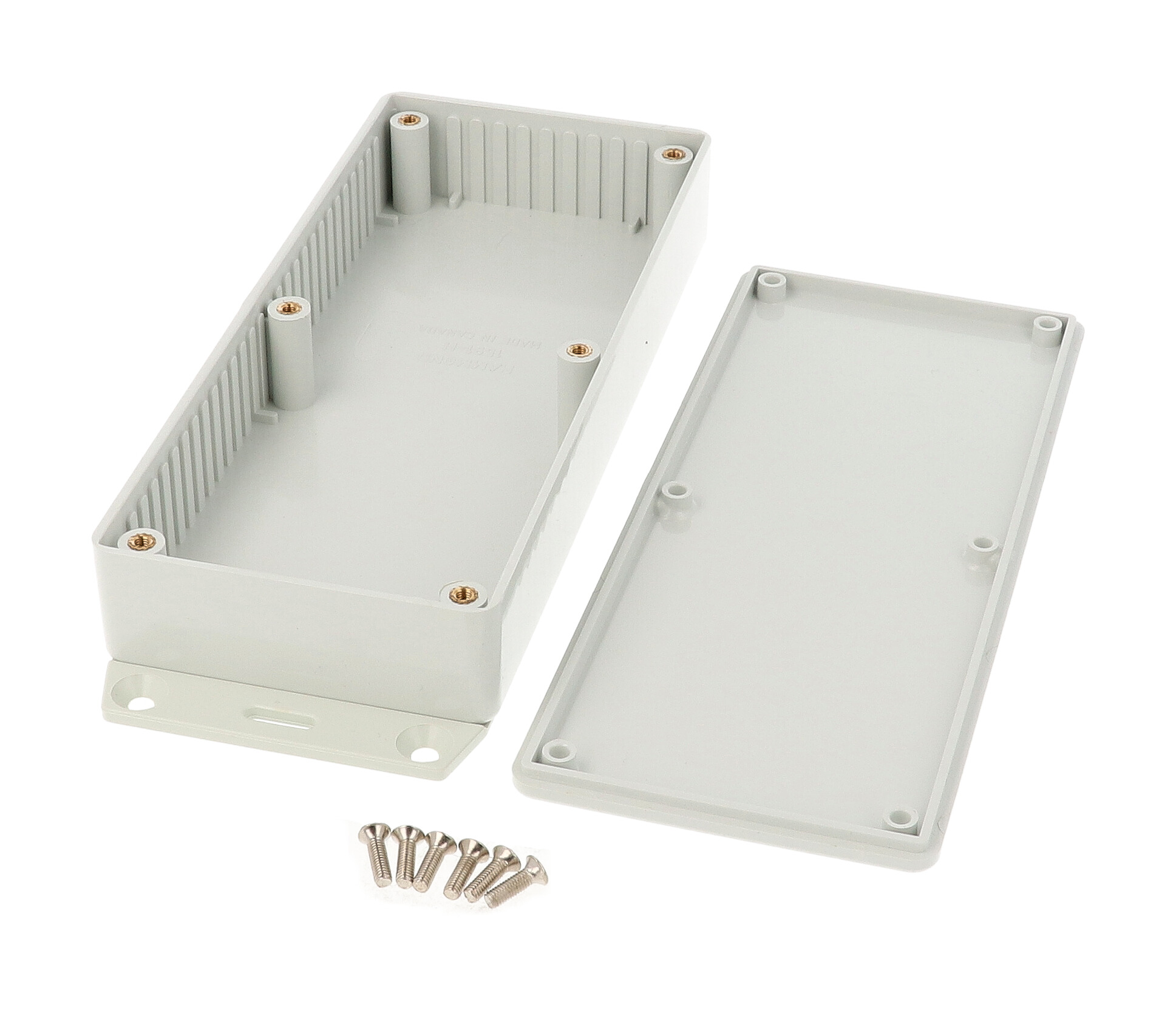

The 1591HF2GY ships as a box, lid, 6 cover screws and brass inserts, shrink wrapped at 0.28 lbs (0.13 kg). Tighten the lid screws to 35.5-42.5 ozf.in (25-30 cN.m). It is RoHS and REACH compliant, works with the 1591HC clear lid and 1591Z horizontal card adaptors, and can be factory modified.
Ideal For
- Wall or panel mounted electronics
- Flame retardant housings for control boards
- Sensor interface boxes
- Equipment cabinets needing a small flanged sub-enclosure
Hardware
| Included | Box, lid, 6 cover screws, and pre-installed brass inserts |
| Cover Screw | M3 - 0.5 x 10 mm machine screw |
| Screw Finish | Light gray enclosures include standard nickel finish screws |
| Clear Lid Accessory | 1591HC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591MS100 (silver / nickel plated) or 1591MS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591HF2GY |
| Mounting Flange | Bottom flange (accessory flange attached to the bottom) |
| Product Description | enclosure - plastic |
| Ordering Table Version | Flame Retardant, Bottom Flange, Gray (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591H ABS WITH FLANGE |
Dimensions
| Inside Width | 64.80 mm [2.551 in] |
| Inside Height | 25.00 mm [.984 in] |
| Inside Length | 159.70 mm [6.287 in] |
| Size L X W X H | 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm) |
| Nominal Size - Depth | 1.14 in (29 mm) |
| Nominal Size - Width | 2.80 in (71 mm) |
| Body Length (Drawing) | 165.70 mm [6.524 in] |
| Nominal Size - Length | 6.54 in (166 mm) |
| Overall Width (Drawing) | 70.80 mm [2.787 in] |
| Overall Height (Drawing) | 30.50 mm [1.201 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 190.80 mm [7.512 in] |
Identifiers
| UPC | 623980136738 |
| UNSPSC | 39121301 |
| Drawing | 1591HF2, REV: 06.16.2023 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 20.00 mm [.788 in] |
| Card Guide Slot Width | 2.00 mm [.079 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.28 lbs (0.13 kg) |
Construction & Finish
| Color | Light Gray |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | M3 - 0.5 machine screws threaded into pre-installed brass inserts |
| Drawing Material Note | Enclosure made from FRABS |
| Material Grade (Drawing) | Flame retardant ABS (FRABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour is the 1591HF2GY?▾
Light gray; the drawing lists it as Flame Retardant ABS Grey.
How is it mounted?▾
It has a bottom mounting flange; overall length including the flange is 190.80 mm [7.512 in].
What is the inside space?▾
159.70 x 64.80 x 25.00 mm [6.287 x 2.551 x .984 in].
What screws are used for the lid?▾
M3 - 0.5 x 10 mm machine screws into pre-installed brass inserts; replacements are 1591MS100 (nickel plated).
Which clear lid fits?▾
The 1591HC clear polycarbonate lid.
