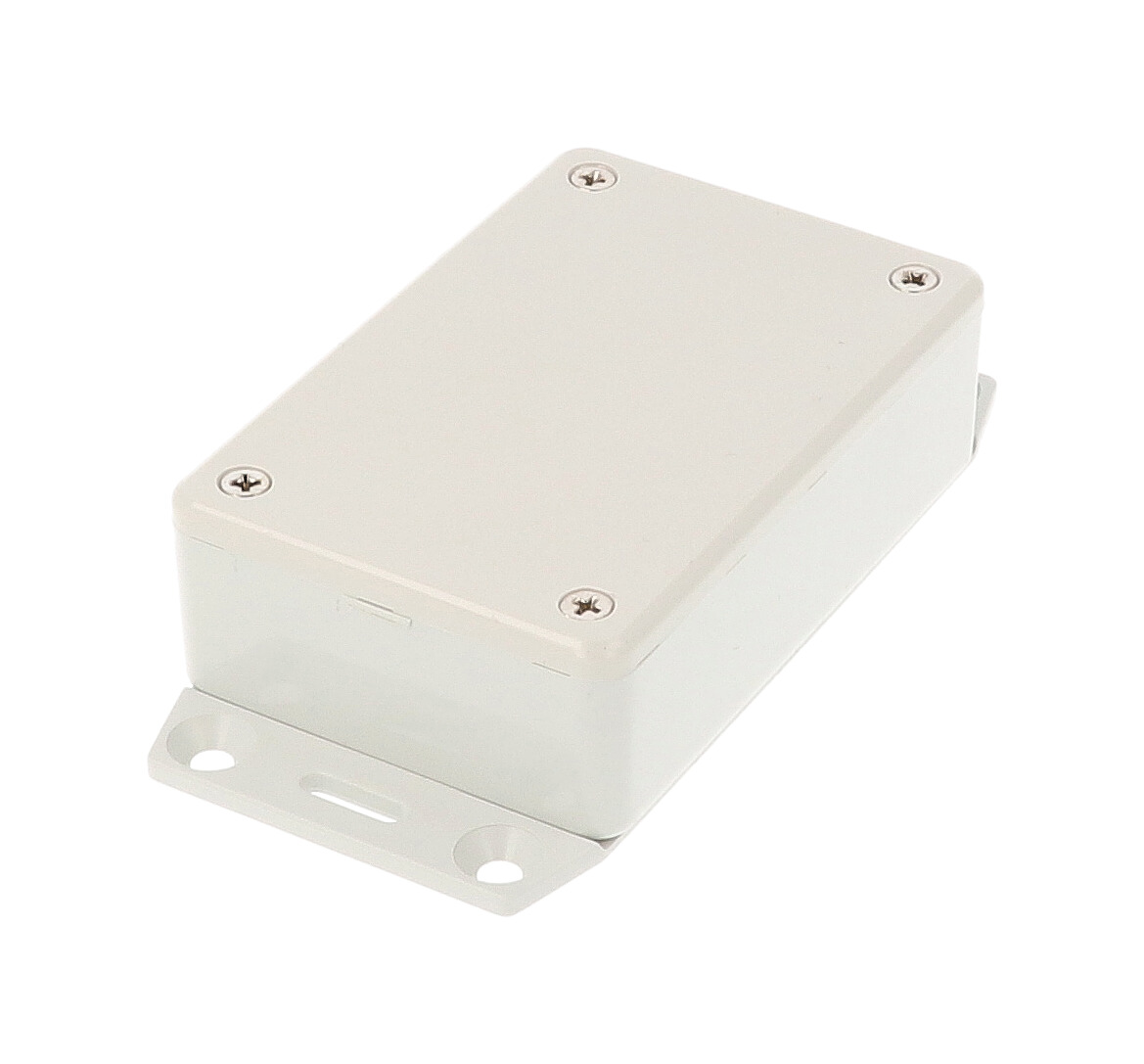

Hammond 1591MF2GY 85x56x26mm Gray Flame-Retardant Bottom-Flange Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Accessory mounting flange attached to the bottom; 98.40 mm [3.874 in] hole spacing
- Molded card guides in all side walls accept 1.5 mm (0.062 in) PC boards for vertical mounting
- Nominal 85 x 56 x 26 mm (3.34 x 2.2 x 1.03 in) light gray ABS enclosure
- Flame retardant ABS, UL94 V-0
- Lap joint construction, designed to meet IP54 against dust and splashing water
- Lid secured by M3 x 10 mm machine screws into integral brass bushings
- Inside dimensions 78.63 mm x 51.83 mm x 20.90 mm
The 1591MF2GY is a light gray 1591M-size ABS enclosure supplied with an accessory mounting flange attached to the bottom of the box. It gives OEM designers and installers a shallow, surface-mountable housing for a small printed circuit board standing vertically in the card guides molded into all side walls, which accept 1.5 mm (0.062 in) boards.
It is molded from easy-to-machine flame retardant ABS carrying a UL94 V-0 flammability rating. Lap joint construction between box and lid protects against dust and splashing water, and the enclosure is designed to meet IP54. The lid is held by M3 x 10 mm Phillips machine screws threading into integral brass bushings, which makes repeated opening and reassembly practical; light gray versions ship with nickel finish screws.
Nominal size is 3.34 in x 2.2 in x 1.03 in (85 mm x 56 mm x 26 mm). The drawing gives an inside length of 78.63 mm [3.096 in], inside width of 51.83 mm [2.041 in] and inside height of 20.90 mm [.823 in], with a guide height of 15.90 mm [.626 in] and a slot width of 2.07 mm [.082 in]. The bottom flange extends the overall length to 110.20 mm [4.339 in], with mounting holes on 98.40 mm [3.874 in] centres.

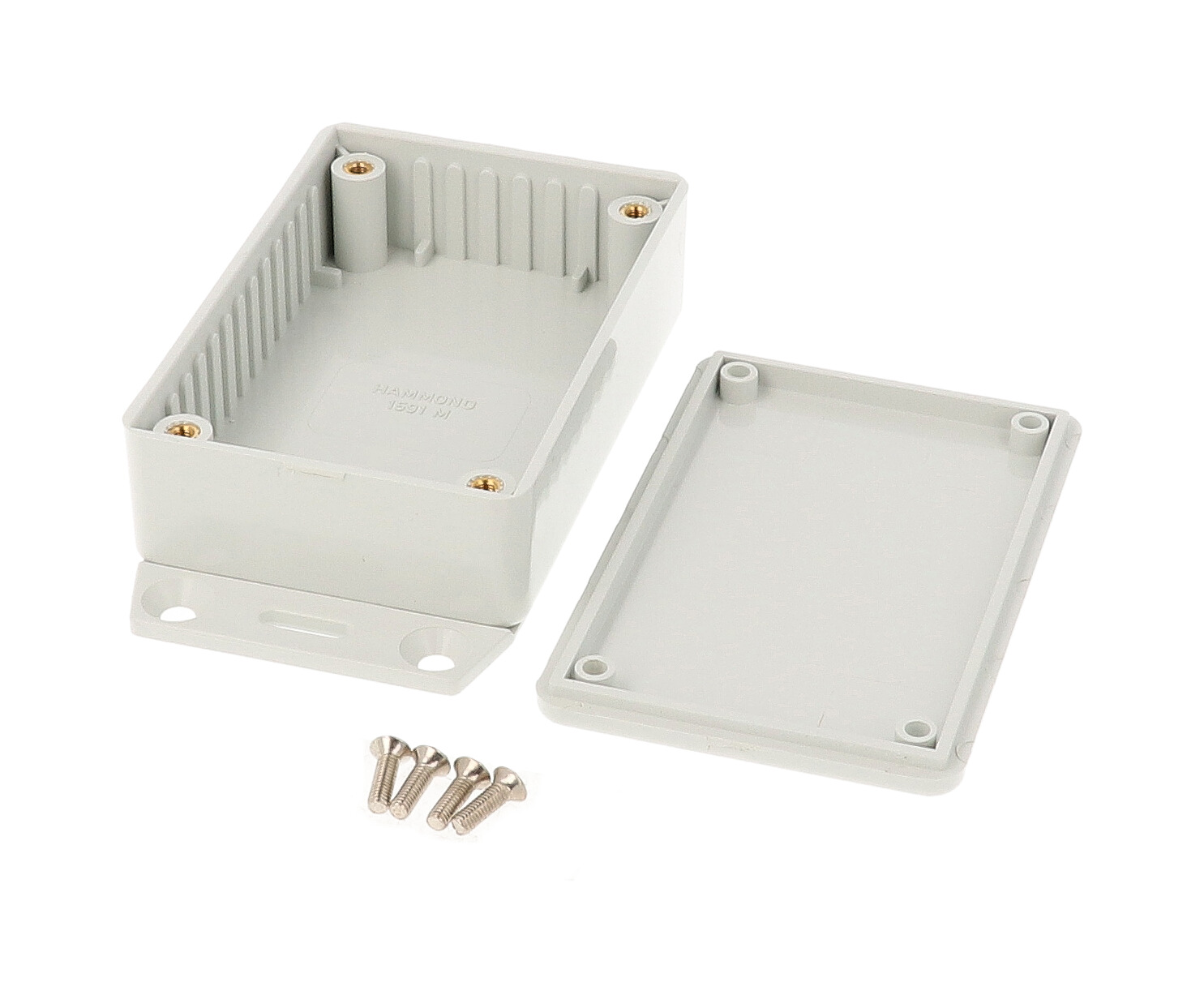

Each 1591MF2GY assembly includes the box, lid, 4 cover screws and pre-installed brass inserts; recommended cover screw torque is 35.5-42.5 ozf.in (25-30 cN.m). Shipping weight is 0.14 lbs (0.06 kg), and the part is RoHS and REACH compliant. For horizontal board mounting, 1591Z card adaptors are offered.
Ideal For
- Housing a vertically mounted printed circuit board
- Surface mounted control or sensor electronics via the bottom flange
- Electronic assemblies needing IP54 dust and splash protection
- Applications needing repeated lid removal (brass bushings)
Overview
| Type | general purpose, flanged |
| Series | 1591 Series ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Version | Standard (flame retardant ABS) |
| Ordering Table | Enclosures With Mounting Flanges |
| Long Description | enclosure - plastic |
| Mounting Flanges | Accessory flange attached to the bottom |
| Short Description | 1591M WITH FLANGES ATTACHED |
Dimensions
| Inside Width | 51.83 mm [2.041 in] |
| Inside Height | 20.90 mm [.823 in] |
| Inside Length | 78.63 mm [3.096 in] |
| Box Width (Drawing) | 56.00 mm [2.205 in] |
| Box Length (Drawing) | 84.80 mm [3.339 in] |
| Nominal Size (L X W X H) | 3.34 in x 2.2 in x 1.03 in (85 mm x 56 mm x 26 mm) |
| Nominal Depth (Ordering Table) | 1.02 in (26 mm) |
| Nominal Width (Ordering Table) | 2.20 in (56 mm) |
| Height At Section A-A (Drawing) | 27.60 mm [1.087 in] |
| Nominal Length (Ordering Table) | 3.35 in (85 mm) |
| Flange Mounting Hole Spacing (Drawing) | 98.40 mm [3.874 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 110.20 mm [4.339 in] |
Accessories
| Clear Lid (Drawing) | 1591MC, flame retardant polycarbonate, lid only |
| Nylon Belt / Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Replacement Cover Screws | M3 - 0.5 x 10 mm, 100 pkg: 1591MS100 (silver / nickel plated), 1591MS100BK (black) |
| Clear Lid Accessory (Ordering Table) | 1591LC |
Identifiers
| UPC | 623980136752 |
| UNSPSC | 39121301 |
| Part Number | 1591MF2GY |
PCB Mounting
| Slot Width | 2.07 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062 in) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.00 mm [.118 in] |
| Guide Height | 15.90 mm [.626 in] |
| Horizontal PCB Option | PC board card adaptors 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg), molded from flame retardant ABS |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Color | Light Gray |
| Included | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Material | ABS Plastic |
| Construction | Lap joint construction |
| Screw Finish | Nickel finish screws |
| Solid Models | Available in .stp or .x_t |
| Lid Fastening | M3 x 10 mm Phillips machine screws threaded into integral brass bushings (box accepts M3 - 0.5 machine screw) |
| Factory Modification | Milling, drilling, printing etc. available from the factory (modshop@hammfg.com) on quote |
| Enclosure Material (Drawing) | FRABS |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1591MF2GY?▾
Nominal size is 3.34 in x 2.2 in x 1.03 in (85 mm x 56 mm x 26 mm). Inside dimensions are 78.63 mm [3.096 in] long, 51.83 mm [2.041 in] wide and 20.90 mm [.823 in] high. Overall length including the bottom flange is 110.20 mm [4.339 in].
What thickness of PC board fits the card guides?▾
The card guides molded into all side walls accept 1.5 mm (0.062 in) thick boards. For horizontal mounting, 1591Z6, 1591Z50 and 1591Z100 card adaptors are available; their instructions recommend 1.5 mm - 1.75 mm PCB thickness.
Is this enclosure flame retardant?▾
Yes. It is molded from flame retardant ABS with a UL94 V-0 flammability rating.
What is included and how is the lid fastened?▾
The assembly includes the box, lid, 4 cover screws and pre-installed brass inserts. The lid fastens with M3 - 0.5 x 10 mm machine screws; recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).
What IP rating does it have?▾
It is designed to meet IP54, with lap joint construction protecting against access of dust and splashing water.
How is it mounted?▾
An accessory mounting flange is attached to the bottom of the box, with mounting holes spaced 98.40 mm [3.874 in] apart.
