Hammond 1591DF2SGY 150x80x50 mm Gray Economy ABS Box, Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray general purpose ABS (UL94 HB), nickel finish screws
- Bottom mounting flange; 177.00 mm overall length
- 150 x 80 x 50 mm (5.91 x 3.15 x 1.97 in) nominal size
- IP54 design with lap joint box and lid
- Integral card guides for 1.5 mm (0.062") PCBs
- #4 self-tapping lid screws, 42-57 ozf.in recommended torque
- RoHS and REACH compliant

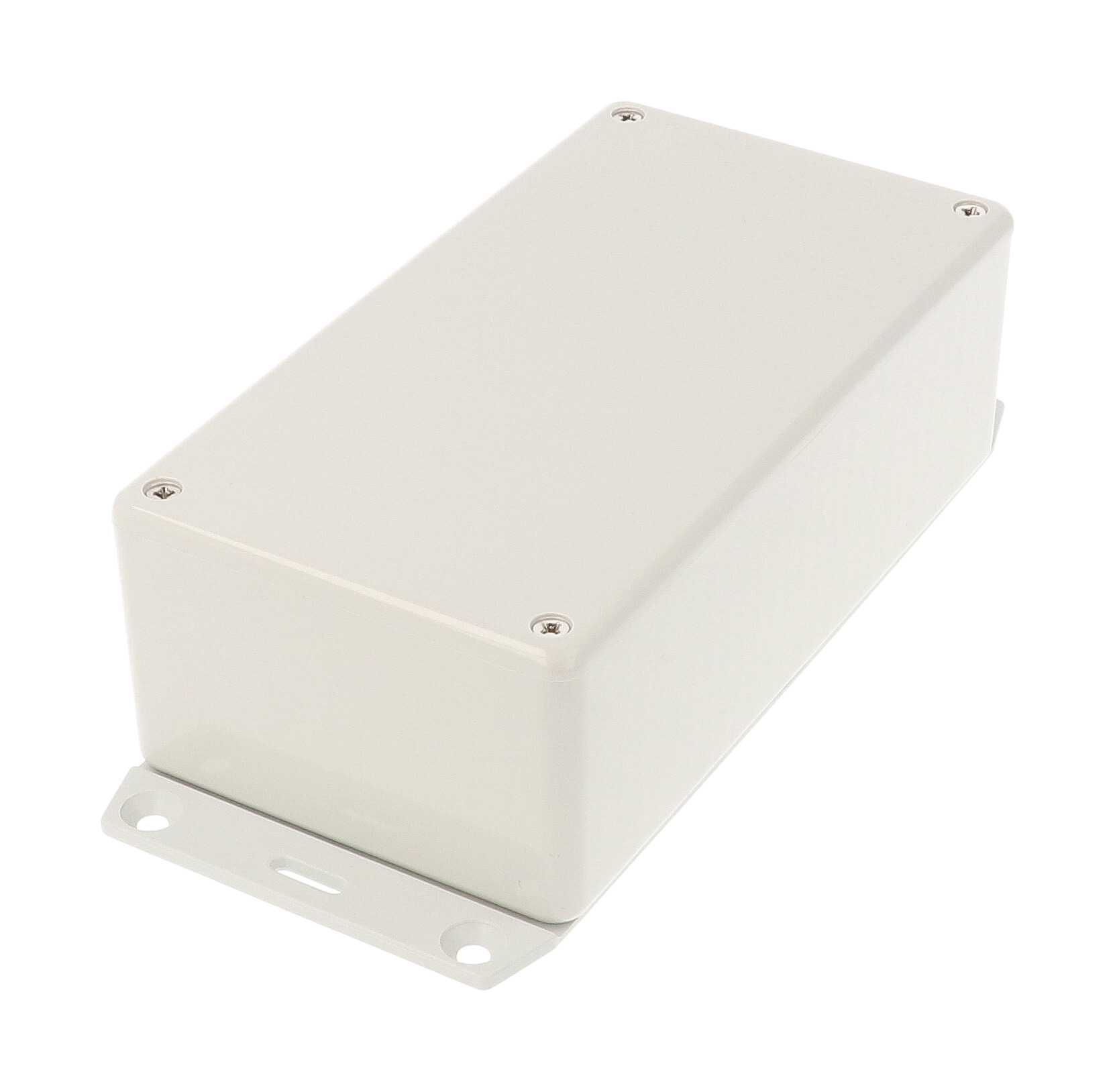

The 1591DF2SGY is a light gray economy enclosure in the 1591 Series, molded from general purpose ABS and fitted with an accessory flange on the bottom. Its 150 x 80 x 50 mm (5.91 x 3.15 x 1.97 in) size suits small control boards, adapters and sensor electronics that need to be fixed in place on a budget.
General purpose material means it is not flame retardant; the listed flame rating is UL94 HB. Four #4 self-tapping screws hold the lid into fully plastic posts (recommended torque 42-57 ozf.in / 30-40 cN.m), and light gray enclosures include nickel finish screws. Lap joint construction and an IP54 design keep out dust and splashing water.
Key dimensions from the drawing:
- Inside: 143.61 x 73.61 x 46.10 mm (5.654 x 2.898 x 1.815 in)
- Overall length including flange: 177.00 mm (6.969 in)
- Card guide height 41.10 mm, slot width 2.11 mm, for 1.5 mm (0.062") boards

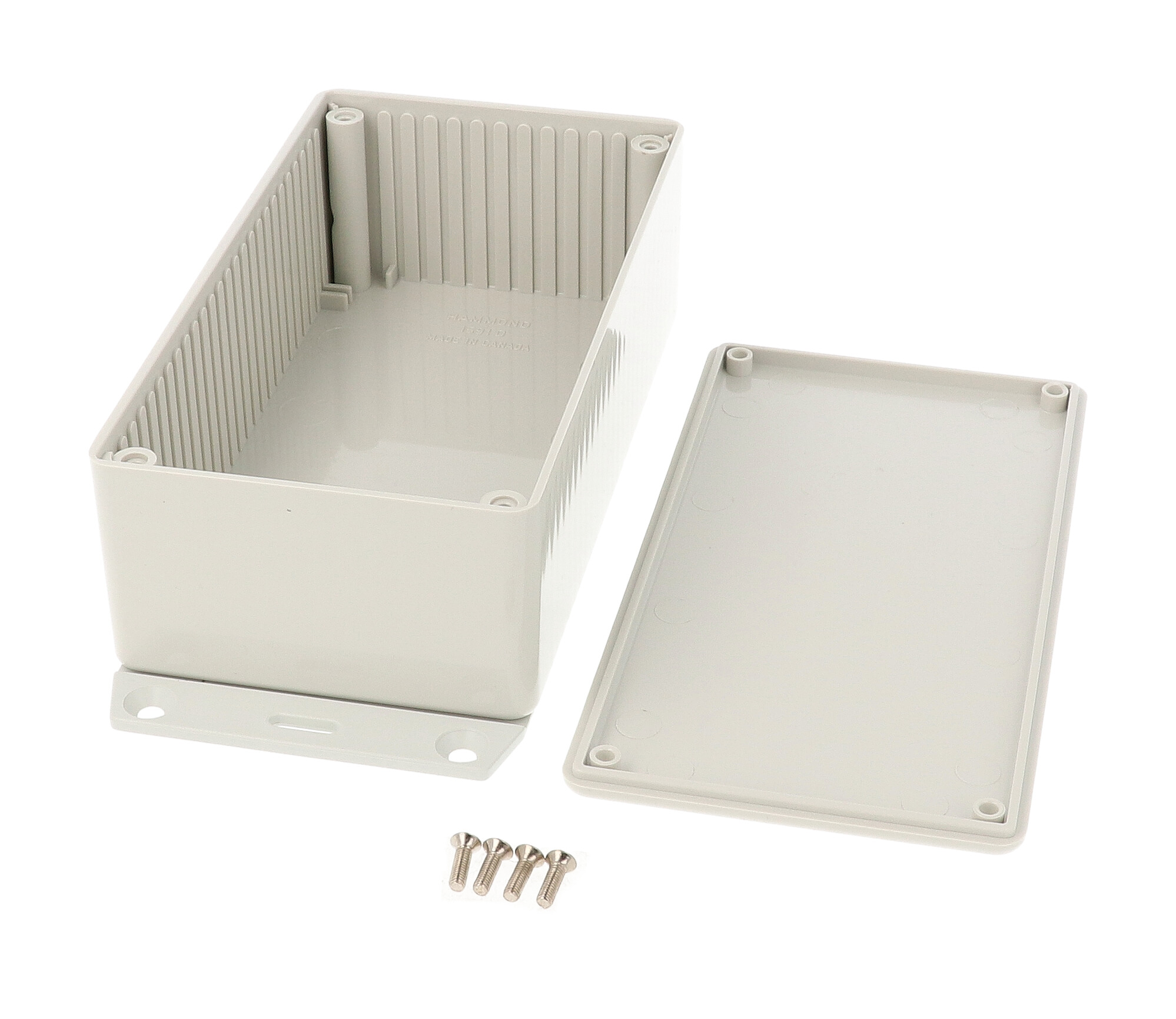

The 1591DF2SGY weighs 0.32 lbs (0.15 kg), ships shrink wrapped with box, lid and 4 cover screws, and is RoHS and REACH compliant. It can also be factory modified by milling, drilling or printing.
Ideal For
- Budget flanged enclosures for small electronics
- Panel- or wall-fixed sensor housings
- Vertical PCB assemblies
- Indoor IP54 applications
Overview
| Type | general purpose, flanged |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Description | enclosure - plastic |
| Part Number | 1591DF2SGY |
| Mounting Style | Accessory flange attached to the bottom |
| Short Description | 1591D GPABS WITH FLANGE |
| Enclosure Size Code | 1591D |
| Series Ordering Table | Enclosures With Mounting Flanges |
Dimensions
| Inside Width | 73.61 mm [2.898 in] |
| Inside Height | 46.10 mm [1.815 in] |
| Inside Length | 143.61 mm [5.654 in] |
| Width (Drawing) | 80.00 mm [3.150 in] |
| Size (L X W X H) | 5.91 in x 3.15 in x 1.97 in (150 mm x 80 mm x 50 mm) |
| Body Length (Drawing) | 150.00 mm [5.906 in] |
| Nominal Size – Depth (Series Table) | 1.97 in (50 mm) |
| Nominal Size – Width (Series Table) | 3.15 in (80 mm) |
| Nominal Size – Length (Series Table) | 5.91 in (150 mm) |
| Height Including Flange (Drawing, Section A-A) | 51.50 mm [2.028 in] |
| Overall Length Including Bottom Flange (Drawing) | 177.00 mm [6.969 in] |
Accessories
| Clear Lid Accessory | 1591DC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
Identifiers
| UPC | 623980137056 |
| UNSPSC | 39121301 |
| Drawing | 1591DF2S, REV: 07.01.2020 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Card Guide Height | 41.10 mm [1.618 in] |
| Card Guide Slot Width | 2.11 mm [.083 in] |
| PC Board Card Adaptors (Horizontal PCB Mounting) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping
| Included | Box, lid, 4 cover screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.32 lbs (0.15 kg) |
Construction & Finish
| Color | Light Gray |
| Material | General purpose ABS (GPABS), not flame retardant |
| Construction | Lap joint construction |
| Screw Finish | Standard nickel finish screws (light gray enclosures) |
| Solid Models | Available in .stp or .x_t |
| Lid Fastening | 4 x #4 self-tapping cover screws into fully plastic posts |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Material (Part Page) | ABS Plastic |
| Replacement Lid Screws | #4 x 1/2" self-tapping, 100 pack: 1591TS100 (silver/nickel plated), 1591TS100BK (black) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591DF2SGY flame retardant?▾
No. It is an economy version molded from general purpose ABS with a UL94 HB rating. The flame retardant equivalent is 1591DF2GY.
What are the inside dimensions?▾
143.61 x 73.61 x 46.10 mm (5.654 x 2.898 x 1.815 in).
How is it mounted?▾
By the accessory flange attached to the bottom of the box.
Can it be customized?▾
The drawing notes the enclosure can be factory modified (milling, drilling, printing etc.), and solid models are available in .stp or .x_t.
What is the shipping weight?▾
0.32 lbs (0.15 kg).
