Hammond 1591HSBK Black General Purpose ABS Box, 166x71x29 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Economy general purpose ABS in black, UL94 HB (not flame retardant)
- 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm)
- Card guides in all side walls hold 1.5 mm (0.062") PCBs vertically
- IP54 with lap joint construction
- Lid secured by #4 self-tapping screws into plastic posts

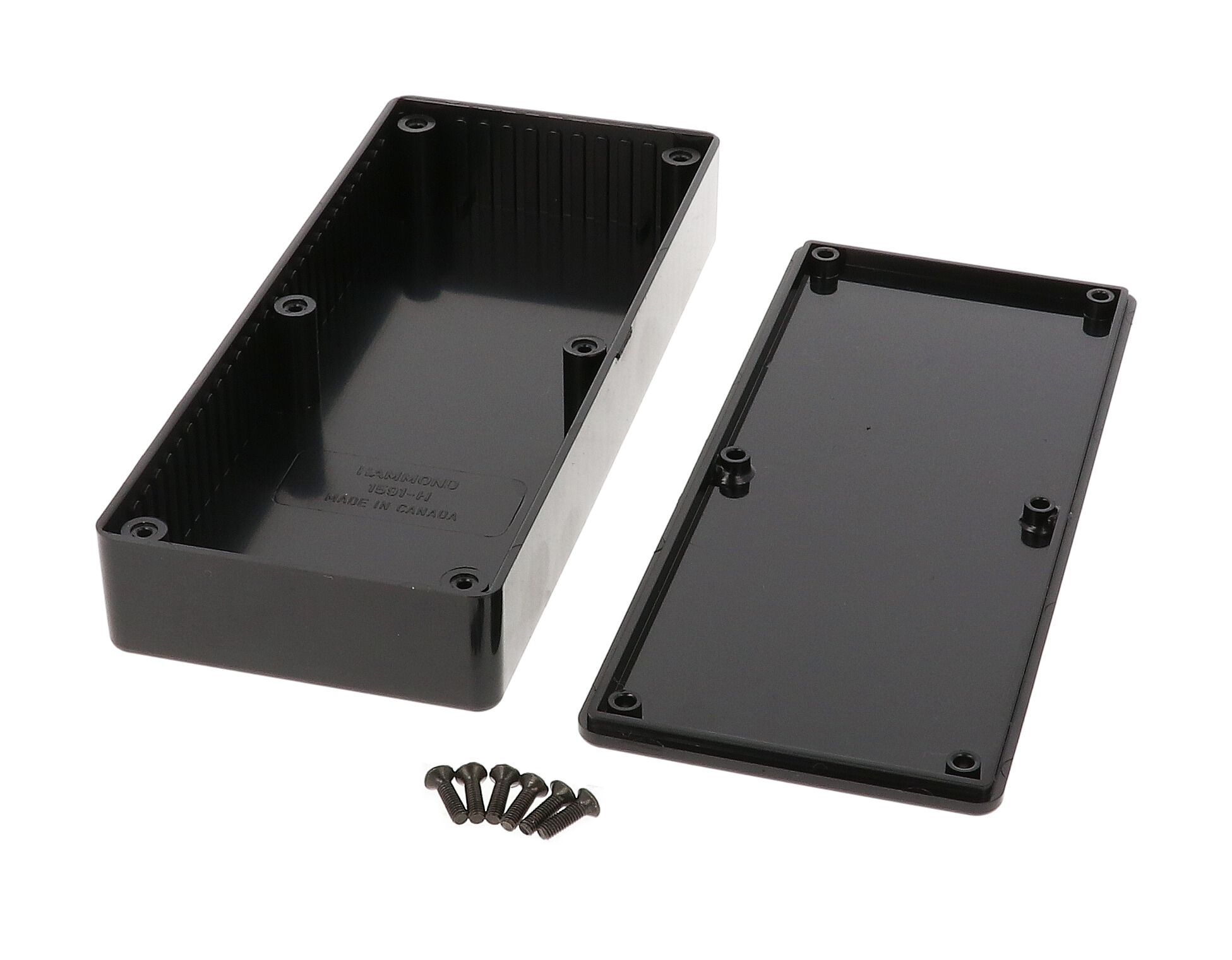

- Includes box, lid and 6 black cover screws
- Replacement screws: 1591TS100BK (100 pack)

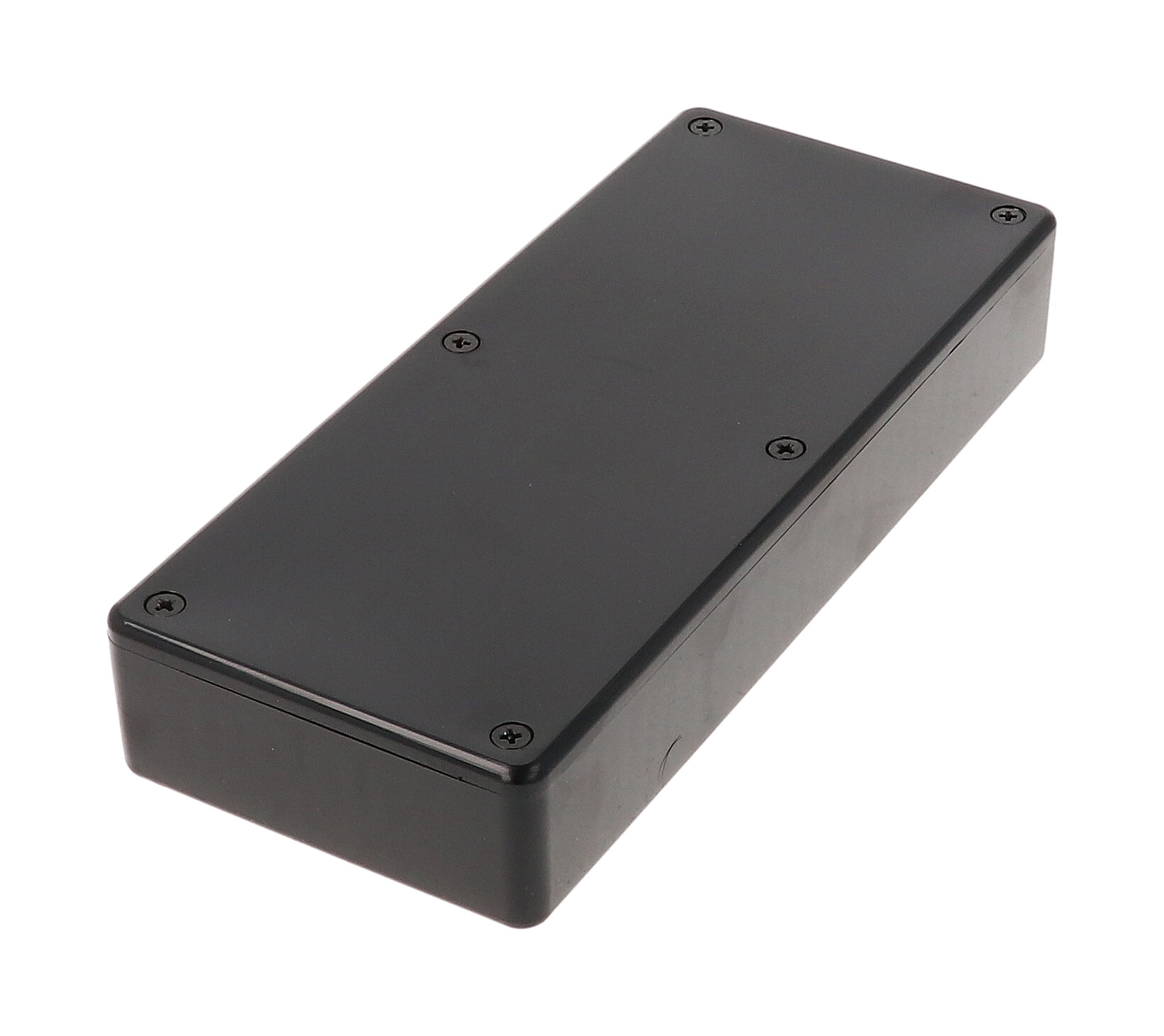

The 1591HSBK is the economy, general purpose ABS version of the 1591H enclosure in black. It shares the 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm) size of the flame retardant model and suits cost-conscious builds where flame retardancy is not required.
Economy versions are molded from general purpose plastic that is not flame retardant; the part page lists a UL94 HB flame rating. The lid is assembled with #4 self-tapping screws driven into fully plastic posts rather than brass inserts. Black enclosures include black screws. The IP54 rating and lap joint construction still protect against dust and splashing water.
Molded card guides on every side wall accept 1.5 mm (0.062") boards for vertical PCB mounting. The drawing shows an inside length of 159.70 mm [6.287 in], inside width of 64.80 mm [2.551 in] and inside height of 25.00 mm [.984 in], with 20.00 mm [.788 in] guide height.
Each 1591HSBK includes box, lid and 6 cover screws; the recommended screw torque is 42-57 ozf.in (30-40 cN.m). Replacement self-tapping lid screws come in packs of 100 as 1591TS100BK (black). It is RoHS and REACH compliant, ships in shrink wrap at 0.19 lbs (0.09 kg), and pairs with the 1591HC clear lid.
Ideal For
- Budget electronics project boxes
- Vertical PCB housings where flame retardancy is not required
- Prototype and hobby builds
- Small low-voltage device enclosures
Hardware
| Included | Box, lid and 6 cover screws |
| Cover Screw | #4 x 1/2" self-tapping screw |
| Screw Finish | Black enclosures include black screws |
| Clear Lid Accessory | 1591HC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591TS100 (silver / nickel plated) or 1591TS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Overview
| Type | project box, general purpose |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591HSBK |
| Mounting Flange | None (enclosure without mounting flanges) |
| Product Description | enclosure - plastic |
| Ordering Table Version | General Purpose ABS Enclosures, Black (Enclosures Without Mounting Flanges) |
| Manufacturer Description | GP ABS CASE |
Dimensions
| Inside Width | 64.80 mm [2.551 in] |
| Inside Height | 25.00 mm [.984 in] |
| Inside Length | 159.70 mm [6.287 in] |
| Size L X W X H | 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm) |
| Nominal Size - Depth | 1.14 in (29 mm) |
| Nominal Size - Width | 2.80 in (71 mm) |
| Nominal Size - Length | 6.54 in (166 mm) |
| Overall Width (Drawing) | 70.80 mm [2.787 in] |
| Overall Height (Drawing) | 29.00 mm [1.142 in] |
| Overall Length (Drawing) | 165.70 mm [6.524 in] |
Identifiers
| UPC | 623980557571 |
| UNSPSC | 39121301 |
| Drawing | 1591HS, REV: 07.01.2020 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 20.00 mm [.788 in] |
| Card Guide Slot Width | 2.00 mm [.079 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Drawing Material Note | Enclosure made from GPABS. |
| Material Grade (Drawing) | General purpose ABS (GPABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardancy | General purpose plastic, not flame retardant |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1591HSBK differ from the 1591HBK?▾
The 1591HSBK is the general purpose (economy) version: it is not flame retardant (UL94 HB) and uses self-tapping screws into plastic posts instead of machine screws into brass inserts.
What are its dimensions?▾
6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm) overall, with 159.70 x 64.80 x 25.00 mm inside.
What screws does it use?▾
#4 x 1/2" self-tapping screws; 6 are included and replacements are 1591TS100BK (black) or 1591TS100 (silver) in packs of 100.
What torque should I use on the lid screws?▾
The drawing recommends 42-57 ozf.in (30-40 cN.m).
Is it IP rated?▾
Yes, it is rated IP54.
