Hammond 1591ASFLBK 100x50x25mm Flanged Lid Economy ABS Box, Black

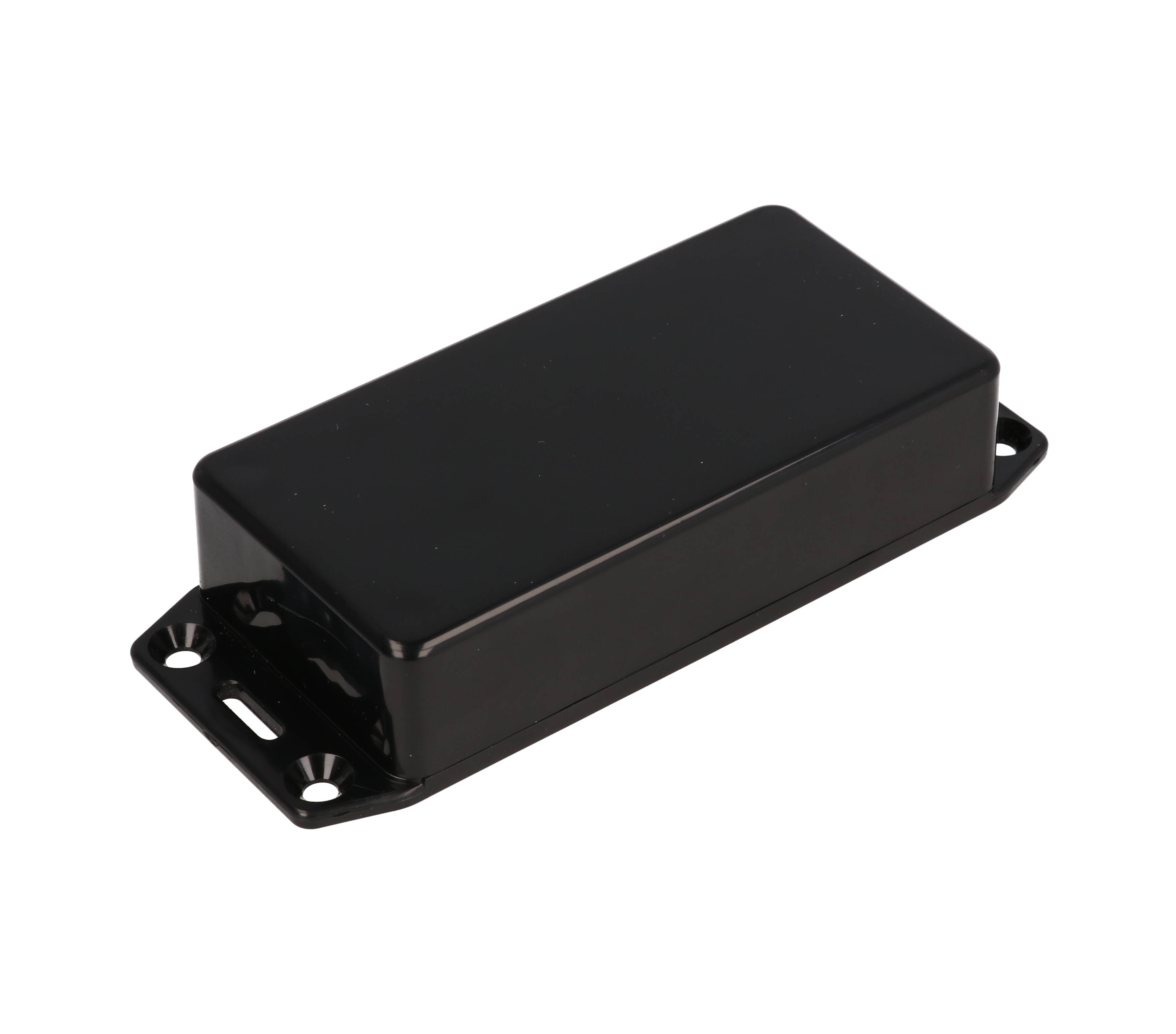

The 1591ASFLBK is a black 100 x 50 x 25 mm ABS plastic enclosure from the 1591 Series, built with wall-mounting flanges molded into the lid so it can be screwed directly to a wall, panel or chassis. It is aimed at OEM engineers, integrators and electronics builders who want a small housing for vertically mounted printed circuit boards, using card guides molded into all side walls that accept 1.5 mm (0.062") thick boards.

This is an economy version molded from general purpose ABS plastic (not flame retardant) with a UL94 HB flame rating. The lid is assembled with self-tapping screws into fully plastic posts, and lap joint construction protects against dust and splashing water; the enclosure is designed to meet IP54. As a black enclosure it ships with black screws.

Nominal size is 3.94 in x 1.97 in x 0.98 in (100 mm x 50 mm x 25 mm). The drawing gives outside dimensions of 100.00 mm [3.937 in] by 50.00 mm [1.969 in], an overall length of 125.34 mm [4.935 in] across the flanged lid and an overall height of 24.80 mm [.976 in], with inside dimensions of 93.83 mm [3.694 in] long, 43.83 mm [1.726 in] wide and 20.90 mm [.823 in] high. Shipping weight is 0.11 lbs (0.05 kg).

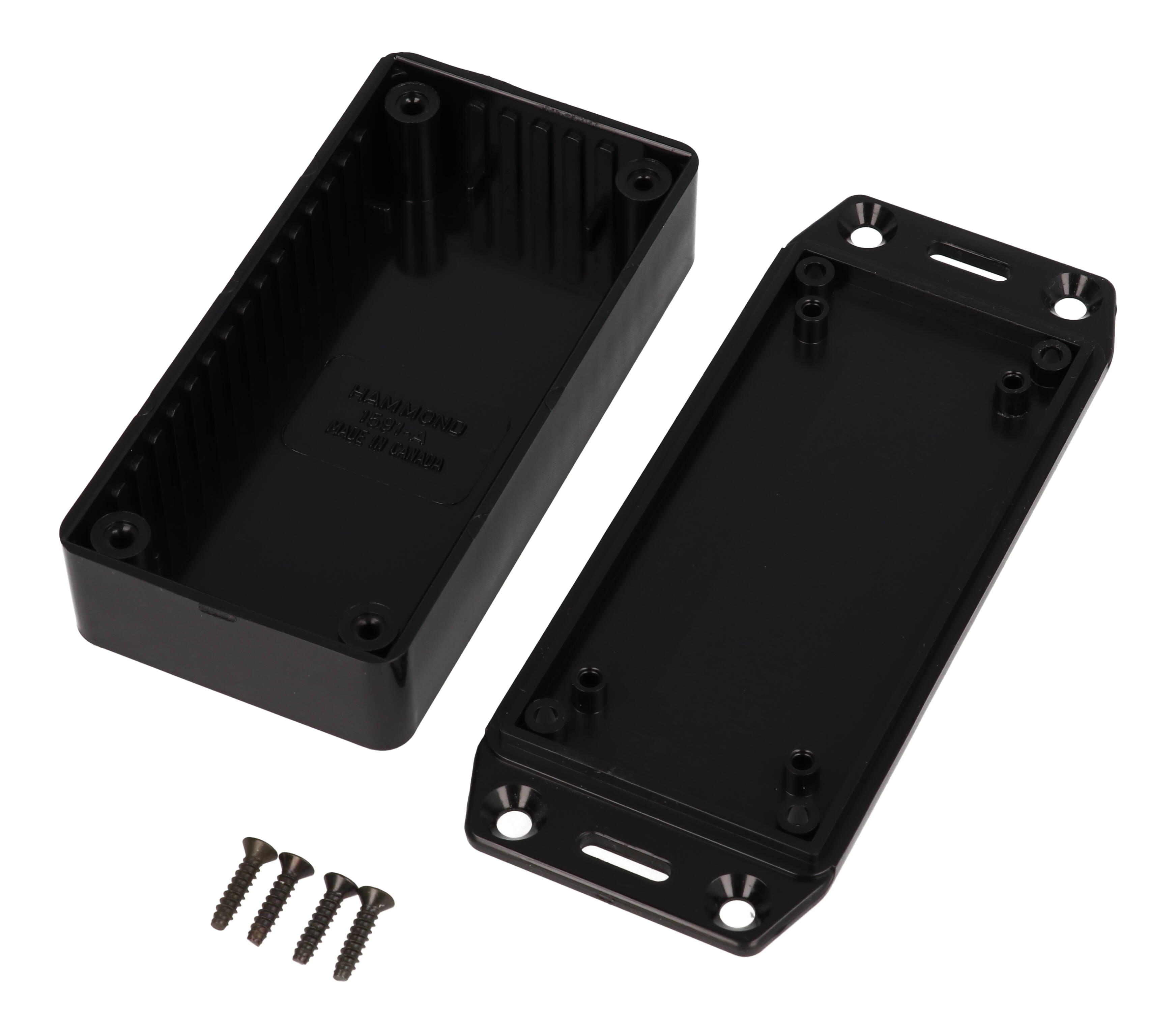

The 1591ASFLBK is supplied as box, lid and 4 cover screws. Recommended cover screw torque is 42-57 ozf.in (30-40 cN.m). Matching accessories include the 1591AC clear flame retardant polycarbonate lid, 1591Z6/1591Z50/1591Z100 PC board card adapters for horizontal board mounting, and 1599CLIP (black) or 1599CLIPGY (grey) nylon belt/pocket clips. Lid-mounted PC boards can be fixed with 1593ATS50/1593ATS100 #4 x 1/4" (6.4 mm) self-tapping screws. The part is RoHS and REACH compliant, and the enclosure can be factory modified (milling, drilling, printing).
