Hammond 1591BF2SGY 112x62x31mm Bottom Flange Economy ABS Box, Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 112 x 62 x 31 mm nominal size (4.41 in x 2.44 in x 1.21 in) in light gray
- Economy general purpose ABS, UL94 HB flame rating (not flame retardant)
- Accessory mounting flange attached to the bottom
- Card guides molded into all side walls accept 1.5 mm (0.062") PCBs for vertical mounting
- Lap joint construction, designed to meet IP54 against dust and splashing water
- Lid fastened with 4 #4 self-tapping screws into plastic posts
- Inside space 105.78 mm [4.165 in] x 55.78 mm [2.196 in] x 26.90 mm [1.059 in]
- Optional 1591BC clear polycarbonate lid and PC board card adapters

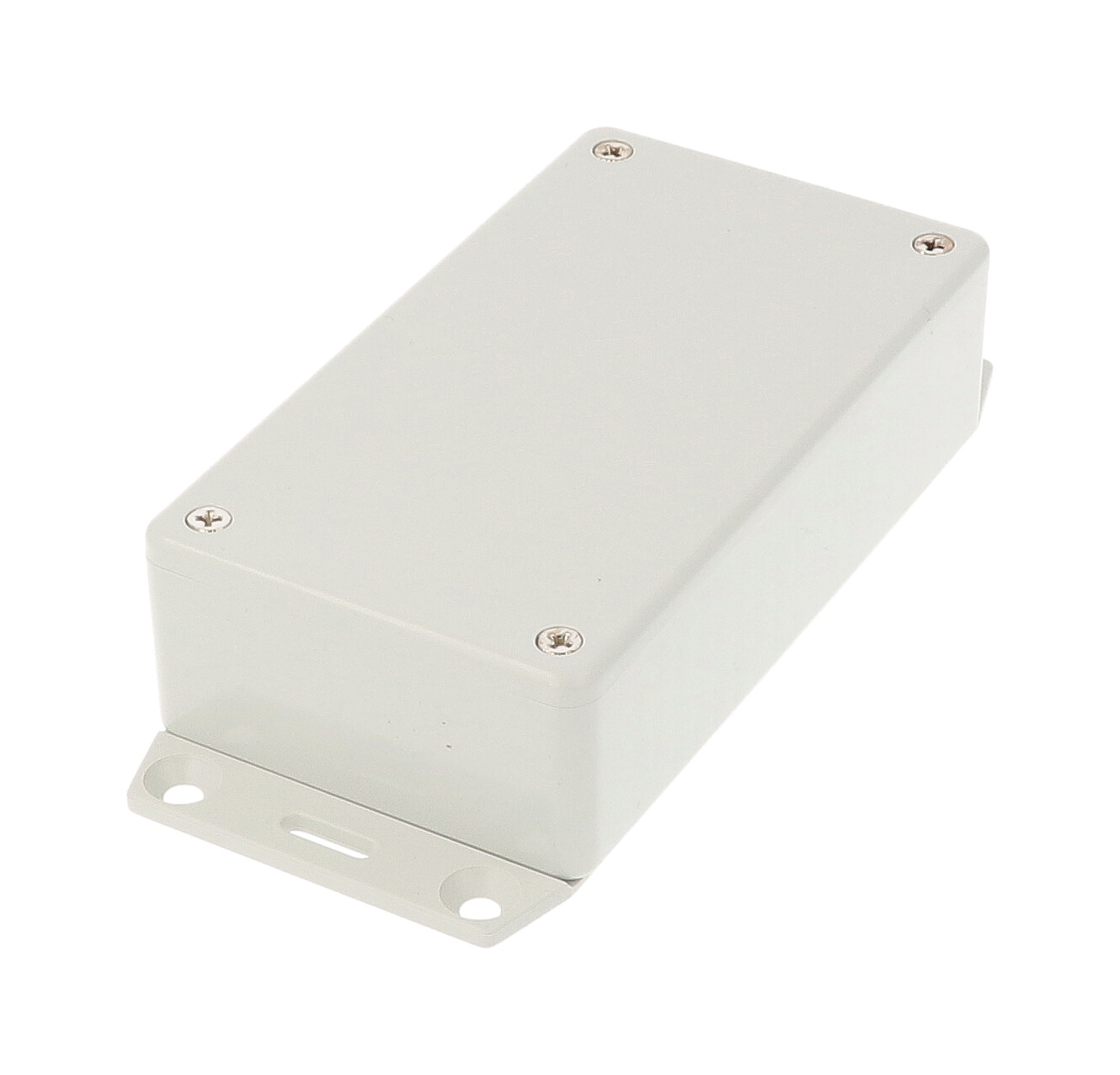

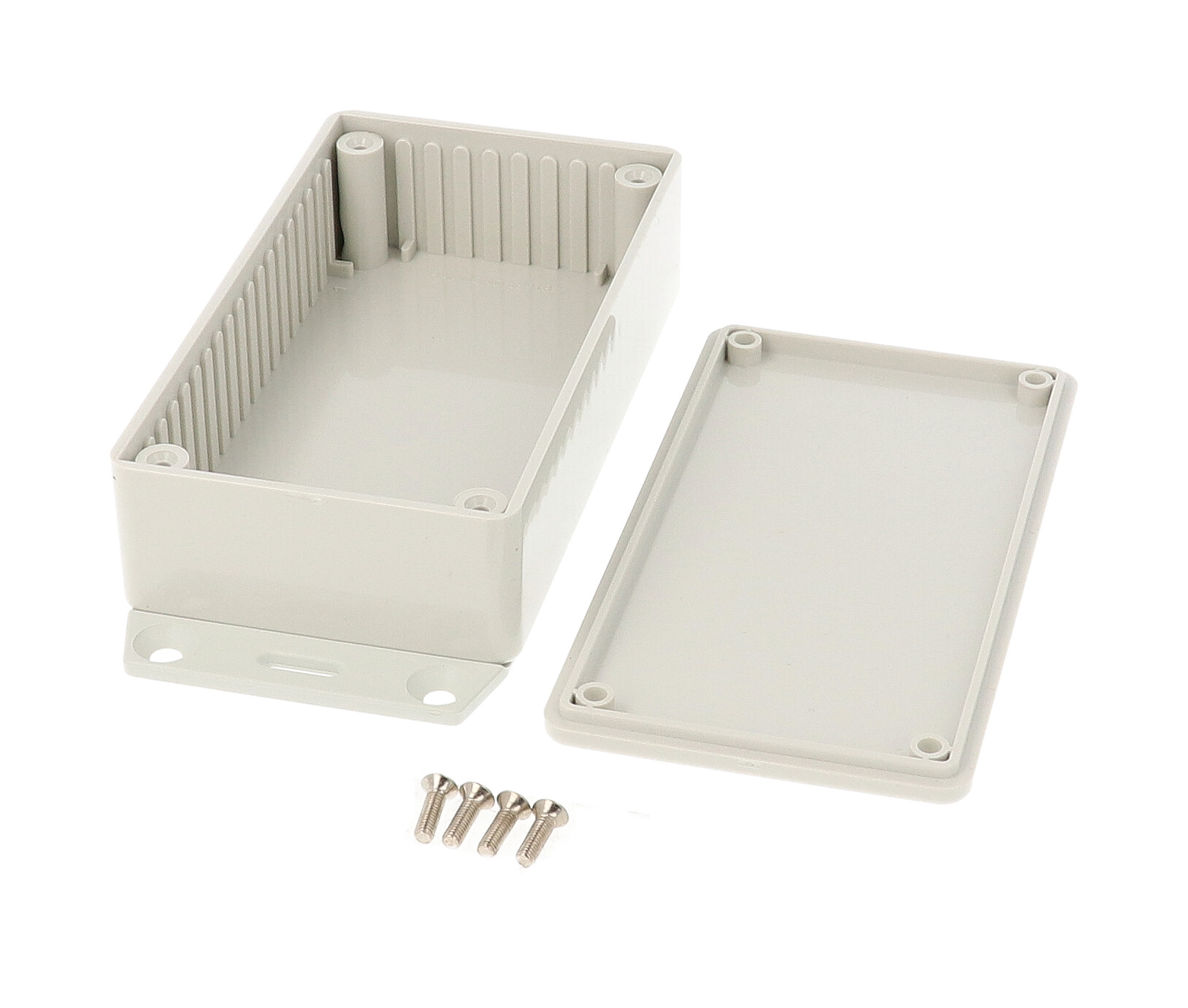

The 1591BF2SGY is a light gray 112 x 62 x 31 mm ABS plastic enclosure from the 1591 Series, supplied with an accessory mounting flange attached to the bottom for surface mounting. It is intended for OEM engineers, integrators and electronics builders housing vertically mounted printed circuit boards, and its card guides are molded into all side walls to accept 1.5 mm (0.062") thick boards.
This is an economy version molded from general purpose ABS plastic (not flame retardant) with a UL94 HB flame rating. The lid is assembled with self-tapping screws into fully plastic posts, and lap joint construction protects against dust and splashing water; the enclosure is designed to meet IP54. As a light gray enclosure it ships with standard nickel finish screws.
Nominal size is 4.41 in x 2.44 in x 1.21 in (112 mm x 62 mm x 31 mm). The drawing gives outside dimensions of 112.00 mm [4.409 in] by 62.00 mm [2.441 in], an overall length of 137.40 mm [5.409 in] across the bottom flange and an overall height of 32.30 mm [1.272 in], with inside dimensions of 105.78 mm [4.165 in] long, 55.78 mm [2.196 in] wide and 26.90 mm [1.059 in] high. Shipping weight is 0.18 lbs (0.08 kg).
The 1591BF2SGY is supplied as box, lid and 4 cover screws. Recommended cover screw torque is 42-57 ozf.in (30-40 cN.m). Matching accessories include the 1591BC clear flame retardant polycarbonate lid, 1591Z6/1591Z50/1591Z100 PC board card adapters for horizontal board mounting, and 1599CLIP (black) or 1599CLIPGY (grey) nylon belt/pocket clips. The part is RoHS and REACH compliant, and the enclosure can be factory modified (milling, drilling, printing).
Ideal For
- Housing vertically mounted printed circuit boards
- Electronics project boxes and OEM control modules
- Cost-sensitive general purpose electronic housings
- Surface-mounted electronics using a bottom flange
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Version | General Purpose ABS, Bottom Flange |
| Mounting | Accessory mounting flange attached to the bottom |
| Description | enclosure - plastic |
| Part Number | 1591BF2SGY |
| Ordering Table | Enclosures With Mounting Flanges |
| Short Description | 1591B GPABS WITH FLANGE |
| Enclosure Size Code | 1591B |
Dimensions
| Inside Width | 55.78 mm [2.196 in] |
| Inside Height | 26.90 mm [1.059 in] |
| Inside Length | 105.78 mm [4.165 in] |
| Outside Width | 62.00 mm [2.441 in] |
| Outside Length (Body) | 112.00 mm [4.409 in] |
| Depth (Ordering Table) | 1.22 in (31 mm) |
| Width (Ordering Table) | 2.44 in (62 mm) |
| Length (Ordering Table) | 4.41 in (112 mm) |
| Nominal Size (L X W X H) | 4.41 in x 2.44 in x 1.21 in (112 mm x 62 mm x 31 mm) |
| Overall Height Incl. Bottom Flange | 32.30 mm [1.272 in] |
| Overall Length Incl. Bottom Flange | 137.40 mm [5.409 in] |
Accessories
| Clear Lid | 1591BC (flame retardant polycarbonate, lid only) |
| Belt / Pocket Clip | 1599CLIP (black) or 1599CLIPGY (grey), nylon |
| PC Board Card Adapters | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg); allow horizontal PCB mounting; flame retardant ABS |
| Replacement Cover Screws | 1591TS100 (nickel plated / silver) or 1591TS100BK (black), #4 x 1/2" self-tapping, pack of 100 |
| Card Adapter Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Identifiers
| UPC | 623980137032 |
| UNSPSC | 39121301 |
| Drawing Revision | 07.01.2020 |
PCB Mounting
| Slot Width | 2.13 mm [.084 in] |
| Card Guides | Molded into all side walls; for vertical mounting of printed circuit boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.00 mm [.118 in] |
| Guide Height | 21.90 mm [.862 in] |
| Accepted Board Thickness | 1.5 mm (0.062") |
Customization
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Packaging & Shipping
| Included | Box, lid and 4 cover screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Color | Light Gray |
| Material | ABS Plastic |
| Construction | Lap joint construction |
| Screw Finish | Standard nickel finish screws (light gray enclosures include nickel finish screws) |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Cover Screw Holes Accept | #4 self-tapping screw |
| Material Grade (Drawing) | GPABS (general purpose ABS) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Flame Retardant | No (economy general purpose plastic) |
| Chemical Resistance Note | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1591BF2SGY?▾
The drawing gives inside dimensions of 105.78 mm [4.165 in] long, 55.78 mm [2.196 in] wide and 26.90 mm [1.059 in] high, within a nominal 4.41 in x 2.44 in x 1.21 in (112 mm x 62 mm x 31 mm) enclosure.
Is the 1591BF2SGY flame retardant?▾
No. It is an economy version molded from general purpose ABS (GPABS), which is not flame retardant; its flame rating is UL94 HB. The flame retardant equivalents in the same size carry UL94 V-0.
What circuit board thickness do the card guides accept?▾
The card guides molded into all side walls accept 1.5 mm (0.062") thick boards for vertical mounting. For horizontal mounting, the 1591Z6, 1591Z50 or 1591Z100 PC board card adapters can be used; the adapter instructions recommend a PCB thickness of 1.5 mm - 1.75 mm.
What comes in the package and how is the lid fastened?▾
The purchased assembly includes the box, lid and 4 cover screws. The lid is fastened with #4 self-tapping screws into plastic posts; recommended torque is 42-57 ozf.in (30-40 cN.m).
How is the 1591BF2SGY mounted?▾
It has an accessory mounting flange attached to the bottom, giving an overall length of 137.40 mm [5.409 in] and an overall height of 32.30 mm [1.272 in].
Is there a clear lid available for this enclosure?▾
Yes. The 1591BC is a clear flame retardant polycarbonate lid (lid only) listed as the clear lid accessory for this size.
