Hammond 1591DF2GY 150x80x50 mm Gray Flame-Retardant Box, Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray flame retardant ABS, UL94 V-0, with nickel finish lid screws
- Bottom accessory flange for screw mounting to walls or panels
- 150 x 80 x 50 mm (5.91 x 3.15 x 1.97 in) nominal size
- 143.61 x 73.61 x 46.10 mm inside space
- Designed to meet IP54; lap joint seal against dust and splashing water
- M3 machine screws into brass inserts for repeat opening
- RoHS and REACH compliant, shrink wrapped

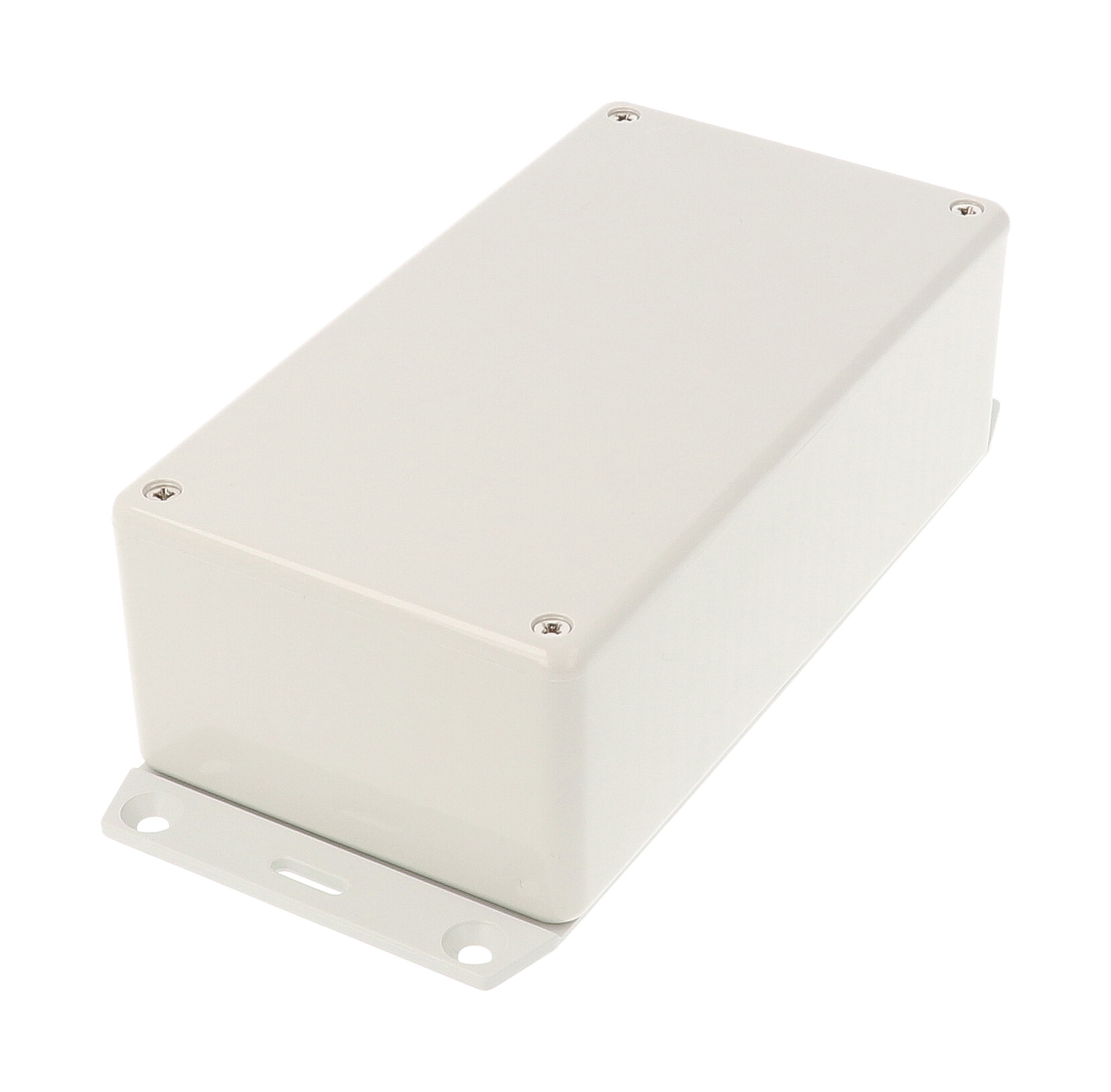

The 1591DF2GY is the light gray, flame retardant version of the 1591D bottom-flange enclosure, measuring 150 x 80 x 50 mm (5.91 x 3.15 x 1.97 in). An accessory flange attached to the bottom lets the box be screwed to a surface, making it a practical housing for control electronics, sensor boards and small OEM assemblies.
Material is flame retardant ABS (FRABS) with a UL94 V-0 rating, and it is easy to machine for connectors, displays and cable entries. Lap joint construction guards against dust and splashing water, and the design targets IP54. The lid fastens with four M3-0.5 x 10 mm Phillips machine screws into pre-installed brass inserts; light gray enclosures come with standard nickel finish screws.
- Inside dimensions: 143.61 x 73.61 x 46.10 mm (5.654 x 2.898 x 1.815 in)
- Overall length with bottom flange: 177.00 mm (6.969 in)
- Card guides for 1.5 mm (0.062") boards, guide height 41.10 mm
- Recommended cover screw torque: 35.5-42.5 ozf.in (25-30 cN.m)
The 1591DF2GY is RoHS and REACH compliant and ships shrink wrapped with a weight of 0.31 lbs (0.14 kg). Accessories include the 1591DC clear polycarbonate lid, 1591Z card adaptors for horizontal boards, and 1599CLIP/1599CLIPGY belt clips. Need black? Order 1591DF2BK.
Ideal For
- Surface-mounted control electronics
- Sensor and interface board housings
- Prototype and small-run OEM enclosures
- Indoor installations needing IP54 protection
Overview
| Type | general purpose, flanged |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Description | enclosure - plastic |
| Part Number | 1591DF2GY |
| Mounting Style | Accessory flange attached to the bottom |
| Short Description | 1591D ABS WITH FLANGE |
| Enclosure Size Code | 1591D |
| Series Ordering Table | Enclosures With Mounting Flanges |
Dimensions
| Inside Width | 73.61 mm [2.898 in] |
| Inside Height | 46.10 mm [1.815 in] |
| Inside Length | 143.61 mm [5.654 in] |
| Width (Drawing) | 80.00 mm [3.150 in] |
| Size (L X W X H) | 5.91 in x 3.15 in x 1.97 in (150 mm x 80 mm x 50 mm) |
| Body Length (Drawing) | 150.00 mm [5.906 in] |
| Nominal Size – Depth (Series Table) | 1.97 in (50 mm) |
| Nominal Size – Width (Series Table) | 3.15 in (80 mm) |
| Nominal Size – Length (Series Table) | 5.91 in (150 mm) |
| Height Including Flange (Drawing, Section A-A) | 51.50 mm [2.028 in] |
| Overall Length Including Bottom Flange (Drawing) | 177.00 mm [6.969 in] |
Accessories
| Clear Lid Accessory | 1591DC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
Identifiers
| UPC | 623980136691 |
| UNSPSC | 39121301 |
| Drawing | 1591DF2, REV: 06.16.2023 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Card Guide Height | 41.10 mm [1.618 in] |
| Card Guide Slot Width | 2.11 mm [.083 in] |
| PC Board Card Adaptors (Horizontal PCB Mounting) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping

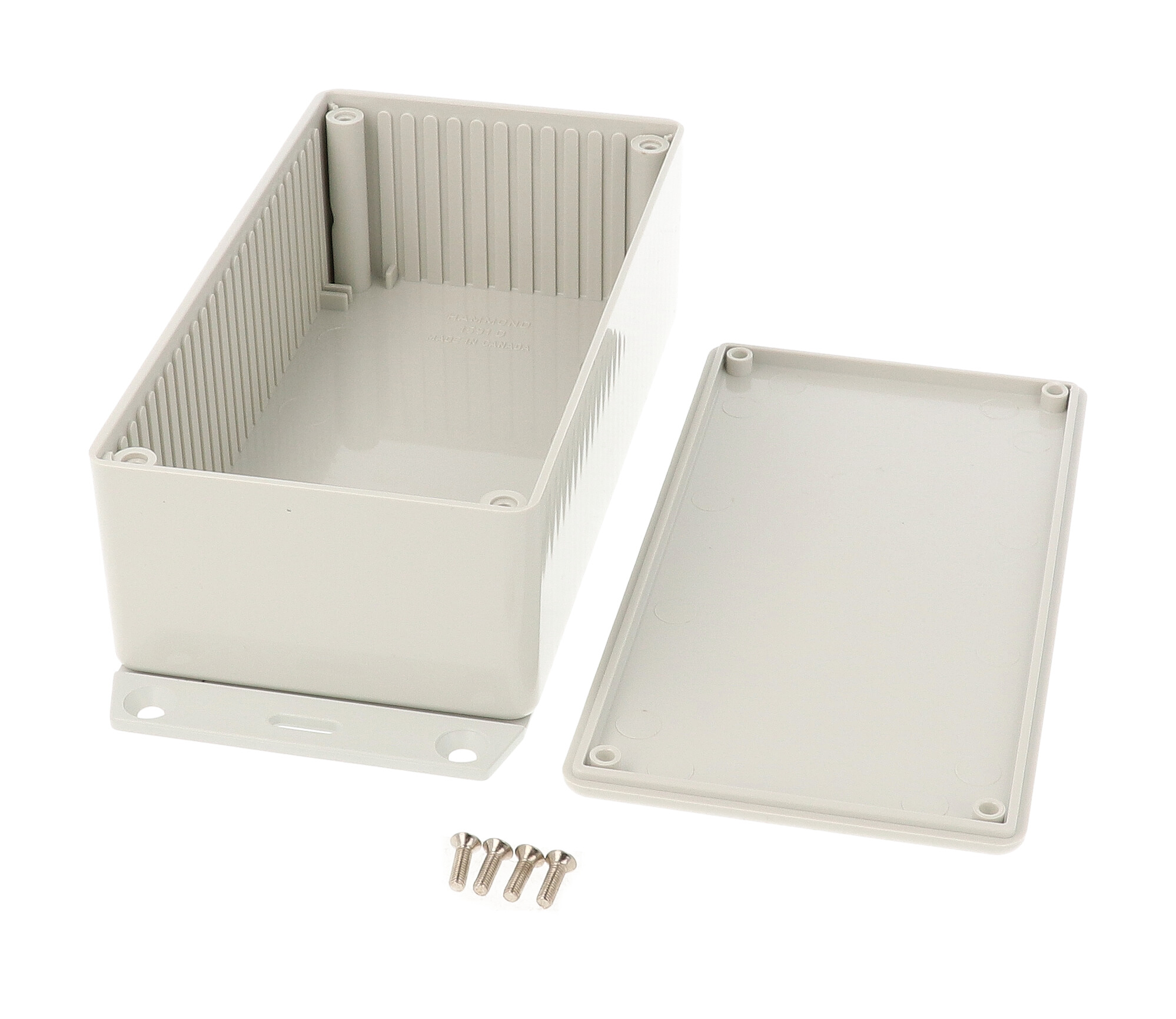

| Included | Box, lid, 4 cover screws and pre-installed brass inserts |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Color | Light Gray |
| Material | Flame retardant ABS (FRABS) |
| Construction | Lap joint construction |
| Screw Finish | Standard nickel finish screws (light gray enclosures) |
| Solid Models | Available in .stp or .x_t |
| Lid Fastening | 4 x M3-0.5 x 10 mm Phillips machine screws into pre-installed integral brass inserts |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Material (Part Page) | ABS Plastic |
| Replacement Lid Screws | M3-0.5 x 10 mm, 100 pack: 1591MS100 (silver/nickel plated), 1591MS100BK (black) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much room is inside the 1591DF2GY?▾
The drawing lists inside dimensions of 143.61 mm long, 73.61 mm wide and 46.10 mm high (5.654 x 2.898 x 1.815 in).
What screws hold the lid?▾
Four M3-0.5 x 10 mm Phillips machine screws thread into pre-installed brass inserts. Light gray enclosures include nickel finish screws; replacements are 1591MS100 (100 pack).
What is the IP rating?▾
The enclosure is designed to meet IP54.
Is there a clear lid option?▾
Yes. The 1591DC is a flame retardant polycarbonate clear lid (lid only) listed for the 1591D size.
What is the flammability rating?▾
UL94 V-0, as it is molded from flame retardant ABS.
