Hammond 1591LF2SBK Black Economy ABS Bottom Flange Box, 85x56x39 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black general purpose ABS, UL94 HB (not flame retardant)
- Bottom mounting flange, 110.20 mm [4.339 in] overall
- Compact 85 x 56 x 39 mm body
- IP54 lap joint construction
- Card guides for 1.5 mm (0.062") PCBs
- 4 black #4 self-tapping lid screws included

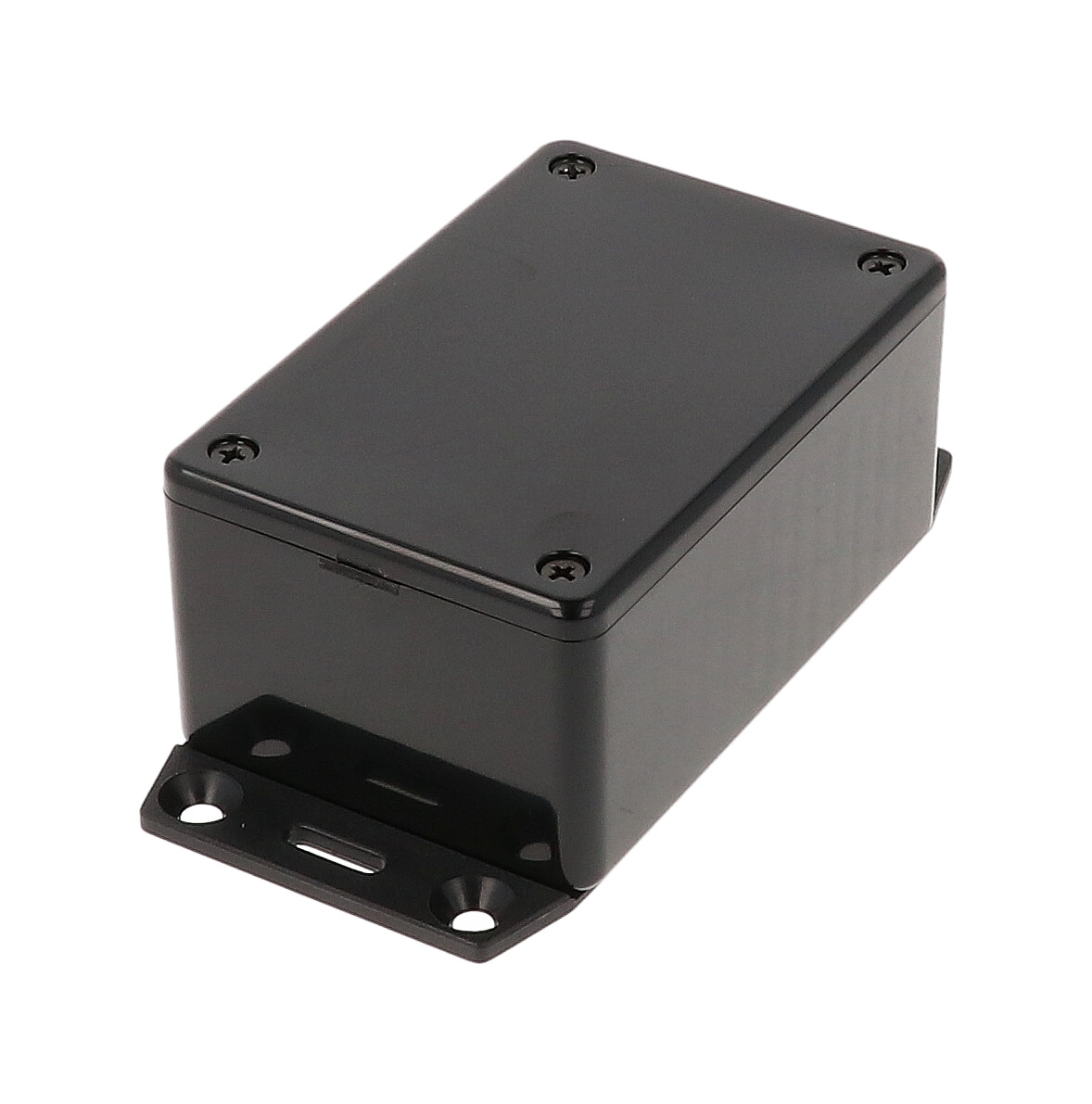

The 1591LF2SBK is a black general purpose ABS enclosure with a bottom mounting flange, based on the compact 1591L size of 3.35 x 2.2 x 1.54 in (85 x 56 x 39 mm). It is the economy choice for surface-mounted small electronics that do not require flame retardant plastic.
Molded from general purpose ABS (GPABS), it is not flame retardant and carries a UL94 HB rating. It retains the IP54 rating and lap joint construction of the series. The lid is assembled with #4 self-tapping screws into fully plastic posts, and black enclosures include black screws.
The 1591LF2S drawing shows 110.20 mm [4.339 in] overall length with flange and 40.60 mm [1.598 in] overall height. Inside space is 78.71 x 51.71 x 34.90 mm [3.099 x 2.036 x 1.374 in], and card guides molded into all side walls accept 1.5 mm (0.062") boards.

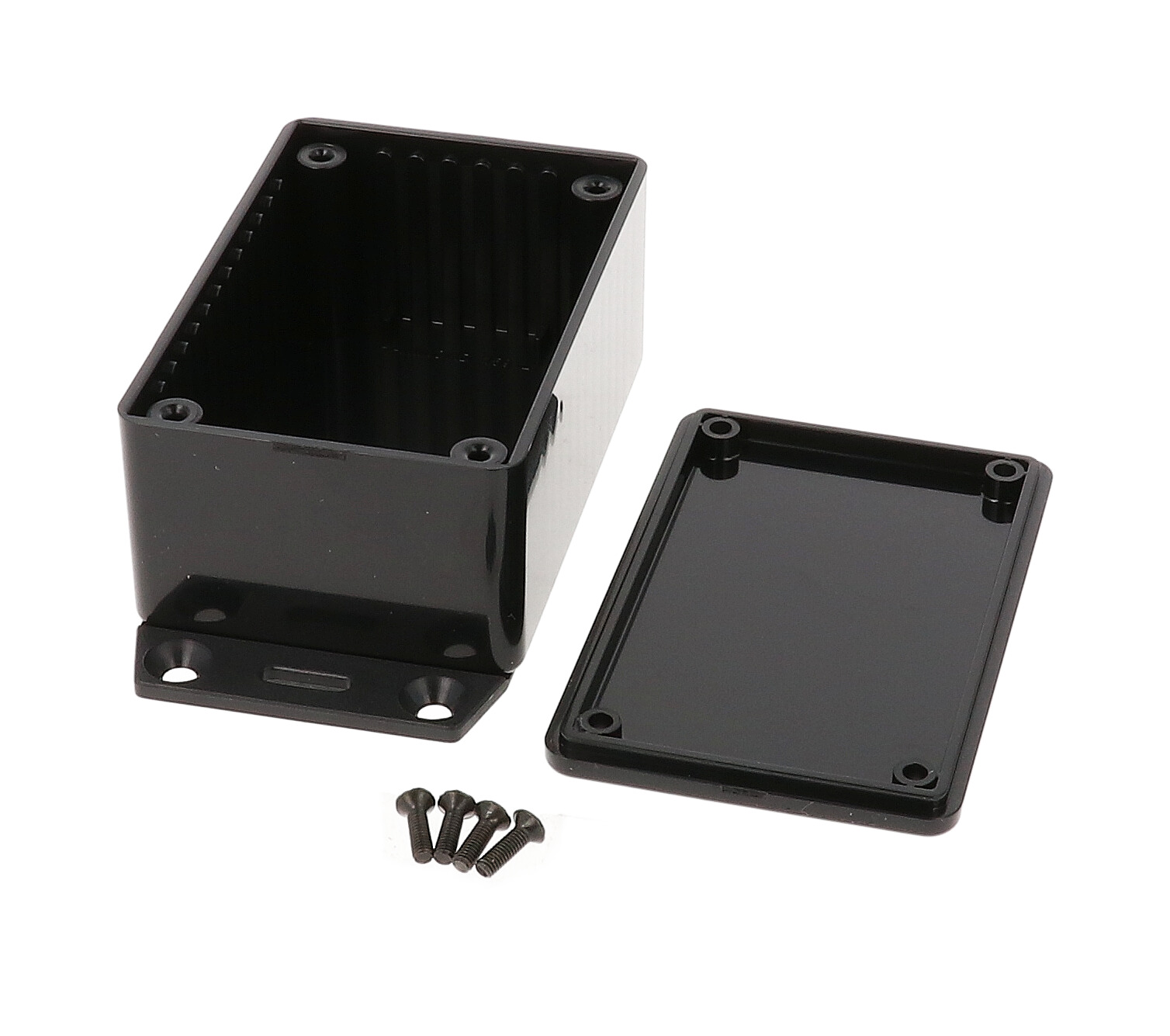

The 1591LF2SBK includes box, lid and 4 cover screws; recommended torque is 42-57 ozf.in (30-40 cN.m). Replacement #4 x 1/2" self-tapping screws are 1591TS100BK in packs of 100. It weighs 0.15 lbs (0.07 kg), ships in shrink wrap and is RoHS and REACH compliant.
Ideal For
- Economy flanged housings for small electronics
- Surface-mounted sensor modules
- Prototype fixtures
- Low-voltage interface boxes
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw | #4 x 1/2" self-tapping screw |
| Screw Finish | Black enclosures include black screws |
| Clear Lid Accessory | 1591LC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591TS100 (silver / nickel plated) or 1591TS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591LF2SBK |
| Mounting Flange | Bottom flange (accessory flange attached to the bottom) |
| Product Description | enclosure - plastic |
| Ordering Table Version | General Purpose ABS, Bottom Flange, Black (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591L GPABS WITH FLANGE |
Dimensions
| Inside Width | 51.71 mm [2.036 in] |
| Inside Height | 34.90 mm [1.374 in] |
| Inside Length | 78.71 mm [3.099 in] |
| Size L X W X H | 3.35 in x 2.2 in x 1.54 in (85 mm x 56 mm x 39 mm) |
| Nominal Size - Depth | 1.54 in (39 mm) |
| Nominal Size - Width | 2.20 in (56 mm) |
| Body Length (Drawing) | 85.00 mm [3.346 in] |
| Nominal Size - Length | 3.35 in (85 mm) |
| Overall Width (Drawing) | 56.00 mm [2.205 in] |
| Overall Height (Drawing) | 40.60 mm [1.598 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 110.20 mm [4.339 in] |
Identifiers
| UPC | 623980136967 |
| UNSPSC | 39121301 |
| Drawing | 1591LF2S, REV: 07.01.2020 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 29.90 mm [1.177 in] |
| Card Guide Slot Width | 2.09 mm [.082 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Drawing Material Note | Enclosure made from GPABS. |
| Material Grade (Drawing) | General purpose ABS (GPABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardancy | General purpose plastic, not flame retardant |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591LF2SBK flame retardant?▾
No. It is the general purpose (economy) version, UL94 HB. The flame retardant equivalent is 1591LF2BK.
What screws does it use?▾
#4 x 1/2" self-tapping screws into plastic posts; 4 are included.
What is the recommended torque?▾
42-57 ozf.in (30-40 cN.m).
How long is it with the flange?▾
110.20 mm [4.339 in].
Is it IP54?▾
Yes, it is rated IP54.
