Hammond 1591LSGY 85x56x39mm Gray General-Purpose ABS Card-Guide Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Molded card guides in all side walls accept 1.5 mm (0.062 in) PC boards for vertical mounting
- Nominal 85 x 56 x 39 mm (3.35 x 2.2 x 1.54 in) light gray ABS enclosure
- General purpose ABS, UL94 HB (not flame retardant)
- Lap joint construction, designed to meet IP54 against dust and splashing water
- Lid secured by #4 self-tapping screws into plastic posts
- Inside dimensions 78.71 mm x 51.71 mm x 34.90 mm

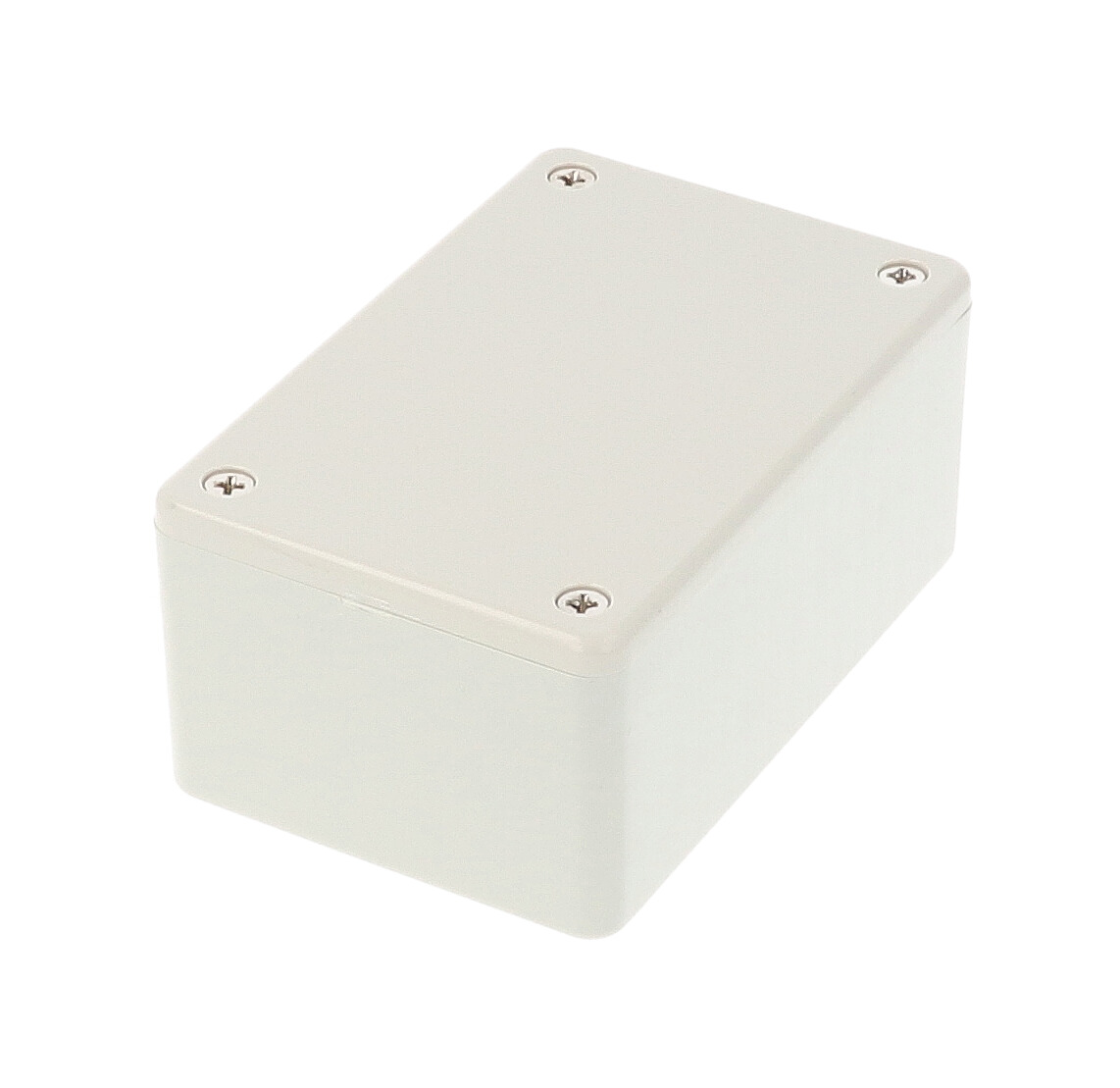

The 1591LSGY is a light gray 1591L plastic project box without mounting flanges, offering the deeper 39 mm body height of the 85 x 56 mm footprint. Card guides molded into all four side walls accept 1.5 mm (0.062 in) printed circuit boards, making it a natural fit for engineers and hobbyists who mount a board vertically inside a small handheld or bench enclosure.
This is the economy version, molded from general purpose ABS rated UL94 HB and not flame retardant. It keeps the lap joint box-to-lid construction that guards against dust and splashing water and is designed to meet IP54. The lid is secured with self-tapping screws driven into fully plastic posts, and the light gray finish comes with nickel finish screws.
Nominal size is 3.35 in x 2.2 in x 1.54 in (85 mm x 56 mm x 39 mm). The drawing gives an inside length of 78.71 mm [3.099 in], inside width of 51.71 mm [2.036 in] and inside height of 34.90 mm [1.374 in], with a guide height of 29.90 mm [1.177 in] and a slot width of 2.09 mm [.082 in].

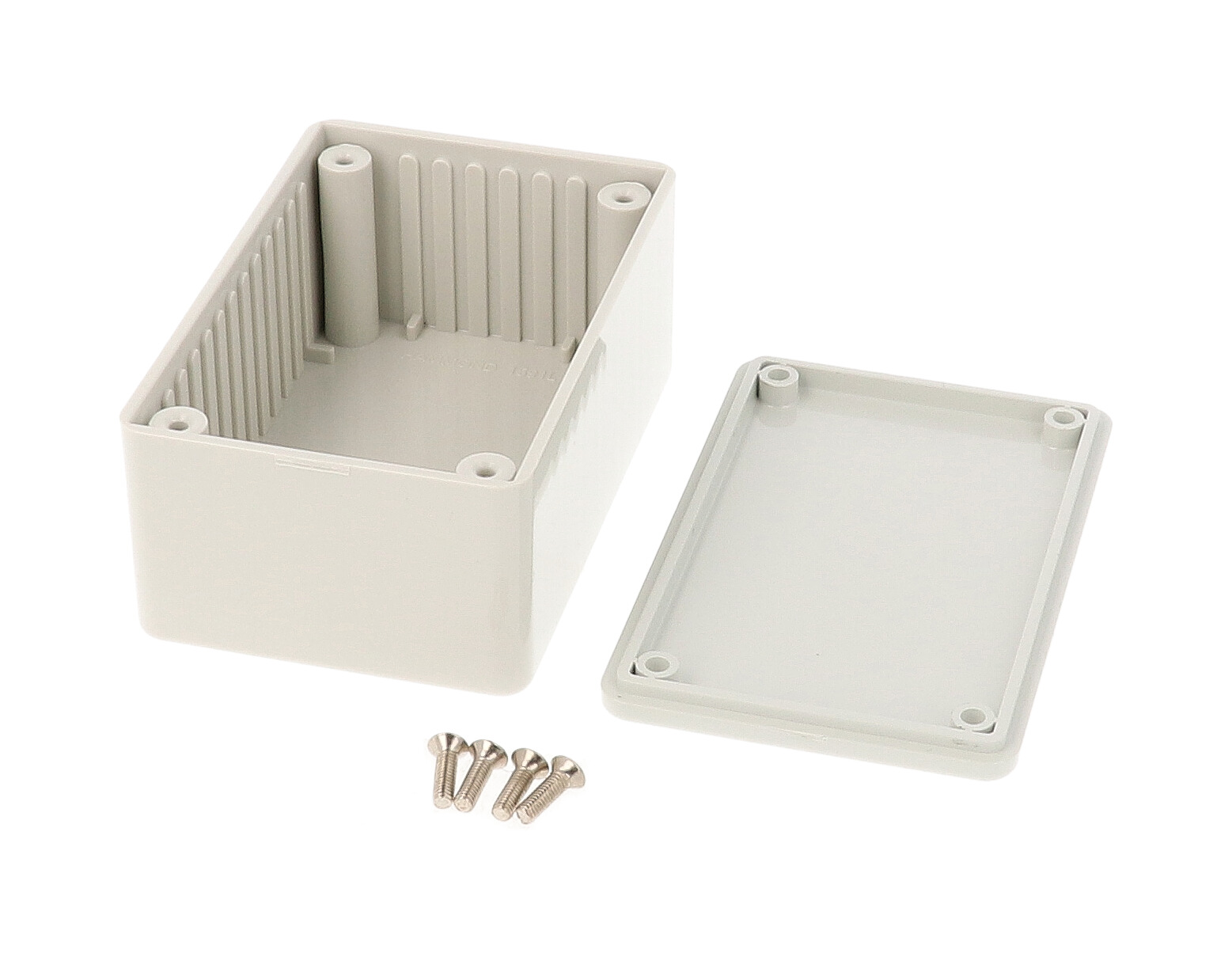

Each 1591LSGY assembly includes the box, lid and 4 cover screws; recommended cover screw torque is 42-57 ozf.in (30-40 cN.m). Shipping weight is 0.12 lbs (0.05 kg), and the part is RoHS and REACH compliant. For horizontal board mounting, 1591Z card adaptors are offered.
Ideal For
- Housing a vertically mounted printed circuit board
- Small project box for prototypes and hobby electronics
- Electronic assemblies needing IP54 dust and splash protection
- Cost-sensitive general purpose electronic enclosures
- Handheld devices with the optional nylon belt / pocket clip
Overview
| Type | project box, general purpose |
| Series | 1591 Series ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Version | Economy (general purpose ABS, not flame retardant) |
| Ordering Table | Enclosures Without Mounting Flanges |
| Long Description | enclosure - plastic |
| Short Description | GPABS ENCLOSURE |
Dimensions
| Inside Width | 51.71 mm [2.036 in] |
| Inside Height | 34.90 mm [1.374 in] |
| Inside Length | 78.71 mm [3.099 in] |
| Box Width (Drawing) | 56.00 mm [2.205 in] |
| Box Height (Drawing) | 39.10 mm [1.539 in] |
| Box Length (Drawing) | 85.00 mm [3.346 in] |
| Nominal Size (L X W X H) | 3.35 in x 2.2 in x 1.54 in (85 mm x 56 mm x 39 mm) |
| Nominal Depth (Ordering Table) | 1.54 in (39 mm) |
| Nominal Width (Ordering Table) | 2.20 in (56 mm) |
| Nominal Length (Ordering Table) | 3.35 in (85 mm) |
Accessories
| Clear Lid (Drawing) | 1591LC, flame retardant polycarbonate, lid only |
| Nylon Belt / Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Replacement Cover Screws | #4 x 1/2 in self-tapping, 100 pkg: 1591TS100 (silver / nickel plated), 1591TS100BK (black) |
| Clear Lid Accessory (Ordering Table) | 1591LC |
Identifiers
| UPC | 623980137247 |
| UNSPSC | 39121301 |
| Part Number | 1591LSGY |
PCB Mounting
| Slot Width | 2.09 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062 in) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.00 mm [.118 in] |
| Guide Height | 29.90 mm [1.177 in] |
| Horizontal PCB Option | PC board card adaptors 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg), molded from flame retardant ABS |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Color | Light Gray |
| Included | Box, lid and 4 cover screws |
| Material | ABS Plastic |
| Construction | Lap joint construction |
| Screw Finish | Nickel finish screws |
| Solid Models | Available in .stp or .x_t |
| Lid Fastening | Self-tapping screws into fully plastic posts (box accepts #4 self-tapping screw) |
| Factory Modification | Milling, drilling, printing etc. available from the factory (modshop@hammfg.com) on quote |
| Enclosure Material (Drawing) | GPABS |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1591LSGY?▾
Nominal size is 3.35 in x 2.2 in x 1.54 in (85 mm x 56 mm x 39 mm). Inside dimensions are 78.71 mm [3.099 in] long, 51.71 mm [2.036 in] wide and 34.90 mm [1.374 in] high.
What thickness of PC board fits the card guides?▾
The card guides molded into all side walls accept 1.5 mm (0.062 in) thick boards. For horizontal mounting, 1591Z6, 1591Z50 and 1591Z100 card adaptors are available; their instructions recommend 1.5 mm - 1.75 mm PCB thickness.
Is this enclosure flame retardant?▾
No. This economy version is molded from general purpose ABS rated UL94 HB and is not flame retardant. Flame retardant UL94 V-0 versions are also offered in the 1591 series.
What is included and how is the lid fastened?▾
The assembly includes the box, lid and 4 cover screws. The lid fastens with #4 self-tapping screws into plastic posts; recommended torque is 42-57 ozf.in (30-40 cN.m).
What IP rating does it have?▾
It is designed to meet IP54, with lap joint construction protecting against access of dust and splashing water.
Are replacement screws available?▾
Yes. #4 x 1/2 in self-tapping lid screws come in packs of 100 as 1591TS100 (nickel plated) or 1591TS100BK (black).
